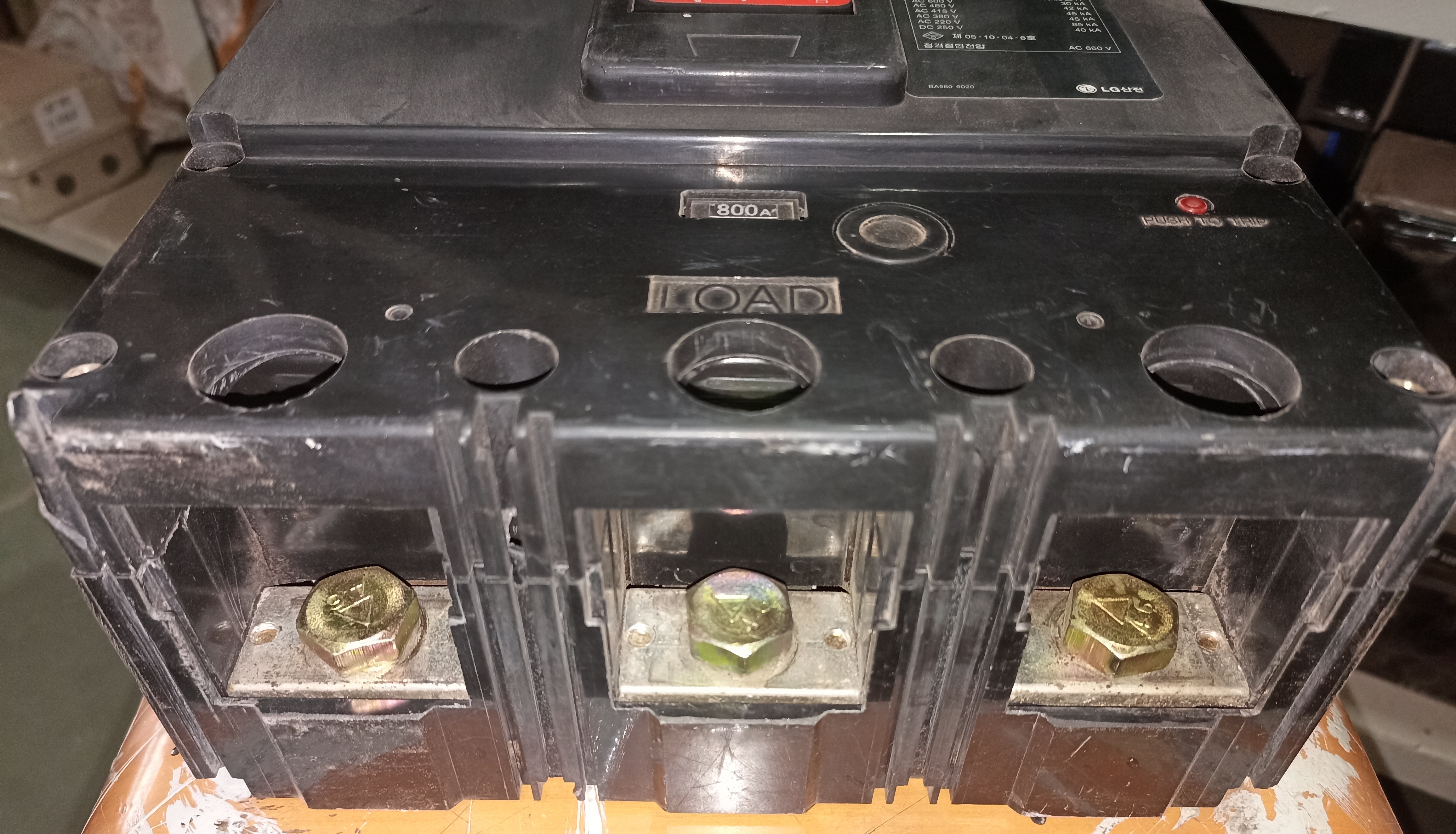

LG 800A 3P MCCB

Name: LG 800A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

LG 800A 3P MCCB Specification

Breaking Capacity
50 kA

Rated Short Circuit Breaking Current
50 kA (Icu)

Mechanical Life
10,000 Operations

Phase
Three Phase

Rated Short Circuit Making Current
80 kA (Icm)

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Overload & Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
800A

Rated Frequency
50/60 Hz

Curves
C Type

Temperature Protection
Integrated Thermal Protection

Weight
Approx. 10 kg

Color
Grey

Standards
IEC 60947-2

Electrical Life
2,000 Operations

Trip Unit Type
Thermal Magnetic

Mounting Position
Vertical/Horizontal

Utilization Category
AC-23

Degree of Protection
IP20

Terminal Connection Type
Lug/Busbar

Ambient Temperature Range
-5C to +40C

Insulation Voltage (Ui)
1000V

LG 800A 3P MCCB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About LG 800A 3P MCCB

LG 800A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

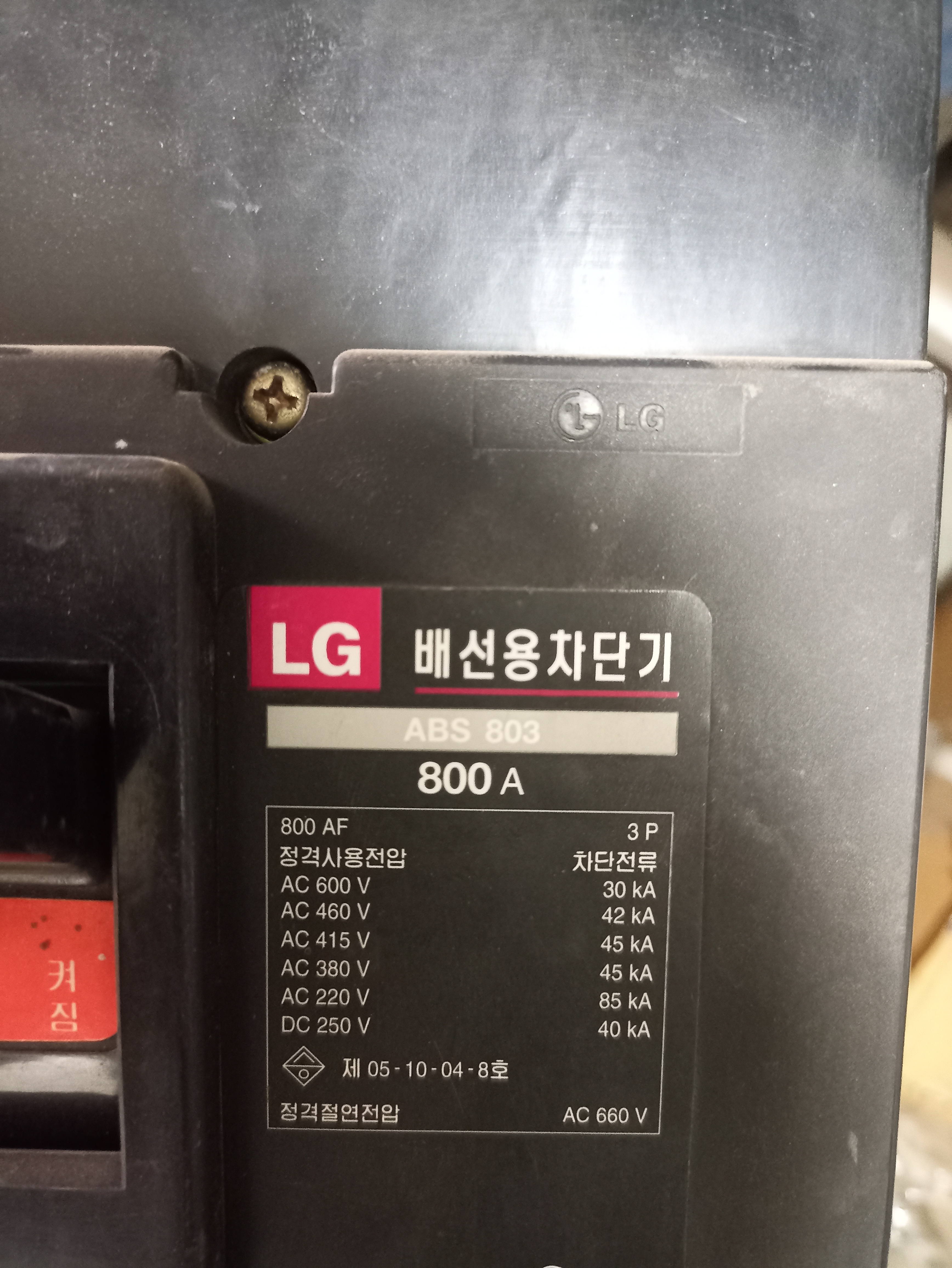

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- LG

Ampere :- 800A

Pole :- 3P

Condition :- Refurbished

Breaking Capacity :- 45 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

High Performance and Reliable Protection

Engineered for durability, the LG 800A 3P MCCB delivers superior overload and short circuit protection. With a breaking capacity of 50 kA and a rated current of 800A, it safeguards three-phase systems against electrical faults, ensuring operational continuity and equipment safety.

Versatile Installation and Connection Options

This MCCB supports flexible installation, enabling both vertical and horizontal mounting on panels. The terminal connections accommodate either lugs or busbars, granting adaptability for a variety of system configurations in industrial or commercial applications.

Compliant with International Standards

Manufactured in accordance with IEC 60947-2, the LG 800A 3P MCCB assures global safety and quality benchmarks. Its grey enclosure features IP20 protection, shielding the device from ingress and enhancing electrical safety in diverse environments.

FAQ's of LG 800A 3P MCCB:

Q: How does the LG 800A 3P MCCB provide protection in three-phase electrical systems?

A: The LG 800A 3P MCCB utilizes a thermal magnetic trip unit to detect and interrupt overloads or short circuits, safeguarding three-phase electrical installations from damage and ensuring reliable operation of connected equipment.

Q: What types of installations and connections are supported by this MCCB?

A: It supports both vertical and horizontal panel mounting and offers versatile connection options using lugs or busbars, allowing it to fit a wide range of industrial and commercial panel configurations.

Q: When should the LG 800A 3P MCCB be used?

A: This MCCB is ideal for use in industrial or commercial facilities requiring reliable protection for three-phase circuits rated up to 800A, particularly where high short circuit breaking capacities (up to 50 kA) are essential.

Q: Where can the LG 800A 3P MCCB be installed?

A: The breaker is designed for panel mounting in electrical distribution systems, and its ambient temperature range of -5C to +40C makes it suitable for most indoor environments.

Q: What is the process for replacing or installing the LG 800A 3P MCCB?

A: Installation involves securely mounting the device on a panel, connecting to system conductors via lugs or busbars, and ensuring all connections comply with safety and manufacturer guidelines. Replacement should only be done by qualified personnel.

Q: How does this MCCB benefit industrial electrical systems?

A: By providing robust overload and short circuit protection, as well as a high breaking capacity, the LG 800A 3P MCCB minimizes downtime, protects valuable equipment, and ensures personnel safety in demanding operational settings.
