HYUNDAI HiMC 22 CONTACTOR

Get a Price/Quote

HYUNDAI HiMC 22 CONTACTOR Specification

Connector Type
Screw Type

Operating Temperature
-5°C to +55°C

Insulation Material
Thermoplastic

Shape
Rectangular

Mounting Type
DIN Rail / Panel Mount

IP Rating
IP20

Feature
Durable, Reliable Operation

Surface Finish
Matte

Efficiency
High Efficiency

Humidity %
Max 85% non-condensing

Power Factor
0.8

Overheating Protection
Yes (With Thermal Overload Relay)

Product Type
Contactor

Application
Motor Control & Switching

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
220/240V AC

Energy Consumption
Low Power Consumption

Output Type
Switching

Color
Grey & Blue

Dimension (L*W*H)
66mm x 86mm x 90mm

Weight
340 g

Size
Standard (HiMC 22)

Phase
Three Phase

Input Voltage
220V AC

Material
High Grade Plastic and Metal

Connection Type
Screw Terminal

No Of Poles
3

Standards
IEC 60947-4-1

Auxiliary Contacts
1 NO + 1 NC

Shock Resistance
10g (operational)

Control Voltage Range
85% to 110% of rated voltage

Relay Type
Electromagnetic Contactor

Vibration Resistance
10~55Hz, 1.0mm amplitude

Storage Temperature
-30°C to +70°C

Mechanical Life
1,000,000 operations

Short Circuit Protection
Yes (With recommended fuse)

Coil Voltage
220V AC

Rated Current
22A

Contact Material
Silver Alloy

Electrical Life
500,000 operations

HYUNDAI HiMC 22 CONTACTOR Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About HYUNDAI HiMC 22 CONTACTOR

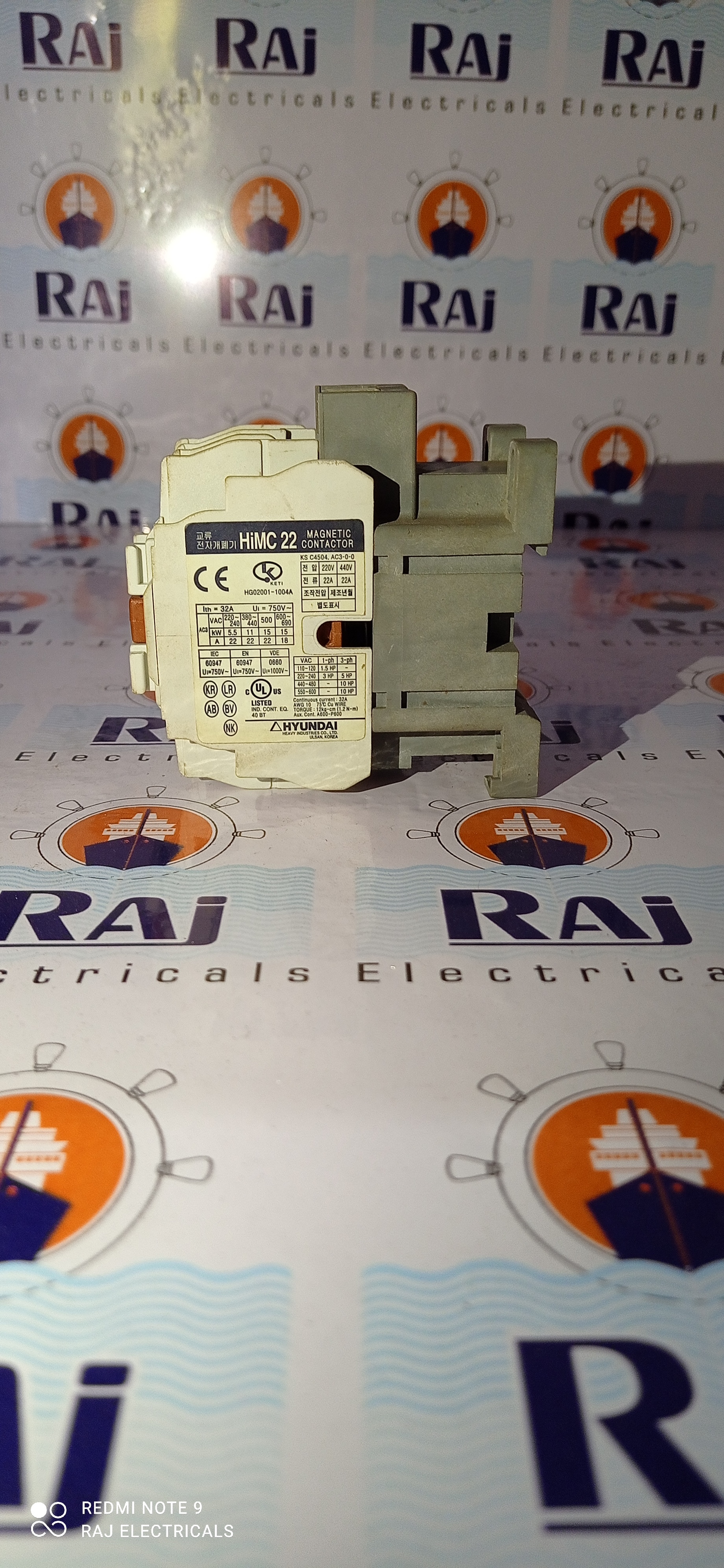

Hyundai HiMC 22 Contactor Available At Raj Electricals, Bhavngar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Brand :- Hyundai

Model :- HiMC 22

Type :- Magnetic Contactor

ITH :- 32A

UI :- 750V

Voltage :- 220/440V

Frequency :- 50 Hz /100V, 60 Hz / 100 - 110V

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Reliable Motor Control for Industrial Applications

Engineered to meet demanding motor control requirements, the HYUNDAI HiMC 22 Contactor is highly suited for use in manufacturing facilities, commercial buildings, and automation systems. Its silver alloy contacts and precise electromagnetic operation provide consistent switching performance, while IP20 protection and certified safety standards ensure peace of mind. The device's compact yet sturdy design supports both DIN rail and panel mounting, offering flexibility and dependability for installers and end users alike.

Enhanced Durability and Safety Features

The HiMC 22 stands out with its impressive mechanical life of one million operations and electrical life of 500,000 operations. Safety features such as short circuit and overheating protection work hand-in-hand with the recommended fusing and thermal overload relay to minimize risks. Constructed with high-grade thermoplastic and metal, this contactor resists environmental stresses like vibration, shock, and temperature variations, affirming its reliability in mission-critical settings.

FAQ's of HYUNDAI HiMC 22 CONTACTOR:

Q: How should the HYUNDAI HiMC 22 Contactor be installed for optimal performance?

A: The HiMC 22 Contactor can be mounted on a DIN rail or panel, according to your cabinet design. Ensure secure connection via the screw terminals and confirm that the control voltage and load parameters match the rated values. Installation should comply with the IEC 60947-4-1 standard for safety and operational integrity.

Q: What types of protection does the HYUNDAI HiMC 22 offer during operation?

A: This contactor offers both short circuit and overheating protection when used with the recommended fuse and a thermal overload relay. These features help prevent equipment damage, enhancing operational safety in motor control circuits.

Q: When is it appropriate to use this contactor in applications?

A: The HYUNDAI HiMC 22 is ideal for three-phase motor switching, industrial automation, and control panels where reliability and long service life are important. It is suitable for environments with temperatures from -5C to +55C and humidity up to 85% non-condensing.

Q: Where can I use the HYUNDAI HiMC 22 Contactor?

A: The contactor is suitable for use in manufacturing plants, process industries, commercial electrical panels, and any setting requiring motor control or power switching for three-phase systems. Its standard size fits most industrial control enclosures.

Q: What are the benefits of using silver alloy contacts in this contactor?

A: Silver alloy contacts deliver superior conductivity and resist contact wear, resulting in sustained low contact resistance and reliable long-term operation, even under frequent switching cycles.

Q: How does the control voltage range enhance operational flexibility?

A: With a control voltage range of 85% to 110% of the rated voltage (220V AC), the HiMC 22 accommodates voltage fluctuations, ensuring dependable activation even in less stable power environments.

Q: What processes are supported by the HiMC 22's auxiliary contacts?

A: The contactor includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact, enabling remote signaling, interlocking, or control logic integration, which is useful for building automated and interlocked electrical systems.
