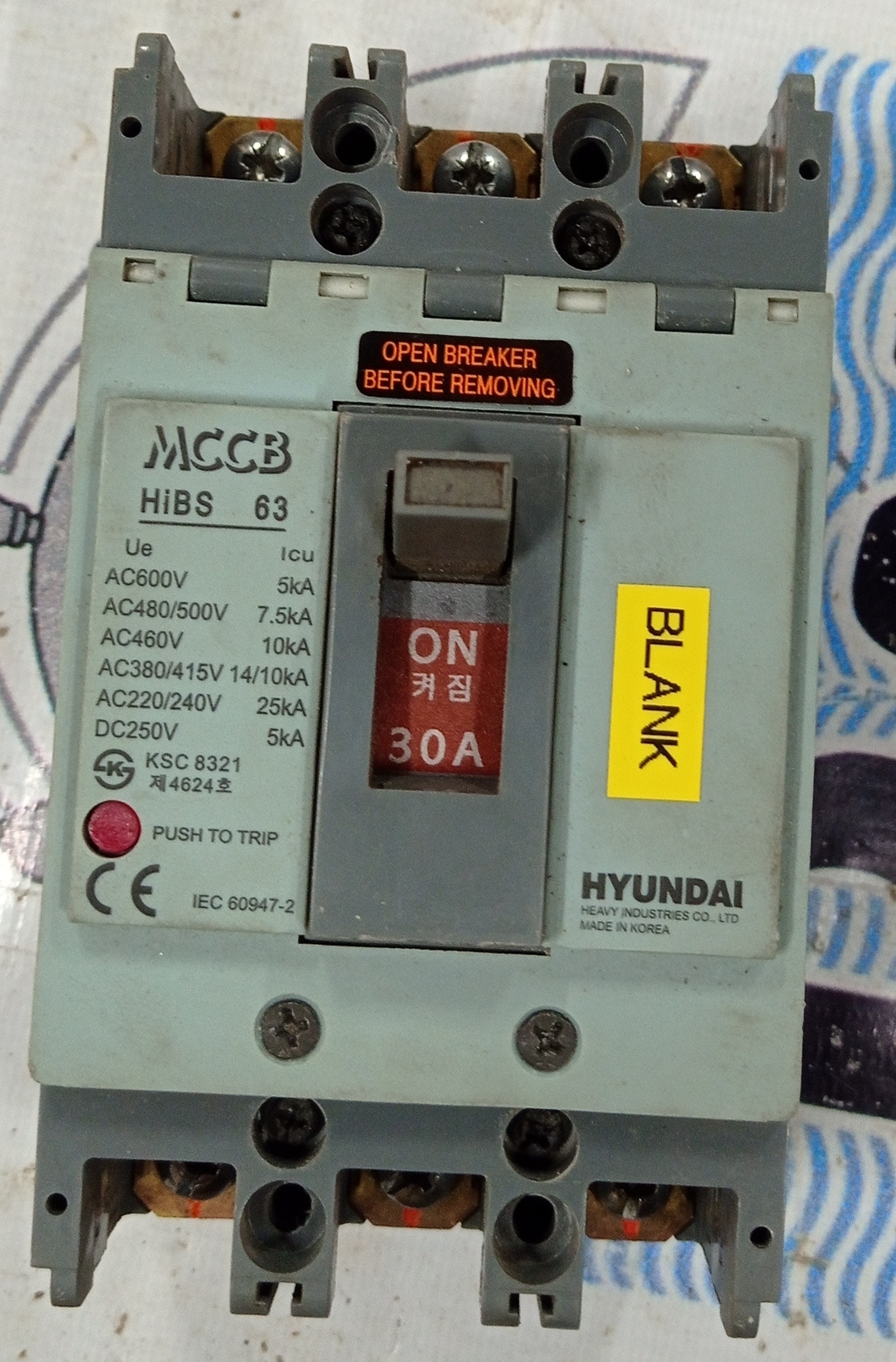

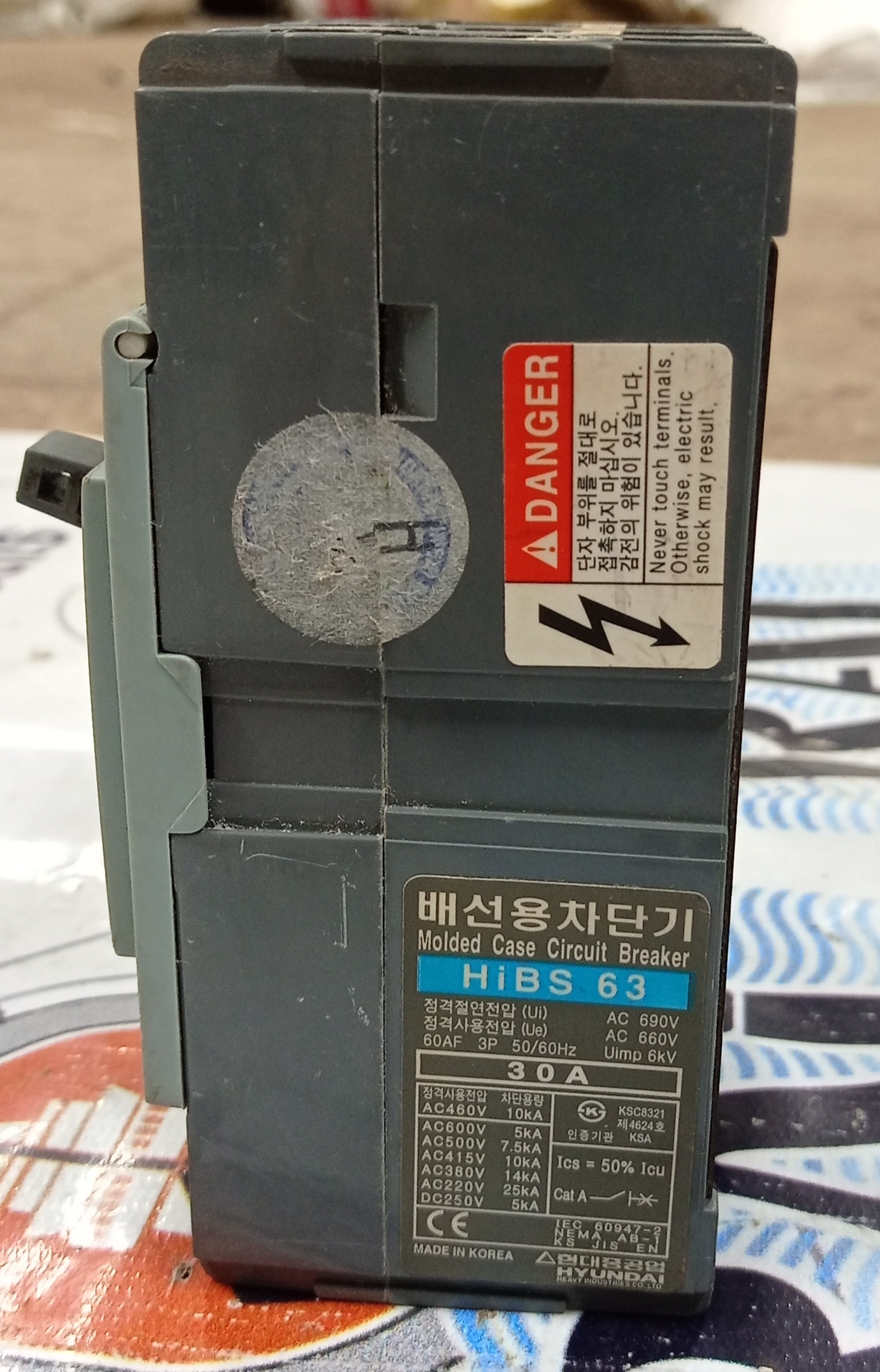

HYUNDAI (HiBS 63) 30A 3P MCCB

Get a Price/Quote

MOQ : 10 Pieces

HYUNDAI (HiBS 63) 30A 3P MCCB Specification

Rated Short Circuit Breaking Current
36 kA

Mechanical Life
10,000 operations

Phase
Three Phase

Breaking Capacity
36 kA

Rated Short Circuit Making Current
45 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting / DIN Rail Mounting

Function
Overcurrent and short-circuit protection

Poles Number
3P

Rated Voltage
AC 690V

Rated Current
30A

Rated Frequency
50/60 Hz

Curves
C-Curve

Temperature Protection
Yes, thermal and magnetic protection

Weight
Approx. 0.7 kg

Color
Black & Grey

Operating Temperature Range
-10C to +60C

Trip Type
Thermal-Magnetic

Tightening Torque
2.5 to 3.5 Nm

Frame Size
63A

Ambient Humidity
95%

Standards Compliance
IEC 60947-2

Degree of Protection
IP20 (Front)

Rated Impulse Withstand Voltage (Uimp)
8kV

Terminal Type
Screw Terminals

Rated Insulation Voltage (Ui)
800V AC

Utilization Category
A

HYUNDAI (HiBS 63) 30A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About HYUNDAI (HiBS 63) 30A 3P MCCB

HYUNDAI (HiBS 63) 30A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Hyundai

Ampere :- 30A

Pole :- 3P

Model :- HiBS 63

Condition :- Refurbished

Breaking Capacity :- 10 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Exceptional Protection and Reliability

Engineered with a rated short-circuit breaking current of 36kA, the HYUNDAI (HiBS 63) MCCB delivers dependable security against electrical faults. Its combination of thermal and magnetic protection ensures fast and accurate tripping, safeguarding valuable equipment. The black and grey finish offers durability suited for demanding installation environments.

Flexible Installation and Operation

This MCCB accommodates both panel mounting and DIN rail setups, providing versatility for diverse application needs. The screw-type terminals, utilizing a tightening torque of 2.5 to 3.5 Nm, make wiring secure and efficient. Its ambient operating temperature of -10C to +60C and 95% humidity tolerance ensure dependable performance in harsh settings.

Built for Compliance and Performance

Conforming to IEC 60947-2, the HiBS 63 series meets stringent global standards. Its rated insulation voltage of 800V AC and impulse withstand voltage of 8kV ensure robust insulation and operational safety. With a three-phase, C-curve design, it is tailored for effective protection in industrial applications with consistent reliability.

FAQ's of HYUNDAI (HiBS 63) 30A 3P MCCB:

Q: How is the HYUNDAI (HiBS 63) 30A 3P MCCB installed?

A: The MCCB supports both panel mounting and DIN rail installation, allowing easy adaptation to various electrical distribution setups. Secure the unit using the appropriate method, connect the wiring to the screw terminals, and ensure a tightening torque between 2.5 and 3.5 Nm for a reliable connection.

Q: What types of protection does this MCCB provide?

A: The HYUNDAI (HiBS 63) MCCB offers both thermal and magnetic trip protection. The thermal element safeguards against prolonged overcurrent, while the magnetic component reacts rapidly to short-circuit events, ensuring swift isolation of faults.

Q: When is this MCCB most suitable for use?

A: It is ideally suited for three-phase electrical systems in industrial, commercial, and infrastructure settings where robust overcurrent and short-circuit protection is required. It supports rated voltages up to AC 690V and can handle breaking currents up to 36kA.

Q: Where can this MCCB operate effectively?

A: Thanks to its wide operating temperature range (-10C to +60C) and high ambient humidity tolerance (up to 95%), this MCCB is suitable for challenging environments including factories, commercial buildings, and service installations in India and abroad.

Q: What are the main benefits of using this MCCB?

A: The MCCB provides high breaking capacity, compliance with international safety standards, long mechanical life, and reliable circuit protection. Its flexible installation options and rugged design minimize downtime and protect equipment investments.

Q: How does the C-curve characteristic benefit users?

A: A C-curve MCCB trips quickly under moderate surges (5-10 times rated current), making it suitable for most general-purpose load applications, including lighting, small motors, and distribution boards.
