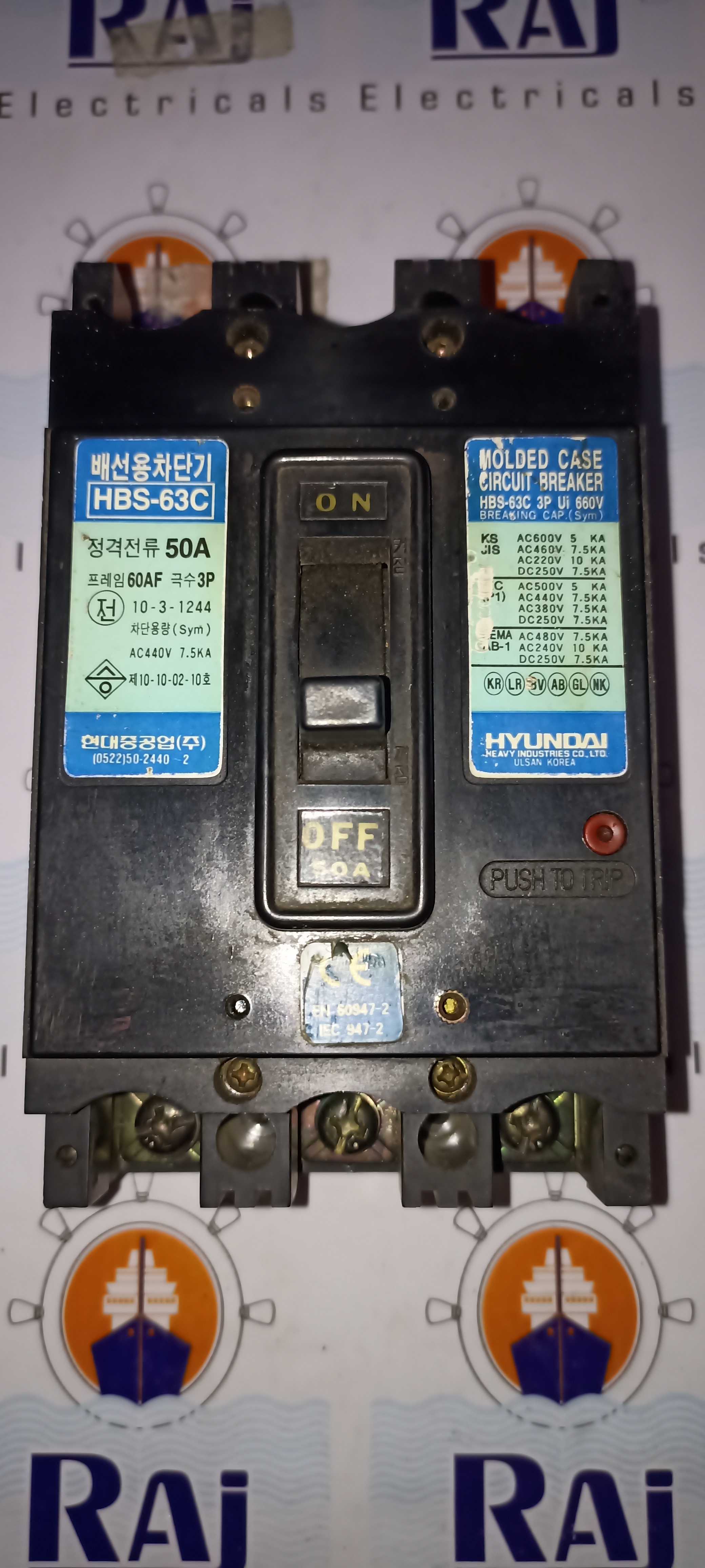

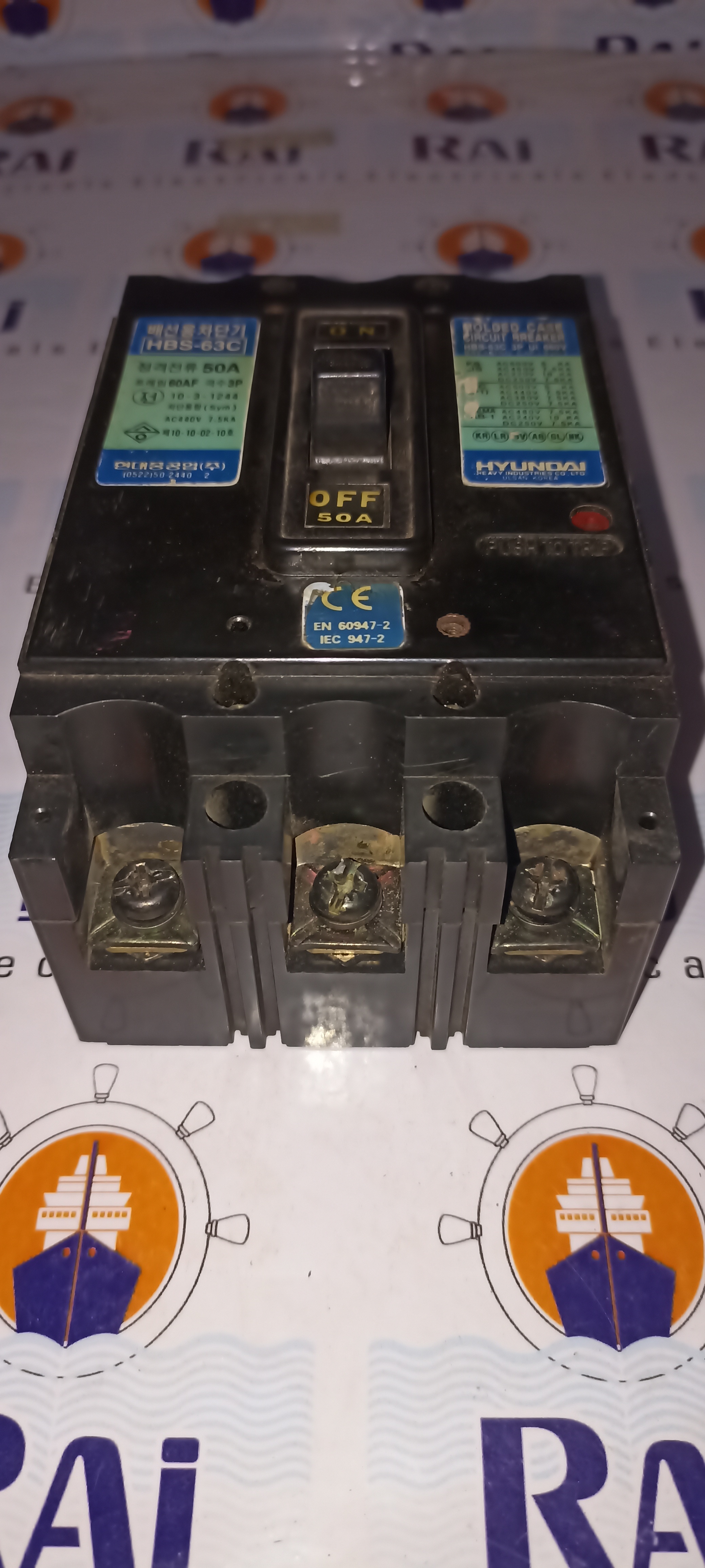

HYUNDAI (HBS-63C) 50A 3P MCCB

Name: HYUNDAI (HBS-63C) 50A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

HYUNDAI (HBS-63C) 50A 3P MCCB Specification

Rated Short Circuit Making Current
Up to 36 kA

Phase
Three Phase

Breaking Capacity
36 kA

Mechanical Life
10,000 operations

Rated Short Circuit Breaking Current
36 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail / Panel Mounting

Function
Circuit Protection

Poles Number
3P

Rated Voltage
415V AC

Rated Current
50A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Yes, Thermal & Magnetic Trip

Weight
Approx. 1.2 kg

Color
Grey

Model Number
HBS-63C

Operating Temperature Range
-5C to +40C

Insulation Voltage (Ui)
690V

Trip Unit Type
Fixed Thermal/Magnetic

Terminal Connection Type
Lug/Busbar

Standards Compliance
IEC 60947-2

Mounting Orientation
Vertical/Horizontal

Degree of Protection
IP20 (Terminals), IP40 (Enclosure)

About HYUNDAI (HBS-63C) 50A 3P MCCB

Raj Electricals Offering HYUNDAI (HBS-63C) 50A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- HYUNDAI

Ampere :- 50A

Pole :- 3P

Model :- HBS-63C

Condition :- Refurbished

Breaking Capacity :- 7.5 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Circuit Protection

Equipped with fixed thermal and magnetic trip units, the HYUNDAI HBS-63C provides simultaneous protection against overloads and short circuits. Its C Curve characteristic optimally responds to surges and faults, thus safeguarding valuable equipment and infrastructure from damage.

Versatile Installation Options

The MCCB supports both DIN rail and panel mounting, offering flexibility for installation in varying setups. It accommodates lug or busbar connections and can be oriented vertically or horizontally, making it adaptable for new and retrofit projects.

Engineered for Safety and Reliability

Certified under IEC 60947-2, the unit provides reliable functionality across an operating temperature range of -5C to +40C. Its enclosure achieves IP40, and its terminals offer protection up to IP20, ensuring dependable operation even in demanding environments.

FAQ's of HYUNDAI (HBS-63C) 50A 3P MCCB:

Q: How does the HYUNDAI HBS-63C MCCB protect electrical circuits?

A: The HYUNDAI HBS-63C MCCB uses a combination of thermal and magnetic trip mechanisms to protect against overloads and short circuits. The thermal trip responds to prolonged overcurrent, while the magnetic trip instantly disconnects during sudden faults.

Q: What are the main benefits of choosing the HBS-63C MCCB for commercial or industrial applications?

A: Its high breaking capacity of 36 kA, robust build, and compliance with IEC 60947-2 make the HBS-63C ideal for demanding environments. It minimizes downtime and equipment damage, ensuring long-lasting reliability and safety.

Q: When should I use the HYUNDAI HBS-63C instead of a standard MCB?

A: The HBS-63C MCCB is recommended when higher current ratings (up to 50A) and significant short-circuit protection (36 kA) are required, typically in large commercial or industrial installations where standard MCBs may not suffice.

Q: Where can the HYUNDAI HBS-63C MCCB be installed?

A: This MCCB can be installed in panels or distribution boards using either DIN rail or direct panel mounting. Its ability to be oriented vertically or horizontally allows for use in various layouts and configurations.

Q: What is the connection process for terminal wiring on this MCCB?

A: The HBS-63C supports both lug and busbar terminal connections. Ensure power is isolated, then securely connect the appropriate cables or busbars to the MCCB terminals according to installation guidelines.

Q: How is the MCCB's mechanical life measured, and what does it mean for users?

A: With a mechanical life of 10,000 operations, the MCCB is engineered for durability, meaning it can be switched on and off repeatedly under normal conditions without significant wear, thus ensuring prolonged, reliable protection.
