SIEMENS (3VT2) 100A 3P MCCB

Name: SIEMENS (3VT2) 100A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 3 Pieces

SIEMENS (3VT2) 100A 3P MCCB Specification

Mechanical Life
Up to 10,000 operations

Phase
Three Phase

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
36 kA (at 415V AC)

Rated Short Circuit Making Current
72 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounted / Fixed

Function
Overcurrent and Short Circuit Protection

Poles Number
3 Pole

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Thermal and Magnetic Release

Weight
Approx. 1.5 kg

Color
Grey/Black

Trip Type
Thermal-Magnetic

Operating Temperature
-25C to +70C

Degree of Protection
IP20

Min-Max Cable Size
16-50mm2

Accessories
Auxiliary contacts, Alarm switch (Optional)

Rated Impulse Withstand Voltage (Uimp)
8kV

Frame Size
100A Frame

Terminal Type
Box Terminals

Rated Insulation Voltage (Ui)
690V

Adjustment Range
0.8 to 1 x In (Thermal) / 5 to 10 x In (Magnetic)

Dimensions (W x H x D)
Approx. 76mm x 163mm x 70mm

Operating Voltage Range
AC 220-690V

Mounting Orientation
Any position

Utilization Category
A

SIEMENS (3VT2) 100A 3P MCCB Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About SIEMENS (3VT2) 100A 3P MCCB

Raj Electricals Offering SIEMENS (3VT2) 100A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Siemens

Ampere :- 100A

Pole :- 3P

Model :- 3VT2

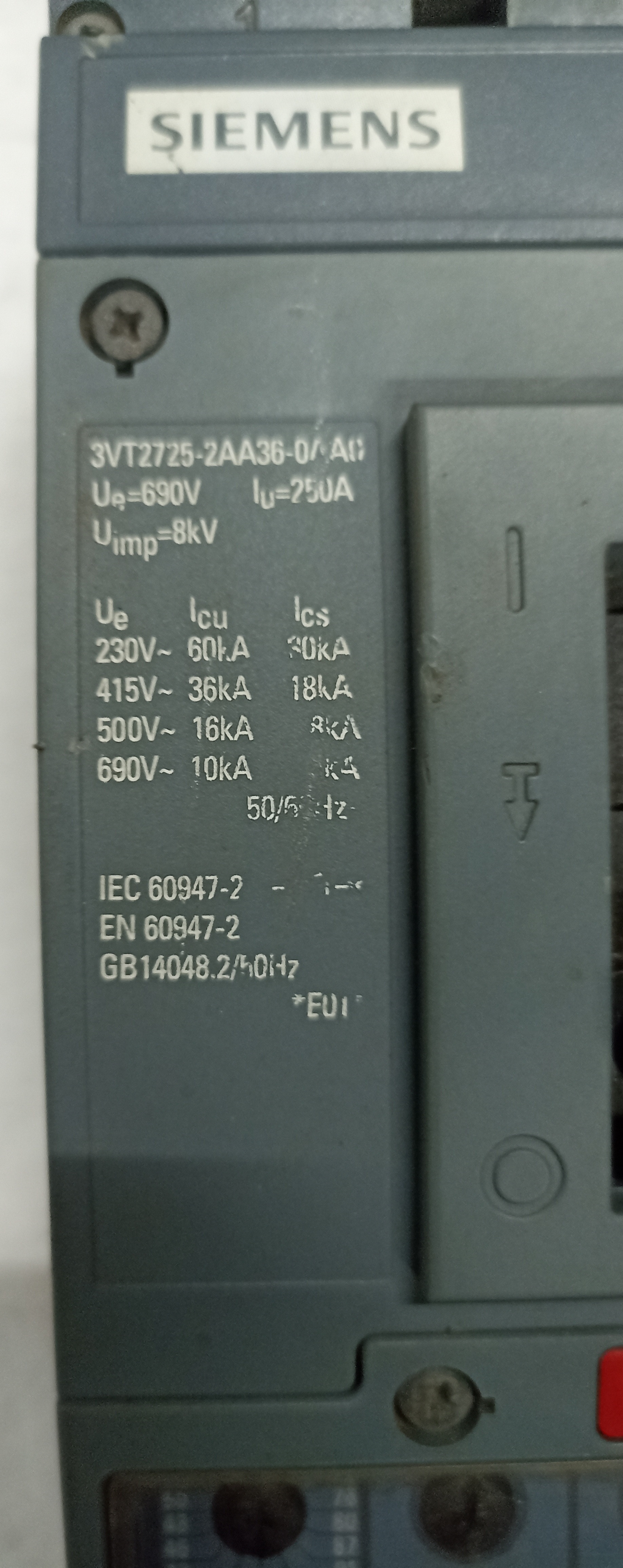

Model Number :- 3VT2725-2AA36-0AA0

Condition :- Refurbished

Breaking Capacity :- 36 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Protection and Flexibility

The SIEMENS 3VT2 100A 3P MCCB is designed to safeguard electrical circuits from overloads and short circuits with its thermal-magnetic trip unit, providing both adjustable thermal and magnetic release settings. Its ability to operate within a wide voltage and temperature range makes it suitable for diverse installation scenarios, ensuring maximum system protection and adaptability.

Robust Construction and Easy Installation

With a durable exterior and IP20 rated degree of protection, the MCCB resists dust and accidental contact, enhancing user safety. Box terminals support cable sizes from 16-50mm2, while its compact design and flexible panel mounting options facilitate quick and straightforward installation for installers and maintenance engineers.

Versatile and Reliable Performance

This circuit breaker suits three-phase applications and handles breaking capacities up to 36 kA at 415V AC. Engineered for up to 10,000 mechanical operations and supporting optional accessories like auxiliary contacts and alarm switches, the SIEMENS 3VT2 offers long-term reliability for critical power distribution systems.

FAQ's of SIEMENS (3VT2) 100A 3P MCCB:

Q: How do I properly install the SIEMENS 3VT2 100A 3P MCCB?

A: The 3VT2 MCCB allows for installation in any mounting orientation and is best suited for panel mounting. Ensure that cable sizes range from 16 to 50mm2, use the box terminals provided, and secure the device according to standard electrical installation procedures. Verify all connections to maintain safe, reliable operation.

Q: What type of protection does the 3VT2 100A MCCB provide?

A: This MCCB offers combined overcurrent and short-circuit protection using its thermal-magnetic trip mechanism. The adjustable settings (thermal: 0.8 to 1x In and magnetic: 5 to 10x In) enhance circuit safety under varying load and fault conditions.

Q: When should I consider using auxiliary contacts or alarm switches with this MCCB?

A: Auxiliary contacts and alarm switches are recommended if you need remote status monitoring or signaling capabilities. They are useful for integration into building management systems or to signal alarms in the event of a trip, improving maintenance response and system awareness.

Q: Where can this MCCB be used based on its specifications?

A: With its operating voltage range of AC 220-690V, rated for 415V AC, and robust temperature tolerance (-25C to +70C), this MCCB is ideal for industrial, commercial, and utility installations that demand high reliability across challenging environments.

Q: What are the benefits of choosing the 3VT2 100A 3P MCCB over other models?

A: Its high breaking capacity of 36 kA at 415V AC, flexibility in installation, adjustable protection settings, and long mechanical life (up to 10,000 operations) provide superior safety and reliability, making it a strong choice for critical electrical power distribution.

Q: How does the adjustment range enhance the MCCB's application?

A: The ability to set the thermal release between 0.8 to 1x In and the magnetic release between 5 to 10x In allows adaptation to specific feeder or equipment requirements, minimizing nuisance tripping while ensuring robust circuit protection.
