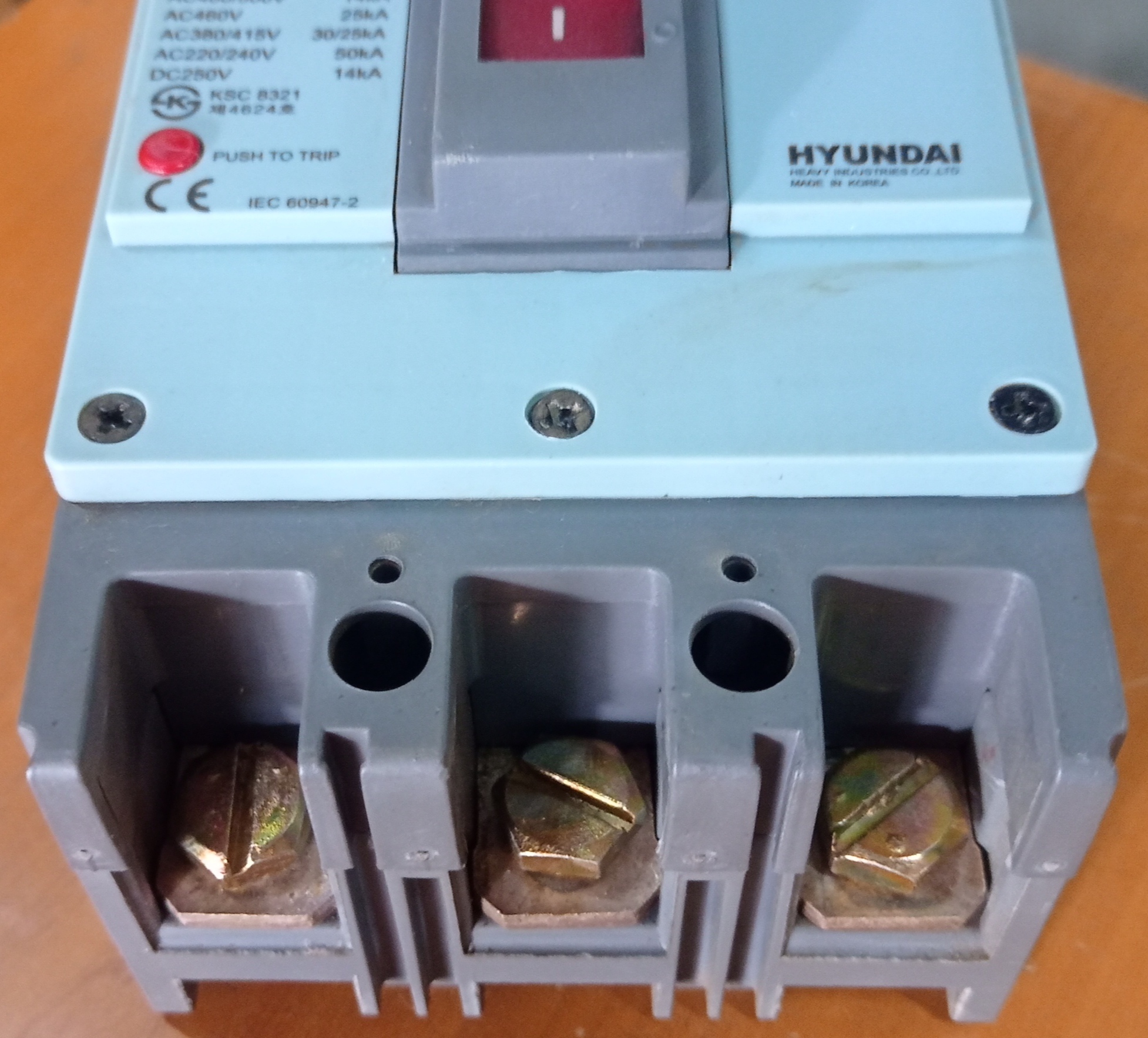

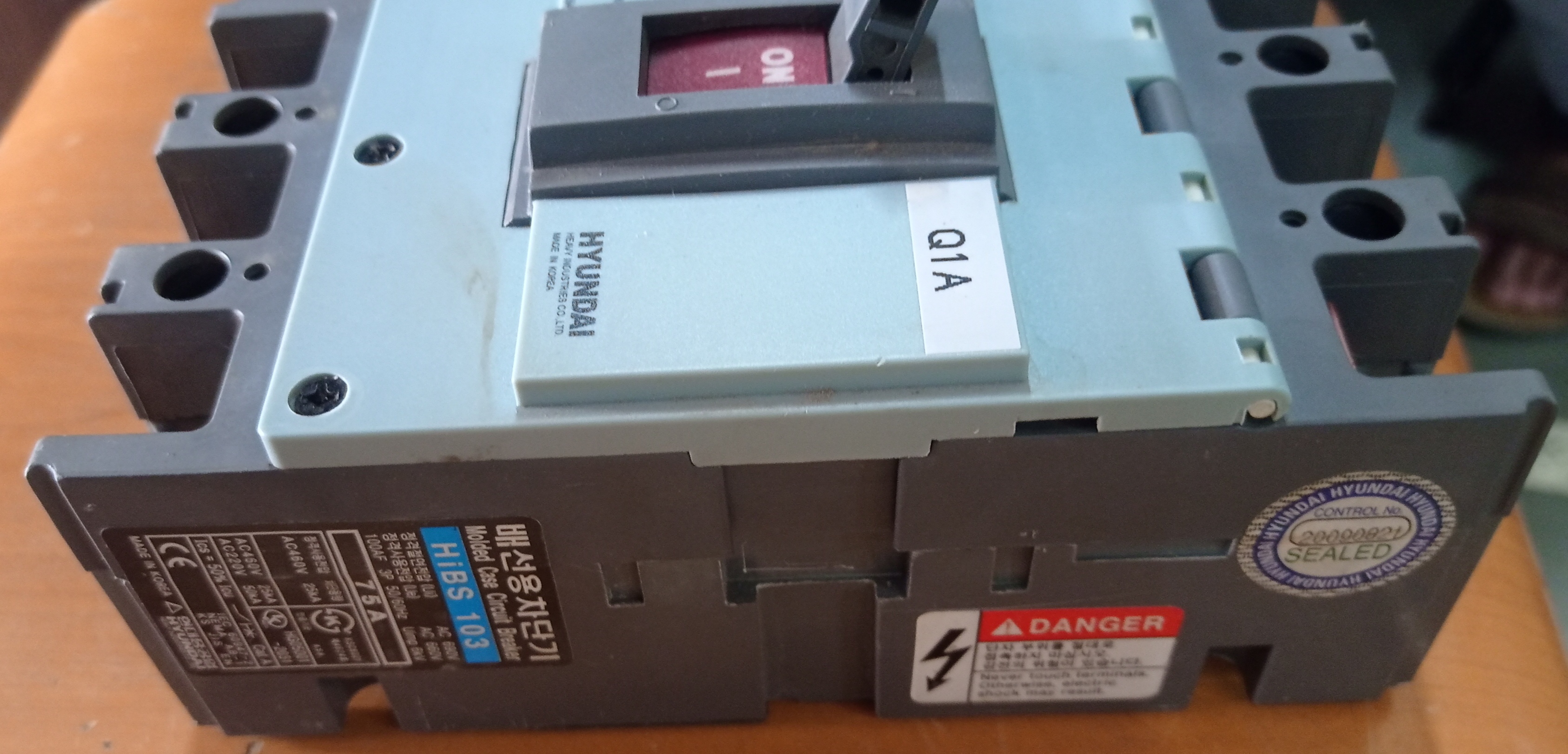

HYUNDAI 75A 3P MCCB

Get a Price/Quote

MOQ : 1 Number

HYUNDAI 75A 3P MCCB Specification

Phase
Three Phase

Rated Short Circuit Breaking Current
25 kA

Rated Short Circuit Making Current
36 kA

Breaking Capacity
25 kA @ 415V AC

Mechanical Life
10,000 operations minimum

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Circuit Protection, Overload & Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
75A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Thermal-Magnetic Trip

Weight
Approx. 2.1 kg

Color
Black & Grey

HYUNDAI 75A 3P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About HYUNDAI 75A 3P MCCB

HYUNDAI (HiBS 103) 75A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Brand :- Hyundai

Ampere :- 75A

Number Of Pole :- 3P

Model Number :- HiBS 103

Current Voltage :- 440V AC

Frequency :- 50 Hz.

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Thermal-Magnetic Trip Technology

The HYUNDAI 75A 3P MCCB utilizes advanced thermal-magnetic technology for precise and automatic response to both overloads and short circuits. This dual-protection system ensures immediate interruption during faults, minimizing damage and downtime while maintaining reliable operation under normal conditions.

Flexible Installation and Operation

Engineered for easy integration, this MCCB offers both vertical and horizontal mounting options, making it adaptable to various electrical panel designs. Rated at 415V AC and supporting 50/60 Hz, it is suitable for three-phase power systems in diverse indoor settings.

Safety, Durability, and Auxiliary Options

With an IP20 protection class, this circuit breaker is designed exclusively for indoor environments, safeguarding against accidental contact. The unit supports a high mechanical life of up to 10,000 operations, and auxiliary switches can be added upon request for enhanced monitoring and control.

FAQ's of HYUNDAI 75A 3P MCCB:

Q: How is the HYUNDAI 75A 3P MCCB installed in electrical panels?

A: The HYUNDAI 75A 3P MCCB is designed for panel mounting and supports both vertical and horizontal orientations, allowing flexible integration into new or existing three-phase electrical distribution systems.

Q: What are the key functions and benefits of the thermal-magnetic trip unit?

A: The thermal-magnetic trip unit provides automatic protection against overloads and short circuits. This immediate response reduces risks of electrical damage, ensuring enhanced safety and operational reliability for installations.

Q: When should I consider using an auxiliary switch with this MCCB?

A: An auxiliary switch can be requested for remote monitoring or control, making it beneficial in automated or centralized management systems where status indication or additional signaling is required.

Q: Where can this MCCB be used effectively?

A: The MCCB is suitable for indoor use only, with an IP20 enclosure protection class, making it ideal for commercial or industrial control panels that operate within a temperature range of -5C to +55C.

Q: What is the process for replacing or servicing this MCCB?

A: Servicing involves disconnecting the panel, ensuring no live operation, and unmounting the breaker. Follow the manufacturer's guidelines or consult a qualified electrician to maintain safety and compliance.

Q: What is the rated breaking capacity and what does it mean for protection?

A: With a breaking capacity of 25 kA at 415V AC, the MCCB can safely interrupt high fault currents, providing robust protection against severe short circuit incidents.

Q: How long is the expected mechanical lifespan of this MCCB?

A: The HYUNDAI 75A 3P MCCB is built for durability, offering a minimum mechanical life of 10,000 operations, ensuring reliable performance over prolonged use.
