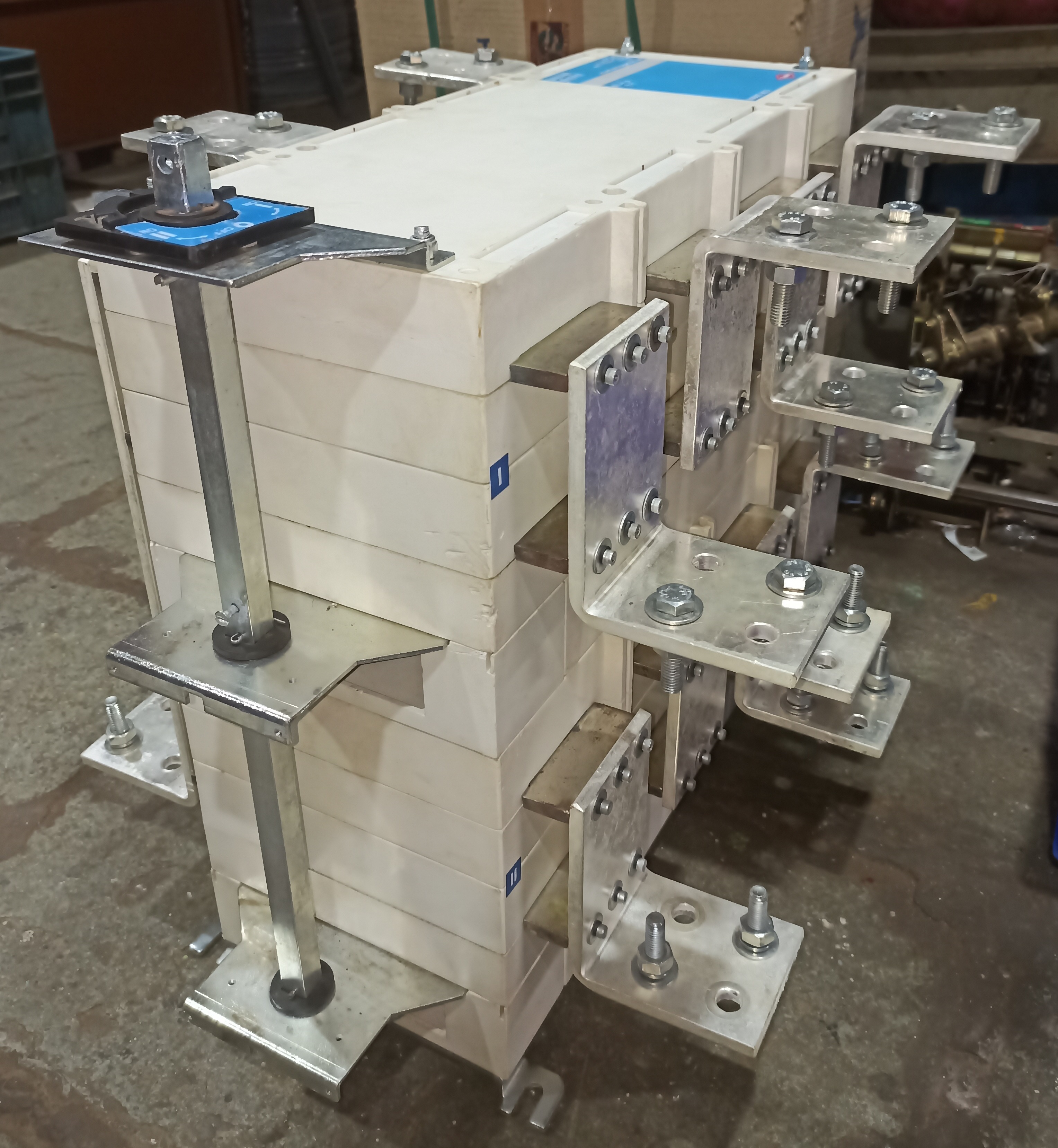

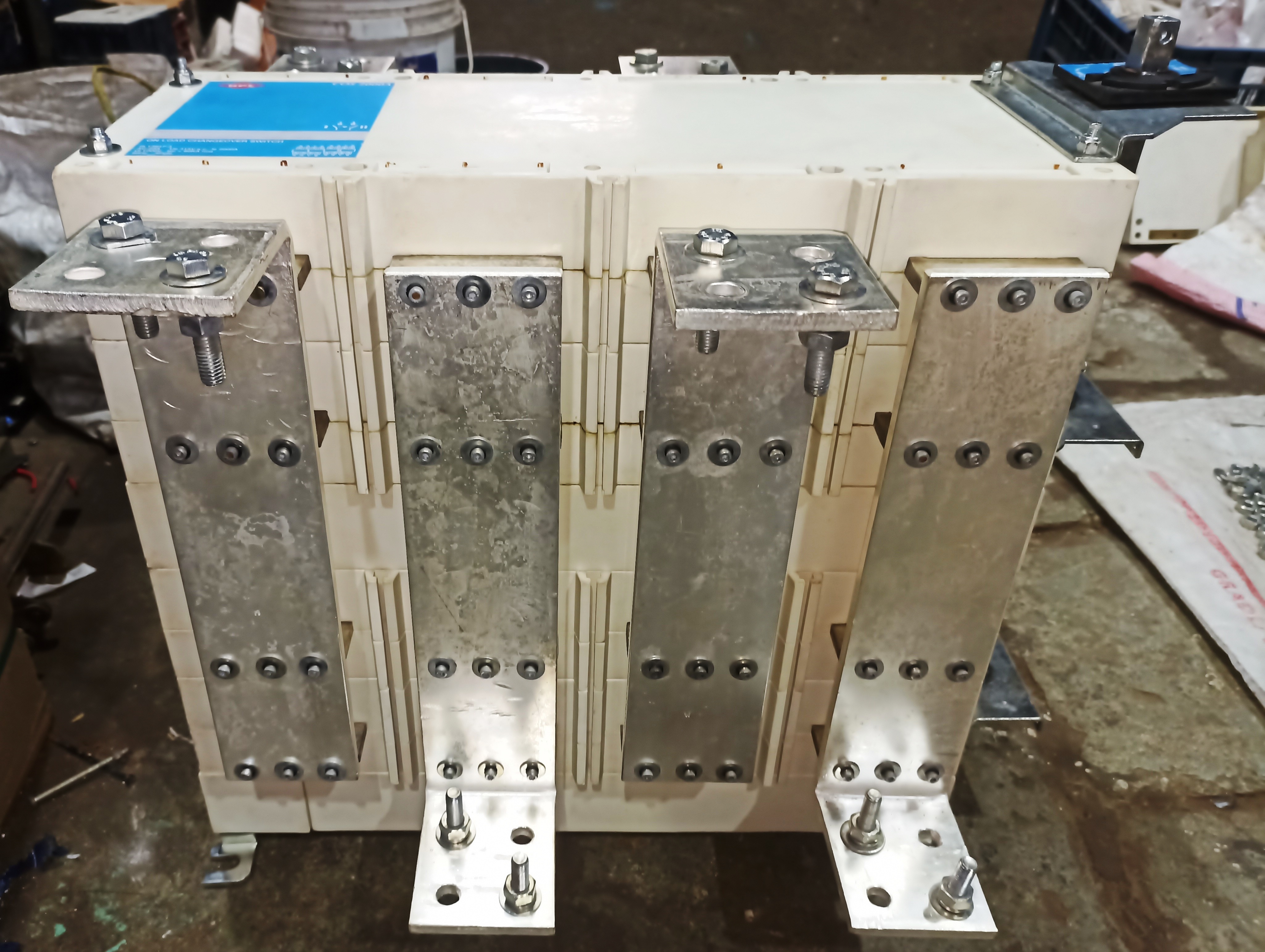

HPL 2000A 4P ONLOAD CHANGEOVER SWITCH

Name: HPL 2000A 4P ONLOAD CHANGEOVER SWITCH
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

HPL 2000A 4P ONLOAD CHANGEOVER SWITCH Specification

Max. Current
2000A

Number of Module
1

Temperature Range
-5C to +55C

Protection Level
IP54

Circuit Type
Four pole double throw (4PDT)

Mechanical Life
10,000 operations

Response Time
Instantaneous (manual operation)

Finish Type
Powder coated

Rated Voltage
690V AC

Automation Grade
Manual

Product Type
ONLOAD CHANGEOVER SWITCH

Material
High-grade engineering plastic and copper contacts

Insulation Resistance
>1000 M at 500V DC

Contact Resistance
<50

Max. Voltage
660V AC

Operating Temperature
-5C to +55C

Stoke
Positive snap action

Size
Large industrial (approximately 787 x 425 x 270 mm)

Color
Grey/Red

Weight
Approx. 48 kg

Mounting Type
Panel/Surface Mounting

Current Rating
2000A

No Of Poles
4 Poles

Handle Type
Rotary, lockable

Switching Mode
On-load (can switch under load conditions)

Application
Suitable for power changeover, mains-generator changeover, industrial use

Standards
IS/IEC 60947-3

Terminal Capacity
Suitable for aluminum/copper cables

Short Circuit Withstand Capacity
50kA for 1 sec

Indication
Clearly marked ON/OFF positions

Utilization Category
AC23A

Dielectric Strength
2.5kV for 1 minute

HPL 2000A 4P ONLOAD CHANGEOVER SWITCH Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About HPL 2000A 4P ONLOAD CHANGEOVER SWITCH

HPL 2000A 4P ONLOAD CHANGEOVER SWITCH Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- ONLOAD CHANGEOVER SWITCH

Make :- HPL

Ith :- 2000A

Pole :- 4P

Model :- COS 2000A

Condition :- Refurbished

Ue 415V a.c. ie 2000A

Frequency :- 50 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Robust Engineering for Reliable Operations

Built with high-grade engineering plastic and copper contacts, the HPL 2000A 4P Onload Changeover Switch delivers exceptional durability and consistent performance, even in challenging industrial conditions. Its positive snap action mechanism ensures smooth operation, while the rotary lockable handle increases security during handling.

Compliant and Safe Power Changeover Solution

Complying with IS/IEC 60947-3, this changeover switch offers high dielectric strength and a short-circuit withstand capacity of 50kA, making it suitable for critical applications like mains-generator switching. Clearly marked ON/OFF positions minimize operational errors, adding a critical safety layer.

Versatile Application and Easy Installation

The switch is crafted to manage demanding loads and is compatible with both aluminum and copper cables. It supports panel and surface mounting, allowing for straightforward installation in power distribution boards or industrial panels. Its IP54 rating ensures the unit is well-protected against dust and splashes.

FAQ's of HPL 2000A 4P ONLOAD CHANGEOVER SWITCH:

Q: How does the HPL 2000A 4P Onload Changeover Switch operate during load transitions?

A: This switch is designed for on-load operation, meaning it can safely transfer power between different sources, such as mains and generators, while under full electrical load. Its rotary handle allows manual, instantaneous switching without power disruption to connected equipment.

Q: What are the main standards and specifications the switch complies with?

A: The switch meets stringent IS/IEC 60947-3 standards, ensuring high safety and performance. It boasts a dielectric strength of 2.5kV for one minute and a short-circuit withstand capacity of 50kA for one second, making it highly dependable for industrial use.

Q: Where is this changeover switch typically installed?

A: Suitable for large industrial or commercial settings, this switch is usually installed on power distribution panels or surfaces where mains-to-generator or source-to-source transitions are required, thanks to its panel and surface mounting capability.

Q: What materials are used in the construction of the switch and why?

A: The main housing is made from high-grade engineering plastic, while the contacts utilize copper. This combination ensures high electrical conductivity, enhanced durability, reduced contact resistance, and reliable insulation for long-term safety and efficiency.

Q: How can installers benefit from the clear ON/OFF indication and lockable rotary handle?

A: The clearly marked positions minimize risk of operational error, while the lockable rotary handle provides added safety, allowing authorized personnel to secure the switch against accidental or unauthorized operation during maintenance or emergencies.

Q: What types of cables are supported by the terminal capacity of the HPL 2000A switch?

A: The switch is compatible with both aluminum and copper cables, providing flexibility for installers and ensuring efficient and reliable connections in varied industrial applications.
