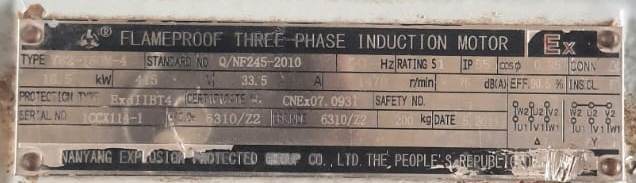

FLAMPROOF INDUCTION MOTOR

Get a Price/Quote

MOQ : 3 Pieces

FLAMPROOF INDUCTION MOTOR Specification

Overheating Protection
YES

Efficiency
Above 80%

Shape
Cylindrical

Feature
Energy Efficient, Spark Resistant, Rugged Construction

Insulation Material
Class F

Connector Type
Terminal Box

IP Rating
IP55

Mounting Type
Foot Mounted

Operating Temperature
-20C to +50C

Power Factor
0.85

Humidity %
95% RH max

Surface Finish
Epoxy Powder Coated

Product Type
Flameproof Induction Motor

Application
Hazardous area and explosive atmosphere

Protection Level
Explosion Proof, Flameproof

Frequency (MHz)
50 Hz

Rated Voltage
415 V

Energy Consumption
Low

Output Type
AC Output

Color
Blue

Dimension (L*W*H)
420x210x250 mm

Weight
35 kg

Size
Standard

Phase
Three Phase

Input Voltage
415 V AC

Material
Cast Iron

Connection Type
Star/Delta

No Of Poles
4

Cooling Type
Totally Enclosed Fan Cooled (TEFC)

Frame Size
112M

Standard
IS 2148 / IEC 60079-1

Bearing Type
Deep Groove Ball Bearing

Speed
1440 RPM

Duty Type
S1 (Continuous)

FLAMPROOF INDUCTION MOTOR Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash in Advance (CID), Cheque

Main Domestic Market
All India

About FLAMPROOF INDUCTION MOTOR

RAJ PANELS & MOTORS (BHAVNAGAR) GIVES YOU BEST QAULITY AND REFURBISHED ELECTRICAL MOTORS AT BEST PRICE.

BESIDES WEDEAL IN ALL TYPES OF MARINE INDUSTRIAL ELECTRICAL & INDUCTION MOTORS FROMALANG SHIP BREAKING YARD.

SPECIFICATION:

TYPE : FLAMEPROOF ELECTRIC MOTOR

MADE BY : INDIA

MODEL : 25HP / 1440 RPM

CONDITION : REFURBISHED

VOLTAGE : 440 V AC

FREQUENCY : 50 HZ

FOR MOREINFORMATION CONTACT US OR

WHATSAPP ON :

9825154052

8155838080

OR ALSO MAILON: RAJMARINEMOTORS@GMAIL.COM

ORVISIT AT OUR STORE :NEAR RAILWAYCROSSING,PANJRAPOL,KUMBHARWADA,BHAVNAGAR (GUJ.)-364001

Engineered for Safety and Reliability

This motor is built with meticulous attention to safety, integrating flameproof and explosion-proof features to meet international standards. It is ideally suited for explosive atmospheres and hazardous areas, featuring a robust cast iron enclosure, spark-resistant design, and reliable overheating protection for secure, long-term use.

Designed for Energy Efficiency

With an efficiency above 80% and a low power factor of 0.85, this induction motor minimizes overall energy consumption. The totally enclosed fan cooled (TEFC) construction, Class F insulation, and epoxy powder-coated finish combine to ensure high efficiency and trouble-free operation under continuous duty cycles.

Versatile and Rugged Construction

The frame's cylindrical shape, compact dimensions, and foot-mounted installation allow for seamless integration into industrial setups. The deep groove ball bearings and sturdy terminal box enhance its operational reliability, while the star/delta connection makes it adaptable for various electrical requirements.

FAQ's of FLAMPROOF INDUCTION MOTOR:

Q: How does the FLAMPROOF INDUCTION MOTOR ensure safety in hazardous environments?

A: This induction motor complies with IS 2148 and IEC 60079-1 standards, featuring explosion-proof and flameproof construction. It is built with a spark-resistant, cast iron body and includes overheating protection, making it suitable for hazardous or explosive areas such as chemical plants and refineries.

Q: What are the key benefits of using a Totally Enclosed Fan Cooled (TEFC) motor in hazardous locations?

A: The TEFC design prevents the ingress of dust, moisture, and vapors, thereby protecting internal components from environmental damage. This ensures reliable operation and extends the motor's lifespan, even in humid and explosive atmospheres.

Q: Where should I install this flameproof induction motor?

A: Install this motor in industrial environments characterized by the presence of flammable gases or dust, such as chemical manufacturing units, oil and gas facilities, or other hazardous zones requiring explosion-proof equipment.

Q: What is the process for connecting the motor electrically?

A: The motor comes with a terminal box and supports both star and delta connection types. It operates on a three-phase, 415 V AC, 50 Hz supply. For setup, follow certified wiring protocols to ensure compliance with safety standards in hazardous areas.

Q: When is it recommended to select this motor's S1 (continuous) duty type?

A: Choose the S1 duty type when the application requires the motor to operate continually without rest periods. This is ideal for critical processes in hazardous areas where uninterrupted motor performance and safety are paramount.

Q: How can I benefit from the motor's energy efficiency and rugged construction?

A: With above 80% efficiency and an epoxy powder coated, cast iron body, this motor reduces operational costs and resists harsh industrial conditions. Its reliable, spark-resistant design and foot mounting further enhance durability and ease of installation.
