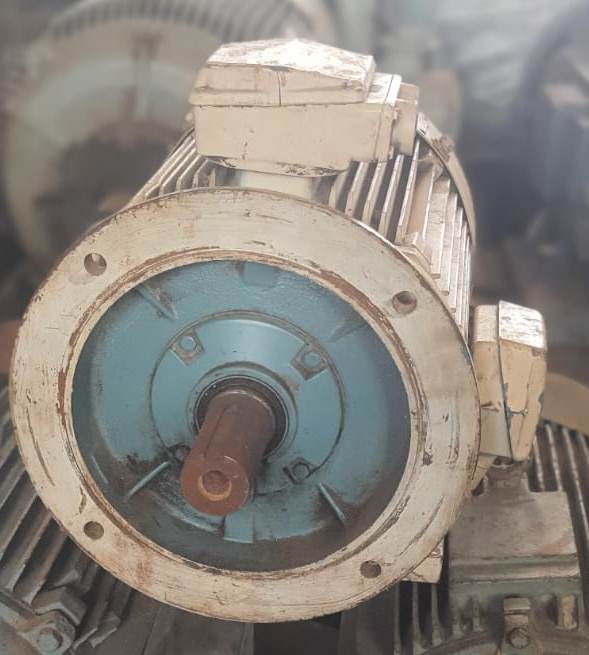

50 HP / 1440 RPM ELECTRICAL MOTORS

Get a Price/Quote

MOQ : 3 Pieces

50 HP / 1440 RPM ELECTRICAL MOTORS Specification

Shape
Cylindrical

IP Rating
IP55

Mounting Type
Foot Mounted (B3)

Humidity %
95% RH Max

Power Factor
0.88

Insulation Material
Class F Insulation

Surface Finish
Enamel Painted

Connector Type
Terminal Box

Efficiency
92.1%

Feature
Low Vibration, High Efficiency, Durable

Operating Temperature
-20C to +50C

Overheating Protection
Thermal Overload Protection

Product Type
AC Induction Motor

Application
Industrial Machinery, Pumps, Compressors

Protection Level
IP55

Frequency (MHz)
50 Hz

Rated Voltage
415 V

Energy Consumption
Efficient (As per IE2 Standard)

Output Type
Mechanical Shaft Output

Color
Blue

Dimension (L*W*H)
920 mm x 500 mm x 620 mm

Weight
480 kg

Size
Standard

Input Voltage
415 V AC

Phase
Three Phase

No Of Poles
4

Material
Cast Iron

Connection Type
Star/Delta

Altitude Limitation
1000 m above sea level

Service Factor
1.15

Vibration Level
Within permissible limits as per IS:12075

Cooling Type
Totally Enclosed Fan Cooled (TEFC)

Rated Power
50 HP (37 kW)

Duty Type
S1 (Continuous Duty)

Rotor Type
Squirrel Cage

Bearing Type
Double Sealed Ball Bearing

Noise Level
< 80 dB

Starting Method
Direct On Line (DOL)/Star Delta Starter

Lubrication
Grease Lubricated

Core Losses
As per IS/IEC Standard

RPM
1440 RPM

Shaft Diameter
55 mm

50 HP / 1440 RPM ELECTRICAL MOTORS Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash in Advance (CID), Cheque

Main Domestic Market
All India

About 50 HP / 1440 RPM ELECTRICAL MOTORS

RAJPANELS & MOTORS OFFERING ABBINDUCTION MOTORS AT OUR STORE BHAVNAGAR GUJARAT.

BESIDES WEDEAL IN ALL TYPES OF MARINE INDUSTRIAL ELECTRICAL & INDUCTION MOTORS FROMALANG SHIP BREAKING YARD.

OUR COMPANYIS REPUTED DEALER AND DISTRIBUTOR FOR DISTINGUISHED BRANDS LIKEABB,SIEMENS,CROMPTON GREAVES,NGEF,WEG GERMANY,KIRLOSKAR,TAIYO JAPAN OR KOREAETC.

SPECIFICATION:

TYPE : ELECTRIC MOTOR

MAKE : ABB,INDIA

MODEL : 50 HP / 1440 RPM

CONDITION : REFURBISHED

VOLTAGE : 440 V AC

FREQUENCY : 50 HZ

FOR MOREINFORMATION CONTACT US

OR WHATSAPP ON :

9825154052

8155838080

OR ALSO MAILON: RAJMARINEMOTORS@GMAIL.COM

ORVISIT AT OUR STORE :NEAR RAILWAYCROSSING,PANJRAPOL,KUMBHARWADA

BHAVNAGAR (GUJ.)-364001

Engineered for Continuous Performance

Designed for S1 (continuous) duty, this 50 HP electric motor provides lasting reliability in demanding environments. Its rugged cast iron frame, grease-lubricated bearings, and Totally Enclosed Fan Cooled (TEFC) system ensure sustained operation, even under high loads and severe conditions.

Safety and Protection Features

Safety is paramount, so this motor is equipped with IP55 ingress protection, thermal overload protection, and double sealed bearings. The robust insulation (Class F) and temperature management allow operation in ambient temperatures ranging from -20C to +50C, with protection against dust, water, and overheating.

High Efficiency and Cost Savings

With an efficiency rating of 92.1% in accordance with IE2 standards, this motor supports substantial energy savings. Its power factor of 0.88 and precise vibration and core loss controls mean reduced operational costs and maximum output in industrial applications.

FAQ's of 50 HP / 1440 RPM ELECTRICAL MOTORS:

Q: How does the Totally Enclosed Fan Cooled (TEFC) design benefit the 50 HP / 1440 RPM Electrical Motor?

A: The TEFC design ensures that internal parts are sealed from dust, moisture, and external contaminants. This enhances the motor's durability and longevity, making it ideal for harsh industrial environments where exposure might otherwise affect performance.

Q: What is the recommended starting method for this motor, and why?

A: This motor supports both Direct On Line (DOL) and Star Delta starting methods. DOL is suitable for smaller loads, while Star Delta starting is preferred for reducing inrush current and mechanical stress during start-up, particularly useful in large industrial setups.

Q: When should regular maintenance be performed on this motor?

A: Maintenance should be carried out based on operational hours, typically after every 3,000-5,000 hours or as per manufacturer guidelines. Regular checks ensure lubrication, vibration, and insulation integrity, extending the motor's lifespan and maintaining safety.

Q: Where can this motor be installed for optimal operation?

A: This motor is foot mounted (B3 type) and is best suited for installation in clean, ventilated areas with ambient temperatures between -20C and +50C and at altitudes up to 1,000 meters. It should be installed on a stable, vibration-free base to achieve optimal performance.

Q: What process ensures efficient energy consumption in this motor?

A: The motor conforms to IE2 efficiency standards and incorporates a high-quality squirrel cage rotor and precisely engineered components, which together minimize energy losses and achieve an efficiency rate of 92.1%, reducing operational energy costs.

Q: How is overheating protection achieved in this electrical motor?

A: Overheating protection is provided by a thermal overload protector that automatically disconnects the motor during abnormal temperature rises, safeguarding the motor and peripheral equipment from thermal damage.

Q: What are the main benefits of using this 50 HP motor in industrial applications?

A: Key benefits include high efficiency, low vibration, robust construction, reliable protection (IP55), versatility for various applications, and minimal maintenance requirements, leading to dependable operation and reduced downtime in industrial settings.
