APFC CONTROLLING PANEL

Name: APFC CONTROLLING PANEL
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

APFC CONTROLLING PANEL Specification

Rated Current
630 A

Current Rating
400-1000 A

Protection Level
IP54

Cabinet Material
High Grade Mild Steel

Operating Voltage
415 V AC

Features
Automatic Switching, Overload Protection, Accurate Correction, Modular Design

Panel Type
Floor Mounted

Cover Material
Tempered Glass / Mild Steel

Protection Class
Class I

Base Material
Mild Steel

Rated Operation Voltage
415 V

Cooling System
Air Vents & Forced Cooling Fans

Connectivity Type
Wired

Control System
Microprocessor Based

Components
MCB, Capacitor Banks, Contactor, Relay, Controller, Busbar

Thickness
2 mm

Way
Multi-way

Rated Insulation Voltage
690 V

Product Type
Automatic Power Factor Correction (APFC) Controlling Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 61439-1, IS 8623

Surface Color
Gray

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
1000 A

Dimension (L*W*H)
1200 mm x 600 mm x 2200 mm

Application
Industrial, Commercial Power Factor Correction

IP Rating
Ip54

Display Type
Digital LCD

Operation
Fully Automatic with Manual Override Option

Power Consumption
As per load (Typically 10 W for control circuit)

Input Supply
415 V 10%, 50 Hz

Panel Color
RAL 7035

Busbar Material
Electrolytic Copper

Capacitor Type
Heavy Duty, Low Loss, Self-Healing Type

Relative Humidity
Up to 95% RH Non-Condensing

Panel Weight
Approx. 85-150 Kg (Depends on configuration)

Compliance
RoHS, ISI Marked

Ambient Temperature Range
-10C to +55C

Earthing Provision
Double Earthing Provided

Enclosure Type
Rugged, Dust & Vermin Proof

Cable Entry
Bottom/Top Entry Provision Available

Mounting Type
Floor Standing

Phase
Three Phase

APFC CONTROLLING PANEL Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About APFC CONTROLLING PANEL

Raj Electricals Manufacture All Types Of Electricals Panel Like Apfc Panel, Distribution Panel And Other Control Panels At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- APFC PANEL

Make :- RAJ ELECTRICALS

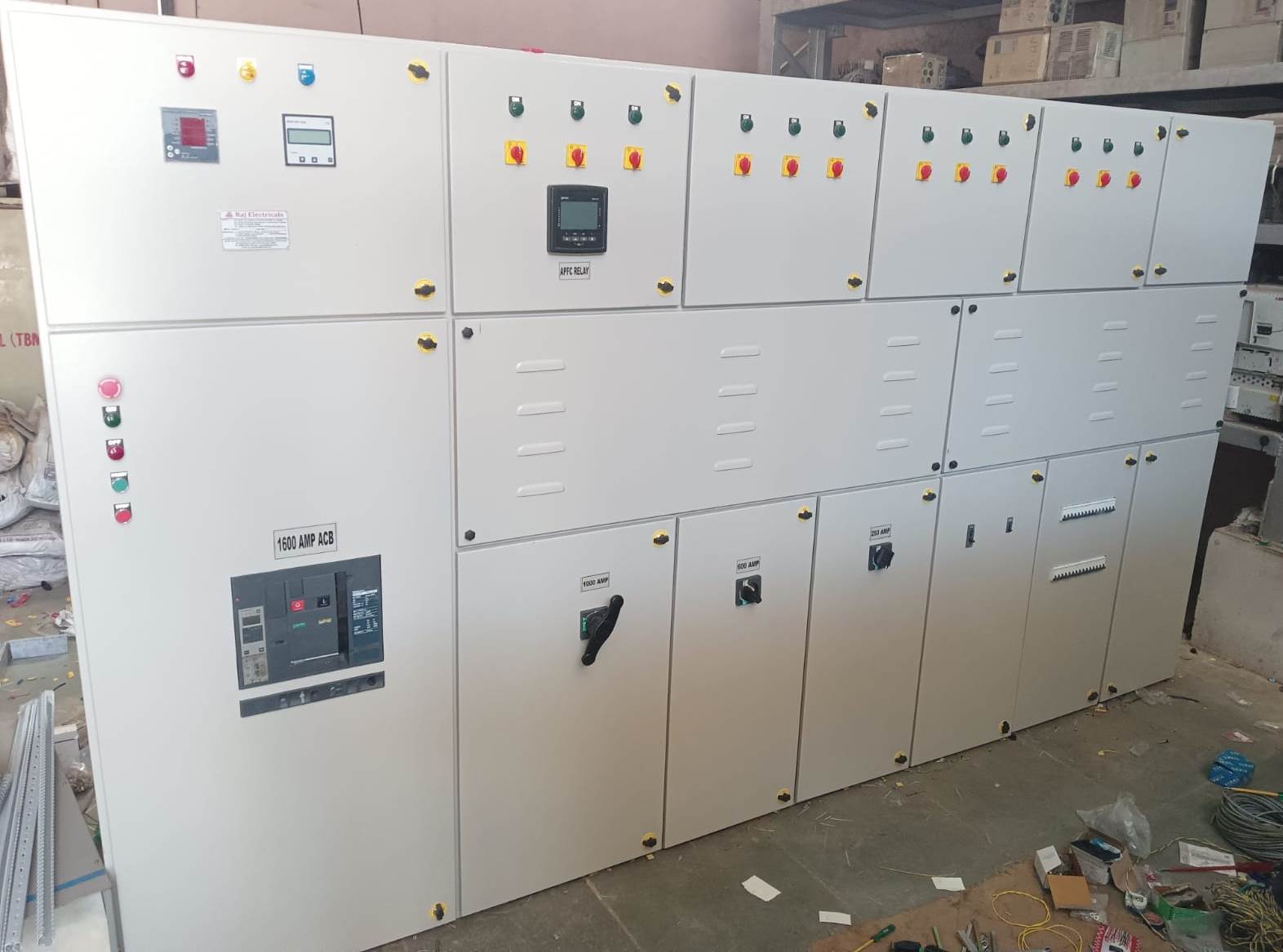

1600A ACB - MAIN

STAR-DELTA STARTER

ALUINIUM BUS-BAR

16 GAUGE POWDER COATING PANEL

APFC RELAY

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Ultimate Performance for Power Factor Correction

Equipped with a microprocessor-based control system, the APFC Controlling Panel delivers precise automatic switching and accurate power factor correction for industrial and commercial installations. Heavy duty, low-loss capacitors ensure lasting performance with minimal maintenance.

Rugged Build and Safety Compliant

Constructed from powder-coated, high-grade mild steel, the panel features a robust enclosure with double earthing and IP54 protection against dust and vermin. Strict adherence to IEC and ISI standards ensures reliable operation and electrical safety in dynamic environments.

User-Friendly Operation and Monitoring

With a digital LCD display for real-time monitoring, wired connectivity, and both automatic and manual modes, users can easily manage, control, and monitor power factor correction processes. The modular design facilitates straightforward installation, maintenance, and scalability.

FAQ's of APFC CONTROLLING PANEL:

Q: How does the APFC Controlling Panel improve power factor in industrial and commercial settings?

A: The panel automatically detects the power factor and switches capacitor banks using its microprocessor-based controller to maintain an optimal power factor, reducing reactive power, cutting energy costs, and preventing penalties from utility providers.

Q: What is the typical power consumption of the APFC Controlling Panel's control circuit?

A: The control circuit typically consumes about 10W, ensuring energy efficiency without compromising the performance of its automated control functions.

Q: When should manual override be used instead of automatic mode?

A: Manual override is beneficial during maintenance or testing when an operator needs full control over capacitor switching, bypassing the automatic settings for greater operational flexibility and safety.

Q: Where is the APFC Controlling Panel ideally installed?

A: The floor-standing design is well-suited for installation in electrical rooms, control centers, or near the main distribution panels in factories, commercial complexes, and large office buildings where three-phase power correction is required.

Q: What process does the panel use for cooling and protecting sensitive components?

A: The panel is equipped with air vents and forced cooling fans, ensuring efficient heat dissipation. Its IP54-rated rugged enclosure provides protection from dust, vermin, and harsh environmental factors.

Q: How does the panel ensure compliance with safety and quality standards?

A: It is compliant with IEC 61439-1, IS 8623, RoHS, and ISI marking, guaranteeing adherence to international and national safety, environmental, and quality standards.

Q: What are the main benefits of installing an APFC Controlling Panel in your facility?

A: Key benefits include improved power factor, reduced electricity bills, protection against utility penalties, extended equipment lifespan, automatic operation, and minimal maintenance requirements, all supported by robust construction and modular expansion options.
