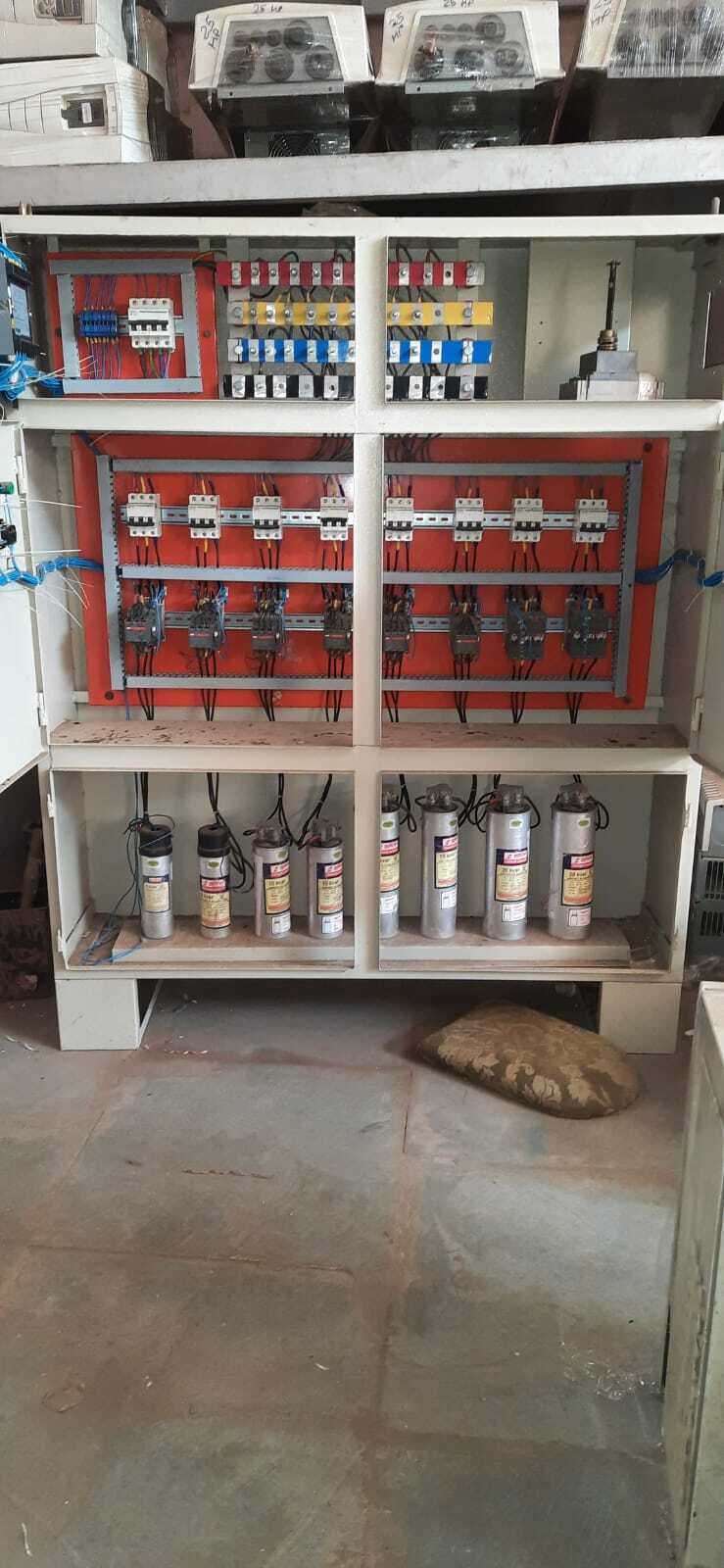

100 TO 150 KVAR APFC PANEL

Get a Price/Quote

MOQ : 1 Number

100 TO 150 KVAR APFC PANEL Specification

Cover Material
MS Powder Coated

Control System
Microprocessor Based Relay

Base Material
CRCA Sheet Steel

Rated Insulation Voltage
690 V

Panel Type
Floor Mounted

Protection Level
IP54

Features
Low Power Loss, High Reliability, Easy Installation, Overload Protection, High Efficiency

Components
Automatic Power Factor Controller, Capacitor Banks, MCBs, MCCBs, Contactor, CT

Current Rating
Up to 200 A

Cabinet Material
Mild Steel Sheet

Cooling System
Natural Air Ventilation

Thickness
1.6 mm to 2.0 mm

Operating Voltage
415 V AC

Protection Class
Class I

Rated Operation Voltage
415 V

Connectivity Type
Terminal Type

Rated Current
100 to 150 kVAR

Way
3 Phase

Product Type
Automatic Power Factor Correction Panel

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IEC 61439, IS 8623

Surface Color
Grey

Rated Voltage
415 V AC

Frequency (MHz)
50 Hz

Maximum Output Current
200 A

Dimension (L*W*H)
1200 mm x 900 mm x 300 mm (Approx.)

Application
Power Factor Correction for Industrial and Commercial Loads

IP Rating
Ip54

Display Type
Digital LED Display

Max Output
150 kVAR

Enclosure Type
Dust and Vermin Proof

Operating Temperature Range
-10°C to +50°C

Cable Entry
Bottom/Top Entry as per Site Requirement

Mounting Type
Floor Standing

Ambient Humidity
Up to 95% Non-Condensing

Compliance
IS 13585/IEC 60831

Earthing Provision
Yes

Busbar Material
Electrolytic Copper

Panel Weight
Approx. 120-150 kg

Fuse Type
HRC Fuses for Safety

Capacitor Type
APP or MPP Heavy Duty Power Capacitors

Indications
Power ON, Fault, Capacitor Bank Status

Switching Method
Automatic (Step by Step)

100 TO 150 KVAR APFC PANEL Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About 100 TO 150 KVAR APFC PANEL

Raj Electricals Are Leading Manufacturers Of All Types Of Control Panel Boards Like Apfc Control Panel, Distribution Panel And Electrical Panel.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Apfc Control Panel Board

Applicable Load :- 100 - 150 kW

Power Rating :- 100 Kvar

Voltage Rating :- 415V AC, 50 Hz, 3phase

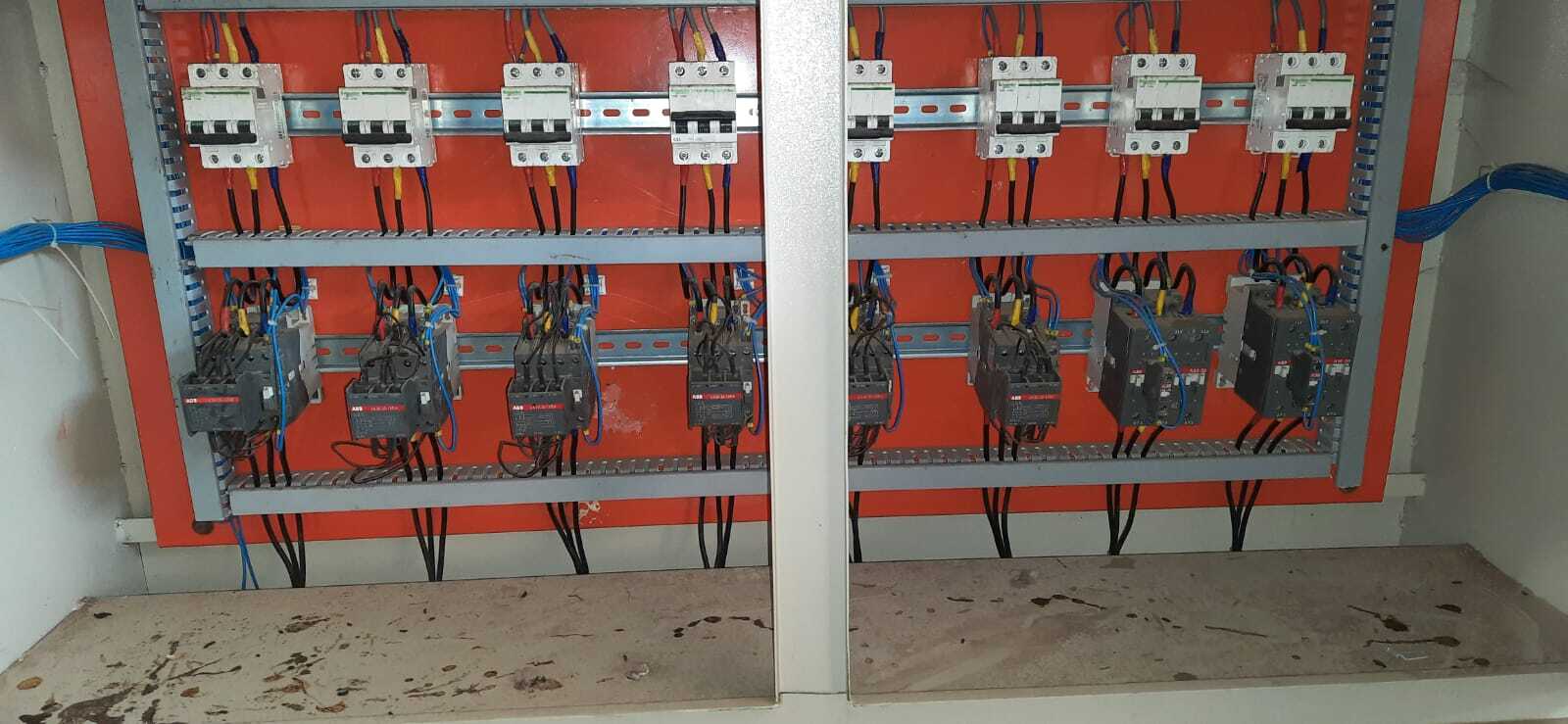

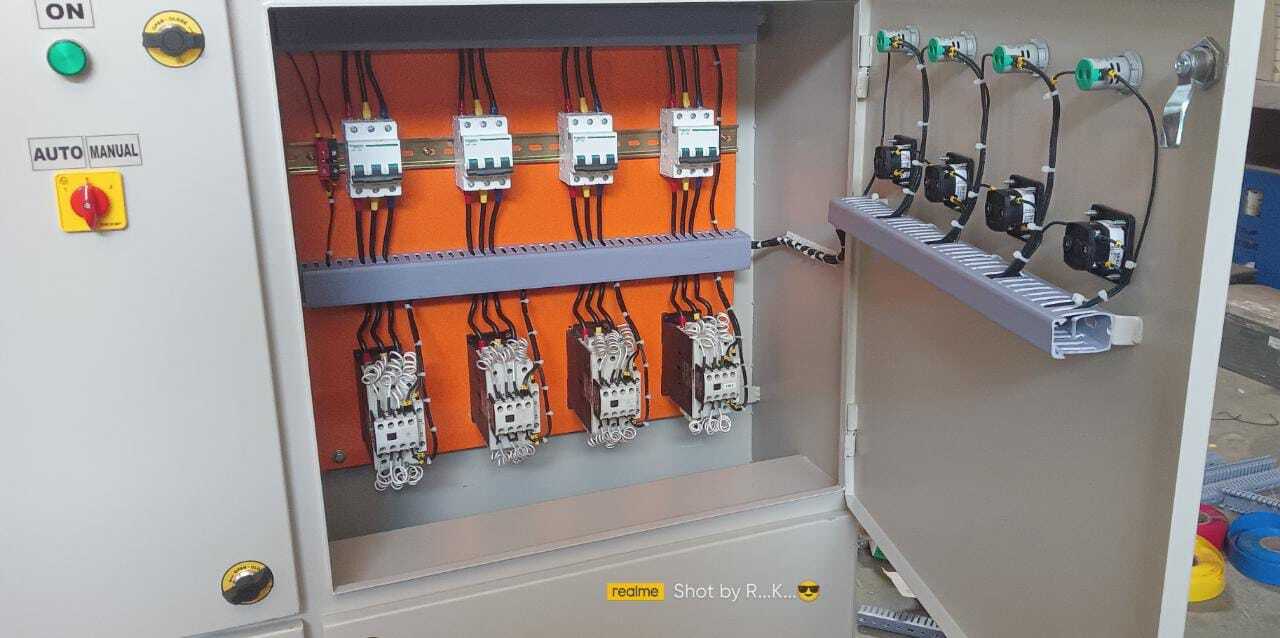

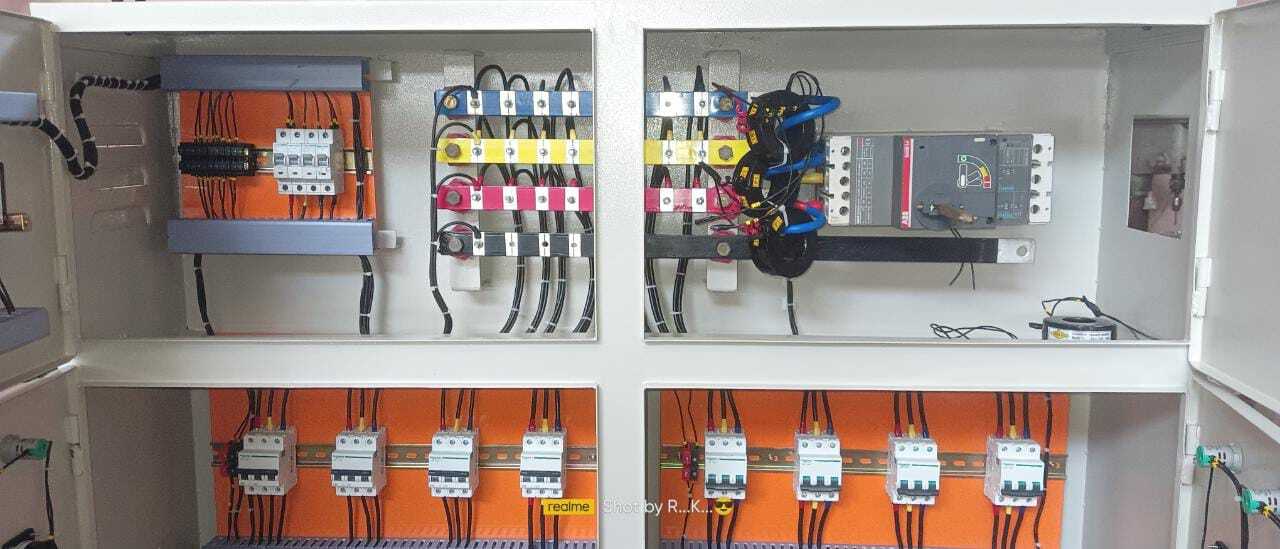

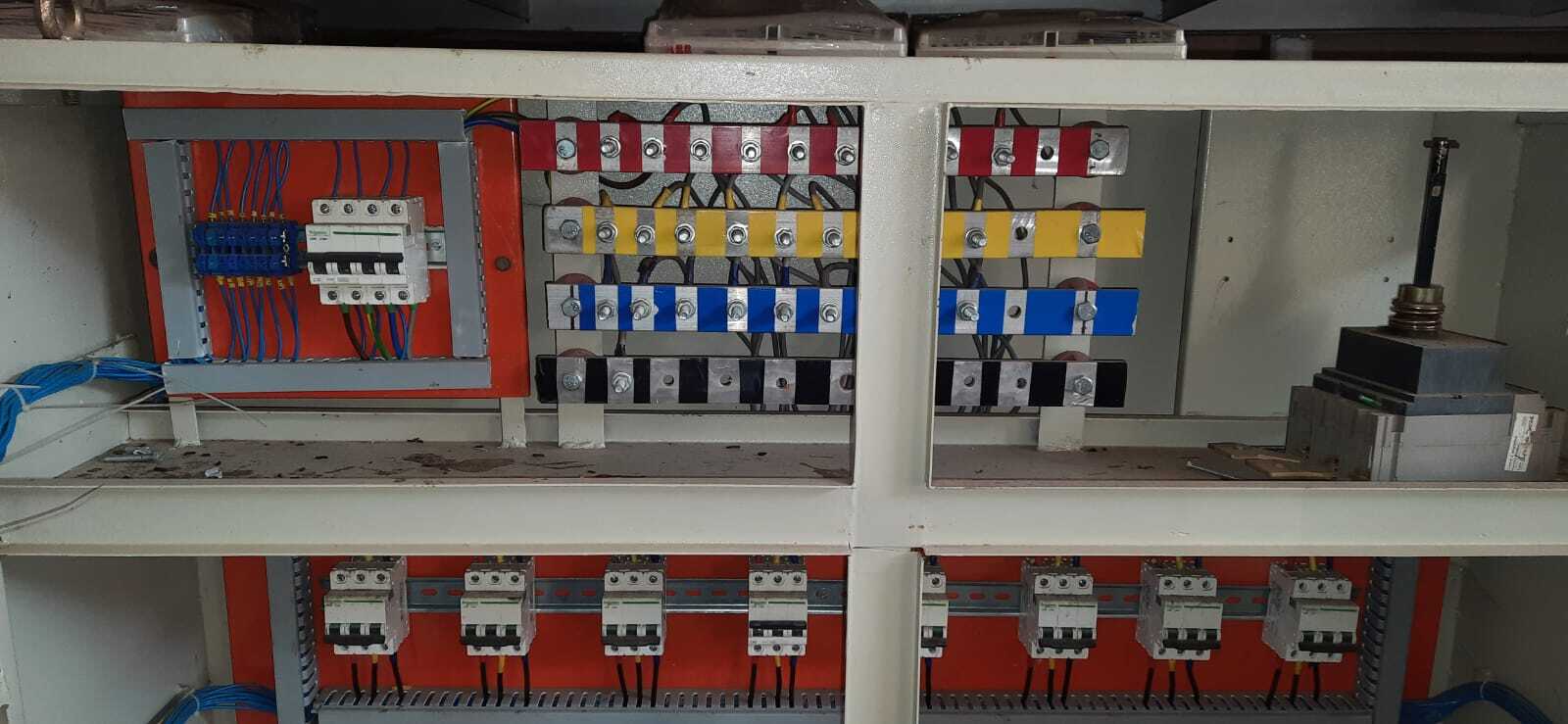

Apfc Relay, Apfc Monitoring Dispaly, Mcb, Mccb, Capacitor Contactor, Copper Bus-Bar,

Subodhan Brand Capacitor

Pushbutton, Indicator, RR cable Wiring.

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Optimized Electrical Efficiency

Enhance your facilitys power quality and energy efficiency using this APFC panel. Automatic switching of capacitor banks maintains consistent and optimal power factor, reducing penalty charges and system losses. Its natural air ventilation and high-efficiency components make it a reliable choice for continuous operation in demanding electrical environments.

Rugged, User-Centric Design

The panel is designed with industrial-grade CRCA and mild steel materials, offering a powder-coated, dust and vermin proof enclosure with IP54 protection. User-friendly features such as digital LED displays, clear status indicators (Power ON, Fault, Bank Status), and accessible cable entry options ensure ease of installation and operation. Ergonomic dimensions and floor-mounted setup provide stability and durability.

FAQs of 100 TO 150 KVAR APFC PANEL:

Q: How does the 100 to 150 kVAR APFC panel improve power factor in industrial setups?

A: The panel automatically monitors the power factor and connects or disconnects capacitor banks step by step, using a microprocessor-based relay. This optimizes power factor levels in real-time, helping to reduce reactive power losses and associated charges for industrial and commercial users.

Q: What types of capacitors are used in this APFC panel and why?

A: The panel employs APP or MPP heavy duty power capacitors, selected for their high reliability, low power loss, and long operational lifespan in demanding applications, ensuring consistent performance even in fluctuating electrical loads.

Q: When should I install the APFC panel and what are the usage benefits?

A: Install the panel whenever your facility experiences penalties or efficiency loss due to poor power factor. Usage benefits include reduced electricity bills, improved electrical system performance, overload protection, and compliance with IS 13585/IEC 60831 standards.

Q: Where can the APFC panel be mounted and what installation considerations apply?

A: This panel is designed for floor standing, indoor installation. It should be placed in an area with ambient humidity up to 95%, temperatures from -10C to +50C, and adequate natural ventilation. Cable entry points are provided at the bottom/top, adaptable to site requirements.

Q: What are the safety features incorporated in the APFC panel?

A: Safety is ensured through HRC fuses, overload protection, proper earthing provision, and an enclosure with IP54 rating, keeping the interior dust and vermin proof. Status indications help operators quickly identify faults or operational issues.

Q: How is the APFC panel controlled and monitored?

A: The system uses a microprocessor-based automatic power factor controller and digital LED display for real-time monitoring. Power ON, Fault, and Capacitor Bank Status indicators make operation straightforward and user-friendly for maintenance teams.

Q: What certification and standards does the APFC panel comply with?

A: This panel meets IEC 61439, IS 8623, IS 13585, and IEC 60831 standards, ensuring high safety, performance, and reliability for industrial and commercial power factor correction.
