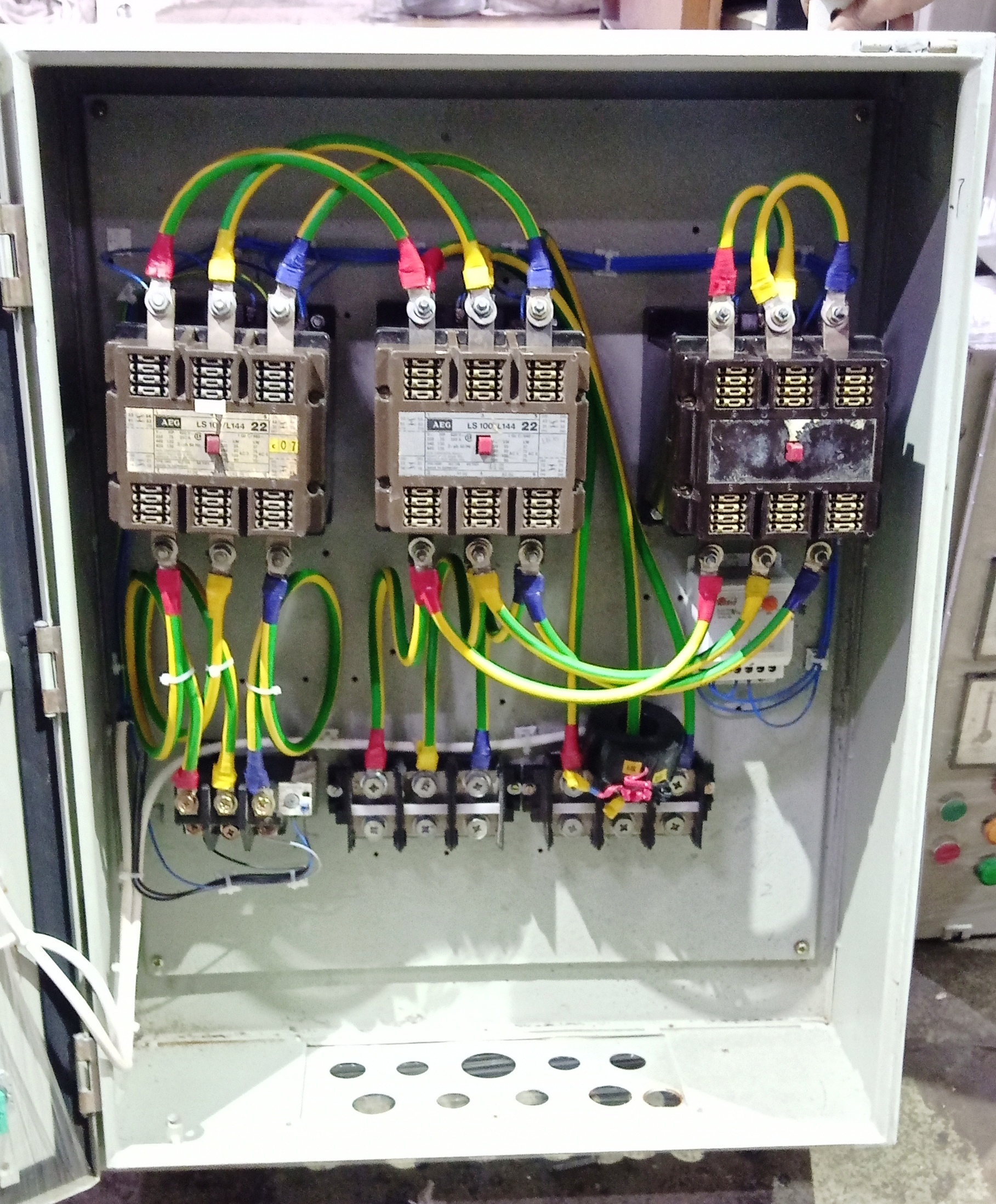

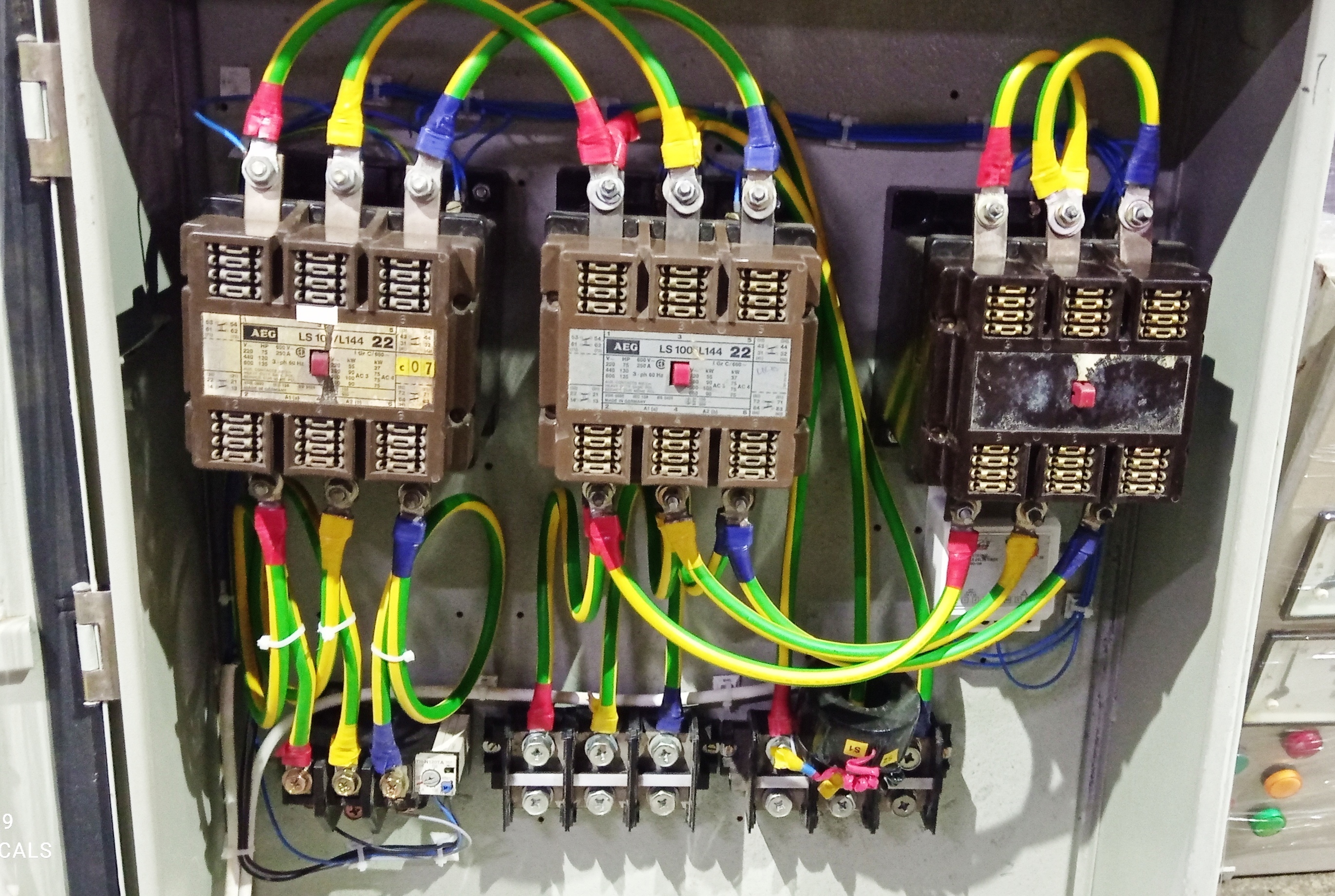

AEG LS-100 L144 STAR DELTA STARTER

Get a Price/Quote

AEG LS-100 L144 STAR DELTA STARTER Specification

Feature
Automatic Changeover, High Reliability

Humidity %
Up to 90% Non-Condensing

Surface Finish
Powder Coated

IP Rating
IP42

Mounting Type
Wall / Panel Mounted

Connector Type
Heavy Duty Terminal Block

Power Factor
0.95

Operating Temperature
-5C to 55C

Shape
Rectangular

Overheating Protection
YES

Insulation Material
High Grade Electrical Insulation

Efficiency
More than 98%

Product Type
Star Delta Starter

Application
Industrial Motor Starting

Protection Level
Overload and Short Circuit Protection

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
Three Phase Output

Color
Grey

Dimension (L*W*H)
380 x 230 x 170 mm

Weight
Approx. 12 kg

Input Voltage
415 V AC

Size
Standard

Phase
Three Phase

Connection Type
Panel Mount, Cable Connect

No Of Poles
3 Pole

Material
High Quality Sheet Metal and Electrical Components

Enclosure Type
Dust Protected

Control Voltage
110/220 V AC

Starter Capacity
Up to 40 HP

Relay Type
Thermal Overload Relay

Reset Type
Push Button

Wire Size Supported
Up to 35 mm²

Auxiliary Contacts
1 NO + 1 NC

Panel Cutout
285 mm x 185 mm

Contact Rating
100 A

AEG LS-100 L144 STAR DELTA STARTER Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About AEG LS-100 L144 STAR DELTA STARTER

Star/Delta starters are probablythe most common reduced voltage starters. They are used in an attempt to reduce the start current applied to the motor during start as a means of reducing the disturbances and interference on the electrical supply.

Robust Motor Starting Solution

The AEG LS-100 L144 offers safe and reliable three-phase motor starting for industrial applications, thanks to its high contact rating and automatic star-delta transition. Its rugged construction and dust-protected enclosure guarantee long service life even under demanding conditions.

Enhanced Protection Features

Equipped with a thermal overload relay and short circuit protection, this starter ensures maximum safety for connected motors. The push-button reset and IP42-rated enclosure deliver ease of use and additional confidence for operators.

User-Centric Design & Easy Installation

With support for panel mounting, plug-and-play cable connections, and heavy-duty terminal blocks, this starter is designed for straightforward installation and maintenance. The enclosures ergonomic dimensions fit industry-standard panels, allowing seamless integration.

FAQs of AEG LS-100 L144 STAR DELTA STARTER:

Q: How does the AEG LS-100 L144 Star Delta Starter improve the starting process of large motors?

A: The AEG LS-100 L144 Star Delta Starter reduces the starting current drawn by large motors through automatic transition from star to delta configuration. This minimizes mechanical and electrical stress, resulting in smoother startups and prolonged motor lifespan.

Q: What types of protection does this starter provide for motors?

A: This starter provides comprehensive overload and short circuit protection through its built-in thermal overload relay. Additionally, the dust-protected, IP42-rated enclosure safeguards internal components against environmental hazards, ensuring reliable operation.

Q: When should I use a star-delta starter like the LS-100 L144?

A: Star-delta starters are ideal for applications involving the starting of large, three-phase induction motors, typically above 5 HP (up to 40 HP for this model). They are commonly used in industrial settings to reduce inrush current and protect electrical and mechanical systems during motor startup.

Q: Where can the LS-100 L144 be installed?

A: The LS-100 L144 is suitable for wall or panel mounting within industrial environments. Its robust, powder-coated sheet metal enclosure and dust protection make it ideal for installation in machine rooms, motor control centers, and similar settings.

Q: What is the installation process for this starter?

A: Installation involves securing the starter to a panel or wall within the recommended cutout, connecting the three-phase input and output cables (up to 35 mm), and configuring auxiliary contacts as needed. Clear labeling and heavy-duty terminal blocks facilitate safe and efficient wiring.

Q: How does the push-button reset feature work?

A: The push-button reset enables users to quickly restore operation after an overload condition is corrected, without opening the enclosure, ensuring minimal downtime and increased safety during motor restart.

Q: What are the key benefits of choosing the AEG LS-100 L144 for industrial motor applications?

A: Choosing this starter delivers high efficiency (over 98%), reliable automatic changeover, robust overload and short circuit protection, minimal maintenance, and compatibility with standard industrial wiring and mounting practices.
