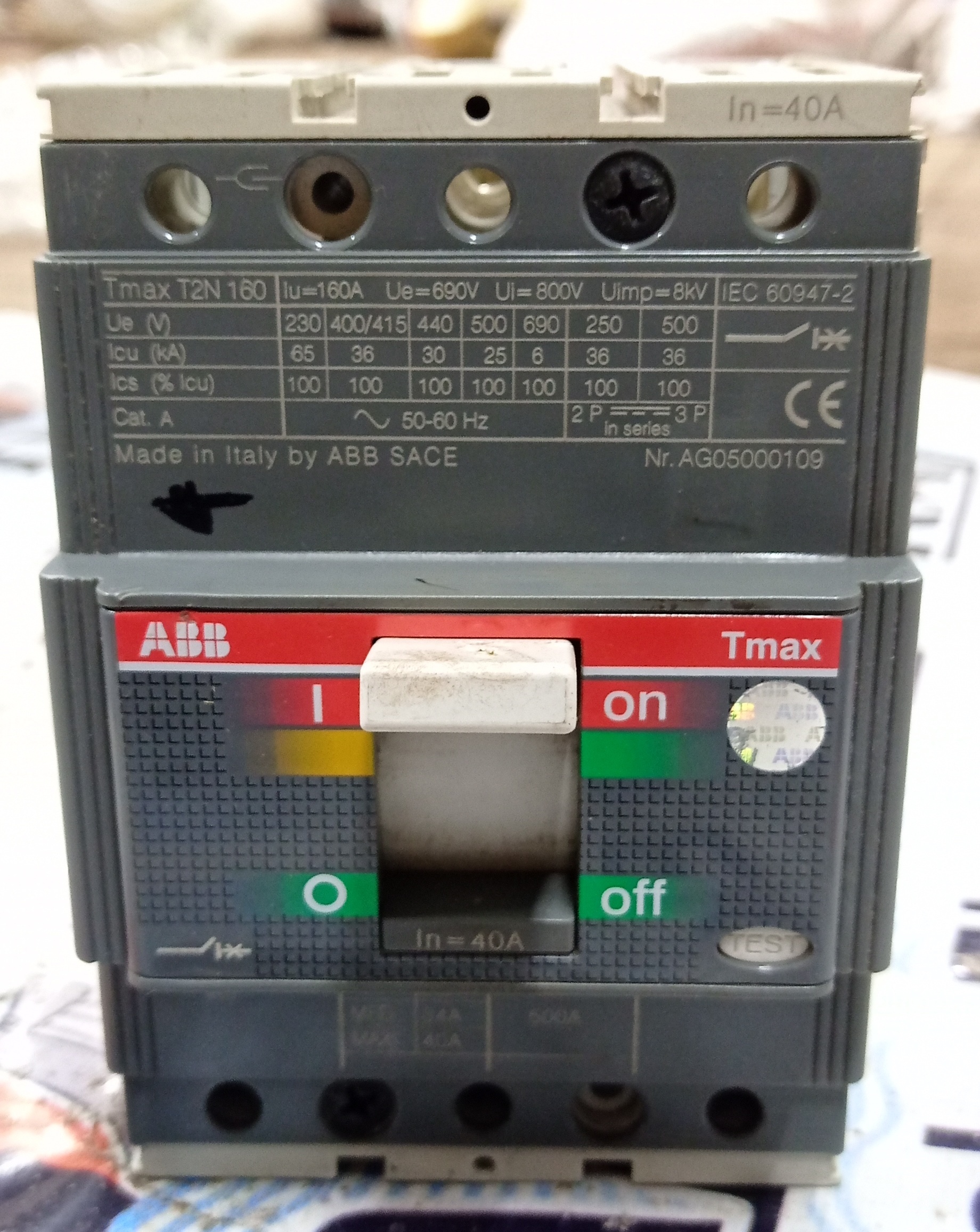

ABB SACE TMAX 40A 3P MCCB

Name: ABB SACE TMAX 40A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

ABB SACE TMAX 40A 3P MCCB Specification

Rated Short Circuit Making Current
Up to 54 kA

Phase
Three Phase

Rated Short Circuit Breaking Current
36 kA at 415V AC

Breaking Capacity
36 kA

Mechanical Life
Up to 25,000 operations

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail / Panel Mounted

Function
Protection Against Overload and Short Circuit

Poles Number
3

Rated Voltage
415V AC

Rated Current
40A

Rated Frequency
50/60 Hz

Curves
Thermal-Magnetic Trip Curve

Temperature Protection
Yes, adjustable

Weight
Approx. 1.2 kg

Color
Grey/Black

Ambient Temperature Range
-25C to +70C

Interruption Time
Instantaneous

IP Rating
IP20

Dimensions
Approx. 140mm x 105mm x 60mm

Trip Unit Type
Thermal-Magnetic

Application
Suitable for Industrial & Commercial Electrical Panels

Auxiliary Contacts Option
Available (optional)

Mounting Orientation
Vertical/Horizontal

Terminal Type
Screw Type

ABB SACE TMAX 40A 3P MCCB Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB SACE TMAX 40A 3P MCCB

ABB SACE TMAX 40A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 40A

Pole :- 3P

Model :- SACE TMAX

Model Number :- Tmax T2N 160

Condition :- Refurbished

Breaking Capacity :- 36 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Comprehensive Protection for Industrial and Commercial Panels

The ABB SACE TMAX 40A 3P MCCB is built to protect three-phase electrical installations against overloads and short circuits. Featuring an instantaneous interruption capability and adjustable temperature protection, it guarantees the safety and reliability required for demanding environments. This MCCB is a superb solution for panel builders and end-users seeking robust, lasting performance.

Flexible Installation and Easy Integration

Designed for versatility, the MCCB is compatible with both vertical and horizontal mounting orientations and can be installed on DIN rails or panels. Screw-type terminals ensure secure electrical connection, while optional auxiliary contacts enhance system customization. Its compact dimensions and practical design make integration effortless in various electrical systems.

FAQ's of ABB SACE TMAX 40A 3P MCCB:

Q: How does the ABB SACE TMAX 40A 3P MCCB provide protection in electrical panels?

A: The ABB SACE TMAX 40A 3P MCCB utilizes a thermal-magnetic trip mechanism to safeguard electrical circuits from overloads and short circuits. Its instantaneous interruption time, adjustable temperature protection, and robust breaking capacity ensure quick and effective response to faults, enhancing the safety of both industrial and commercial panels.

Q: What are the installation options for this MCCB?

A: This MCCB offers flexible installation, as it can be mounted either vertically or horizontally. It supports both DIN rail and panel mounting, making it adaptable to diverse electrical panel configurations and site requirements.

Q: When should auxiliary contacts be considered for use with this device?

A: Auxiliary contacts are recommended when there is a need for remote signaling, system interlocking, or control circuit feedback. They are optional and enable expanded monitoring or integration with control systems in complex electrical setups.

Q: Where is the ABB SACE TMAX 40A 3P MCCB most commonly applied?

A: This circuit breaker is suitable for use in industrial and commercial electrical panels across India, where reliability and robust protection are critical. Its design caters to three-phase systems, making it ideal for a wide range of applications including manufacturing, infrastructure, and power distribution.

Q: What is the process for adjusting the temperature protection on this MCCB?

A: Temperature protection can be adjusted using the built-in settings on the thermal-magnetic trip unit. This allows users to tailor the breaker's response to thermal overloads, optimizing protection based on specific load and environmental conditions.

Q: What are the main benefits of choosing this MCCB for your system?

A: Key benefits include its high breaking capacity of 36 kA, reliable operation in diverse temperatures (-25C to +70C), adjustable protection features, and compatibility with various mounting options. Its compact size and optional auxiliary contacts offer further customization and enhanced system control.
