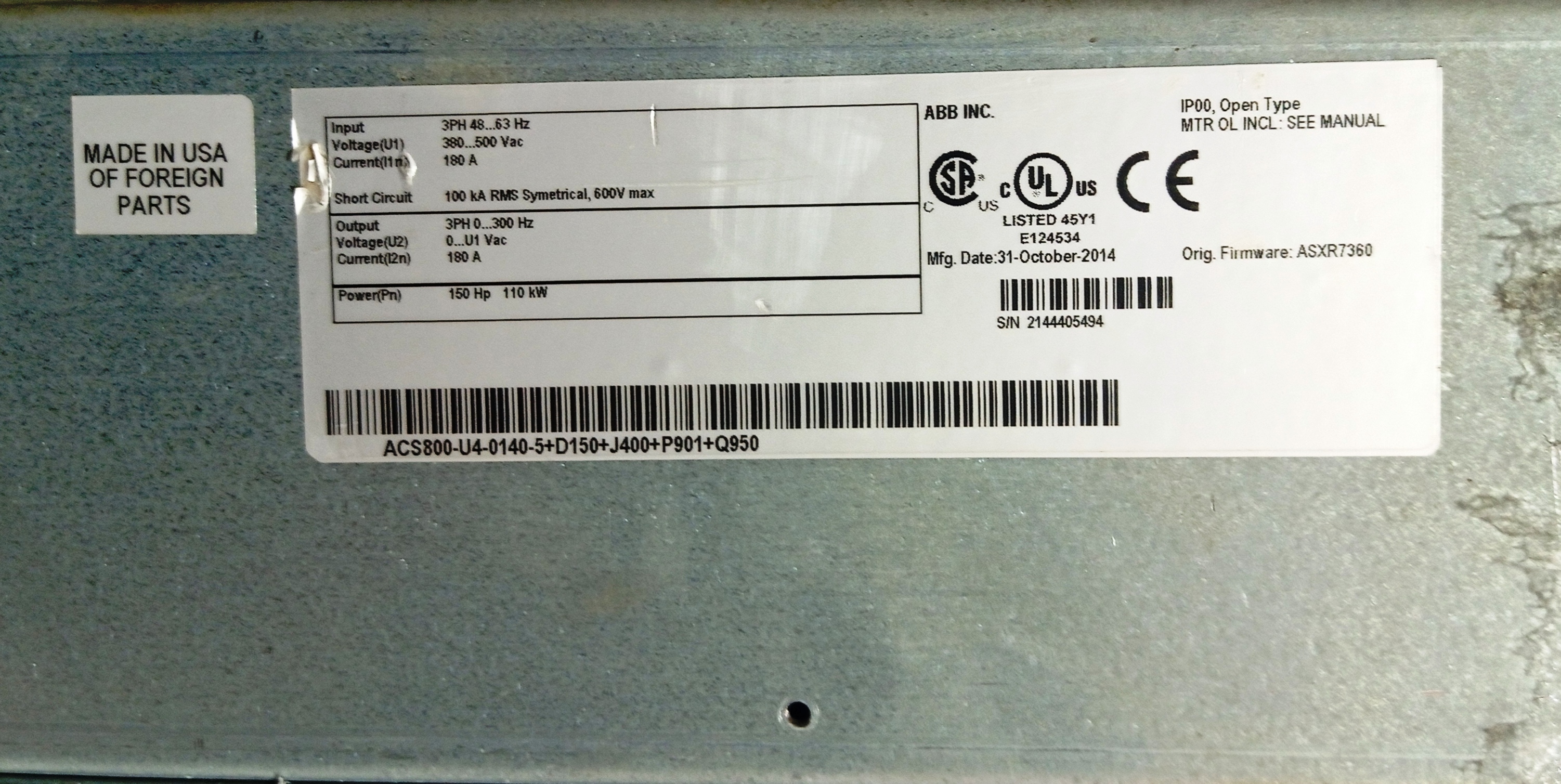

ABB ACS 800 150 HP AC DRIVE

Get a Price/Quote

ABB ACS 800 150 HP AC DRIVE Specification

Overheating Protection
Yes, Integrated

Humidity %
Up to 95% non-condensing

Connector Type
Screw Type Terminals

Shape
Rectangular

Surface Finish
Powder Coated

Insulation Material
High-grade Plastic/Metal

Mounting Type
Panel Mounted

Efficiency
Up to 97%

Operating Temperature
-10C to +50C

Power Factor
>0.98

Feature
Direct Torque Control (DTC), Built-in EMC Filter

IP Rating
IP54

Product Type
AC Drive

Application
Industrial Automation, Motor Control

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V

Energy Consumption
Optimized, Low Loss

Output Type
Three Phase

Color
White

Dimension (L*W*H)
650 mm x 300 mm x 350 mm

Weight
225 kg

Phase
Three Phase

Size
Standard

Input Voltage
380-480 V AC

Material
Metal

No Of Poles
Variable

Connection Type
Terminal Block

Braking Unit
Integrated

Remote Control Capability
Supported

Model Number
ACS800-01-0260-5

Cooling Method
Forced Air

Output Power
150 HP (110 kW)

Control Method
Direct Torque Control (DTC)

Input Phase
3-Phase

Storage Temperature
-40°C to +70°C

Communication Ports
RS485, Ethernet, Modbus

Start/Stop Logic
Programmable Digital Inputs

Motor Voltage Range
0 to Rated Voltage

Display Type
LCD Digital Display

Altitude Capability
Up to 2000 m without derating

Vibration Resistance
Up to 2g

ABB ACS 800 150 HP AC DRIVE Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ABB ACS 800 150 HP AC DRIVE

An AC drive is a device used to control the speed of an electrical motor in order to: enhance process control. reduce energy usage and generate energy efficiently. decrease mechanical stress on motor control applications.

Unmatched Performance and Versatility

With 150 HP (110 kW) output and advanced DTC, the ABB ACS800 offers superior torque accuracy and energy efficiency. Whether in harsh environments or high-demand systems, its resilience, efficiency (up to 97%), and versatile mounting make it ideal for a broad range of industrial automation and motor control applications.

Seamless Connectivity and Control

Equipped with RS485, Ethernet, and Modbus interfaces, this drive ensures smooth integration into modern automation networks. Programmable digital inputs and remote control capability provide flexible process management. The LCD digital display enables easy configuration and real-time system diagnostics.

FAQs of ABB ACS 800 150 HP AC DRIVE:

Q: How does the Direct Torque Control (DTC) method benefit industrial applications?

A: Direct Torque Control (DTC) provides rapid and precise response to load variations, minimizing mechanical stress and improving process reliability. It ensures tighter control of motor speed and torque, leading to improved product quality and energy savings in demanding industrial operations.

Q: What is the maximum altitude at which the ABB ACS800-01-0260-5 can operate without derating?

A: This drive is engineered to operate at altitudes up to 2000 meters above sea level without performance derating, making it suitable for installations in diverse geographical locations, including high-elevation facilities.

Q: Where can I monitor and adjust the drive parameters?

A: Parameters can be easily monitored and adjusted through the integrated LCD digital display panel. Alternatively, remote control and configuration are supported via RS485, Ethernet, and Modbus communication ports, facilitating access from control rooms or automation systems.

Q: What process safeguards are integrated into the drive for reliable operation?

A: The ABB ACS800 features built-in overheating protection, high-level ingress protection (IP54), an integrated braking unit, and a robust design that resists vibrations up to 2g. These ensure continuous, safe operation even in challenging industrial settings.

Q: How is the ABB ACS800-01-0260-5 typically installed and connected?

A: This drive is designed for panel mounting and uses screw-type terminal blocks for connection. Its rectangular, powder-coated metal enclosure with IP54 protection permits installation in standard industrial environments with exposure to dust or moisture.

Q: What makes this drive energy efficient?

A: With an optimized design, the ACS800 achieves up to 97% efficiency and maintains a power factor greater than 0.98. Its DTC technology reduces energy losses, helping industries minimize power consumption and operational costs.
