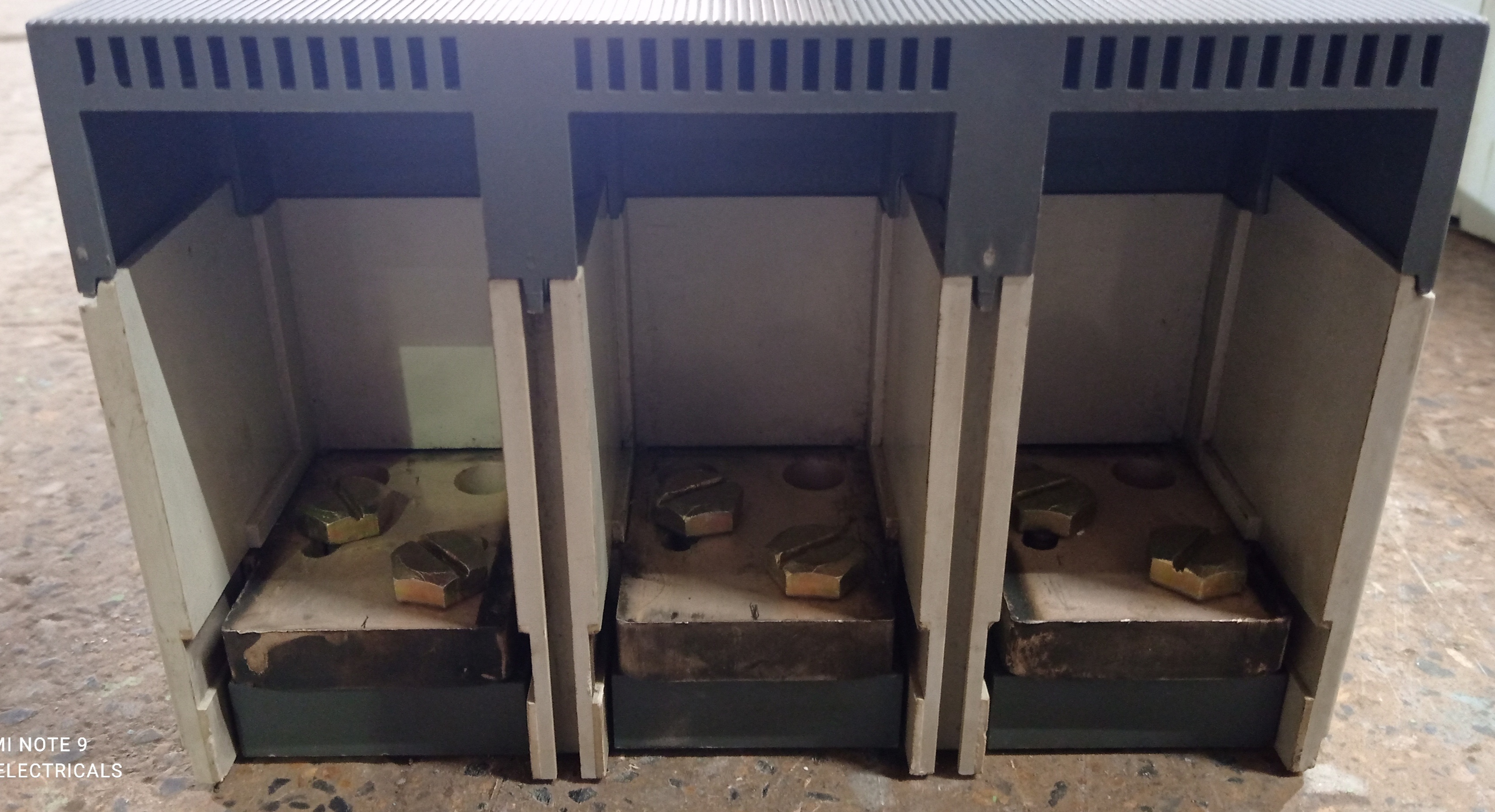

ABB 1200A 3P MCCB

Get a Price/Quote

MOQ : 1 Number

ABB 1200A 3P MCCB Specification

Rated Short Circuit Making Current
105 kA

Breaking Capacity
50 kA at 415V AC

Mechanical Life
10,000 operations

Rated Short Circuit Breaking Current
50 kA

Phase
Three Phase

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Fixed or Plug-In

Function
Circuit Protection

Poles Number
3

Rated Voltage
690V AC

Rated Current
1200A

Rated Frequency
50/60 Hz

Curves
Thermal Magnetic

Temperature Protection
Yes, built-in

Weight
Approx. 21 kg

Color
Grey/Black

Trip Unit Type
Electronic / Thermal magnetic

Series
Tmax T7

Terminal Type
Front/Rear connection

Accessories
Shunt trip, Under voltage release (optional)

Standards Compliance
IEC 60947-2

Degree of Protection
IP20

Mounting Type
Panel Mount

Auxiliary Contacts
Optional

Operating Temperature Range
-25°C to +70°C

ABB 1200A 3P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ABB 1200A 3P MCCB

Raj Electricals Offering ABB 1200A 3P Mccb At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Moulded Case Circuit Breaker

Brand :- ABB

Ampere :- 1200A

Number Of Pole :- 3P

Model Number :- SACE S7

Voltage - 480V AC

Breaker IC 480V (kA) - 65

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Unmatched Circuit Protection

The Tmax T7 MCCB offers reliable protection for electrical circuits, safeguarding critical equipment from overload and short-circuits. With electronic and thermal magnetic trip units, it reacts rapidly to anomalies, minimizing downtime and hazards. The breaker operates efficiently within a wide temperature range and supports complex installations with optional accessories.

Flexible Installation and Connectivity

With both front and rear terminal configuration options and panel mounting suitability, the ABB 1200A MCCB adapts to varied installation requirements. Whether fixed or plug-in mounting is preferred, its robust design and IP20 protection make it suitable for diverse industrial setups. Auxiliary contacts and optional features further enhance system control and safety.

FAQ's of ABB 1200A 3P MCCB:

Q: What standards does the ABB 1200A 3P MCCB comply with?

A: The ABB 1200A 3P MCCB adheres to IEC 60947-2 standards, ensuring consistent performance, safety, and reliability in both industrial and commercial electrical installations.

Q: How is the MCCB mounted and connected within an electrical panel?

A: This device supports panel mounting and offers front or rear terminal connections, permitting easy adaptation to the specific requirements of your installation environment.

Q: What accessories can be integrated with the ABB Tmax T7 MCCB?

A: Shunt trip, under voltage release, and auxiliary contacts are available as optional accessories, enhancing functionality and control for system operators.

Q: When should I consider using electronic versus thermal magnetic trip units?

A: Electronic trip units provide precise, adjustable protection in complex systems, while thermal magnetic trip units are suitable for traditional overload and short-circuit protection needs. Choose based on your system's demand for flexibility and accuracy.

Q: Where is this MCCB commonly installed and operated?

A: The ABB Tmax T7 MCCB is widely used in industrial facilities, commercial buildings, and wherever three-phase circuit protection at high current levels (up to 1200A) and high breaking capacity is required.

Q: What are the main benefits of using the ABB 1200A MCCB?

A: Key benefits include reliable circuit protection, flexible mounting and connection options, customizable accessories, broad operating temperature range, and excellent mechanical life expectancy.
