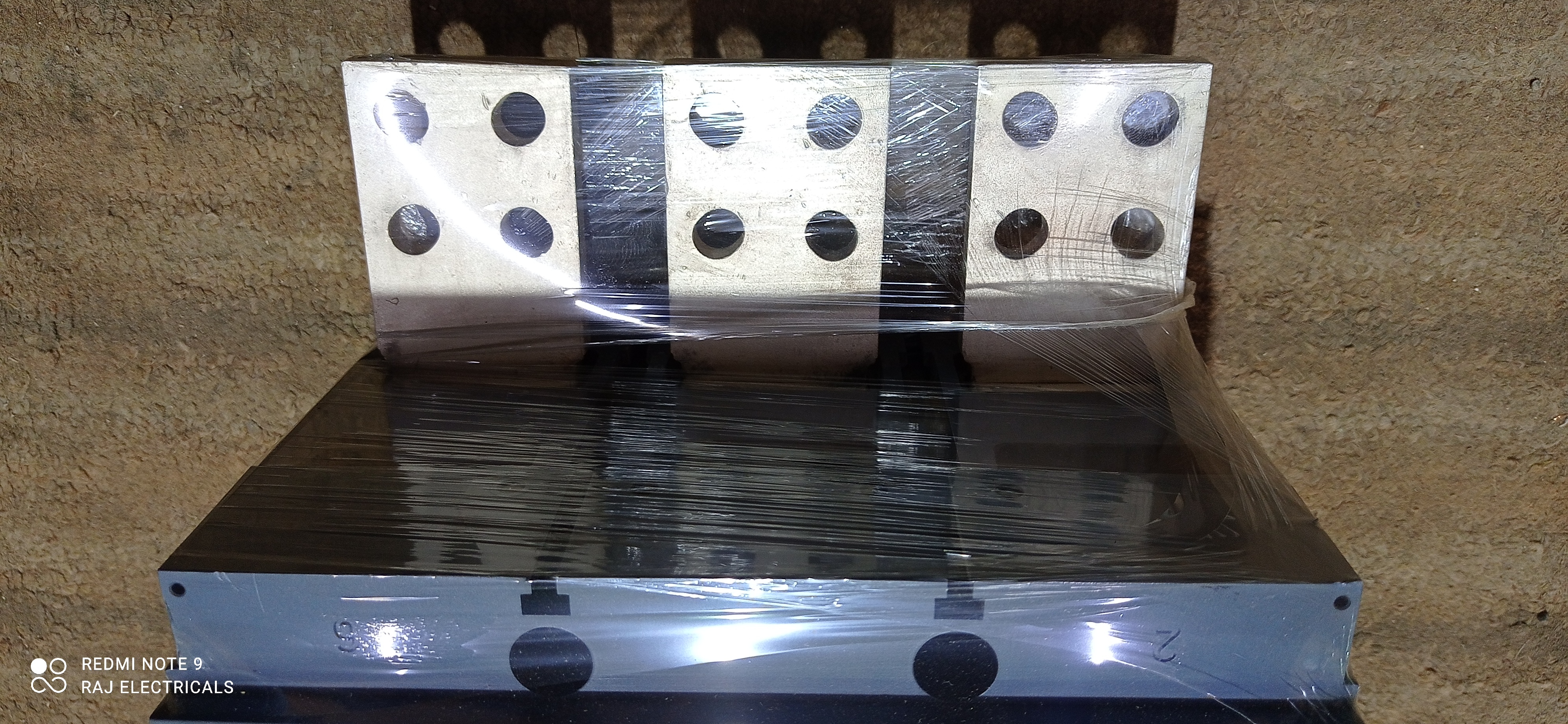

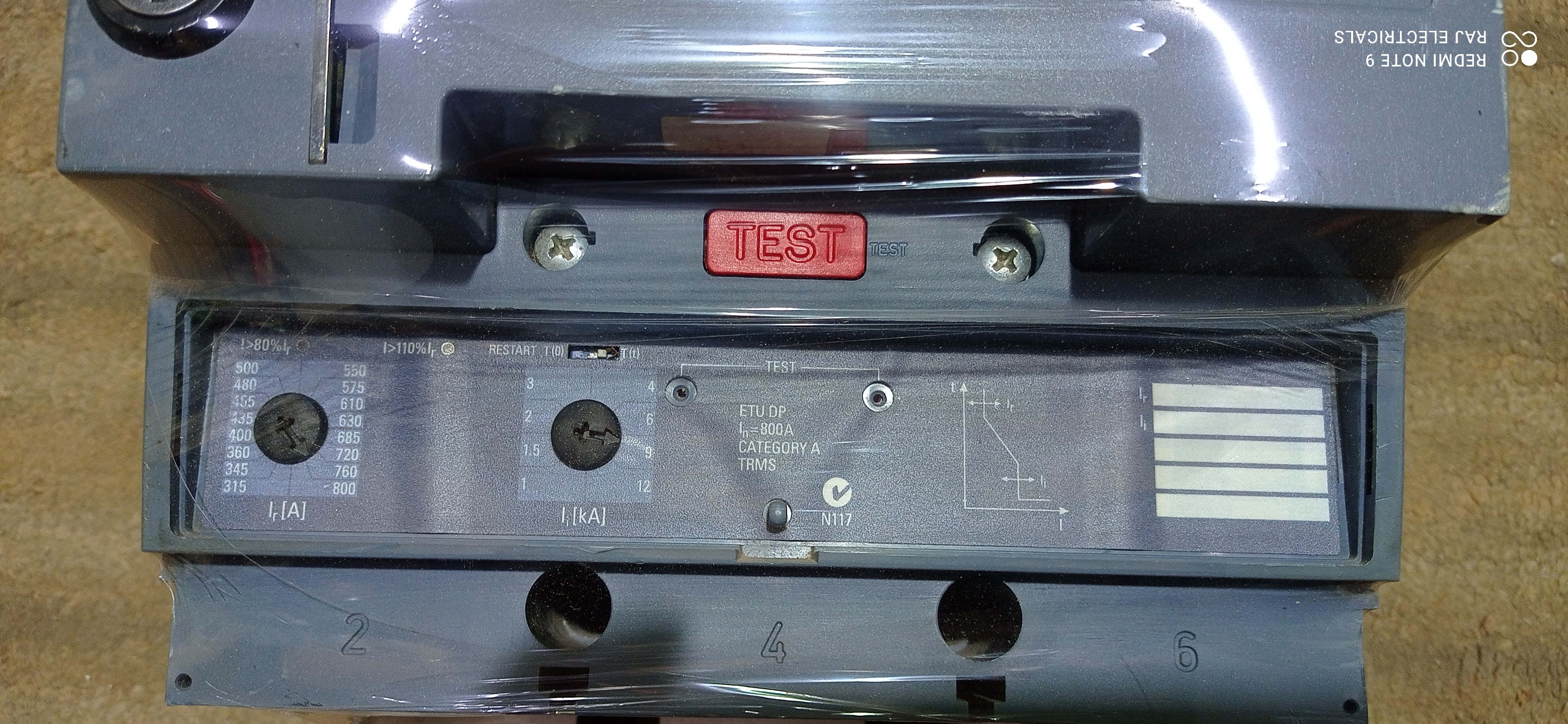

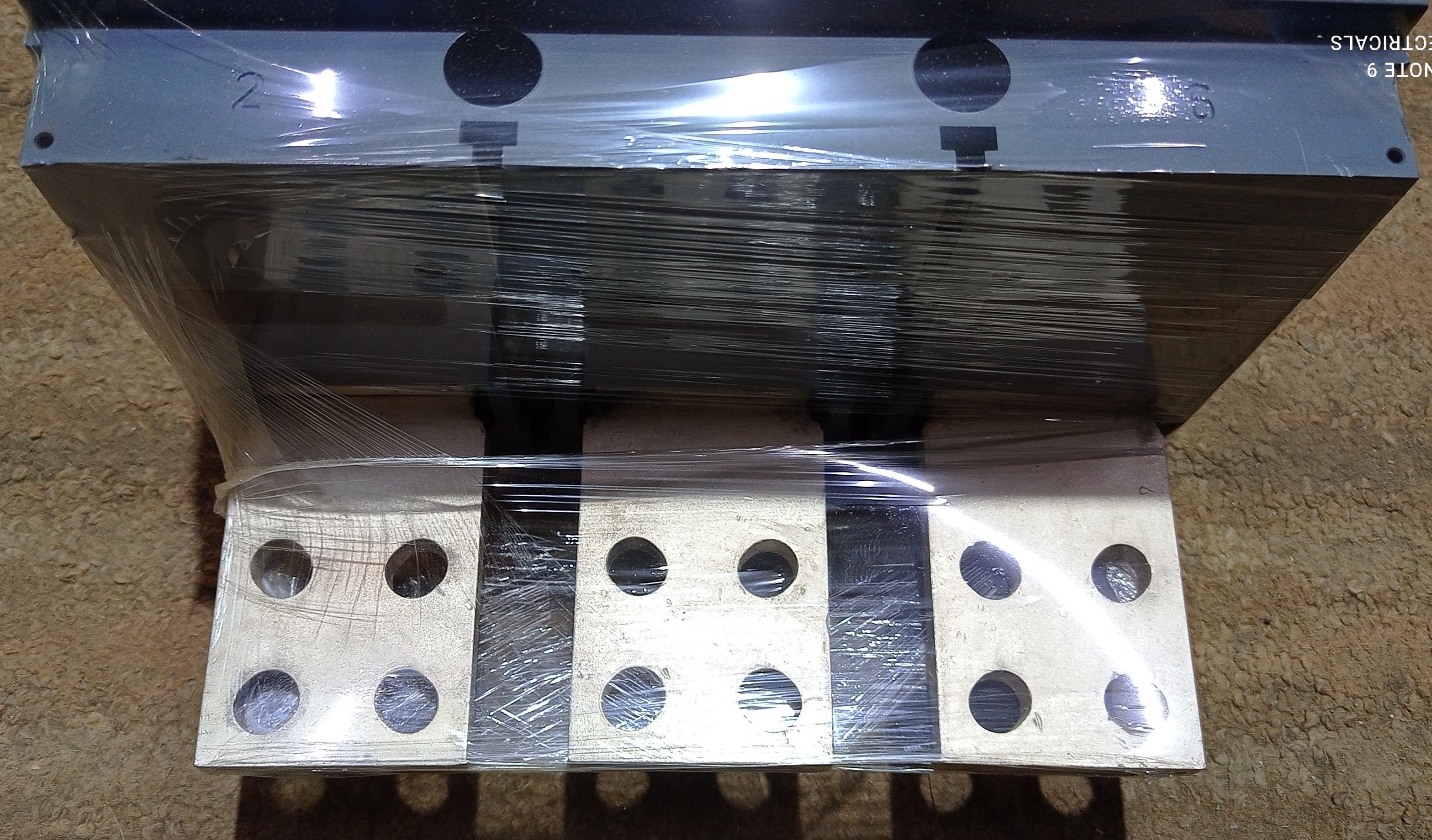

SIEMENS 800A 3P MCCB

Get a Price/Quote

SIEMENS 800A 3P MCCB Specification

Rated Short Circuit Breaking Current
Icu 50kA at 415V AC

Rated Short Circuit Making Current
Icm 105 kA

Phase
Three Phase

Mechanical Life
10,000 operations

Breaking Capacity
50 kA at 415V AC

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mount / Fixed

Function
Circuit Protection, Overload & Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
690V AC

Rated Current
800A

Rated Frequency
50/60 Hz

Curves
C, D (Standard IEC)

Temperature Protection
Thermal & Magnetic

Weight
Approximately 12 kg

Color
Black/Grey

Ambient Compensated
Yes

Operating Temperature Range
-25°C to +70°C

Electrical Life
5,000 operations

Dielectric Strength
2.5 kV for 1 min

Mounting Position
Vertical or Horizontal

Terminal Type
Box/Busbar type

Adjustable Trip Settings
Yes, for overload and short circuit

Frame Size
800A

Protection Class
IP20 (Front)

SIEMENS 800A 3P MCCB Trade Information

Minimum Order Quantity
2 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About SIEMENS 800A 3P MCCB

Raj Electricals Offering Siemens 800A 3P Mccb At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Moulded Case Circuit Breaker (MCCB)

Make :- Siemens

Ampere :- 800A

Number Of Pole :- 3P

Network Type :- AC

Model Number :- 3VT4

Voltage :- 415V AC

Frequency :- 50-60 Hz

Breaking Capacity :- 55 kA

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Advanced Circuit Protection Technology

Utilizing both thermal and magnetic trip elements, the SIEMENS 800A 3P MCCB delivers precise and quick response to overloads and short circuits. The device is equipped to handle high fault currents with a rated breaking capacity of 50kA at 415V, safeguarding critical equipment and infrastructure.

Flexible Installation and Operation

This MCCB offers adjustable trip settings and supports both vertical or horizontal mounting positions. The box/busbar terminal types are designed for easy panel mounting and fixed installations, which simplifies deployment in a range of electrical panel layouts for distributors, exporters, and industrial users.

Durable Performance and Safety

Engineered for reliability, the MCCB has a mechanical life of up to 10,000 operations and electrical life of 5,000 operations. The robust construction provides dielectric strength and ambient compensation, ensuring consistent performance even under extreme temperatures or fluctuating electrical loads.

FAQ's of SIEMENS 800A 3P MCCB:

Q: How does the SIEMENS 800A 3P MCCB protect against electrical faults?

A: The MCCB utilizes both thermal and magnetic trip mechanisms to safeguard systems from overloads and short circuits, automatically disconnecting power when abnormal conditions occur to prevent damage or hazards.

Q: What installation options are available for the SIEMENS 800A 3P MCCB?

A: You can install the MCCB in either vertical or horizontal positions using panel mount or fixed installation methods, and connect it via box/busbar type terminals for secure integration into your electrical setup.

Q: When should the adjustable trip settings be used?

A: Adjustable trip settings are recommended when you need to customize protection levels to suit specific applications or load types, thereby enhancing system flexibility and avoiding unnecessary interruptions.

Q: Where is the SIEMENS 800A 3P MCCB suitable for use?

A: This MCCB is suitable for industrial and commercial switchgear panels operating within a temperature range of -25C to +70C, especially where high-current three-phase systems and strong fault protection are required.

Q: What is the process for maintaining the MCCB's reliability over time?

A: Regular inspection, periodic testing of trip functions, and ensuring connections via box/busbar terminals remain secure will maintain the MCCB's reliability during its mechanical life of up to 10,000 operations.

Q: How does ambient compensation benefit the MCCB's performance?

A: Ambient compensated design ensures the MCCB operates accurately regardless of temperature fluctuations, providing dependable circuit protection in challenging environments.

Q: What are the main usage and benefits of this MCCB?

A: The SIEMENS 800A 3P MCCB offers superior protection for three-phase systems against overloads and short circuits, minimizes downtime, and ensures operational safety for critical electrical infrastructure.
