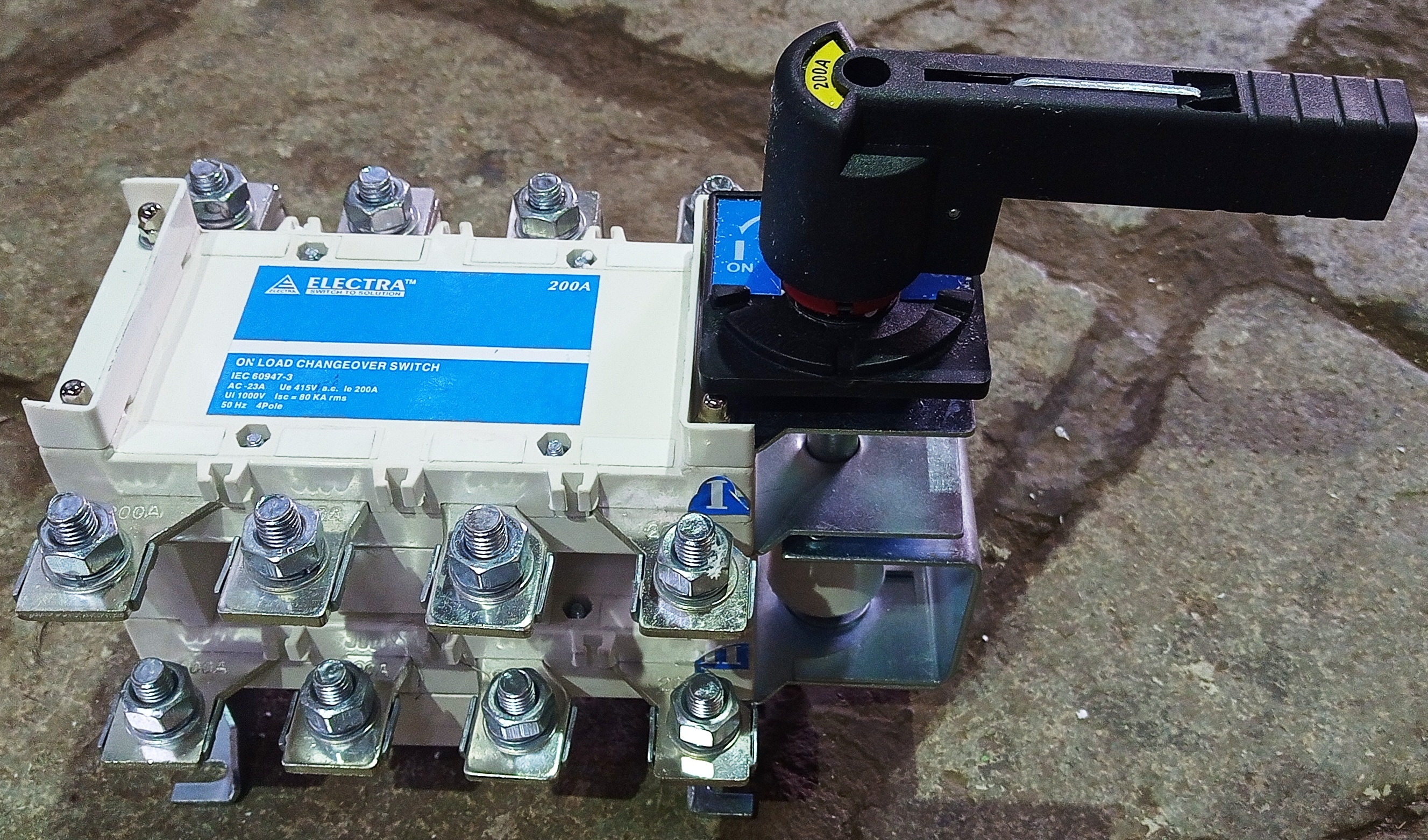

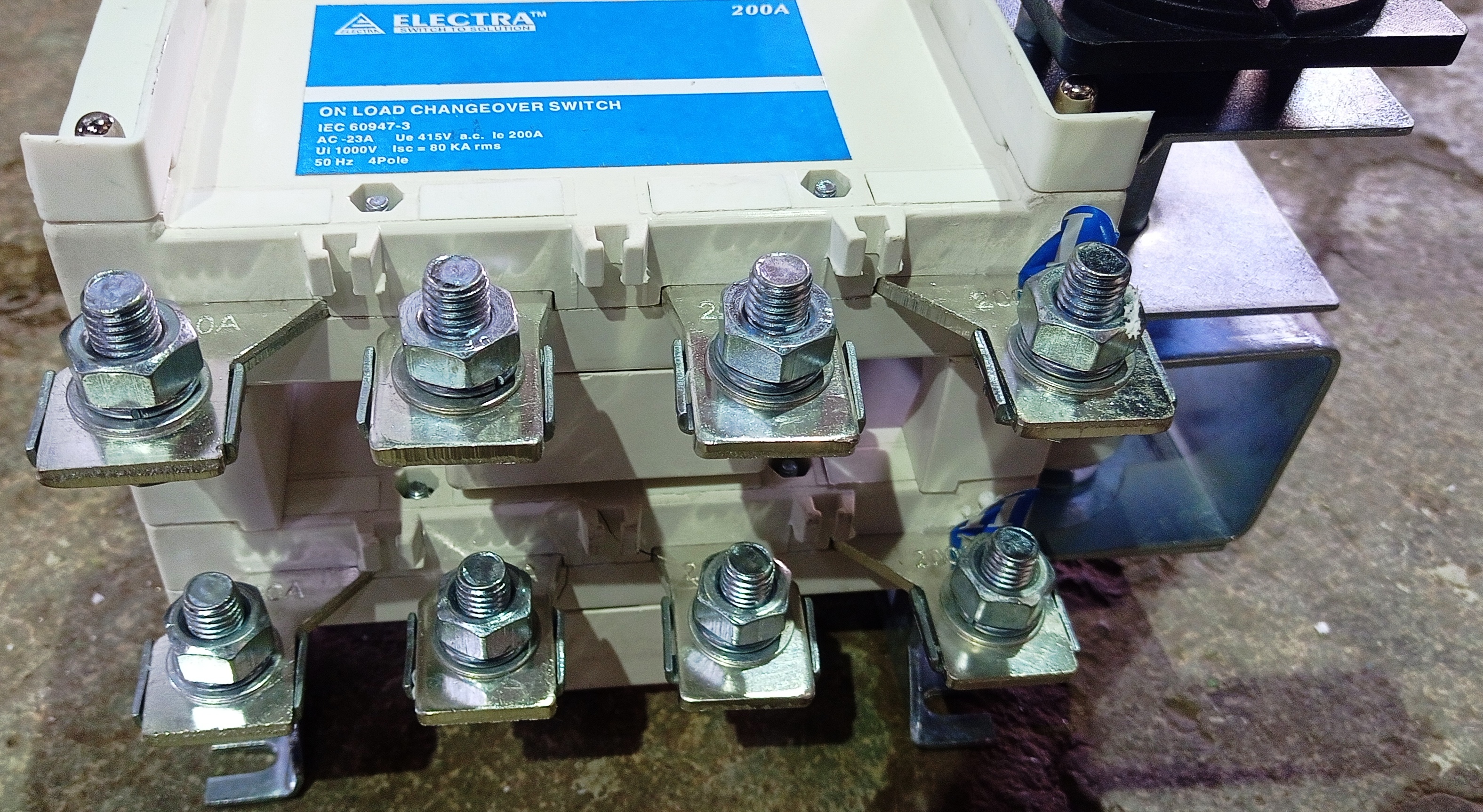

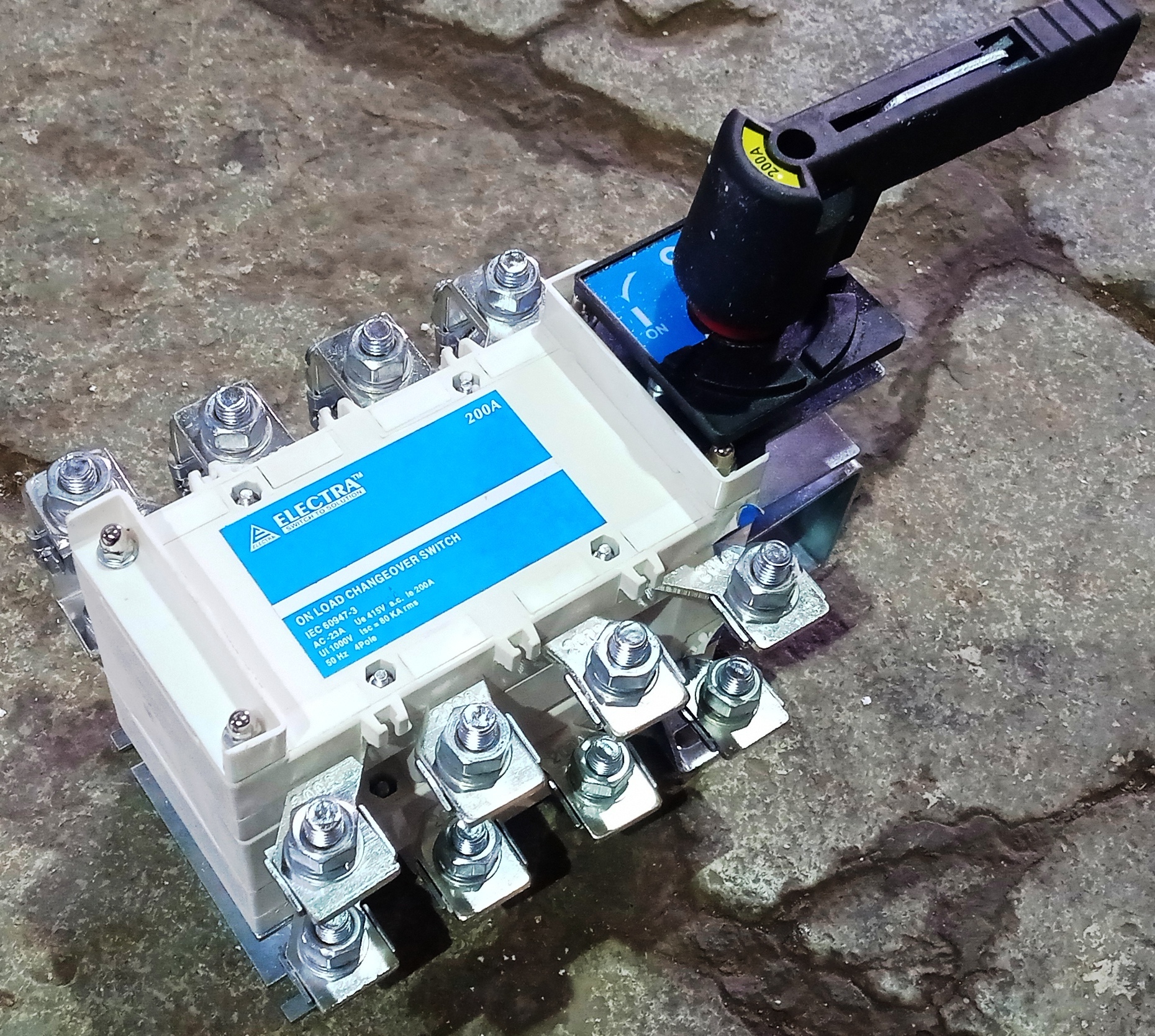

200A ELECTRA CHANGEOVER SWITCH (NEW)

Get a Price/Quote

MOQ : 1 Number

200A ELECTRA CHANGEOVER SWITCH (NEW) Specification

Rated Voltage
415V AC

Protection Level
IP52

Automation Grade
Manual

Temperature Range
-10C to +55C

Response Time
Instantaneous

Mechanical Life
>10000 Operations

Circuit Type
Double Throw

Max. Current
200A

Number of Module
Modular

Finish Type
Glossy

Product Type
Changeover Switch

Material
High Grade Engineering Plastic & Copper Contacts

Insulation Resistance
>1000 M at 500V DC

Contact Resistance
50 m

Max. Voltage
415V AC

Operating Temperature
-10C to +55C

Stoke
Manual

Size
Standard Panel Mount

Color
Grey & Black

Weight
Approx. 2.8 kg

Mounting Type
Base/DIN Rail Mounting

Current Rating
200A

No Of Poles
4 Pole

Dielectric Strength
2.5 kV AC for 1 min

Ambient Humidity
Up to 95% RH (non-condensing)

Standards Compliance
IS/IEC 60947-3

Shock Resistance
Meets industrial standards

Terminal Type
Screw Terminal

Vibration Resistance
Meets industrial standards

Connection Type
Front Wiring

Switching Mode
ON-OFF-ON

200A ELECTRA CHANGEOVER SWITCH (NEW) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 200A ELECTRA CHANGEOVER SWITCH (NEW)

200A 4P Electra Onload Changeover Switch Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Onload Changeover Switch

Make :- Electra

Ampere :- 200A

Number Of Pole :- 4P

Current Voltage :- 415V AC

Frequency :- 50 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

Advanced Switching Capability

The ELECTRA Changeover Switch offers a reliable ON-OFF-ON mode, enabling effortless manual transfer between two power sources or circuit isolation. Its double-throw, 4-pole design accommodates a wide current capacity of up to 200A, making it suitable for industrial and commercial electrical setups requiring uninterrupted power management.

High Durability and Compliance

Engineered for longevity and reliability, the switch supports over 10,000 mechanical operations. It adheres to IS/IEC 60947-3 standards, providing robust dielectric strength of 2.5 kV and withstands harsh environmental factors including humidity up to 95% RH. Industrial-grade shock and vibration resistance further ensure safety and consistent operation.

Effortless Installation and Maintenance

With front wiring and screw terminals, installation is streamlined for panel builders and electricians. The base/DIN rail mounting design allows versatile and secure panel integration. The switch's modular construction and manual operation support straightforward maintenance, minimizing downtime in critical electrical systems.

FAQ's of 200A ELECTRA CHANGEOVER SWITCH (NEW):

Q: How does the 200A ELECTRA Changeover Switch ensure safe power switching?

A: The switch utilizes a manual ON-OFF-ON switching mode with a robust 4-pole, double-throw configuration. Its design meets IS/IEC 60947-3 safety standards, offers high dielectric and insulation resistance, and provides IP52 protection, ensuring reliable and safe operation in demanding industrial environments.

Q: What are the installation requirements for this switch?

A: Installation is made easy with screw terminals and front wiring access. It can be mounted securely using a base or DIN rail, and fits standard panel sizes. The modular format and accessible terminals facilitate quick integration into existing systems by distributors, electricians, or maintenance teams.

Q: When should I use this changeover switch in my application?

A: This switch is ideal for transferring loads between main and backup power sources in industrial, commercial, or critical infrastructure settings. It is particularly useful during scheduled maintenance, outages, or when a reliable transition between supplies is necessary to ensure continuous operation.

Q: Where can the 200A ELECTRA Changeover Switch be utilized?

A: The switch can be installed in factories, commercial buildings, data centers, and utility panels. Its high current rating and compliance with international standards make it suitable for the Indian market and exports, supporting diverse applications that require robust circuit control.

Q: What benefits does the high-grade engineering plastic and copper contacts offer?

A: These materials enhance durability, electrical conductivity, and operational safety. Engineering plastic provides excellent insulation and mechanical strength, while copper contacts minimize contact resistance to less than 50 m, ensuring efficient and long-lasting performance.

Q: How does the switch perform under harsh environmental conditions?

A: It is built to withstand ambient temperatures from -10C to +55C, humidity up to 95% RH (non-condensing), and meets industrial standards for shock and vibration resistance. This ensures reliable function in challenging and unpredictable settings.

Q: What is the process for operating the switch, and how fast does it respond?

A: Operation is manual, using a straightforward stoke action to switch between positions. The switch provides instantaneous response, allowing users to quickly and confidently transfer loads without delay.
