100 Amp 4 Pole Onload Changeover Switch

Get a Price/Quote

MOQ : 100 Pieces

100 Amp 4 Pole Onload Changeover Switch Specification

Response Time
Immediate (Manual)

Max. Current
100 Amp

Temperature Range
-5C to +55C

Finish Type
Matte

Mechanical Life
Over 10,000 Operations

Protection Level
IP20

Automation Grade
Manual

Number of Module
4

Circuit Type
Four Pole Changeover

Rated Voltage
415V AC

Product Type
Onload Changeover Switch

Material
High-grade Polycarbonate and Copper Contacts

Insulation Resistance
1000 M

Contact Resistance
3 m

Max. Voltage
415V AC

Operating Temperature
-5C to +55C

Stoke
Manual Operation

Size
Standard Panel Mount

Color
White & Black

Weight
1.3 kg

Mounting Type
Panel Mount

Current Rating
100 Amp

No Of Poles
4 Pole

Storage Temperature
-25°C to +70°C

Dielectric Strength
2kV for 1 min

Contact Material
Copper Alloy with Silver Plating

Rated Impulse Voltage
6kV

Switch Type
Rotary

Conformity Standards
IEC 60947-3

Terminal Type
Screw Type

Breaking Capacity
6 kA

Frequency
50/60 Hz

Application
Industrial & Commercial Power Supply Changeover

100 Amp 4 Pole Onload Changeover Switch Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Day

Delivery Time
2 Days

Sample Available
Yes

Main Domestic Market
All India

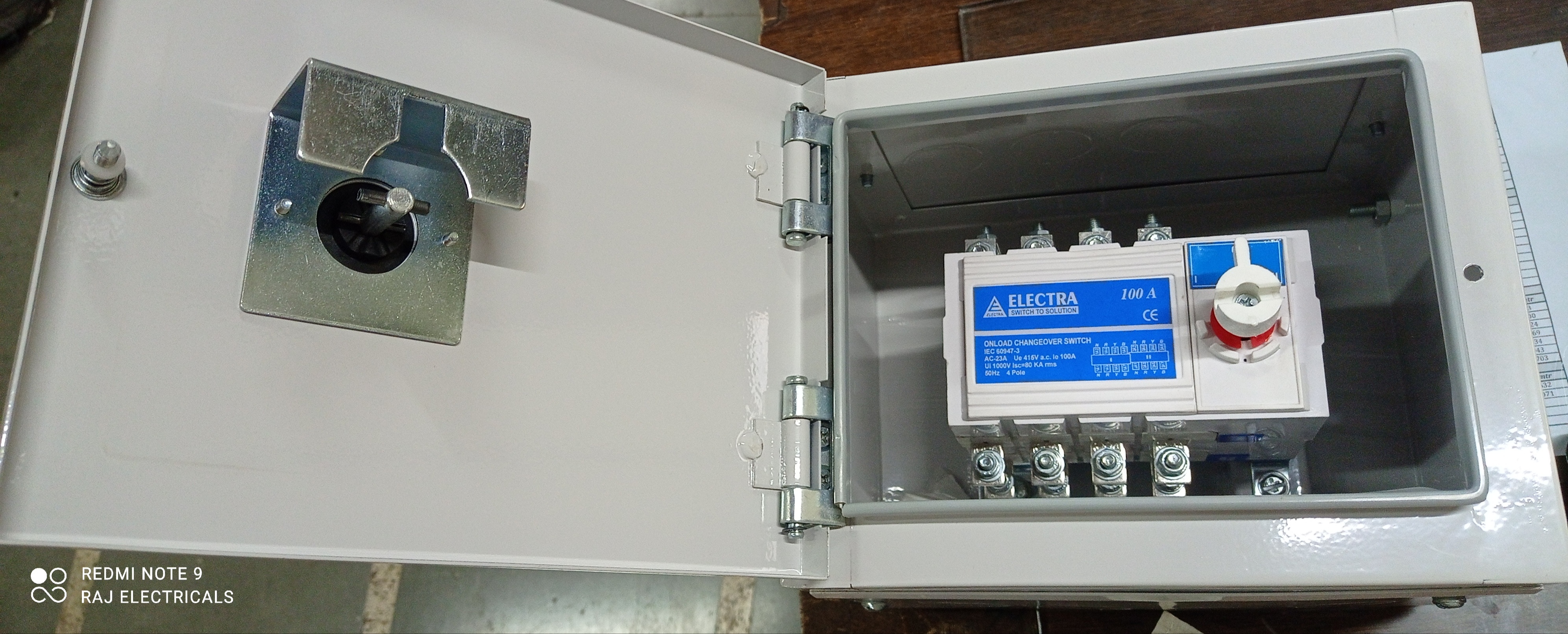

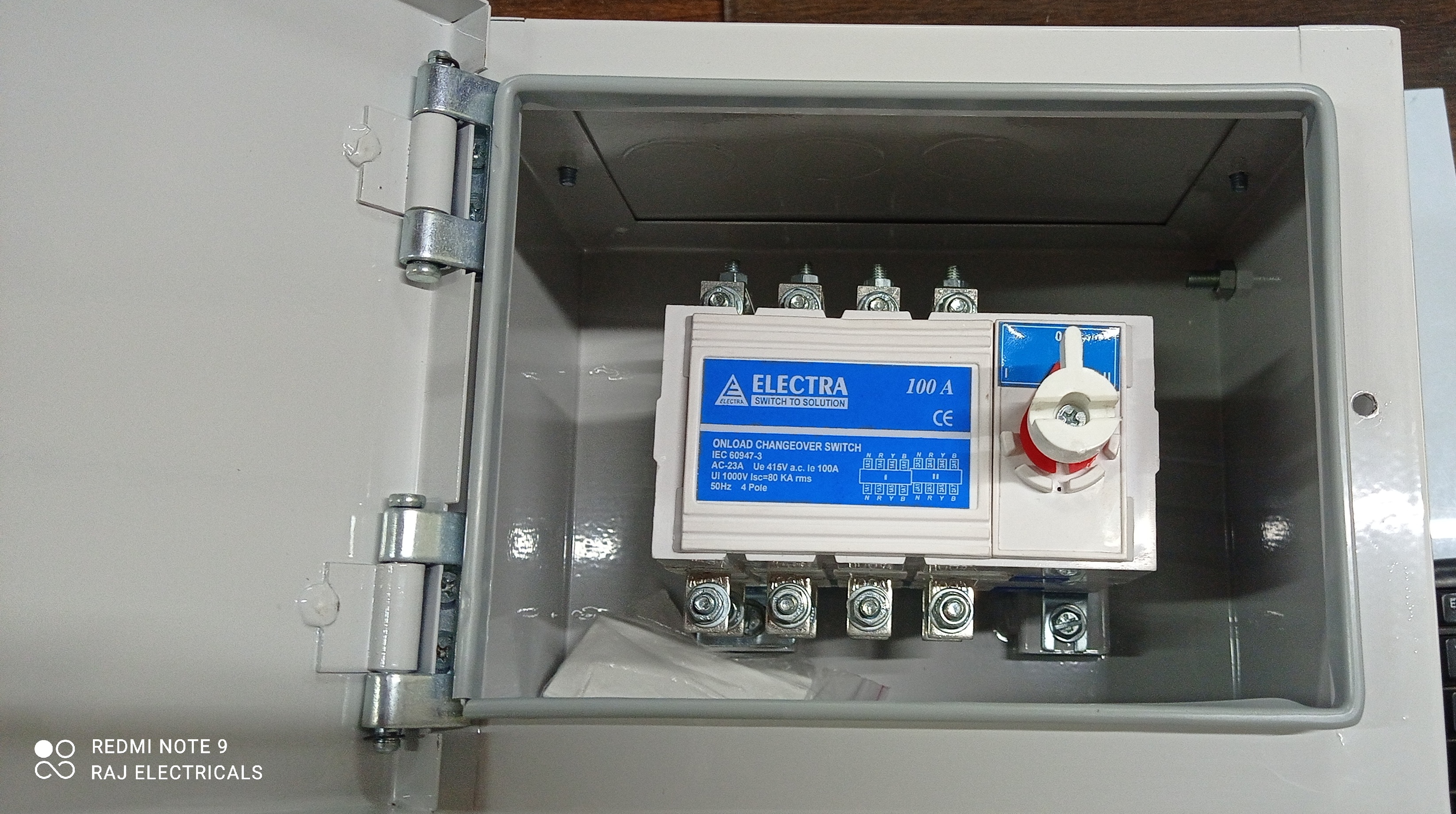

About 100 Amp 4 Pole Onload Changeover Switch

Raj Electricals Offering 100 Amp 4 Pole Onload Changeover Switch At Bhavnagar, Gujarat, India.
We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.
Product Description :-
Brand :- Electra
Ampere :- 100
Number Of Pole :- 4
Condition :- New
IEC60947-3
Ac-23A Ue 415V a.c. Ie 100A
UI 1000V Isc = 80 KA rms
Frequency :- 50Hz
We Supply Our Products In All Over India And Also In Foreign Countries.
For More Details Contact : 9426838080.
Website :- www.rajelectrics.com
Email :- raj_electricals@hotmail.com.

Reliable Power Changeover for Industrial and Commercial Use

This onload changeover switch is ideal for industrial and commercial applications, ensuring continuous and reliable power supply by switching between sources as needed. With a breaking capacity of 6 kA, four-pole design, and compliance with IEC standards, it guarantees operational integrity, safety, and durability even under demanding conditions.

Durable Materials and High Safety Standards

Manufactured using high-grade polycarbonate and copper alloy contacts with silver plating, the switch is built to withstand rigorous use. It delivers excellent dielectric strength, insulation resistance, and a rated impulse voltage of 6 kV, ensuring reliable operation and safeguarding electrical systems from faults and surges.

FAQs of 100 Amp 4 Pole Onload Changeover Switch:

Q: How is the 100 Amp 4 Pole Onload Changeover Switch installed in a power supply system?

A: The switch is designed for standard panel mounting, making it easy to integrate into industrial and commercial settings. It uses screw-type terminals, facilitating secure connections during installation.

Q: What are the primary benefits of using this changeover switch for industrial or commercial applications?

A: Key benefits include stable power changeover, high breaking capacity (6 kA), immediate manual operation, compliance with IEC 60947-3, and long mechanical life over 10,000 operations. These features promote safe and reliable power management.

Q: When should this changeover switch be used?

A: It should be used whenever seamless changeover between two power sources is required, such as in backup generator systems or for switching between grid and alternative power in industrial and commercial environments.

Q: Where is this changeover switch suitable for installation?

A: This switch is suitable for installation in electrical distribution panels within factories, commercial buildings, warehouses, and other facilities requiring uninterrupted power supply and effective source control.

Q: What is the process for manually operating the changeover switch?

A: Operation is manual via the rotary switch. By turning the handle, the switch enables or disables the connection between two different power sources, ensuring immediate power transfer without the need for automation.

Q: How does the switch ensure safety during operation?

A: Safety is enhanced through the switchs IP20 protection rating, excellent dielectric strength (2kV for 1 min), high insulation resistance (1000 M), and use of silver-plated copper alloy contacts to minimize contact resistance and heat accumulation.
