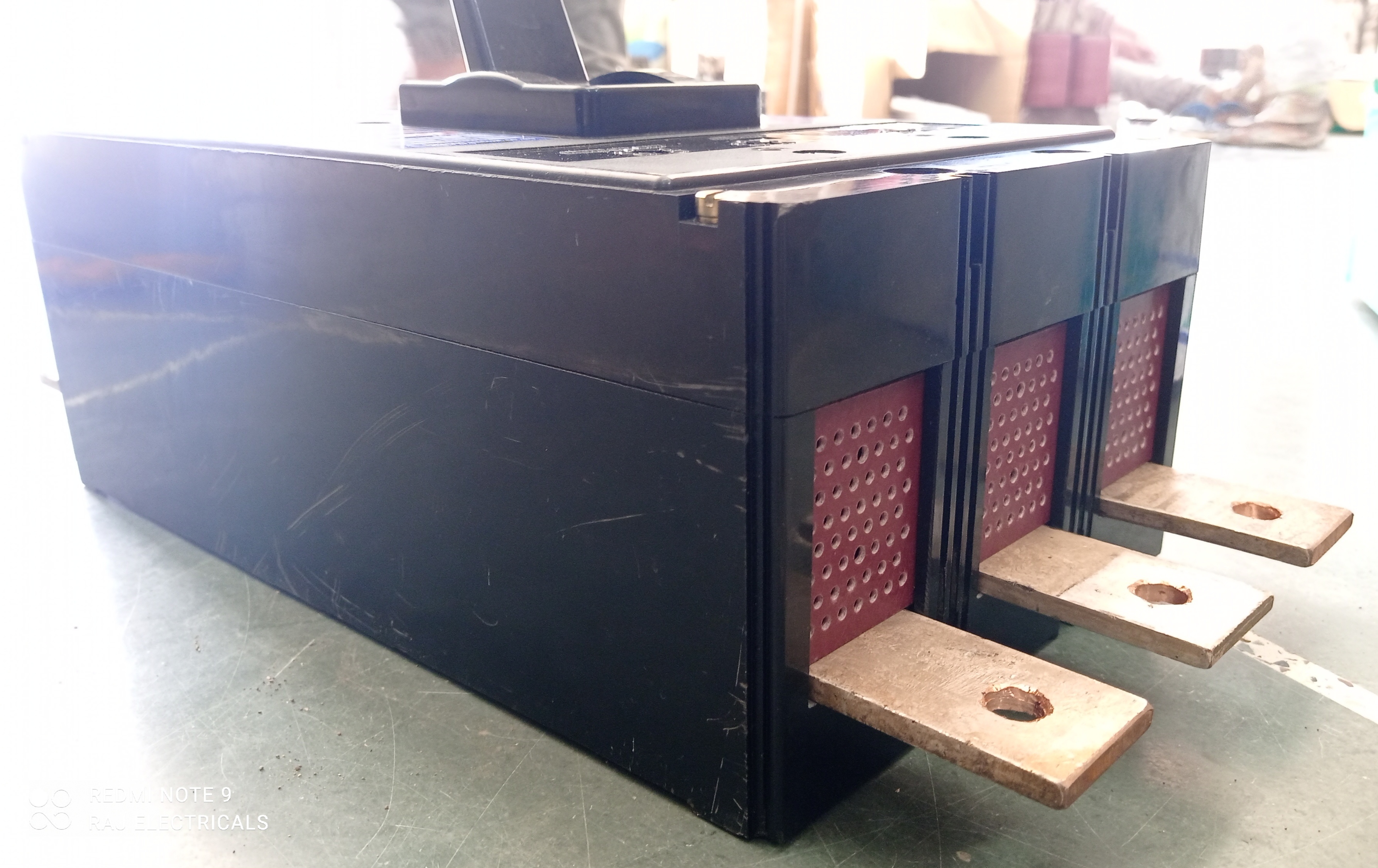

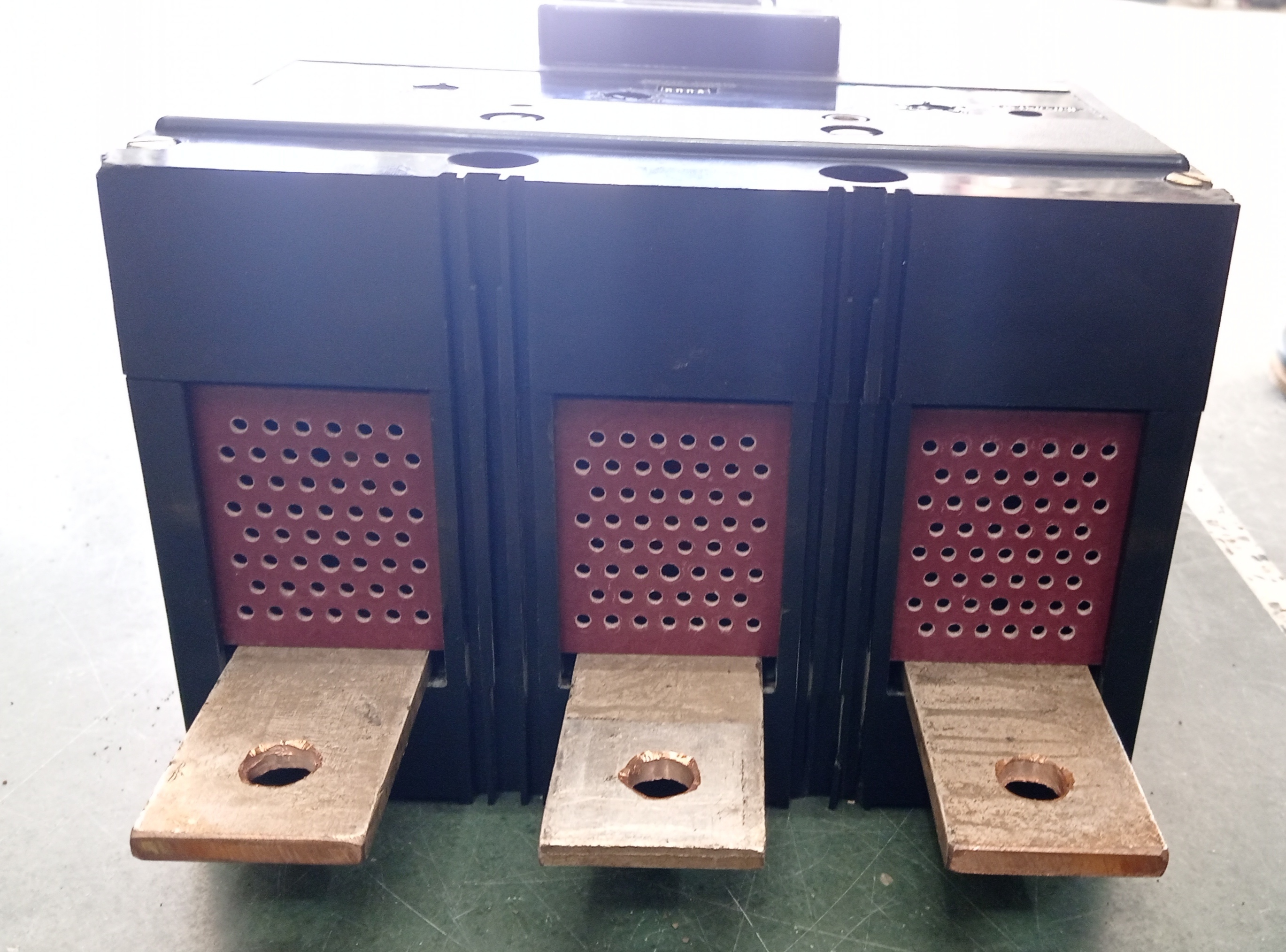

TERASAKI 600A 3P MCCB

Get a Price/Quote

MOQ : 1 Number

TERASAKI 600A 3P MCCB Specification

Rated Short Circuit Breaking Current
35 kA

Phase
Three Phase

Rated Short Circuit Making Current
Up to 70 kA

Breaking Capacity
35 kA

Mechanical Life
Over 10,000 Operations

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounted

Function
Circuit Protection, Overload & Short Circuit Protection

Poles Number
3P (Three Poles)

Rated Voltage
415V AC

Rated Current
600A

Rated Frequency
50/60 Hz

Curves
Standard/Inverse Time Trip Curve

Temperature Protection
Built-in Thermal & Magnetic Protection

Weight
Approx. 7.5 kg

Color
Grey/Black

Utilization Category
A

Standards Compliance
Conforms to international safety standards

Operating Temperature
-5°C to +40°C

Terminal Connection Type
Bolt-on/Lug Terminal

Control Type
Manual ON/OFF

Degree of Protection
IP20

Accessories Compatibility
Shunt Trip, Under Voltage Trip, Auxiliary Contact (optional)

Mounting Orientation
Vertical or Horizontal

Trip Unit
Thermal Magnetic

Insulation Voltage
690V AC

Frame Size
600AF

Housing Material
Molded Plastic

TERASAKI 600A 3P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About TERASAKI 600A 3P MCCB

Raj Electricals Offering Terasaki 600A 3P Mccb At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Brand :- Terasaki

Model Number :- TL-600F

Ampere :- 600A

Number Of Pole :- 3

Voltage :- 440V AC

Frequency :- 50 Hz

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com.

Email: raj_electricals@hotmail.com..

Reliable Circuit Protection

The TERASAKI 600A 3P MCCB is designed to provide dependable overload and short-circuit protection for three-phase power systems. With a high breaking capacity of 35 kA and an advanced thermal-magnetic trip unit, it safeguards equipment and personnel from electrical faults in demanding industrial or commercial installations.

Flexible Installation and Control

This molded case circuit breaker accommodates both vertical and horizontal panel mounting, making it suitable for new installations or retrofits. With a manual ON/OFF control type and bolt-on/lug terminal connections, it allows straightforward integration into existing distribution panels while supporting optional accessories like shunt trip, under voltage trip, and auxiliary contacts.

Built for Durability and Safety

Constructed from high-quality molded plastic, the TERASAKI 600A MCCB achieves IP20 protection and a mechanical life exceeding 10,000 operations. Its housing and components are engineered for safety in harsh conditions, operating reliably between -5C and +40C. This MCCB complies with recognized international standards to ensure safe, long-lasting performance.

FAQ's of TERASAKI 600A 3P MCCB:

Q: How does the TERASAKI 600A 3P MCCB provide protection in electrical circuits?

A: This MCCB features a thermal-magnetic trip unit that automatically disconnects the circuit during overloads or short circuits. It protects wiring and connected equipment by detecting abnormal conditions and interrupting the power supply before damage occurs.

Q: What are the installation options for the TERASAKI 600A 3P MCCB?

A: The MCCB supports both vertical and horizontal mounting orientations and can be panel-mounted using bolt-on or lug terminals. This flexibility makes it suitable for a variety of electrical distribution setups in industrial and commercial installations.

Q: When should optional accessories like shunt trip or auxiliary contact be used?

A: Accessories such as shunt trip, under voltage trip, and auxiliary contacts are used to enhance control and monitoring. For instance, a shunt trip allows remote tripping, while auxiliary contacts provide status feedback to monitoring systems. These options are recommended when advanced protection or automation is required.

Q: Where is the TERASAKI 600A 3P MCCB commonly installed?

A: It is typically installed in main distribution boards, panelboards, or switchgear within industrial plants, commercial buildings, and large-scale facilities where reliable circuit protection is essential for three-phase power systems.

Q: What is the benefit of the built-in IP20 degree of protection in this MCCB?

A: The IP20 protection ensures that the MCCB's live parts are guarded against finger contact, reducing the risk of accidental electric shock and enhancing operator safety during installation and operation.

Q: How many operations can the TERASAKI MCCB perform during its lifetime?

A: The device is engineered for a mechanical life exceeding 10,000 operations, ensuring long-term reliability and minimizing the need for frequent replacements in demanding environments.

Q: What international standards does the TERASAKI 600A 3P MCCB conform to?

A: The MCCB is manufactured in accordance with established international safety standards, ensuring its suitability for use across global markets and compliance with local electrical regulations.
