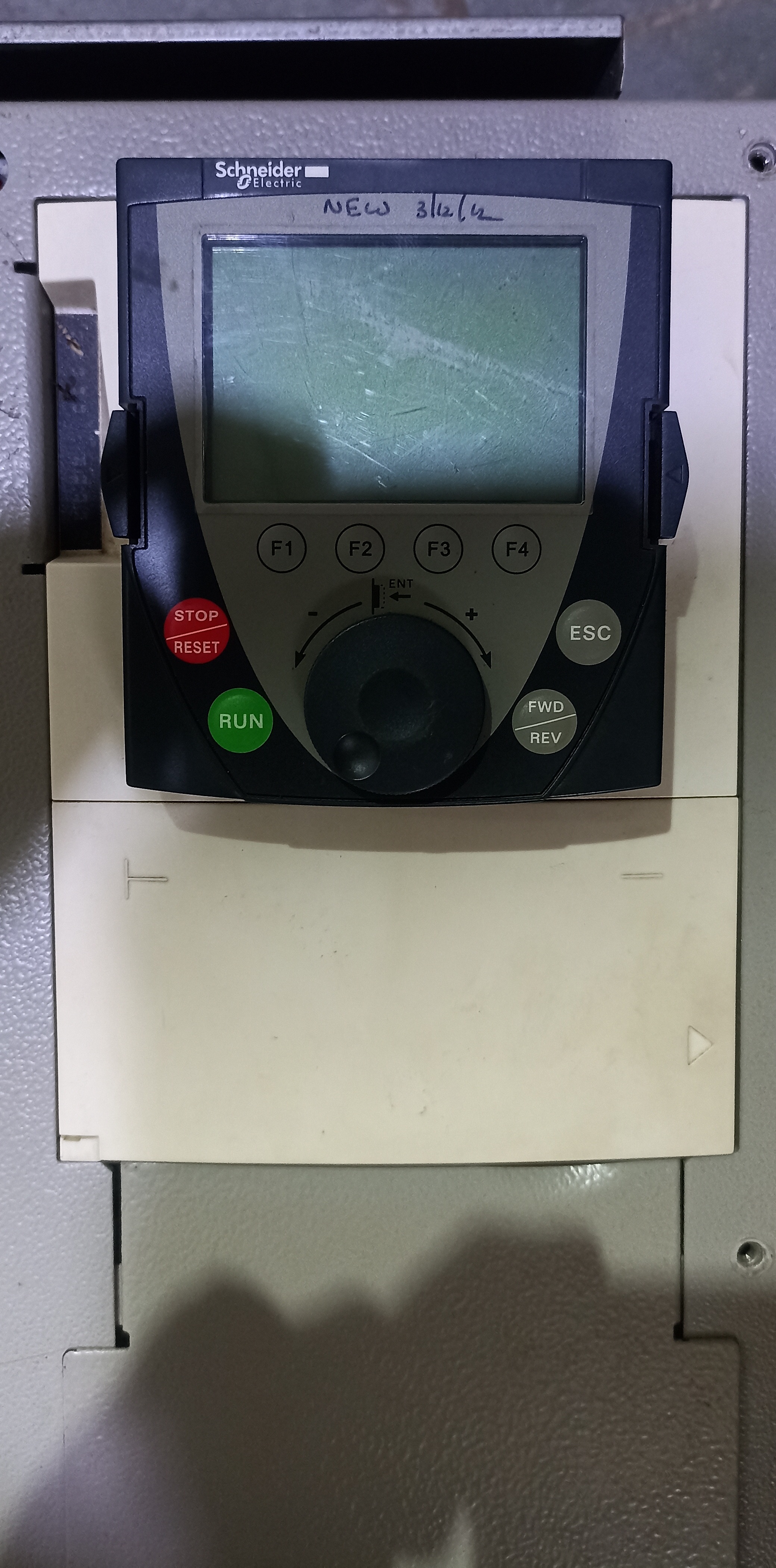

TELEMECANIQUE (ALTIVAR - 71) 30 HP AC DRIVE

Send Inquiry

Request To Call Back

TELEMECANIQUE (ALTIVAR - 71) 30 HP AC DRIVE

Get a Price/Quote

TELEMECANIQUE (ALTIVAR - 71) 30 HP AC DRIVE Specification

Connector Type
Screw Type

Overheating Protection
YES

Operating Temperature
-10C to +50C

Feature
Vector Control, High-Performance Drive, LCD Display

Humidity %
5% to 95% (non-condensing)

Power Factor
0.98

Efficiency
>95%

IP Rating
IP20

Mounting Type
Panel Mount

Insulation Material
High Grade Polymer

Surface Finish
Matte

Shape
Rectangular

Product Type
AC Drive

Application
Industrial Automation, Motor Speed Control

Protection Level
Overload, Short Circuit, Overvoltage

Frequency (MHz)
50/60 Hz

Rated Voltage
400 V AC

Energy Consumption
Optimized for Energy Saving

Output Type
Three Phase

Color
Grey

Dimension (L*W*H)
280 x 213 x 355 mm

Weight
23 kg

Phase
Three Phase

Size
Standard

Input Voltage
380-480 V AC

Material
Plastic and Metal

Connection Type
Screw Terminal

No Of Poles
3

Altitude
Up to 1000 m without derating

Cooling Method
Forced Air Cooling

Brake Chopper
Integrated

Software Features
Programmable Logic, PID Control, Multi-Speed Operations

EMC Filter
Integrated (C2) Standard

Control Method
Sensorless Flux Vector Control, Voltage/Frequency Ratio, Auto-tuning

Display
Integrated Keypad LCD

Overload Capacity
150% for 60 seconds

Motor Compatibility
Asynchronous & Synchronous Motors

Communication Ports
Modbus, CANopen (standard); Optional Profibus, Ethernet

Standards
IEC/EN 61800-5-1, UL 508C, CSA

Model Number
ATV71HU30N4

Rated Power
30 HP (22 kW)

TELEMECANIQUE (ALTIVAR - 71) 30 HP AC DRIVE Trade Information

Minimum Order Quantity
2 Number

Payment Terms
Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Main Export Market(s)
Asia, Australia, Central America, South America, Western Europe, Middle East, Eastern Europe, North America, Africa

Main Domestic Market
All India

About TELEMECANIQUE (ALTIVAR - 71) 30 HP AC DRIVE

TELEMECANIQUE (ALTIVAR - 71) 30 HP AC DRIVE Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

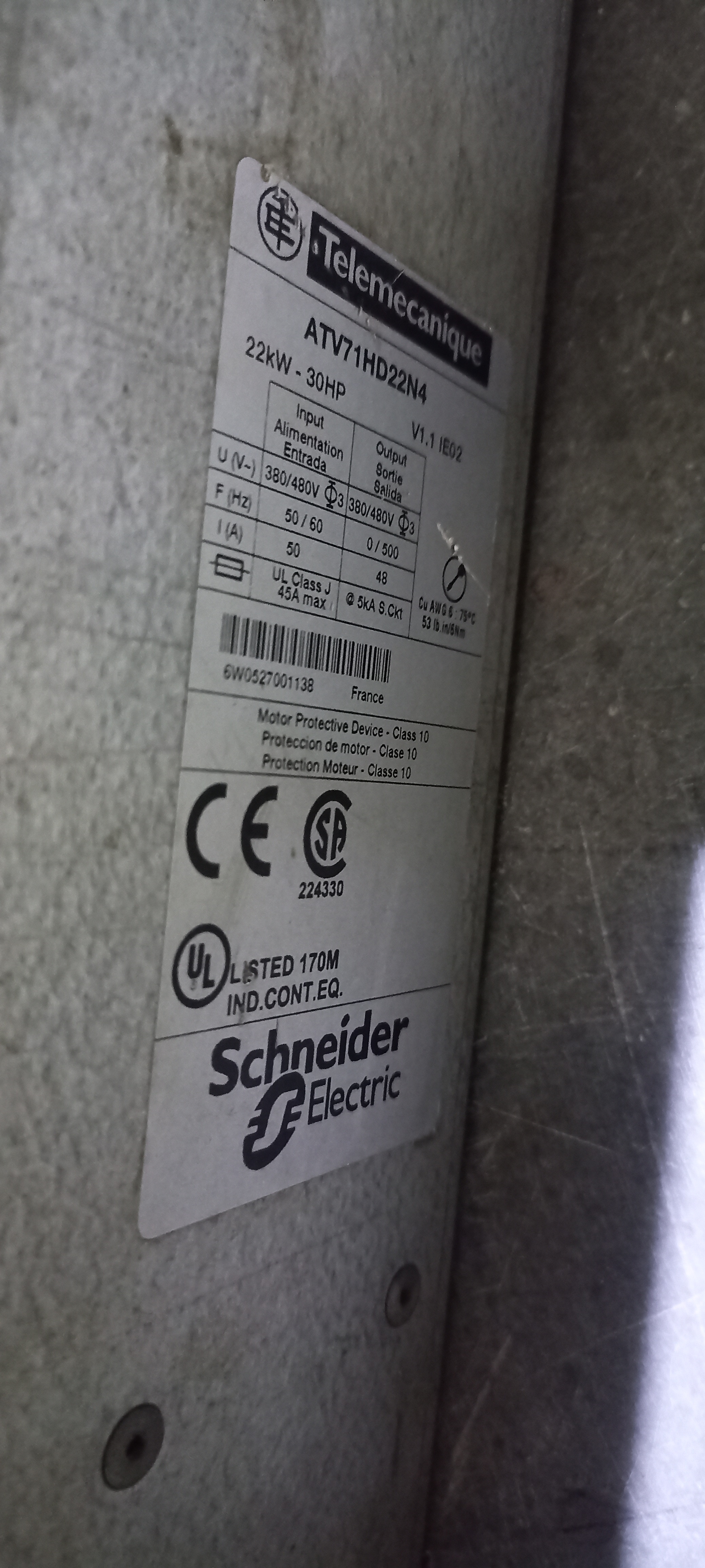

Product Specification :-

Type :- Frequency Ac Drive

Make :- Telemecanique

Hp :- 30 Hp

Kw :- 22 Kw

Model :- ALTIVAR - 71

Model Number :- ATV71HD22N4

Condition :- Refurbished

Voltage :- 380 - 480V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Engineered for Industrial Reliability

With a rugged construction using high-grade polymers and metal, the ATV71HU30N4 drive withstands industrial environments, offers protection against overload, short circuits, and overvoltage, and ensures stable operation across a wide temperature range. Certified by leading international standards, it guarantees high safety and reliability for your automation systems.

Advanced Motor Control Functions

Utilizing Sensorless Flux Vector Control and PID functions, this drive delivers precise and flexible motor speed regulation. Auto-tuning, programmable logic, and multi-speed operations make it suitable for complex industrial processes, while compatibility with asynchronous and synchronous motors enhances its versatility.

Efficient Energy Management

Designed with energy optimization in mind, the ALTIVAR 71 achieves a power factor of 0.98 and an efficiency greater than 95%. Its forced air cooling and integrated EMC filtering further improve longevity and operational savings, making it an ideal solution for energy-conscious industries.

FAQ's of TELEMECANIQUE (ALTIVAR - 71) 30 HP AC DRIVE:

Q: How do I configure the TELEMECANIQUE ALTIVAR 71 AC drive for my motor?

A: The ATV71HU30N4 comes equipped with an integrated LCD keypad, allowing for straightforward programming and auto-tuning. You can select your motor type (asynchronous or synchronous) and utilize the auto-tuning feature for precise parameter setup. The drive's programmable logic and multi-speed operations simplify customization for various applications.

Q: What communication options are available with the ATV71HU30N4 drive?

A: Standard communication ports include Modbus and CANopen. Optional modules are available for integrating Profibus or Ethernet, providing flexible connectivity to different industrial automation networks.

Q: When should I make use of the integrated brake chopper?

A: The integrated brake chopper is particularly useful in applications involving rapid stopping or decelerating heavy loads, such as conveyors or hoists. It enables efficient braking by dissipating excess energy during deceleration, thus safeguarding both the drive and the connected motor.

Q: Where can the ALTIVAR 71 drive be installed for optimal performance?

A: This drive is designed for panel mounting in industrial environments. It operates reliably at altitudes up to 1000 meters without derating and within ambient temperatures of -10C to +50C. Ensure sufficient ventilation for its forced air cooling system and avoid locations with excessive dust or corrosive gases.

Q: What is the process for protecting the drive against overheating or overload?

A: The ATV71HU30N4 features advanced protection mechanisms including overload protection (150% for 60 seconds), short circuit, and overheating safeguards. Its forced air cooling and integrated fault monitoring ensure that the drive operates within safe thermal limits, extending service life and reducing downtime.

Q: How does this AC drive contribute to energy efficiency in my facility?

A: With an optimized control strategy and high-efficiency hardware (efficiency >95%, power factor 0.98), the drive minimizes energy consumption during motor operations. It leverages vector control to adjust power use to demand, saving energy and reducing operational costs over time.
