TELEMECANIQUE (Altivar-61) 50 HP AC DRIVE

Send Inquiry

Request To Call Back

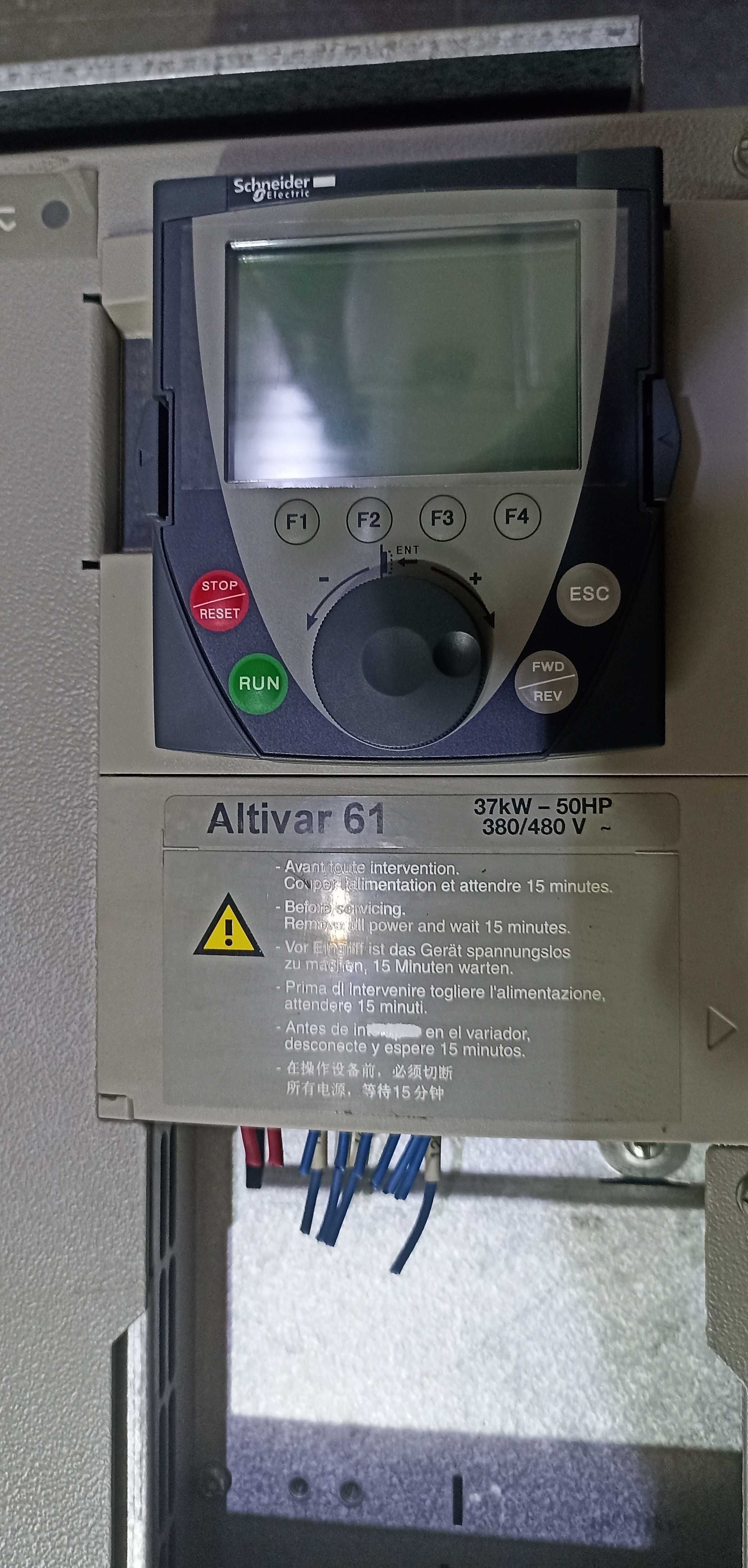

TELEMECANIQUE (Altivar-61) 50 HP AC DRIVE

Get a Price/Quote

TELEMECANIQUE (Altivar-61) 50 HP AC DRIVE Specification

Overheating Protection
Yes (Thermal Protection)

Surface Finish
Powder Coated

Shape
Rectangular

Humidity %
5% to 95% non-condensing

Insulation Material
Thermoplastic / Insulated Metal

Connector Type
Screw Terminal

Mounting Type
Wall Mount / Panel Mount

Efficiency
Up to 98%

Feature
EMC Filter, Integrated PID, User Friendly Interface

Power Factor
>= 0.95

IP Rating
IP 20

Operating Temperature
-10C to +50C

Product Type
AC Drive (Variable Frequency Drive)

Application
Fan, Pump, HVAC Systems, Motor Control

Protection Level
Over Voltage, Under Voltage, Short Circuit, Overload

Frequency (MHz)
0.5 to 500 Hz (adjustable)

Rated Voltage
380-480V AC

Energy Consumption
High Efficiency

Output Type
Three Phase Output

Color
Grey / Blue

Dimension (L*W*H)
540 x 323 x 244 mm

Weight
43 kg

Phase
Three Phase

Input Voltage
380-480V AC, 3 Phase

Size
Frame Size: 3

Material
Metal / Engineering Plastic

No Of Poles
3

Connection Type
Terminal Block

Digital Inputs
6 (programmable)

Braking Unit
Built-in (Internal) Brake Chopper

Noise Level
<68 dB(A)

Model Number
Altivar 61 (ATV61HU55N4)

Analog Inputs
2 (programmable)

Control Method
Vector Control, V/F Control

Software
SoMove (Schneider Electric)

Relay Outputs
2 (programmable)

Standards Compliance
IEC, NEMA

Cooling Method
Forced Air Cooling

Communication Ports
Modbus, CANopen (built-in)

Display
LCD Digital Display

Motor Power
50 HP / 37 kW

Maximum Output Current
77 A

TELEMECANIQUE (Altivar-61) 50 HP AC DRIVE Trade Information

Minimum Order Quantity
2 Number

Payment Terms
Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Main Export Market(s)
Central America, Asia, Australia, North America, South America, Western Europe, Middle East, Eastern Europe, Africa

Main Domestic Market
All India

About TELEMECANIQUE (Altivar-61) 50 HP AC DRIVE

Telemecanique (Altivar-61) 50 Hp Ac Drive Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

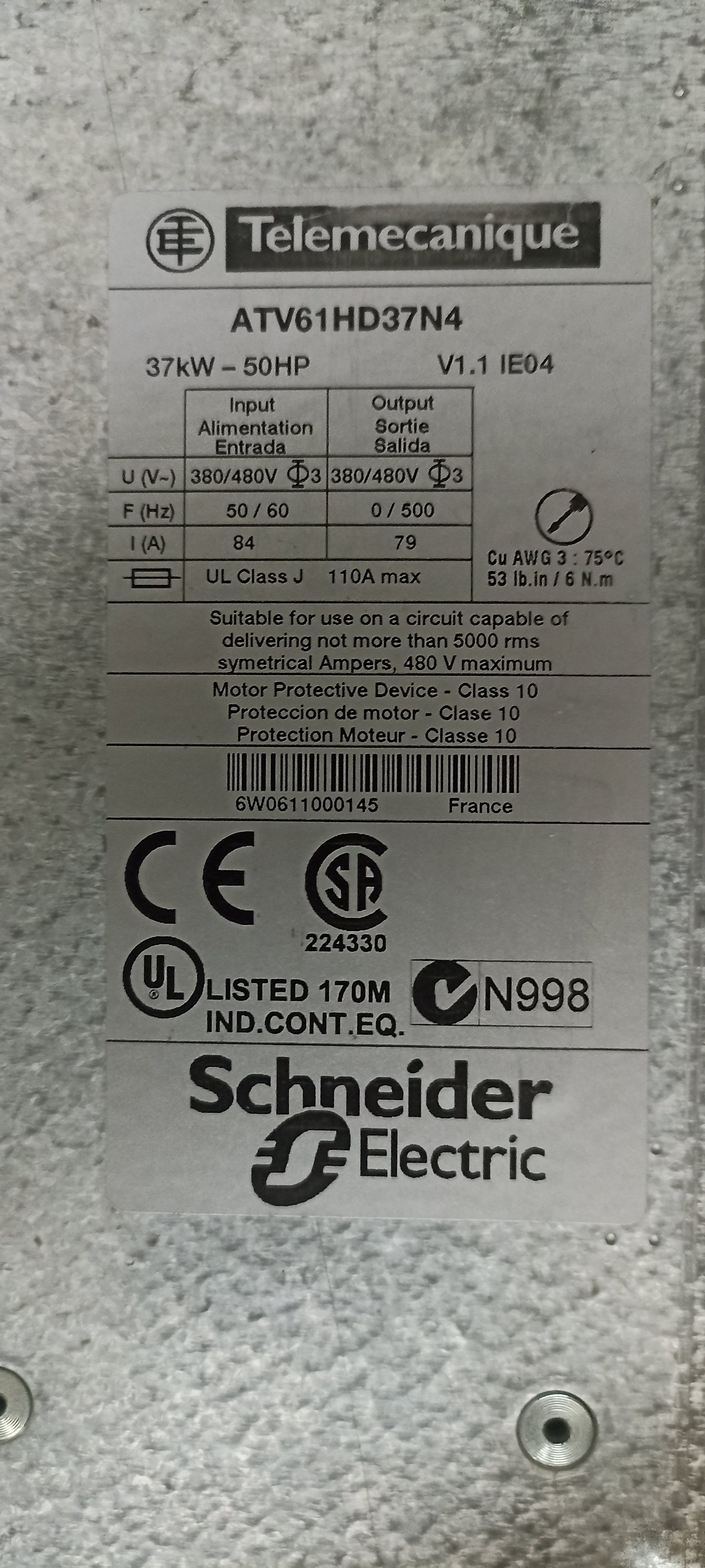

Product Specification :-

Type :- Frequency Ac Drive

Make :- Telemecanique

Hp :- 50 Hp

Kw :- 37 Kw

Model :- Altivar-61

Model Number :- ATV61HD37N4

Condition :- Refurbished

Voltage :- 380-480V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Advanced Motor Control for Performance

The Altivar-61 offers both vector and V/F control, enabling precise speed regulation and torque management for a variety of three-phase motor-driven processes. Its built-in PID and user-friendly interface allow for easy configuration, making it ideal for fans, pumps, and HVAC systems seeking improved efficiency and adaptability.

Integrated Safety and Protection Features

Equipped with comprehensive protections against over-voltage, short-circuit, and motor overload, this drive ensures system reliability. The inclusion of a built-in braking chopper, EMC filter, and thermal protection guards equipment and maintains high operational standards even in demanding industrial settings.

Flexible Communication and Easy Integration

Supporting Modbus and CANopen protocols, the Altivar-61 seamlessly integrates with modern automation networks. Its programmable inputs, relay outputs, and SoMove software make setup, control, and system expansion straightforward, while the LCD digital display provides clear and accessible operational feedback.

FAQ's of TELEMECANIQUE (Altivar-61) 50 HP AC DRIVE:

Q: How does the Altivar-61 AC Drive enhance motor efficiency in industrial applications?

A: By utilizing advanced vector and V/F control methods, the Altivar-61 optimizes motor performance, reducing energy consumption and delivering up to 98% efficiency. Its integrated PID controller allows tailored performance for applications like fans, pumps, and HVAC systems, ensuring consistent and reliable operation.

Q: What protection features are included in the Altivar-61 drive?

A: The drive is equipped with over-voltage, under-voltage, short-circuit, and overload protections, as well as built-in thermal (overheating) protection. These safeguards ensure both motor and system longevity, minimizing downtime due to electrical faults.

Q: When should the Altivar-61 be used for HVAC or pump control?

A: This drive is ideal for scenarios requiring precise motor speed control, energy efficiency, and robust safety. It excels in applications such as HVAC fans, water pumps, and industrial systems where consistent output and adaptability are critical.

Q: Where can the Altivar-61 AC Drive be installed?

A: Designed for indoor environments, the drive's rectangular frame (540 x 323 x 244 mm), IP20 enclosure, and powder-coated finish allow wall or panel mounting, making it suitable for electrical control rooms and industrial plant installations.

Q: What is the process for integrating the Altivar-61 into an existing automation system?

A: Integration involves connecting the drive via screw terminal blocks, configuring control parameters through its LCD display or SoMove software, and setting up communications using Modbus or CANopen ports. Its programmable analog and digital inputs, along with relay outputs, enable tailored integration.

Q: What are the benefits of using SoMove software with the Altivar-61 AC Drive?

A: SoMove by Schneider Electric simplifies setup and commissioning, offering a graphical interface for parameter adjustments, diagnostics, and firmware updates. It enables users to efficiently manage drive configurations, enhancing setup speed and reducing human error.
