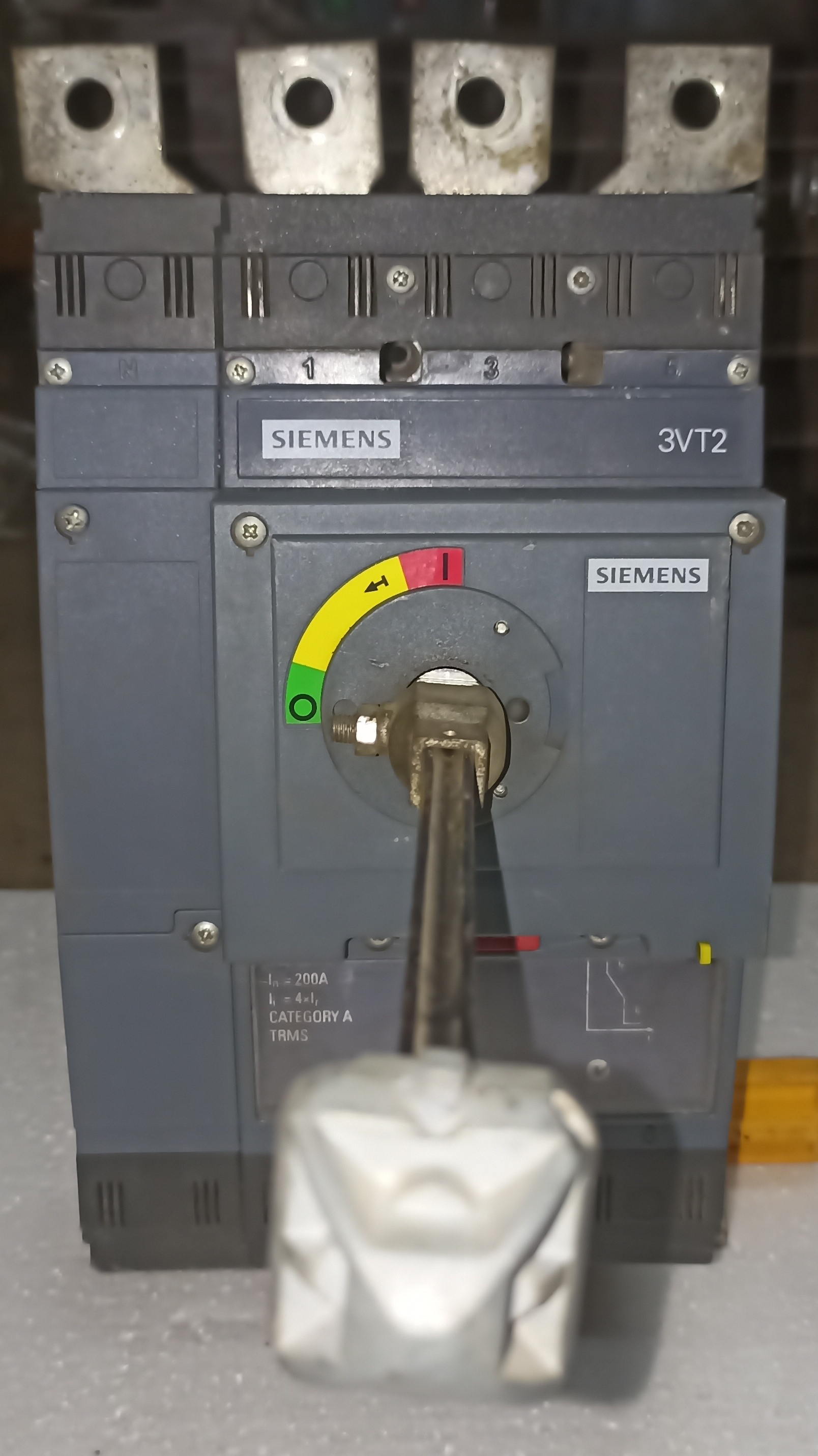

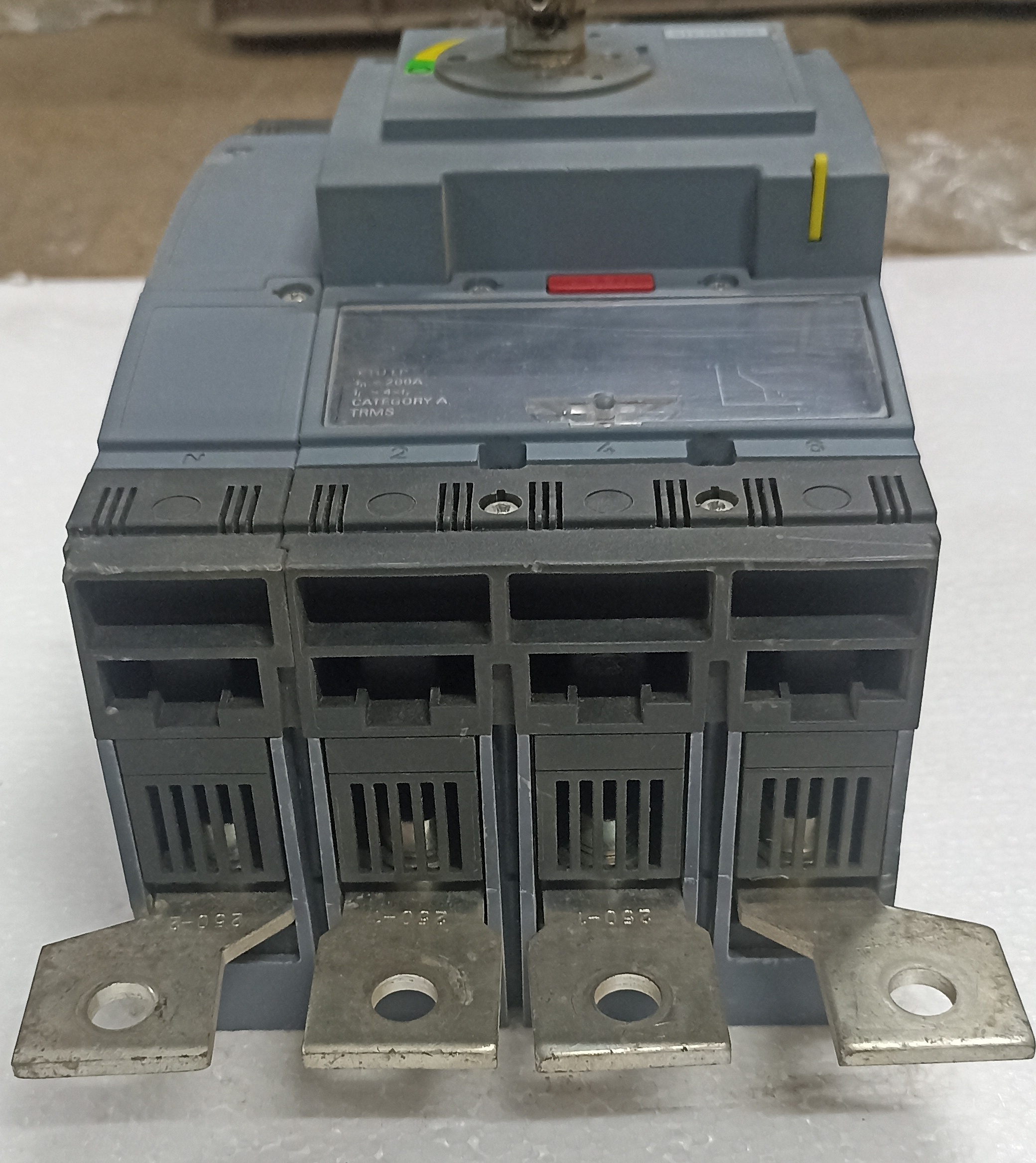

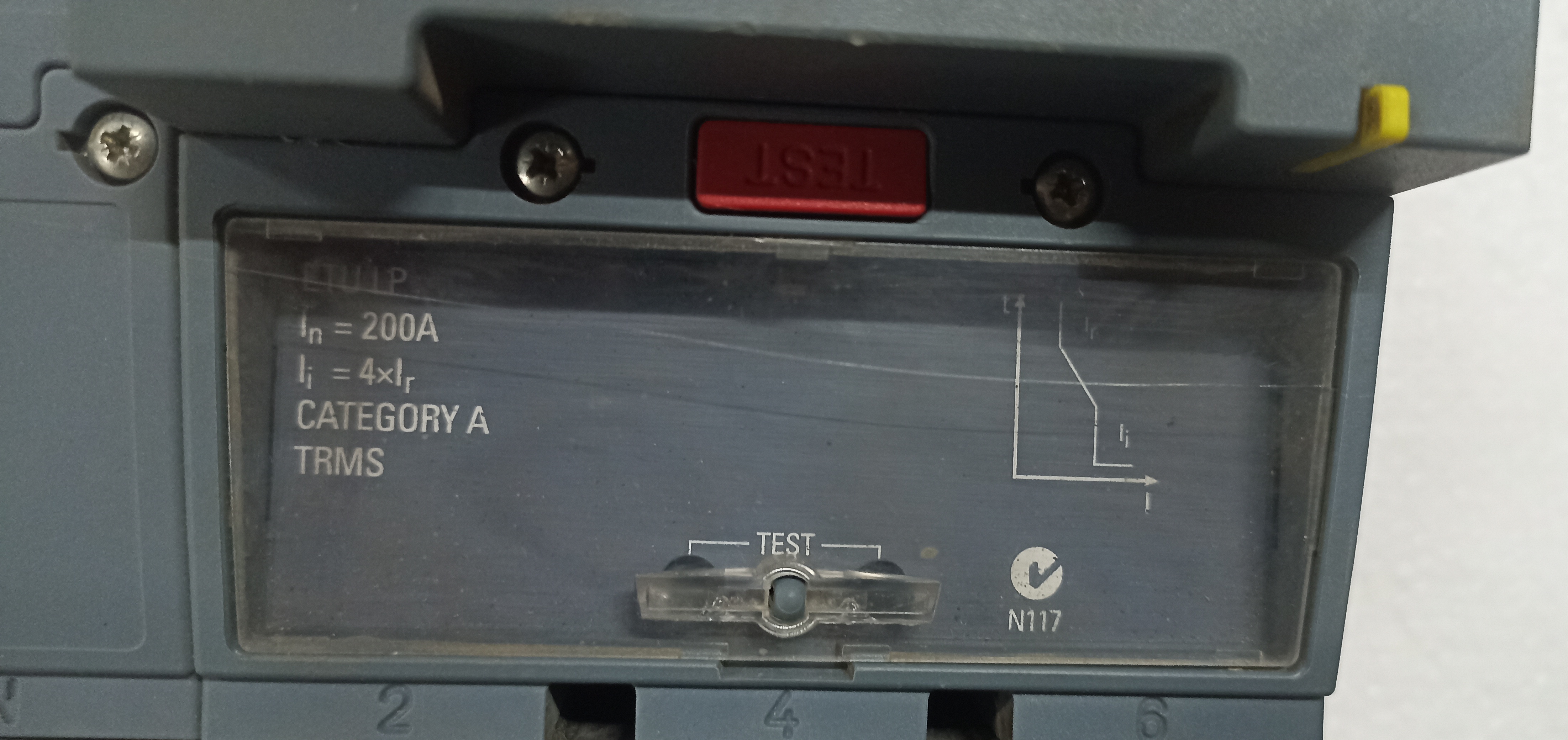

SIEMENS (3VT2) 200A 4P MCCB

Name: SIEMENS (3VT2) 200A 4P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 2 Pieces

SIEMENS (3VT2) 200A 4P MCCB Specification

Rated Short Circuit Making Current
72 kA

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
36 kA

Mechanical Life
Approx. 10,000 operations

Phase
Three Phase

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel/Flush Mounting

Function
Circuit Protection

Poles Number
4P

Rated Voltage
415V AC

Rated Current
200A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Thermal & Magnetic Protection

Weight
Approx. 4.2 kg

Color
Black/Grey

Model Number
3VT2 Series

Electrical Life
Approx. 2,500 operations

Accessories
Shunt Trip, Under Voltage Release (optional)

Mounting Position
Any direction

Trip Indication
Mechanical indicator

Trip Unit Type
Fixed Thermal-Magnetic

Protection Degree
IP20

Application
Distribution, Motor Protection, Industrial, Commercial

Auxiliary Contact Option
Available on request

Operating Temperature Range
-25C to +70C

Reference Standard
IEC 60947-2

Terminal Type
Box/Lug Type Terminals

SIEMENS (3VT2) 200A 4P MCCB Trade Information

Minimum Order Quantity
2 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About SIEMENS (3VT2) 200A 4P MCCB

Raj Electricals Offering SIEMENS (3VT2) 200A 4P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Siemens

Ampere :- 200A

Pole :- 4P

Model :- 3VT2

Condition :- Refurbished

Breaking Capacity :- 35 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile Protection for Demanding Environments

Engineered to perform within an ambient temperature range of -25C to +70C, the SIEMENS 3VT2 MCCB ensures consistent circuit protection even in fluctuating climates. Its IP20 degree of protection safeguards internal components from dust and accidental contact, making it ideal for both commercial and industrial settings. With a breaking capacity of 36 kA and triple-phase compatibility, it is well-suited for modern electrical distribution demands.

Flexible Installation and Maintenance

The 3VT2 MCCB streamlines installation through universal panel or flush mounting options and box/lug type terminals. Maintenance is made easy with its mechanical trip indicator and optional accessories like shunt trip and under voltage release. These features, along with a durable build and an electrical life of about 2,500 operations, reduce downtime and enhance operational efficiency.

FAQ's of SIEMENS (3VT2) 200A 4P MCCB:

Q: How can the SIEMENS 3VT2 200A 4P MCCB be mounted in electrical panels?

A: The 3VT2 MCCB offers flexible installation, supporting both panel and flush mounting in any direction, thanks to its box/lug type terminals. This adaptability ensures compatibility with various panel designs in industrial and commercial setups.

Q: What types of protection does this MCCB provide?

A: This device delivers thermal and magnetic protection, responding promptly to overloads and short-circuits. It complies with the IEC 60947-2 standard, making it reliable for critical circuit protection in distribution and motor applications.

Q: When should I select auxiliary contacts or special accessories for this MCCB?

A: Auxiliary contacts, as well as shunt trip and under voltage release accessories, should be specified if system monitoring or remote tripping is required for your application. They are optional and available on request, tailored to your operational control needs.

Q: Where are typical application areas for the 3VT2 MCCB?

A: This MCCB is commonly used in industrial, commercial, and distribution networks for circuit and motor protection. Its robust design and high breaking capacity make it suitable for demanding power distribution in factories, business complexes, and large buildings.

Q: What is the benefit of a mechanical trip indicator on the 3VT2 MCCB?

A: The mechanical trip indicator enables immediate identification of a tripped circuit, facilitating quick troubleshooting and reducing system downtime. This feature enhances reliability and ensures timely maintenance interventions.

Q: How long can the 3VT2 MCCB be expected to last in operation?

A: Mechanically, the MCCB is rated for approximately 10,000 operations, with an electrical life expectancy of about 2,500 operations. This enduring performance supports continuous use in intensive environments.

Q: What is the process for selecting the correct SIEMENS 3VT2 MCCB configuration?

A: To determine the proper configuration, consider your application's current, voltage, and phase requirements, as well as the need for additional accessories like auxiliary contacts. Consult with your supplier or expert to ensure optimal protection and system compatibility.
