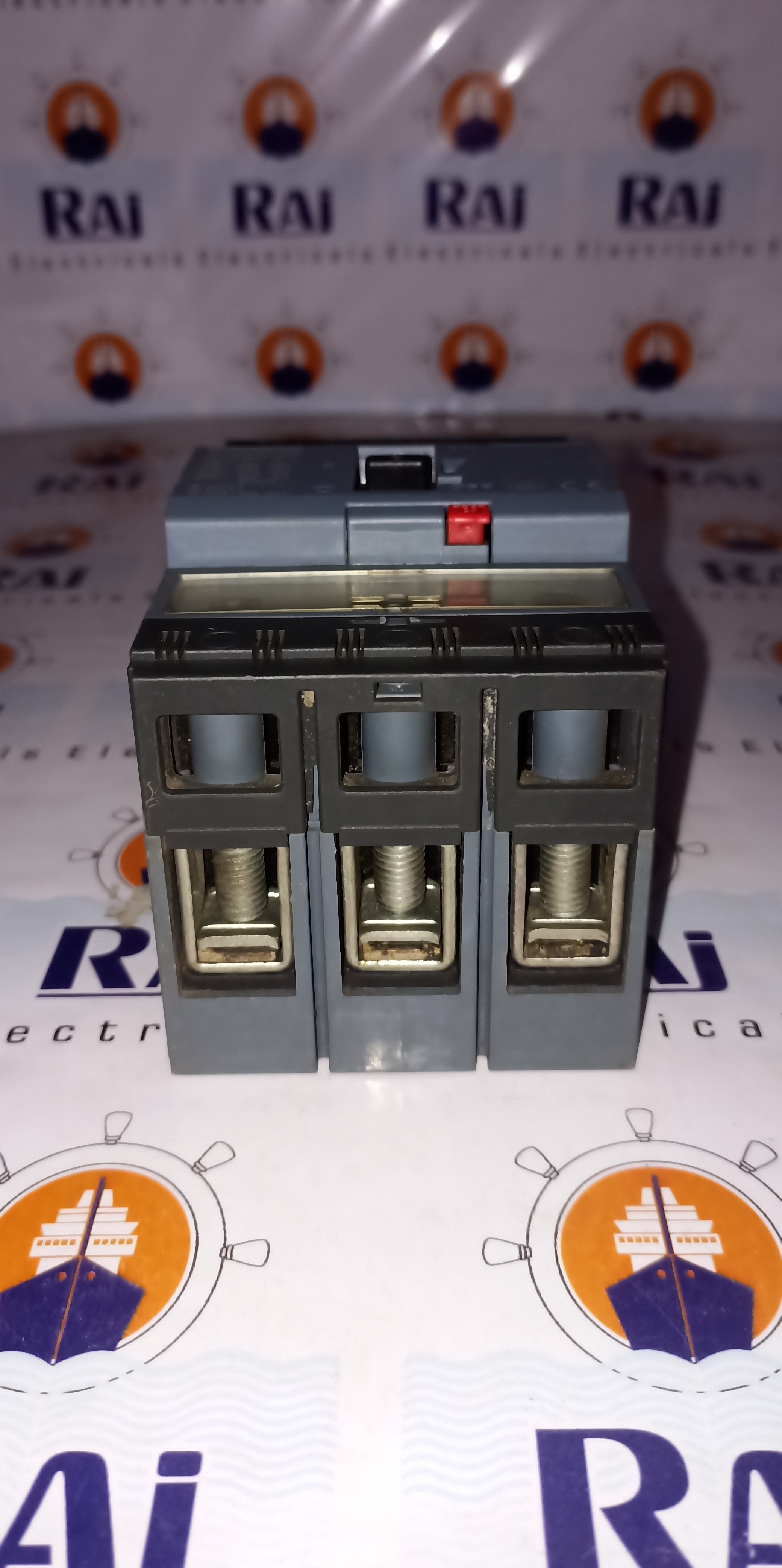

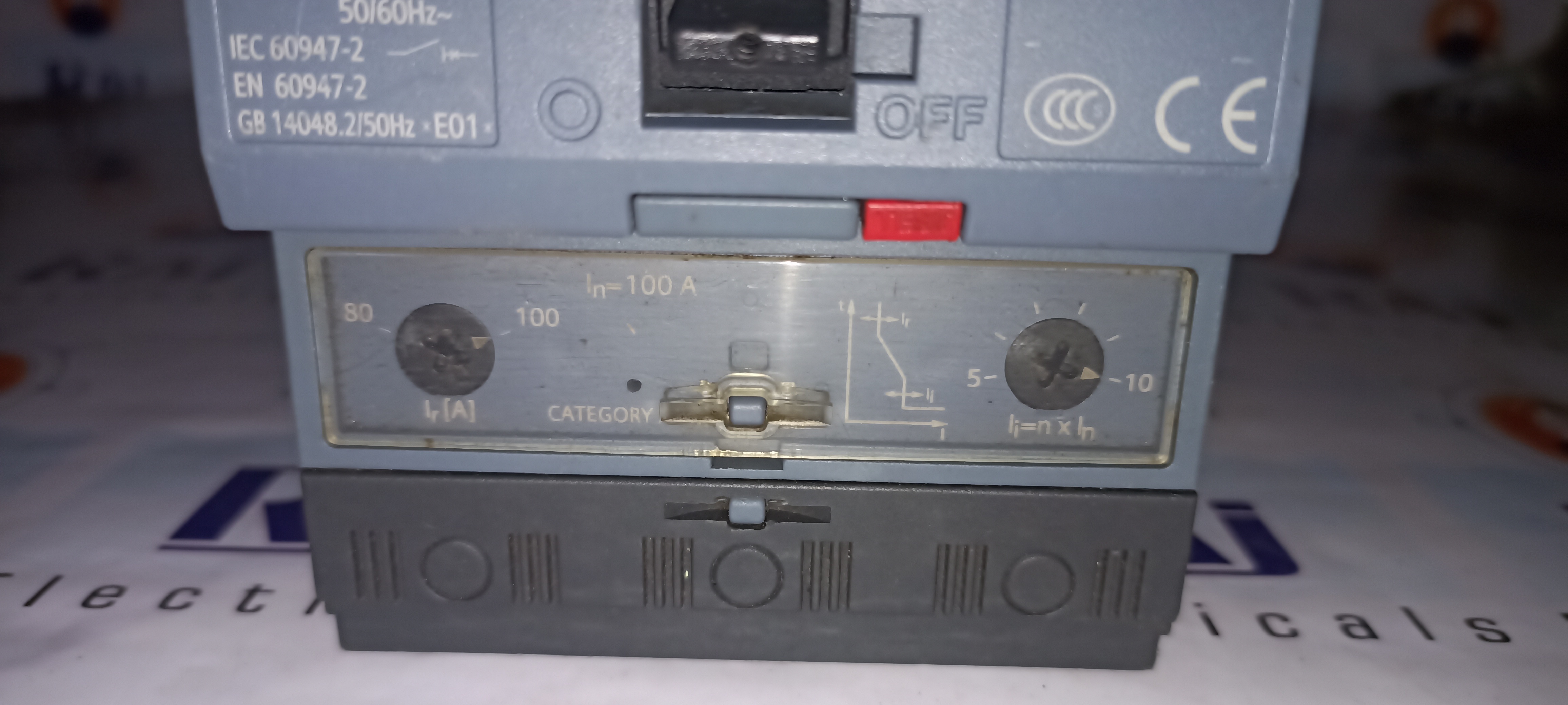

SIEMENS (3VT1) 100A 3P MCCB

Get a Price/Quote

MOQ : 5 Pieces

SIEMENS (3VT1) 100A 3P MCCB Specification

Breaking Capacity
25 kA

Rated Short Circuit Breaking Current
25 kA

Rated Short Circuit Making Current
25 kA

Mechanical Life
10,000 operations

Phase
Three Phase

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Protection of electrical circuits against overload and short-circuit

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Integrated thermal and magnetic protection

Weight
Approx. 2.2 kg

Color
Grey/Black

Dimensions (W×H×D)
90 × 165 × 70 mm

Trip Type
Thermal-Magnetic

IP Rating
IP20

Mounting Orientation
Vertical/Horizontal

Application
Industrial, Commercial and Residential

Adjustment Range
80-100A

Product Series
3VT1

Terminal Type
Box Terminals

Frequency Tolerance
±5 Hz

Operating Temperature Range
-25°C to +70°C

Auxiliary Contact Option
Available

SIEMENS (3VT1) 100A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About SIEMENS (3VT1) 100A 3P MCCB

Raj Electricals Offering Siemens (3VT1) 100A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Siemens

Ampere :- 100A

Pole :- 3P

Model :- 3VT1

Condition :- Refurbished

Breaking Capacity :- 25 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

High Protection and Reliability

SIEMENS 3VT1 100A 3P MCCB is designed for reliable circuit protection against overloads and short-circuits in industrial, commercial, and residential applications. Integrated thermal and magnetic trip features safeguard electrical systems, while its 25 kA breaking capacity ensures effective performance even in demanding environments.

Flexible Installation and Adjustment

This MCCB supports both vertical and horizontal mounting for easy panel integration. The adjustable current setting (80-100A) provides tailored protection to meet specific application requirements, boosting safety and system longevity.

Auxiliary Contact and Robust Build

With auxiliary contact options and strong box terminals, the SIEMENS 3VT1 series offers enhanced monitoring and control features. The IP20 enclosure ensures operator safety, while its durable construction delivers a mechanical life of up to 10,000 operations.

FAQ's of SIEMENS (3VT1) 100A 3P MCCB:

Q: How is the SIEMENS 3VT1 100A 3P MCCB typically installed?

A: The SIEMENS 3VT1 MCCB can be installed using panel mounting methods and is suitable for both vertical and horizontal orientations, offering versatility for different electrical setups.

Q: What is the adjustment range for the rated current, and how is it set?

A: The adjustment range for the SIEMENS 3VT1 MCCB is between 80A and 100A. The rated current can be set according to the protection needs of your electrical system using the built-in adjustment mechanism.

Q: When should the auxiliary contact option be used?

A: Auxiliary contacts are used when monitoring or remote signaling of the MCCB's operating status is required. These are beneficial in applications where system feedback and enhanced control are needed.

Q: Where is the SIEMENS 3VT1 MCCB most commonly used?

A: This MCCB is suitable for industrial, commercial, and residential installations, particularly in environments where reliable protection against overloads and short circuits is essential.

Q: What type of protection does the SIEMENS 3VT1 MCCB provide?

A: The breaker delivers both thermal and magnetic protection, safeguarding electrical circuits from overloads and potentially damaging short circuits.

Q: How does the box terminal design benefit users during installation?

A: The box terminal provides secure and robust connections for cables, making installation easier and reducing the risk of loose contacts, which enhances overall safety and reliability.

Q: What are the main benefits of using a SIEMENS 3VT1 MCCB in electrical systems?

A: Major benefits include dependable circuit protection, flexible mounting, adjustable current settings, and the ability to operate under wide temperature ranges, ensuring electrical safety and operational efficiency.
