SIEMENS 3TH - 80 DOUBLE POLE CONTACTOR

Name: SIEMENS 3TH - 80 DOUBLE POLE CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

SIEMENS 3TH - 80 DOUBLE POLE CONTACTOR Specification

Efficiency
High Efficiency Switching

Overheating Protection
YES

Humidity %
Up to 95% RH (non-condensing)

Power Factor
High Power Factor (above 0.9)

Operating Temperature
-25C to +55C

Shape
Rectangular

Mounting Type
DIN Rail / Panel Mounting

Connector Type
Screw Type Connector

IP Rating
IP20

Insulation Material
Thermoplastic

Surface Finish
Matte Finish

Feature
Reliable Switching, High Durability, Compact Design

Product Type
Double Pole Contactor

Application
Industrial Automation, Control Panels, Motor Starters

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC max

Energy Consumption
Low Power Consumption

Output Type
Electromechanical

Color
Black & Grey

Dimension (L*W*H)
75 mm x 45 mm x 85 mm (Approx.)

Weight
280 g

Phase
Single/Three Phase Compatible

Input Voltage
230 V AC Coil (other coil voltages available)

Size
Standard

No Of Poles
2

Material
High-grade Thermoplastic and Copper

Connection Type
Screw Terminal

Contact Material
Silver Alloy Contacts

Pollution Degree
2

Coil Consumption
Approx. 8 VA (AC) / 2.2 W (DC)

Mechanical Life
Over 10 Million Operations

Storage Temperature
-40C to +80C

Vibration Resistance
Up to 5 g at 10...150 Hz

Auxiliary Contacts
1 NO + 1 NC (Standard)

Standards Compliance
IEC 60947-4-1, CE Marked

Electrical Life
Up to 1 Million Operations at Rated Load

SIEMENS 3TH - 80 DOUBLE POLE CONTACTOR Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About SIEMENS 3TH - 80 DOUBLE POLE CONTACTOR

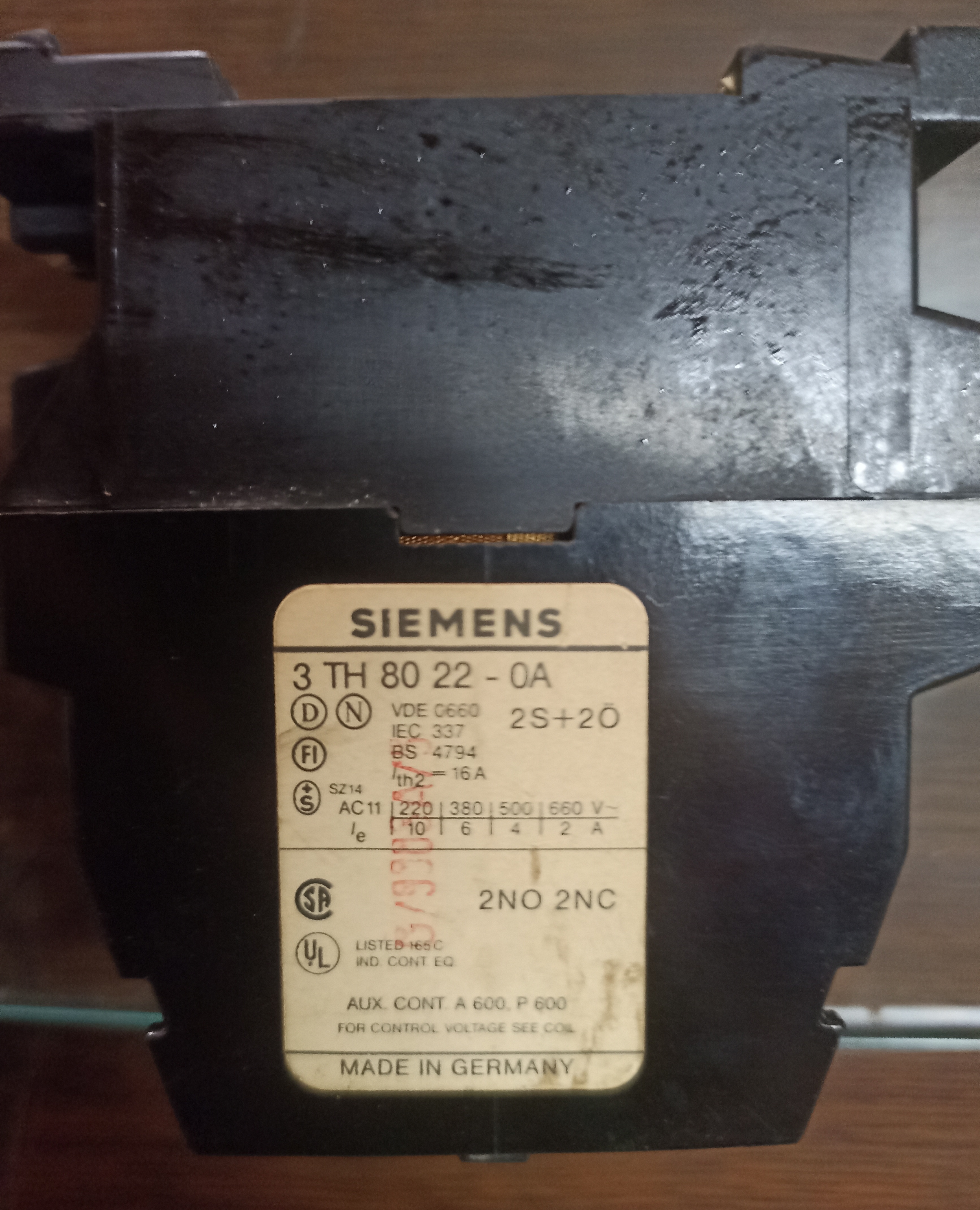

SIEMENS 3TH - 80 22 - 0A DOUBLE POLE CONTACTOR Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Siemens

Ith 2 :- 16A

Pole :- 3P

Model :- 3TH 80 22 - 0A

Auxiliary Contacts :- 2NO + 2NC

Condition :- Refurbished

Voltage :- 220 V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Superior Performance for Diverse Applications

The SIEMENS 3TH - 80 contactor is tailored for industrial automation systems, motor starters, and control panels. With its versatile single or three-phase compatibility and auxiliary contacts (1 NO + 1 NC), it provides dependable switching in various scenarios. The double pole configuration and high-grade materials guarantee optimal conductivity, making it a preferred choice for demanding environments.

Engineered for Longevity and Durability

This contactor is designed for longevity, offering over 10 million mechanical operations and up to 1 million electrical operations at rated load. Built with high-quality thermoplastic and copper, and featuring silver alloy contacts, it resists wear and maintains consistent performance while withstanding rigorous mechanical and electrical demands.

Efficiency and Safety at Its Core

Compliant with international standards (IEC 60947-4-1, CE marked) and protected by an IP20 rating, the contactor safeguards circuits and equipment. It incorporates features like low energy consumption, high power factor, overheating protection, vibration resistance, and excellent heat tolerance, ensuring both efficiency and user safety in any industrial application.

FAQ's of SIEMENS 3TH - 80 DOUBLE POLE CONTACTOR:

Q: How is the SIEMENS 3TH - 80 Double Pole Contactor used in industrial automation?

A: The SIEMENS 3TH - 80 contactor is commonly used in industrial automation systems for controlling and switching electrical circuits, particularly in motor starters, protection panels, and control cabinets. Its reliable operation allows it to manage high-current loads and frequent switching demands safely and efficiently.

Q: What are the key benefits of using silver alloy contacts in this contactor?

A: Silver alloy contacts provide superior electrical conductivity, reduce contact wear, and offer enhanced resistance to oxidation and arcing. This results in higher reliability, longer contact life, and consistent performance even under heavy-duty switching cycles.

Q: When should I consider installing this contactor in my system?

A: You should use the SIEMENS 3TH - 80 contactor when you need dependable and frequent switching for loads up to 690 V AC, especially in industrial control panels, motor controls, or applications requiring high endurance switching with minimal power consumption and robust safety standards.

Q: Where can this contactor be mounted and in what environmental conditions does it perform?

A: This contactor can be DIN rail or panel mounted. It operates effectively within -25C to +55C, can be stored between -40C and +80C, and withstands up to 95% relative humidity (non-condensing). Its IP20 protection rating and vibration resistance up to 5 g also ensure durability in tough industrial environments.

Q: What process is followed for connecting electrical wires to this contactor?

A: The SIEMENS 3TH - 80 uses screw-type connectors for secure wiring. To connect, strip the wire ends, insert them into the designated screw terminals, and tighten the screws firmly to ensure reliable electrical contact and minimize the risk of loose connections during operation.

Q: What makes this contactor efficient and safe for continuous industrial use?

A: It features low coil power consumption, high power factor, overheating protection, and insulation with high-grade thermoplastic. The robust design and IEC 60947-4-1 compliance ensure reliable and safe operation with minimal energy loss during frequent switching cycles.

Q: How does the contactor's mechanical and electrical life enhance industrial reliability?

A: With a mechanical life exceeding 10 million cycles and an electrical life up to 1 million operations under rated load, the SIEMENS 3TH - 80 ensures extended maintenance-free service, reducing downtime and maximizing productivity in automation and control systems.
