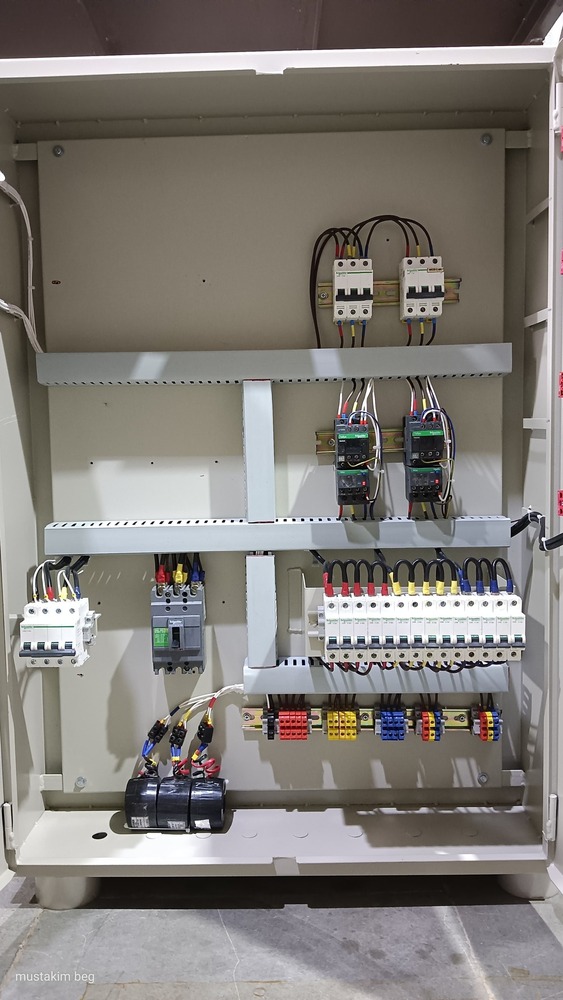

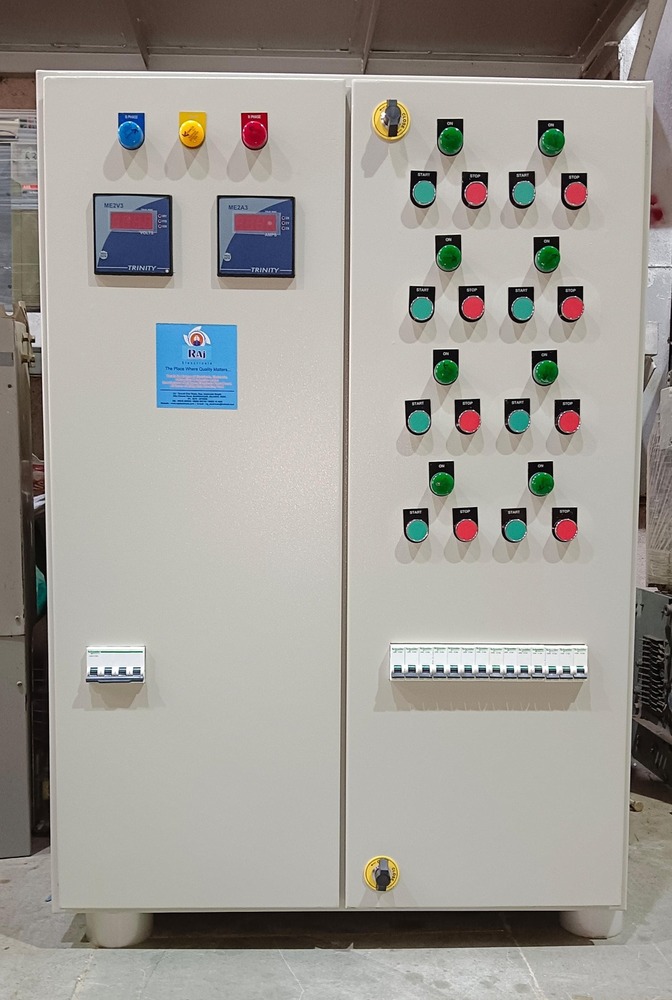

MOTOR CIRCUIT PANEL

Name: MOTOR CIRCUIT PANEL
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Unit

MOTOR CIRCUIT PANEL Specification

Thickness
2 mm

Cooling System
Natural Ventilation

Panel Type
Indoor Floor Mounted

Control System
Manual/Automatic

Rated Operation Voltage
415V

Protection Class
Class I

Rated Insulation Voltage
690V

Rated Current
630A

Connectivity Type
Hardwired

Operating Voltage
415V

Protection Level
IP54

Way
4 Way

Cabinet Material
Mild Steel (Powder Coated)

Current Rating
630A

Cover Material
CRCA Sheet

Components
MCB, Contactor, Overload Relay, Indicating Lamps, Busbar

Base Material
CRCA Sheet

Features
Corrosion Resistant, Sturdy Construction, Long Service Life

Product Type
Motor Circuit Panel

Material
Mild Steel (MS)

Surface Finish
Powder Coated

Standard
IEC 60439, IS 8623

Surface Color
Grey

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
1000A

Dimension (L*W*H)
1000 x 800 x 300 mm

Application
Industrial Motor Control

IP Rating
Ip54

Display Type
Analog/LED Indication

Busbar Material
Electrolytic Copper

Cable Entry
Top/Bottom Entry

Door Type
Hinged Lockable Door

Short Circuit Withstand Capacity
50kA for 1 Sec

Mounting Type
Floor Standing

Ambient Temperature Range
-10C to +55C

Phase Indication
Provided (LED Type)

Finish Color Option
Also Available in Customized Colors

Enclosure Rating
IP54 (Dust & Splash proof)

Installation
Indoor Installation

Panel Weight
Approx. 85 Kg

Incoming Supply
Three Phase

Earth Bar
Provided

Maintenance
Front Accessible for Easy Maintenance

Operating Method
Local/Remote Start-Stop

MOTOR CIRCUIT PANEL Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA)

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About MOTOR CIRCUIT PANEL

MOTOR CIRCUIT PANEL

Smooth StartUp

Reduced Power Surge

Overload Protection

Robust Construction for Harsh Environments

Raj Electricals Manufactures All Types Of Control Panel Boards Like Distribution Panel Apfc Panel Electrical Control Panel Board At Bhavnagar Gujarat India

We are engaged in the supply dealing distribution export and import of the widest range of electrical and electronic items that would suit every type of project economy and medium

This Is Distribution Panel With BusBar

For More Details

YouTube httpswwwyoutubecomrajelectricals5253

Google httpsgcokgsWCmt5a

Instagram httpswwwinstagramcomrajelectric52

Facebook httpswwwfacebookcomRajElectricals52

Website httpswwwrajelectricscom

Robust Industrial Motor Control Solution

This Motor Circuit Panel offers a reliable and durable system for managing industrial motors. With its electroplated copper busbars and sturdy, powder-coated mild steel enclosure, it ensures long-lasting performance in challenging indoor environments. Its IP54 rating protects internal components from dust and water splashes, making it suitable for a range of industrial applications.

Ease of Installation and Maintenance

Designed for simple installation, the panel supports both top and bottom cable entries and is floor-mounted for stability. The front-accessible design allows for straightforward maintenance, minimizing downtime. With natural ventilation and all essential safety features built in, operators benefit from hassle-free operation and servicing.

Advanced Safety and Compliance

Equipped with phase indication LEDs, a comprehensive grounding system, and a short circuit withstand capacity of 50kA for 1 second, this panel prioritizes operational safety. All components meet international (IEC 60439) and Indian (IS 8623) standards, assuring quality and safety compliance in industrial settings.

FAQ's of MOTOR CIRCUIT PANEL:

Q: How is the MOTOR CIRCUIT PANEL installed and where can it be used?

A: The panel is designed for indoor installation with a floor-standing mount, making it stable and easy to integrate into industrial facilities. It is suitable for applications where centralized motor control and protection are required.

Q: What types of incoming supplies and cable entries does the panel support?

A: This panel accommodates three-phase power supply and offers both top and bottom cable entry options, providing flexibility for various installation layouts.

Q: What safety features are incorporated into the panel design?

A: Key safety features include hinged lockable doors, IP54 enclosure rating for dust and splash protection, short circuit withstand capacity of 50kA for 1 second, earth bar, phase indication LEDs, and compliance with IEC 60439 and IS 8623 standards.

Q: How does the panel facilitate maintenance and servicing?

A: Maintenance is straightforward due to the front-access design. All critical components such as MCBs, contactors, overload relays, and indicating lamps are easily accessible, minimizing downtime during routine checks or repairs.

Q: What benefits does the electrolytic copper busbar provide?

A: Electrolytic copper busbars ensure excellent electrical conductivity and low power losses, contributing to efficient and reliable motor operation in industrial settings.

Q: Can the panel be customized for specific color requirements?

A: Yes, the finish color of the panel can be customized according to customer preferences, in addition to the standard grey powder-coated surface.

Q: What control and display options are available with this panel?

A: The panel supports both manual and automatic operation modes, with start-stop functionality available locally or remotely. Display options include both analog and LED indicators for clear status monitoring.
