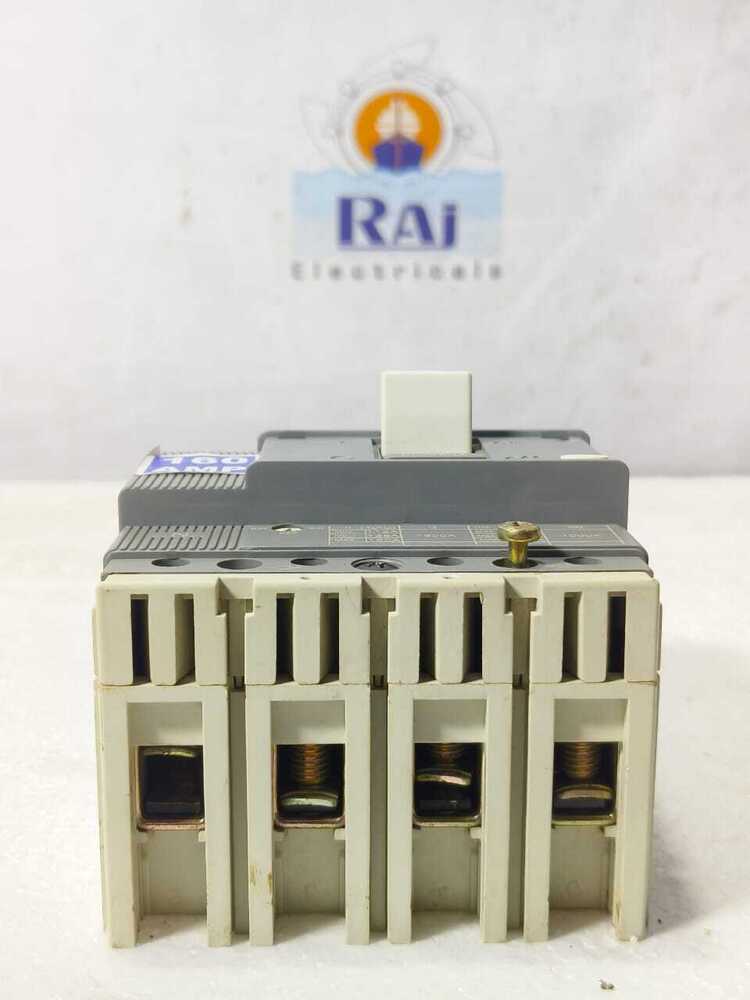

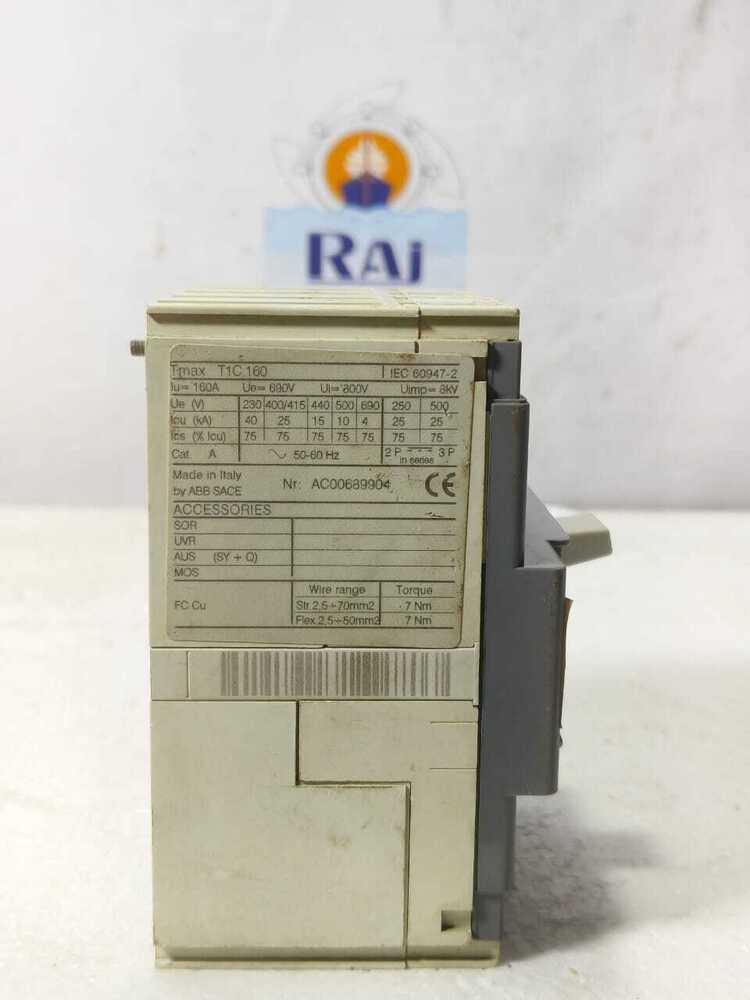

Molded case circuit breaker

Name: Molded case circuit breaker
Brand: RAJ ELECTRICALS
Price: 100 INR
Availability: InStock

Price 100 INR/ Unit

Get a Price/Quote

MOQ : 1 Ampere

Molded case circuit breaker Specification

Breaking Capacity
36 kA

Rated Short Circuit Making Current
72 kA

Phase
Three Phase

Mechanical Life
10,000 Operations

Rated Short Circuit Breaking Current
36 kA

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Vertical/Horizontal Mounting

Function
Overload and Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
415V AC

Rated Current
250A

Rated Frequency
50/60 Hz

Curves
C and D Type

Temperature Protection
Up to 50C

Weight
2.3 kg

Color
Black and Grey

Enclosure Material
High-Grade Moulded Plastic

Insulation Voltage (Ui)
800V

Terminal Type
Screw Type

Protection Class
IP20

Mounting Type
DIN Rail or Panel Mount

Trip Unit Type
Thermal Magnetic

Contact Position Indicator
Yes

Operating Temperature Range
-20C to +70C

Molded case circuit breaker Trade Information

Minimum Order Quantity
1 Ampere

Payment Terms
Cash Advance (CA)

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About Molded case circuit breaker

Ending Soon! Ensure your electrical systems are safeguarded with our Spectacular Molded Case Circuit Breaker, customized to fit your precise needs. This resplendent device offers valorous protection with a robust thermal magnetic trip unit, made from high-grade moulded plastic for durability. Rated at 250A, it triumphs over overload and short circuits, even under extreme conditions (-20C to +70C). Featuring a screw-type terminal, DIN rail or panel mounting, and a contact position indicator, this breaker stands ready for critical applications. Order today-customizable options available!

Versatile Features and User Applications

This molded case circuit breaker boasts a host of admirable features, including C and D curve options, IP20 protection, and a high insulation voltage of 800V. Its three-pole design and valorous mechanical life of 10,000 operations make it indispensable for industrial plants, commercial complexes, and power distribution units. Frequently used by engineers, contractors, and facility managers, it excels in both new projects and retrofit upgrades, offering reliability and adaptable installation.

FOB Port, Compliance, and Sample Policy Details

Available with delivery through leading Italian FOB ports, this circuit breaker meets rigorous international certifications ensuring reliable quality. Our list price aligns with current domestic market standards, offering compelling value. Samples are available upon request, subject to our policy for genuine buyers. Flexible sample arrangements allow you to assess the product before a larger order, reinforcing trust in our process and dedication to customer satisfaction.

FAQ's of Molded case circuit breaker:

Q: How can I install the molded case circuit breaker for optimal safety?

A: You can securely mount the breaker either vertically or horizontally, using a DIN rail or panel mount according to your system layout. Ensure proper wiring to the screw-type terminals and follow the manufacturer's detailed instructions for safe installation.

Q: What does the contact position indicator on the breaker signify?

A: The contact position indicator visually displays the current operating state of the breaker, allowing quick verification of whether the circuit is open or closed. This enhances operational safety and maintenance efficiency.

Q: When should the molded case circuit breaker be replaced?

A: Replacement is recommended after 10,000 mechanical operations or if testing reveals compromised performance due to wear, damage, or exceeded thermal protection thresholds.

Q: Where is this molded case circuit breaker typically used?

A: This circuit breaker is commonly used in industrial, commercial, and utility applications, protecting three-phase electrical systems from overload and short circuit hazards.

Q: What are the key benefits of using a thermal magnetic trip unit in this breaker?

A: The thermal magnetic trip unit delivers precise overload and short circuit protection-thermal elements respond to sustained overcurrent, while magnetic components provide instant tripping for high fault conditions, ensuring comprehensive circuit defense.

Q: How does the sample policy work for this product?

A: Samples are available for prospective buyers, subject to our established policy. This allows evaluation of quality and compatibility prior to making a full order, supporting informed purchasing decisions.
