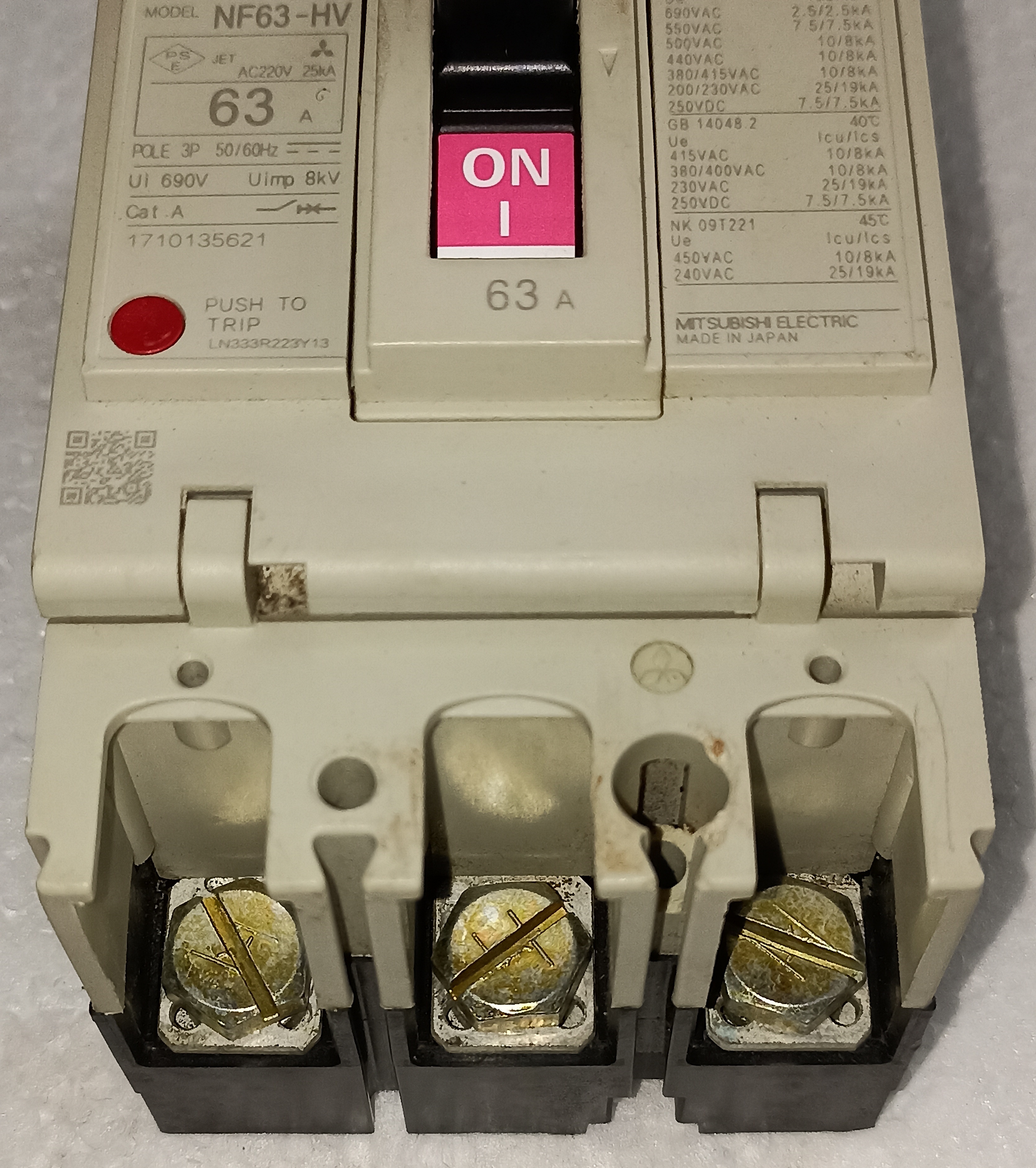

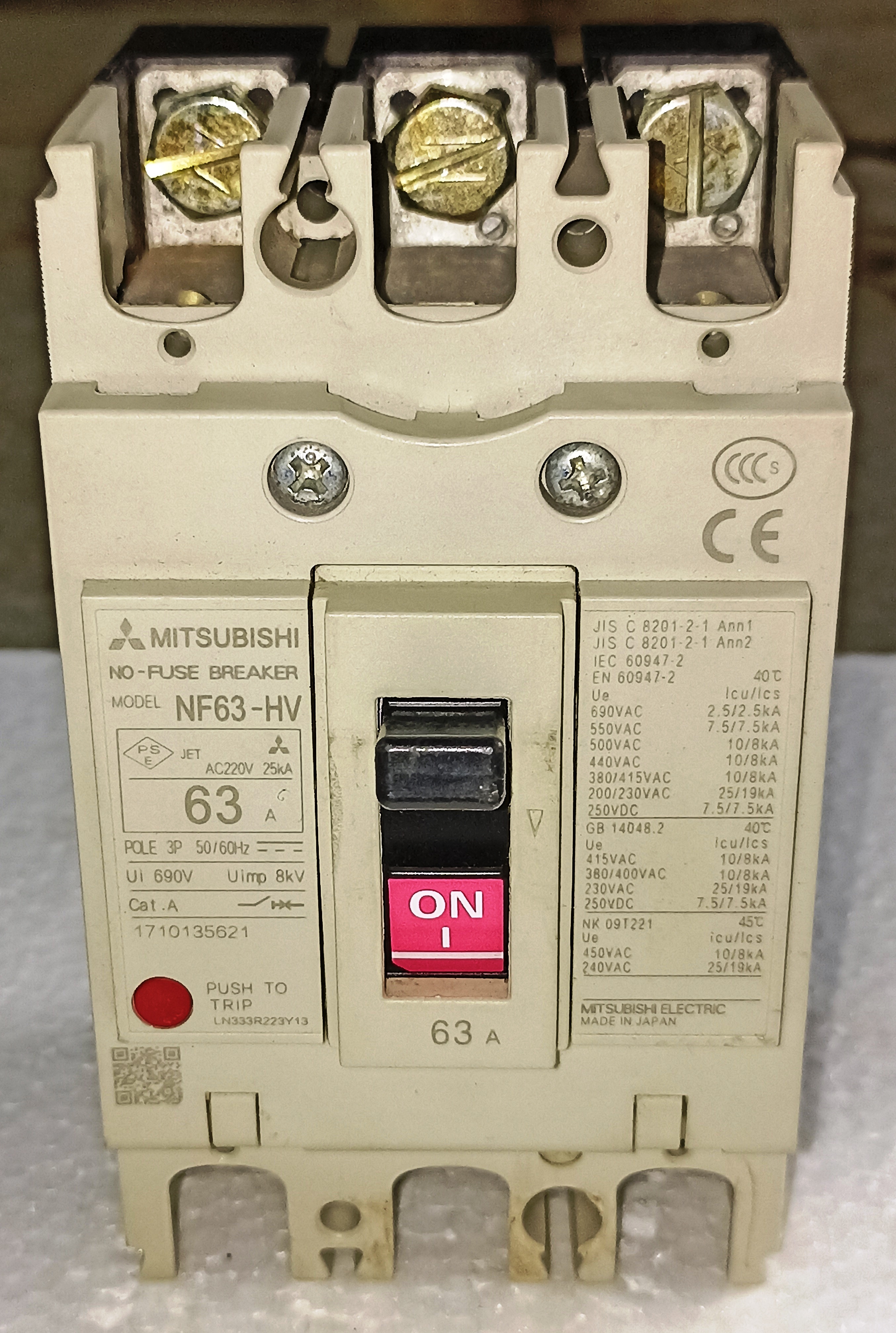

MITSUBISHI (NF63-HV) 63A 3P MCCB

Name: MITSUBISHI (NF63-HV) 63A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

MITSUBISHI (NF63-HV) 63A 3P MCCB Specification

Breaking Capacity
35kA

Rated Short Circuit Making Current
70kA (Icm at 415V AC)

Rated Short Circuit Breaking Current
35kA (Icu at 415V AC)

Mechanical Life
10,000 operations

Phase
Three Phase

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Din Rail / Panel Mount

Function
Overcurrent and Short Circuit Protection

Poles Number
3 Poles

Rated Voltage
AC 415V / 3 Phase

Rated Current
63A

Rated Frequency
50/60Hz

Curves
C Curve

Temperature Protection
Thermal & Magnetic

Weight
Approx. 700g

Color
Grey

Connection Type
Cable / Busbar

Standards Compliance
IEC 60947-2

Mounting Position
Any direction

Insulation Voltage (Ui)
690V AC

Operating Temperature Range
-25C to 40C

Impulse Withstand Voltage (Uimp)
6kV

Terminal Capacity
Copper cable up to 35 mm2

Trip Unit Type
Fixed Type

Model Number
NF63-HV

Ambient Humidity
Up to 85% RH (non-condensing)

Electrical Endurance
5,000 cycles

About MITSUBISHI (NF63-HV) 63A 3P MCCB

Raj Electricals Offering MITSUBISHI (NF63-HV) 63A 3P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- MITSUBISHI

Ampere :- 63A

Pole :- 3P

Model :- NF63-HV

Condition :- Refurbished

Breaking Capacity :- 25 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile Installation and Reliable Protection

The NF63-HV MCCB stands out with its adaptability for both Din Rail and Panel Mount installations in any orientation, supporting a wide range of configurations to suit your electrical infrastructure needs. Its advanced thermal and magnetic trip mechanisms ensure dependable protection against both sustained overloads and sudden short circuits, safeguarding your equipment with precision.

Built for Demanding Environments

Meeting rigorous IEC 60947-2 standards, the MCCB endures harsh operating environments, tolerating temperatures from -25C to 40C and high humidity up to 85% RH without condensing. Its sturdy design, combined with a terminal capacity for copper cables up to 35 mm2, ensures longevity and optimal connectivity in industrial settings.

FAQ's of MITSUBISHI (NF63-HV) 63A 3P MCCB:

Q: How is the MITSUBISHI NF63-HV MCCB typically installed?

A: You can install the NF63-HV MCCB on either a Din Rail or by direct panel mounting, and it supports mounting in any direction, providing flexible integration into new or existing electrical panels.

Q: What electrical standards does this MCCB comply with?

A: The NF63-HV MCCB fully complies with IEC 60947-2, ensuring it meets international quality and safety standards for circuit breakers.

Q: When should I use this MCCB in my electrical systems?

A: This MCCB is suitable for protecting three-phase circuits with a rated voltage of up to 415V AC and a current of 63A, especially where robust overcurrent and short circuit protection is essential, such as in industrial or commercial distribution panels.

Q: Where can the NF63-HV MCCB be used effectively?

A: Thanks to its environmental tolerance and mounting versatility, the NF63-HV can be used in varied locations, including factories, commercial buildings, and electrical distribution systems throughout India and beyond.

Q: What is the process for connecting cables to this MCCB?

A: You can connect copper cable up to 35mm2 directly to the terminals, or use a busbar, ensuring reliable and secure connections for safe current flow.

Q: How does the MCCB provide protection to electrical circuits?

A: The NF63-HV uses fixed-type thermal and magnetic trip units to detect and interrupt overcurrent and short circuit conditions, minimizing the risk of equipment damage and electrical hazards.

Q: What are the key benefits of choosing the MITSUBISHI NF63-HV MCCB?

A: With a high breaking capacity, rigorous endurance ratings, compliance with international standards, and flexible installation options, this MCCB offers reliable performance, safety assurance, and long service life for demanding applications.
