MINI DISTRIBUTION PANEL

Name: MINI DISTRIBUTION PANEL
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Unit

MINI DISTRIBUTION PANEL Specification

Cover Material
Transparent polycarbonate

Connectivity Type
Wired

Components
Busbar, Neutral link, Earth link

Current Rating
16A, 32A, 63A

Base Material
Polycarbonate

Protection Level
IP42

Protection Class
Class II

Rated Operation Voltage
230/415V

Cabinet Material
Reinforced plastic

Cooling System
Natural convection

Way
4, 6, 8, 12 way options

Rated Insulation Voltage
660V

Control System
Manual

Thickness
1.2 mm

Features
Flame retardant, compact design, rust proof, easy installation

Rated Current
32A

Panel Type
Surface Mounted

Operating Voltage
220-240V AC

Product Type
Mini Distribution Panel

Material
High-grade polycarbonate

Surface Finish
Matte

Standard
IS/IEC 61439

Surface Color
White

Rated Voltage
240V AC

Frequency (MHz)
50 Hz

Maximum Output Current
63A

Dimension (L*W*H)
220 x 160 x 90 mm

Application
Suitable for domestic, commercial, and industrial installations

IP Rating
IP42

Busbar Type
Copper busbars for high conductivity

Knockouts
Provided for easy cable entry and exit

Installation Type
Vertical or horizontal mounting

Ambient Temperature Range
-5C to +55C

Flammability Rating
UL94 V-0

Door Lock
Snap fit lock for secure closure

Ingress Protection
Water and dust resistant design

Mounting
Wall mount with internal fixing holes

Weight
Approx. 0.9 kg

About MINI DISTRIBUTION PANEL

MOTOR CIRCUIT PANEL

Smooth StartUp

Reduced Power Surge

Overload Protection

Robust Construction for Harsh Environments

Raj Electricals Manufactures All Types Of Control Panel Boards Like Distribution Panel Apfc Panel Electrical Control Panel Board At Bhavnagar Gujarat India

We are engaged in the supply dealing distribution export and import of the widest range of electrical and electronic items that would suit every type of project economy and medium

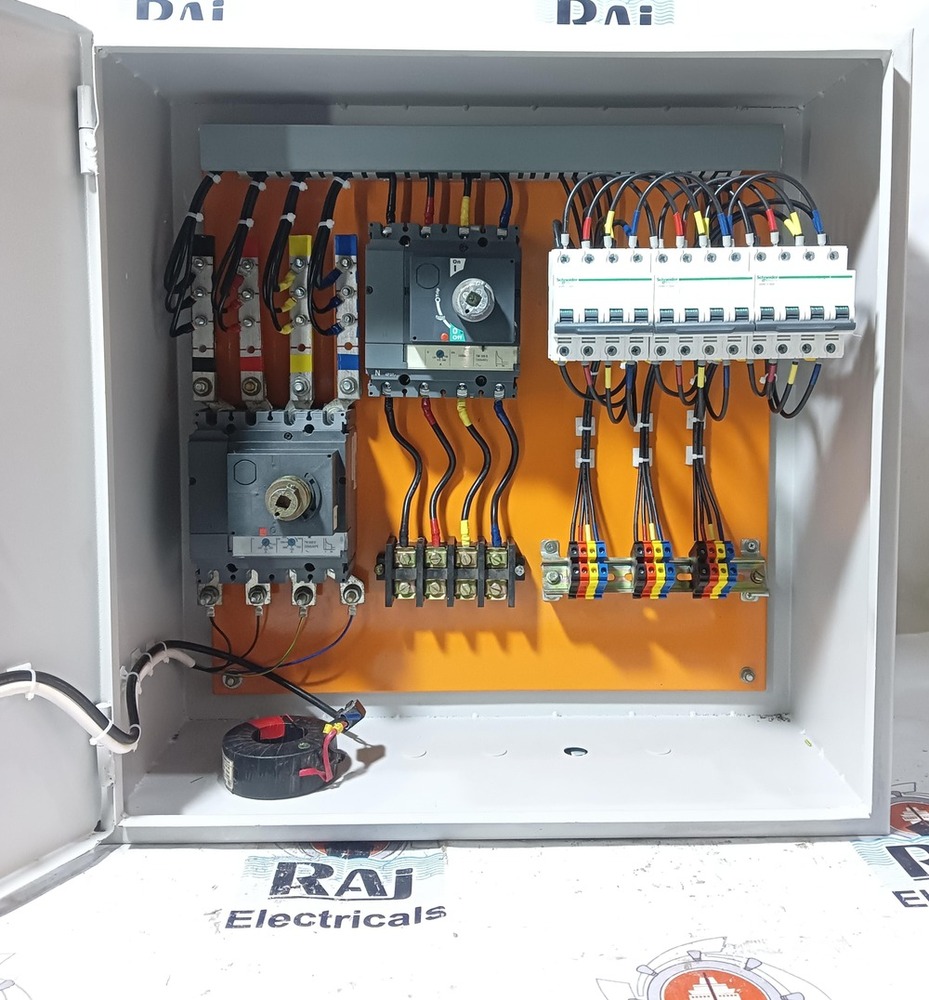

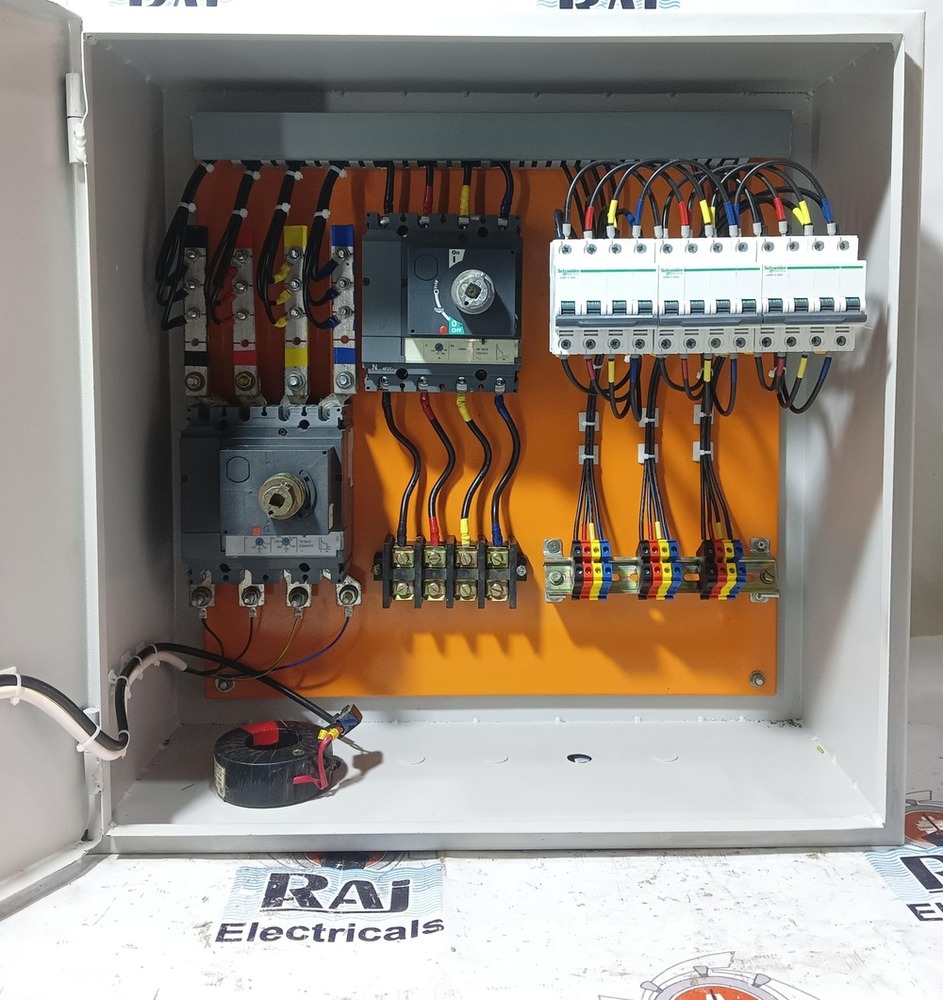

This Is Distribution Panel With BusBar

For More Details

WhatsApp or call on 919426838080 919904838080

YouTube httpswwwyoutubecomrajelectricals5253

Google httpsgcokgsWCmt5a

Instagram httpswwwinstagramcomrajelectric52

Facebook httpswwwfacebookcomRajElectricals52

Website httpswwwrajelectricscom

Versatile Installation Options

Mount the MINI DISTRIBUTION PANEL vertically or horizontally to suit the specific layout of your space. Its concealed internal fixing holes make wall mounting straightforward and provide a neat, tamper-resistant installation. Designed to withstand various ambient temperatures (-5C to +55C), this panel adapts readily to multiple environments, from residential to industrial settings.

Superior Safety and Durability

Constructed from high-grade, reinforced polycarbonate with a UL94 V-0 flammability rating, this panel resists fire, water, dust, and rust. Its secure snap fit locking door, robust transparent cover, and IP42 ingress protection ensure safety for users while extending product lifespan, making it ideal for both high and low risk environments.

FAQ's of MINI DISTRIBUTION PANEL:

Q: How do I install the MINI DISTRIBUTION PANEL?

A: The panel is designed for easy wall mounting using internal fixing holes. You can mount it either vertically or horizontally, depending on your installation requirements. The compact design and knockouts make cable entry and wiring straightforward.

Q: What applications is this distribution panel suitable for?

A: This panel is suitable for domestic, commercial, and industrial installations. It can safely handle a range of environments thanks to its robust polycarbonate construction, water and dust resistant IP42 rating, and high conductivity copper busbars.

Q: When should I use a panel with 4, 6, 8, or 12 ways?

A: The choice between 4, 6, 8, or 12 way options depends on the number of outgoing circuits you require. For smaller needs, use 4 or 6 way panels; for larger installations or more circuit separation, choose 8 or 12 ways.

Q: Where should the panel be installed for optimum performance?

A: Install the panel indoors on a flat, stable wall, ensuring the ambient temperature stays between -5C and +55C. The IP42 rating ensures protection from dust and water, making it ideal for clean utility or control rooms.

Q: What is the process for safely connecting cables?

A: Use the provided knockouts for neat cable entry and exit. Ensure that incoming and outgoing wires are routed correctly to the copper busbar, neutral link, and earth link. Always switch off the main power supply before making connections.

Q: How does the panel benefit my electrical installation?

A: It enhances safety with a flame-retardant enclosure and snap fit lock, simplifies maintenance with a see-through cover, and ensures efficient current distribution with copper busbars. Its compact, rust-proof design offers longevity and minimal maintenance.
