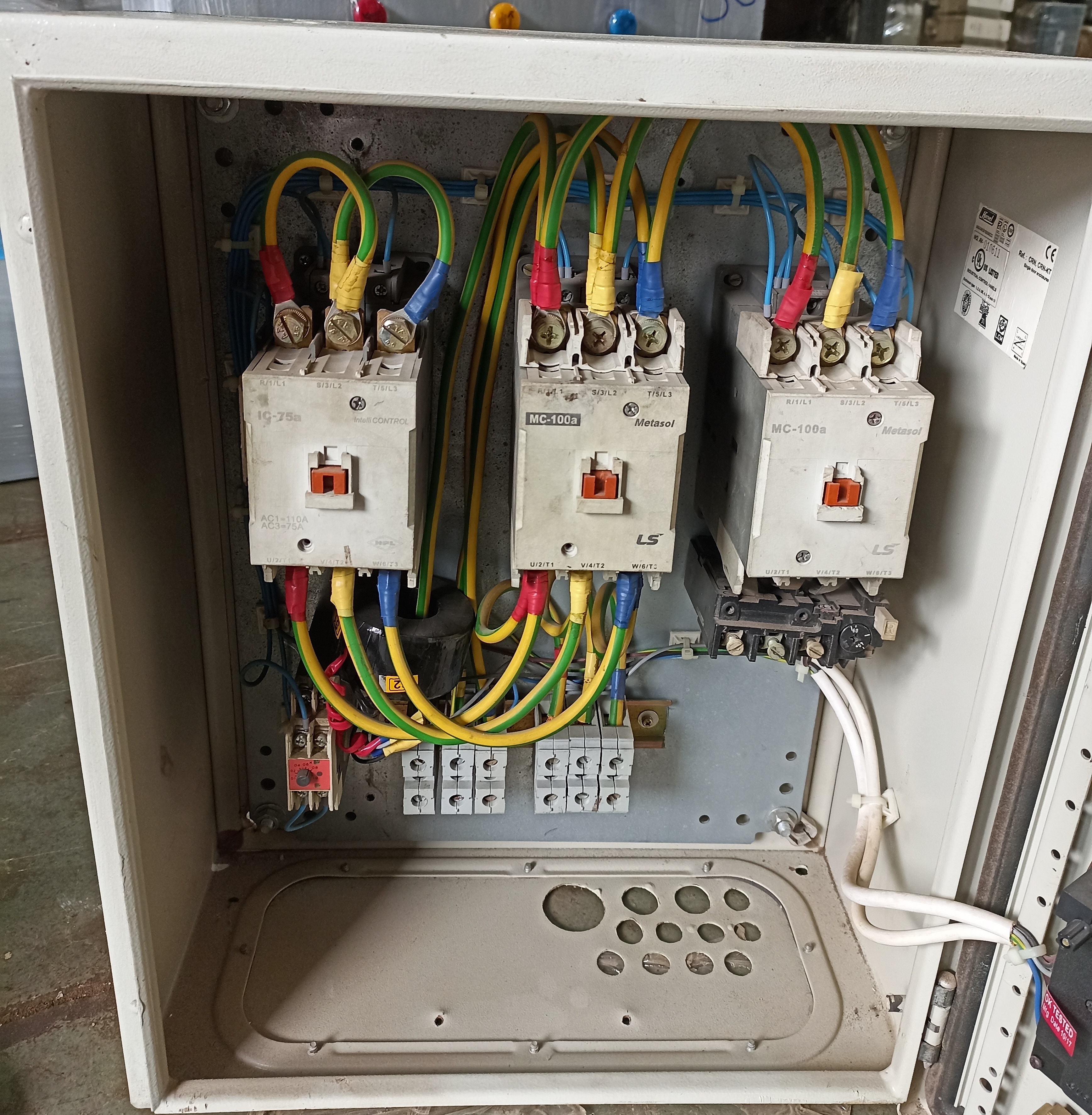

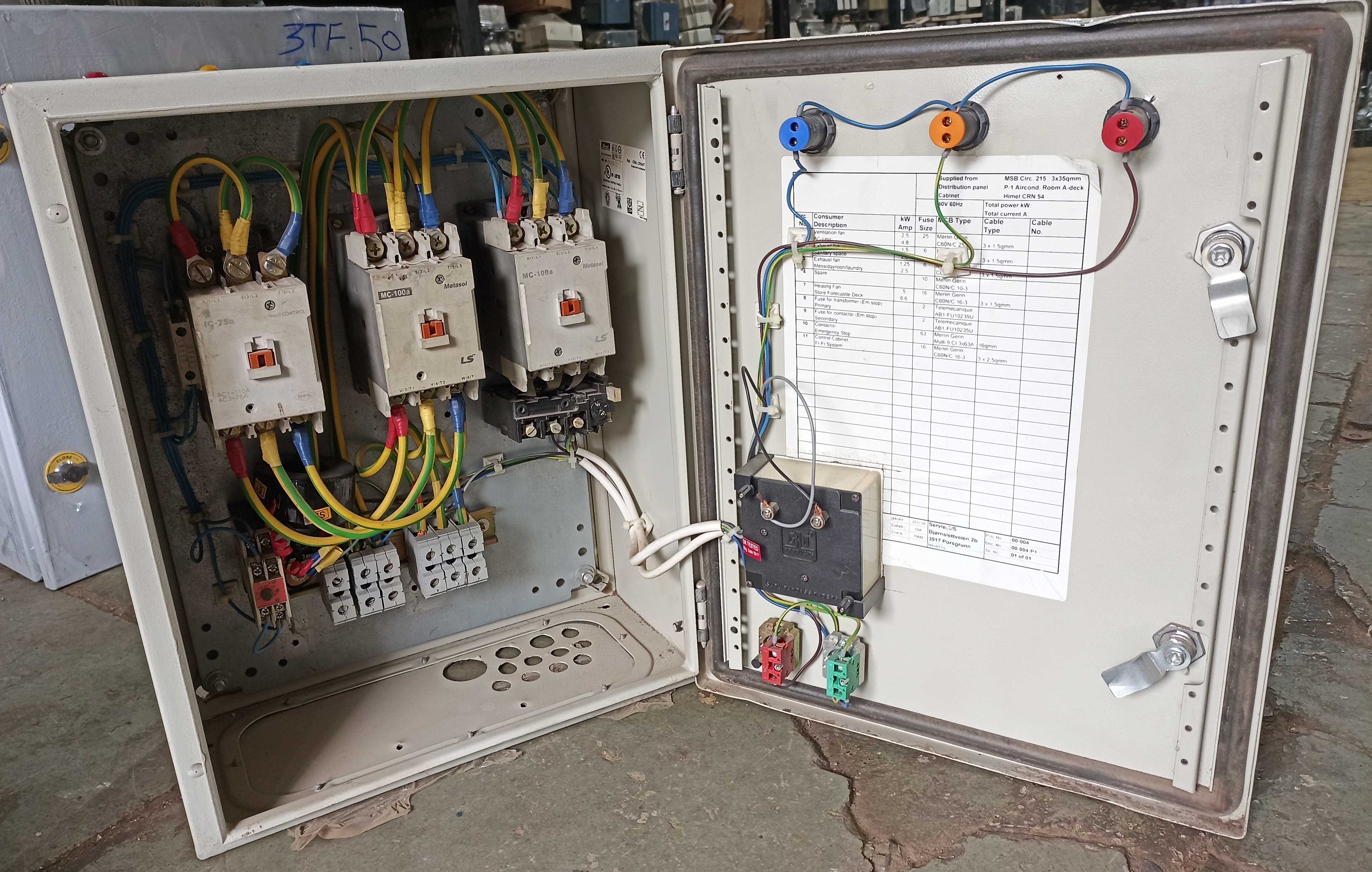

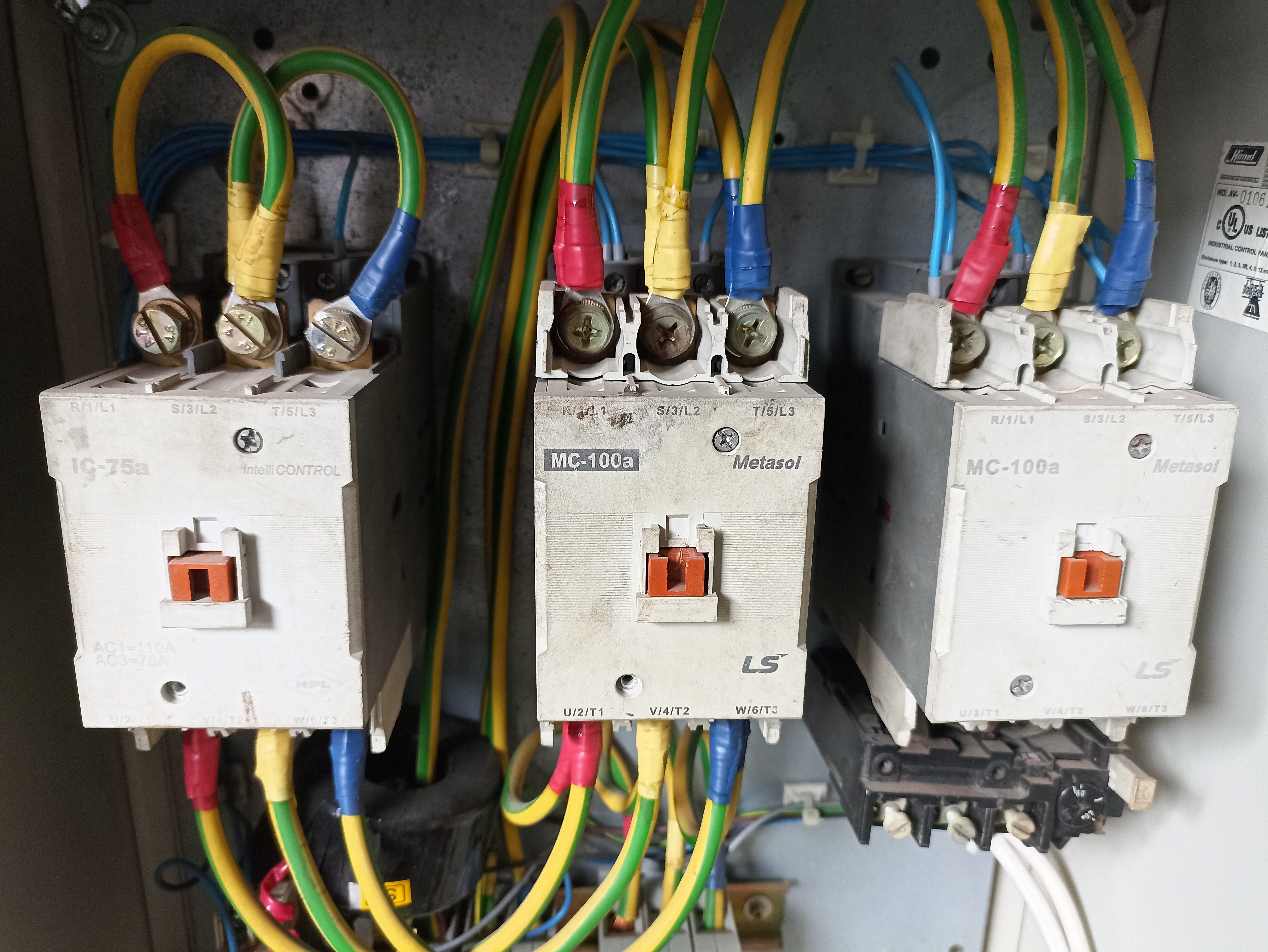

METASOL MC-100A STAR-DELTA STARTER

Name: METASOL MC-100A STAR-DELTA STARTER
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

METASOL MC-100A STAR-DELTA STARTER Specification

Surface Finish
Powder Coated

Efficiency
98%

Mounting Type
Panel Mounting

Overheating Protection
YES

Connector Type
Screw Terminal

Power Factor
0.95

Insulation Material
High Grade Insulation

IP Rating
IP54

Operating Temperature
-10C to +50C

Shape
Rectangular

Humidity %
Up to 95% RH, Non-condensing

Feature
Automatic and Manual Control, High Reliability

Product Type
Star Delta Starter

Application
Motor Starting and Protection

Protection Level
High

Frequency (MHz)
50/60 Hz

Rated Voltage
415 V AC

Energy Consumption
Low

Output Type
AC Output

Color
Grey & Blue

Dimension (L*W*H)
420 x 300 x 220 mm

Weight
15 kg

Phase
Three Phase

Size
Standard

Input Voltage
415V AC

No Of Poles
3

Connection Type
Cable, Lug

Material
ABS, Metal

Electrical Endurance
500,000 operations

Rated Current
100A

Enclosure Type
Sheet Steel Enclosure

Contactor Type
3NO+1NO auxiliary contacts

Short Circuit Withstand Capacity
10 kA

Protection Components
Thermal Overload Relay

Coil Voltage
230V AC

Starting Method
Star-Delta

Control Voltage
230V AC

Accessories
Wiring diagram, Mounting screws

Motor Rating (HP)
60 HP

Mechanical Endurance
1,000,000 operations

METASOL MC-100A STAR-DELTA STARTER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About METASOL MC-100A STAR-DELTA STARTER

Raj Electricals Offering METASOL MC-100A STAR-DELTA STARTER At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Star-Delta Starter

Contactor :- Metasol

Model :- MC-100A

Pole :- 3P

Manufactured By :- Raj Electricals

Condition :- Refurbished

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Robust Protection and Operational Safety

With a high short-circuit withstand capacity of 10 kA, built-in thermal overload relay, and overheating protection, the MC-100A Star-Delta Starter offers exceptional safety for both personnel and equipment. The IP54-rated enclosure shields the internal components from dust and water, ensuring consistent operation even in high-humidity environments.

Efficient and Reliable Motor Starting

Designed for three-phase motors up to 60 HP, the star-delta starting method minimizes starting current, reducing stress on the motor and power network. The unit boasts a high efficiency of 98%, a power factor of 0.95, and reliable performance up to 500,000 electrical and 1,000,000 mechanical operations.

Ease of Installation and Versatility

The MC-100A Starter is supplied with a detailed wiring diagram, mounting screws, and features versatile cable or lug connection types. Its compact, panel-mountable ABS and metal enclosure, standard sizing, and powder-coated finish make it suitable for a wide array of industrial settings across India.

FAQ's of METASOL MC-100A STAR-DELTA STARTER:

Q: How does the star-delta starting method benefit my motor?

A: The star-delta starting method reduces the starting current and mechanical stress on your motor, improving its lifespan and reliability. This approach is particularly effective for three-phase motors up to 60 HP, as used in the MC-100A Starter.

Q: What protection features are included in the METASOL MC-100A Star-Delta Starter?

A: The MC-100A offers high protection with a thermal overload relay, built-in overheating protection, a short-circuit withstand capacity of 10 kA, and an IP54-rated sheet steel enclosure to safeguard against dust and water ingress.

Q: Where can the METASOL MC-100A Star-Delta Starter be installed?

A: Thanks to its robust, powder-coated enclosure and IP54 protection, the starter is suitable for installation in diverse industrial environments with ambient humidity up to 95% RH (non-condensing) and temperatures from -10C to +50C.

Q: What accessories come with the MC-100A starter for installation?

A: Each MC-100A unit is supplied with a comprehensive wiring diagram and mounting screws, making the panel mounting process straightforward for both new and retrofit installations.

Q: How does the MC-100A starter improve operational efficiency?

A: With a 98% efficiency rating and a power factor of 0.95, the MC-100A minimizes energy losses and ensures effective power usage, leading to reduced operational costs and improved motor performance.

Q: What is the process for operating the starter in either automatic or manual modes?

A: The MC-100A is designed for both automatic and manual control modes, allowing users to select their preferred operation method based on application requirements. Switching between modes is intuitive and detailed in the supplied installation guide.

Q: What applications is the METASOL MC-100A suitable for?

A: This starter is ideal for industrial motor starting and protection in manufacturing plants, processing units, and facilities requiring reliable three-phase motor operation and advanced protection features across India.
