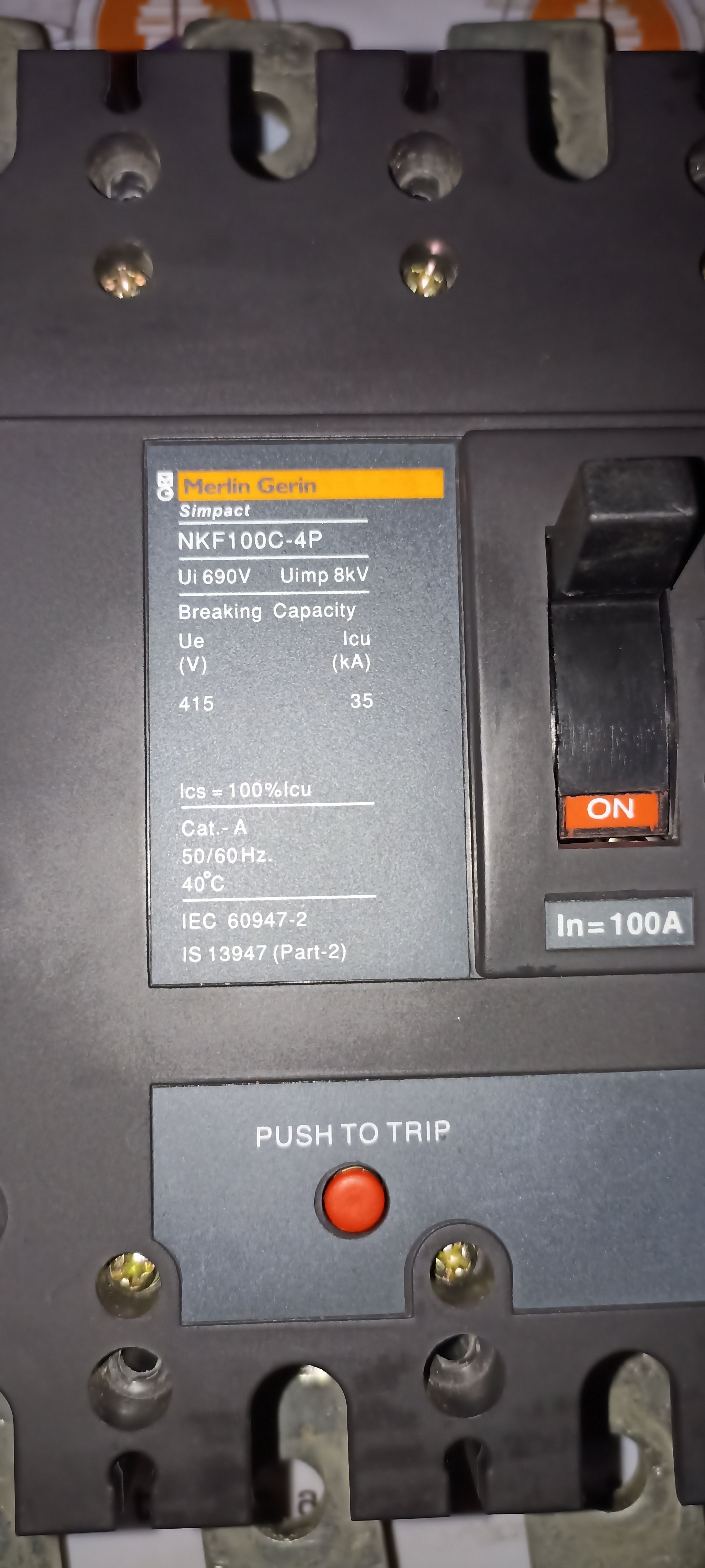

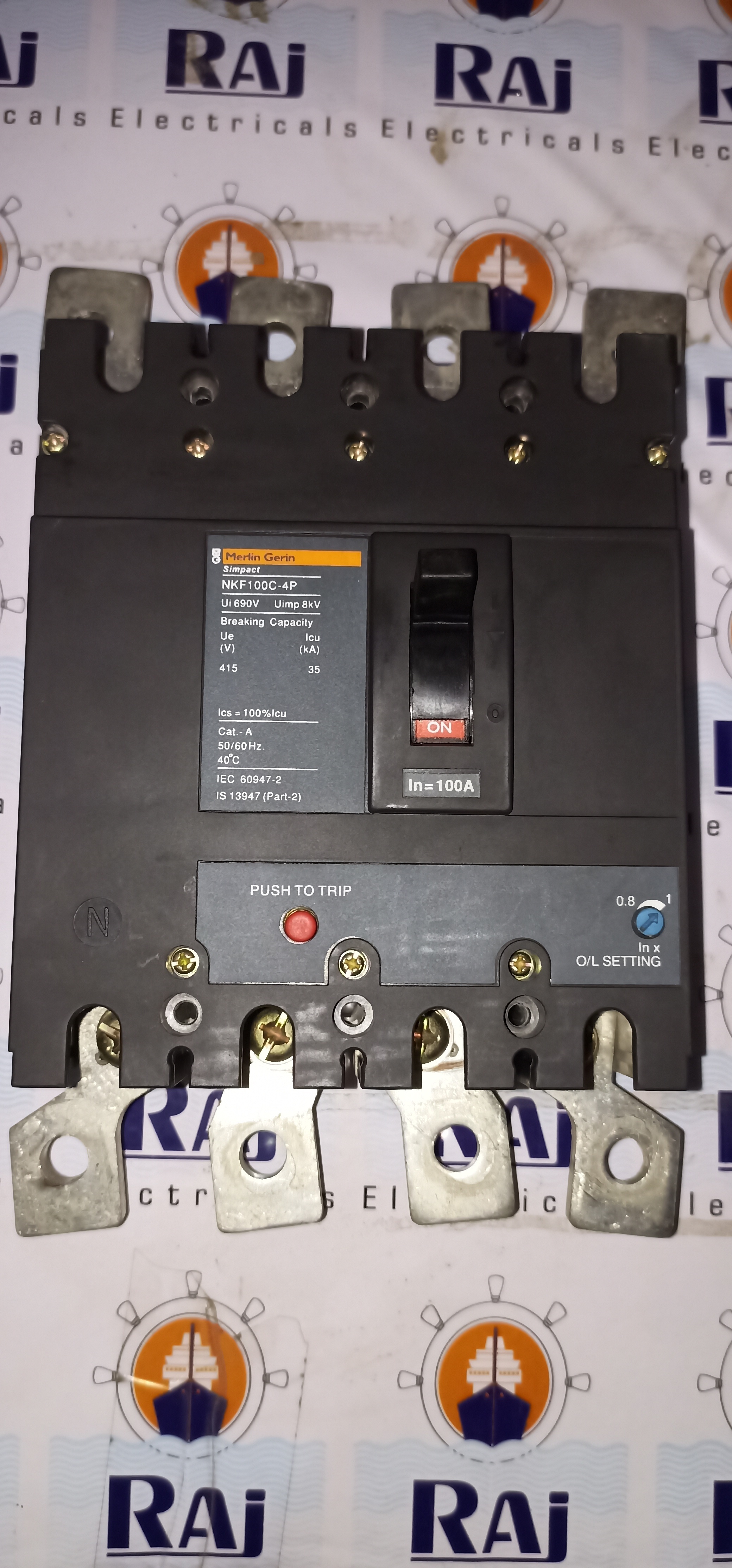

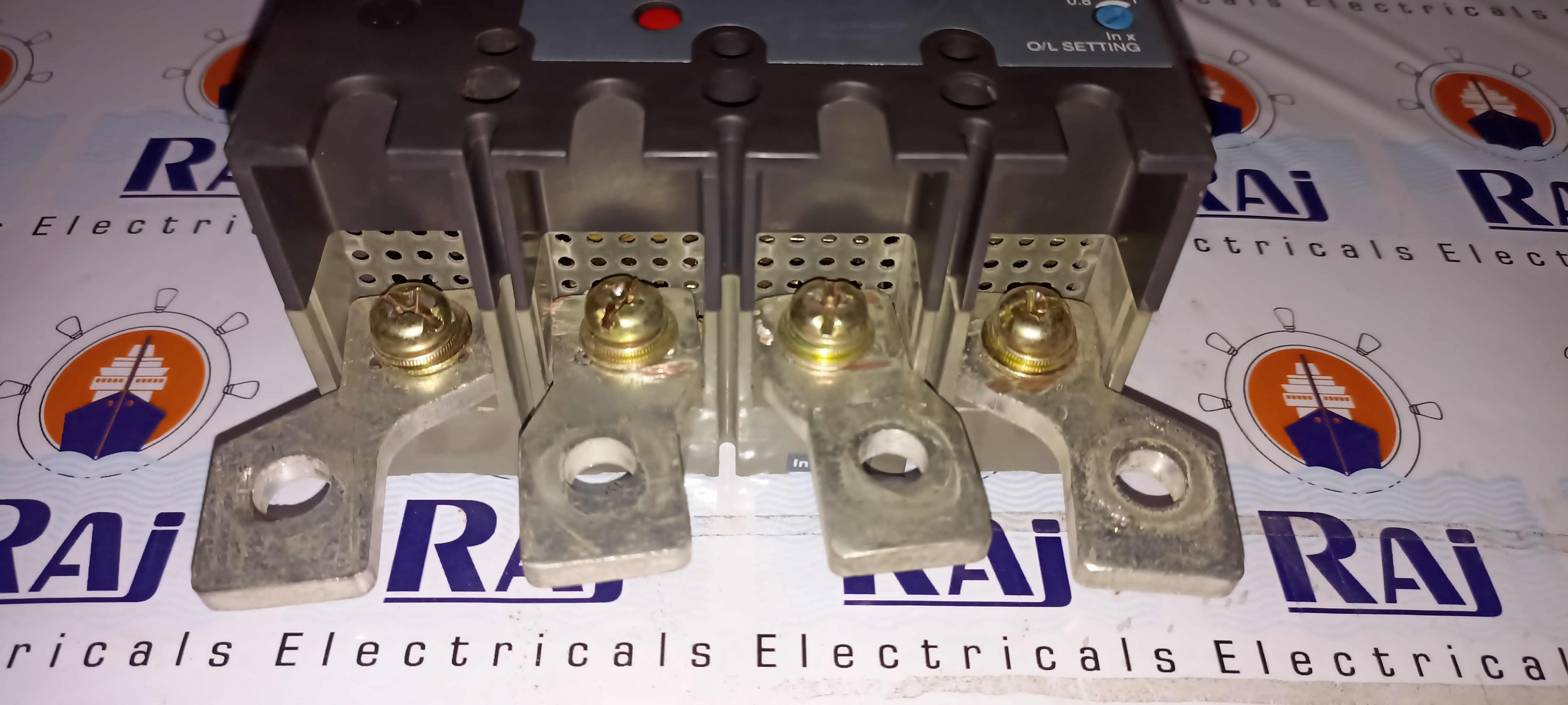

MERLIN GERIN (NKF100C-4P) 100A 4P MCCB

Name: MERLIN GERIN (NKF100C-4P) 100A 4P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

MERLIN GERIN (NKF100C-4P) 100A 4P MCCB Specification

Rated Short Circuit Making Current
50 kA peak

Rated Short Circuit Breaking Current
25 kA at 415V AC

Mechanical Life
10,000 operations

Breaking Capacity
25 kA

Phase
Three Phase

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
DIN rail or panel mounting

Function
Protection of electrical circuits against overload and short-circuit

Poles Number
4 Poles

Rated Voltage
415V AC

Rated Current
100A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
Yes, with adjustable thermal protection

Weight
2.1 kg (approx.)

Color
Grey/Black

Terminal Type
Screw terminals

Mounting Position
Any position

Ambient Temperature Range
-25C to +70C

Trip Mechanism
Thermal-magnetic

Enclosure Protection Class
IP20

Application
Suitable for industrial and commercial electrical distribution

Accessory Options
Auxiliary switch, shunt trip, undervoltage release (optional)

Standards Compliance
IEC 60947-2

Electrical Life
5,000 operations

MERLIN GERIN (NKF100C-4P) 100A 4P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About MERLIN GERIN (NKF100C-4P) 100A 4P MCCB

Raj Electricals Offering Merlin Gerin (NKF100C-4P) 100A 4P MCCB At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- Merlin Gerin

Ampere :- 100A

Pole :- 4P

Model :- NKF100C-4P

Condition :- Refurbished

Breaking Capacity :- 35 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Enhanced Protection for Industrial and Commercial Distribution

The NKF100C-4P MCCB delivers dependable protection against overloads and short circuits, making it suitable for demanding electrical environments. Its thermal-magnetic trip mechanism ensures sensitive and timely response, safeguarding your equipment and installations.

Flexible Installation and Accessory Options

Designed for versatility, the MCCB supports installation on DIN rails or panels, in any mounting position. Customize functionality further with optional accessories such as auxiliary switches, shunt trips, and undervoltage releases, tailoring it for specific operational needs.

Robust Construction and Standards Compliance

With compliance to IEC 60947-2 and a rugged design able to operate from -25C to +70C, this breaker ensures ongoing reliability and meets international standards required for industrial applications.

FAQ's of MERLIN GERIN (NKF100C-4P) 100A 4P MCCB:

Q: How can the MERLIN GERIN (NKF100C-4P) MCCB be installed in an electrical system?

A: The NKF100C-4P MCCB offers flexible installation options and can be mounted on a DIN rail or panel in any orientation. This ensures seamless integration into various electrical distribution setups.

Q: What benefits does the adjustable thermal protection provide?

A: Adjustable thermal protection allows users to fine-tune the MCCB's response to overload conditions, enhancing protection and adaptability for diverse electrical loads, which maintains system safety and longevity.

Q: When should auxiliary switches, shunt trips, or undervoltage releases be added?

A: These optional accessories should be included when remote signaling, emergency tripping, or voltage-sensitive protection is required in your application, adding functionality suited to advanced control and safety measures.

Q: Where is the MERLIN GERIN (NKF100C-4P) MCCB most effectively used?

A: This MCCB excels in industrial and commercial electrical distribution systems, particularly where robust protection and compliance with international standards are essential, such as factories, commercial buildings, and large infrastructure projects.

Q: What process does the MCCB use for circuit protection?

A: The device employs both thermal and magnetic trip mechanisms. Thermal protection responds to prolonged overloads, while magnetic protection decisively disconnects the circuit during short-circuits, thereby preventing equipment damage.

Q: How does the MCCB's IP20 enclosure rating benefit users?

A: An IP20 protection class guards against solid objects larger than 12.5 mm, improving safety for personnel and equipment within indoor industrial and commercial environments.

Q: What are the usage limits regarding frequency and current for this MCCB?

A: The device supports rated current up to 100A and operates at frequencies of 50/60 Hz, accommodating a wide range of electrical systems and ensuring suitability for most industrial or commercial applications.
