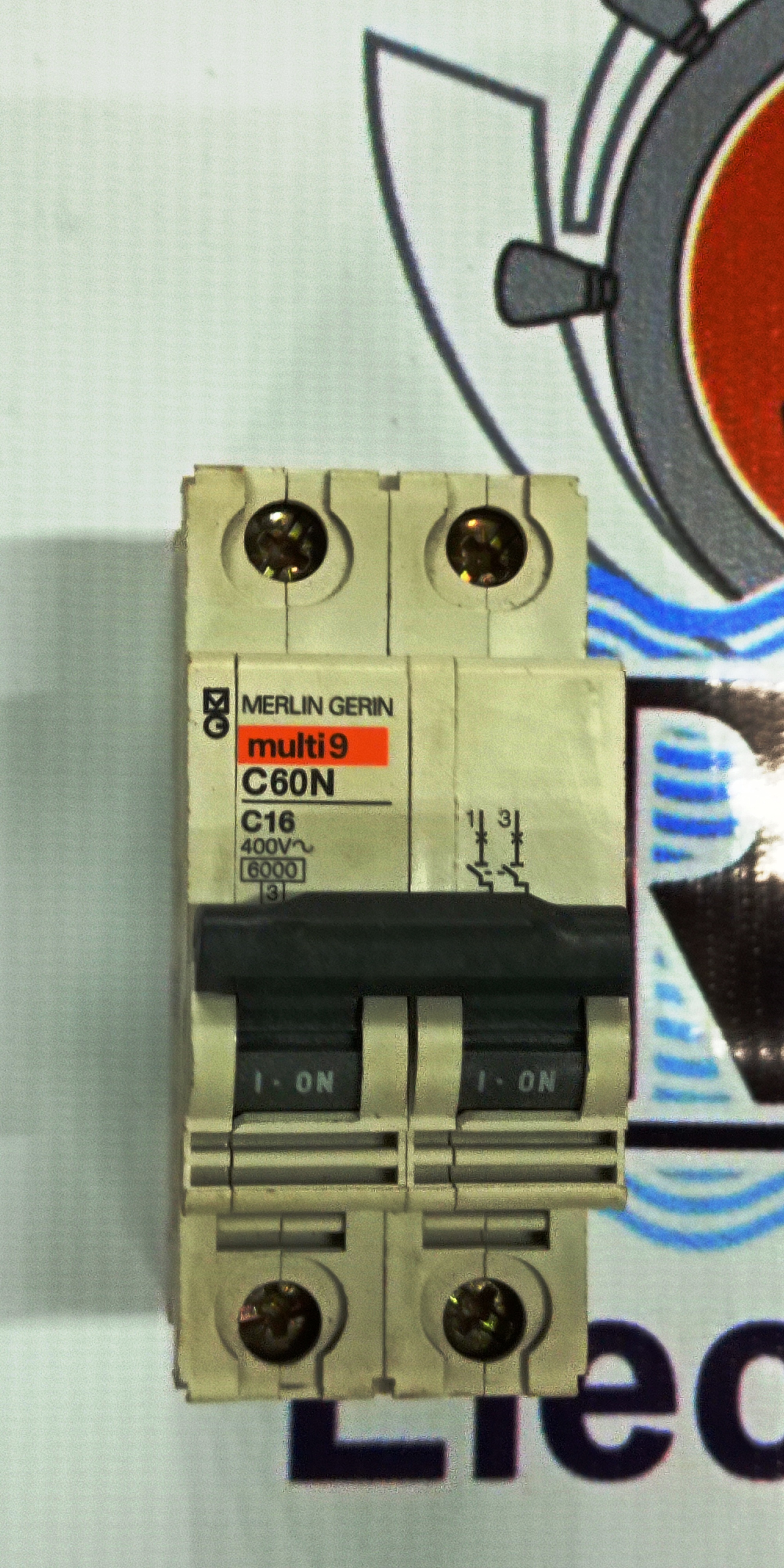

Merlin Gerin 16a

Get a Price/Quote

MOQ : 100 Pieces

Merlin Gerin 16a Specification

Mechanical Life
20,000 operations

Breaking Capacity
6 kA

Phase
Single Phase

Rated Short Circuit Breaking Current
6000 A

Rated Short Circuit Making Current
6000 A

Product Type
Miniature Circuit Breaker (MCB)

Installation Options
DIN Rail Mounting

Function
Protection of electrical circuits against short circuits and overloads

Poles Number
1P (Single Pole)

Rated Voltage
240/415V AC

Rated Current
16A

Rated Frequency
50/60 Hz

Curves
C Curve

Temperature Protection
-5C to +55C

Weight
Approx. 140g

Color
Grey / Black Switch

Merlin Gerin 16a Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
100 Pieces Per Day

Delivery Time
2 Days

Sample Available
Yes

Main Domestic Market
All India

About Merlin Gerin 16a

Merlin Gerin 16a

We are the renowned dealers and stockist of Merlin Gerin MCB, which is highly sought after in the industry. Clients can avail from us Modular circuit-breakers(MCB) up to 125 A. Our organization procures all the MCBs from Schneider Electric India Ltd. after inspecting the product thoroughly.

Comprehensive Circuit Protection

The Merlin Gerin 16A MCB effectively shields single-phase electrical installations from overloads and short circuits. Its thermal magnetic trip mechanism offers rapid response, ensuring safe operation in residential, commercial, or industrial environments. With a reliable 6 kA breaking capacity and adherence to international safety standards, it guarantees performance and peace of mind.

Versatile Installation and Durability

Designed for flexible mounting, this MCB easily snap-fits onto 35 mm DIN rails, streamlining panel assembly. Its thermoplastic housing is both flame-retardant and robust, protecting the device within an IP20 enclosure. With a mechanical life of 20,000 operations and a broad operating temperature range, it ensures long-lasting service in varied conditions.

FAQs of Merlin Gerin 16a:

Q: How does the Merlin Gerin 16A MCB protect electrical circuits?

A: The device uses a thermal magnetic trip mechanism that automatically disconnects the circuit in case of overload or short circuit, thus preventing equipment damage, electrical fires, and downtime.

Q: What installation process should be followed for this MCB?

A: Mount the unit on a standard 35 mm DIN rail with the input connections at the top and output at the bottom using screw terminals. Ensure the device operates within -5C to +60C and is installed in an enclosure that meets IP20 requirements for safety.

Q: When should the Merlin Gerin 16A MCB be used?

A: This MCB is suitable for use in single-phase electrical circuits requiring protection up to 16A at 240/415V AC, especially where compliance with IEC/EN 60898-1 and high breaking capacity (6 kA) are essential.

Q: Where can the Merlin Gerin 16A MCB be installed?

A: It can be installed in electrical distribution panels in residential, commercial, or industrial settings across India and beyond, provided the installation requirements are met and standards are followed.

Q: What are the key benefits of using this MCB?

A: It offers enhanced electrical safety, rapid fault interruption, reliable performance over 20,000 operations, and compatibility with modern installation systems using flame-retardant materials and standardized connections.

Q: How do I ensure proper usage of this MCB regarding current and voltage ratings?

A: Only connect circuits that do not exceed 16A rated current and operate within 240/415V AC. Ensure that breaking and making capacities (6,000 A) are not exceeded for optimal and safe performance.
