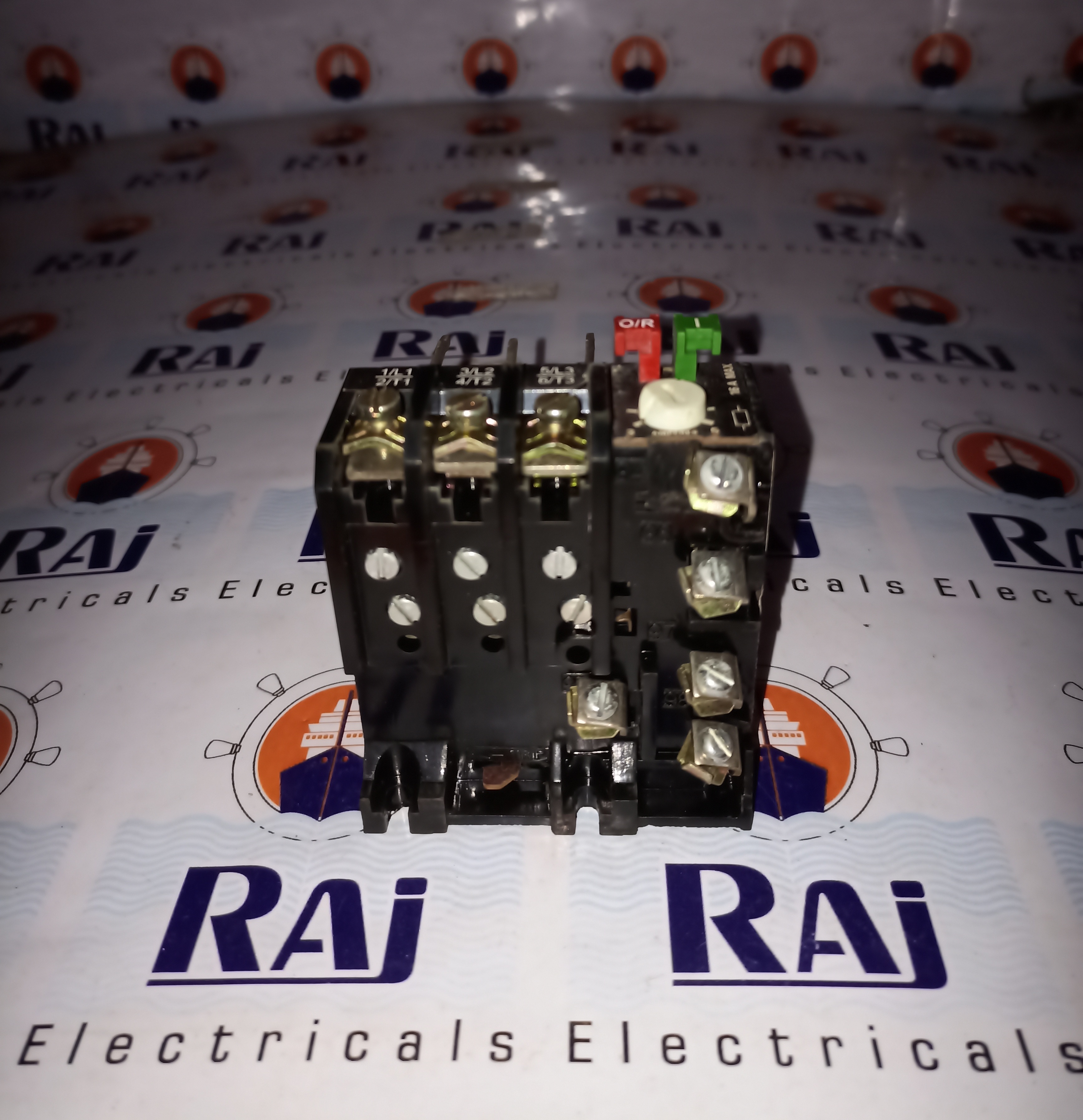

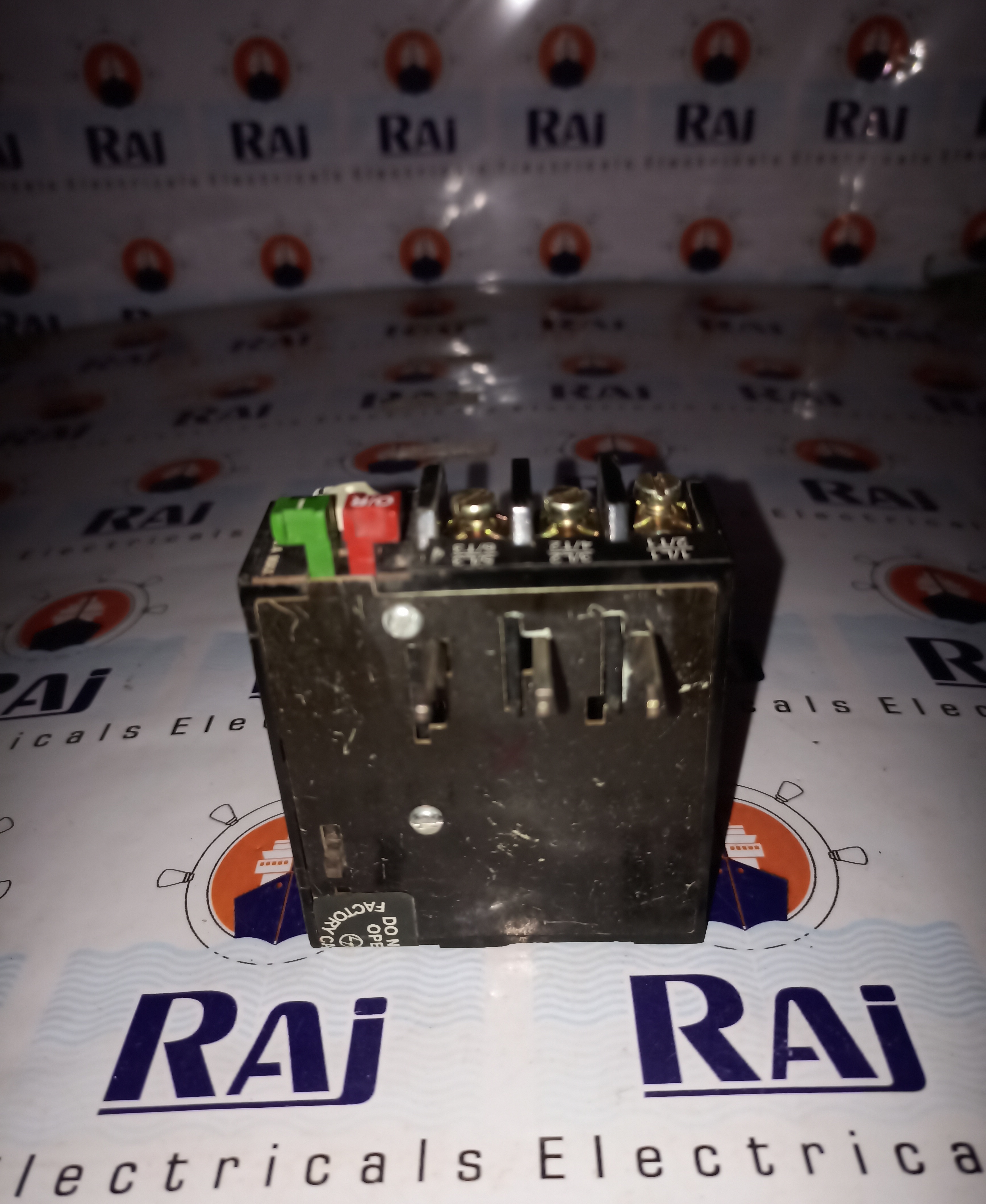

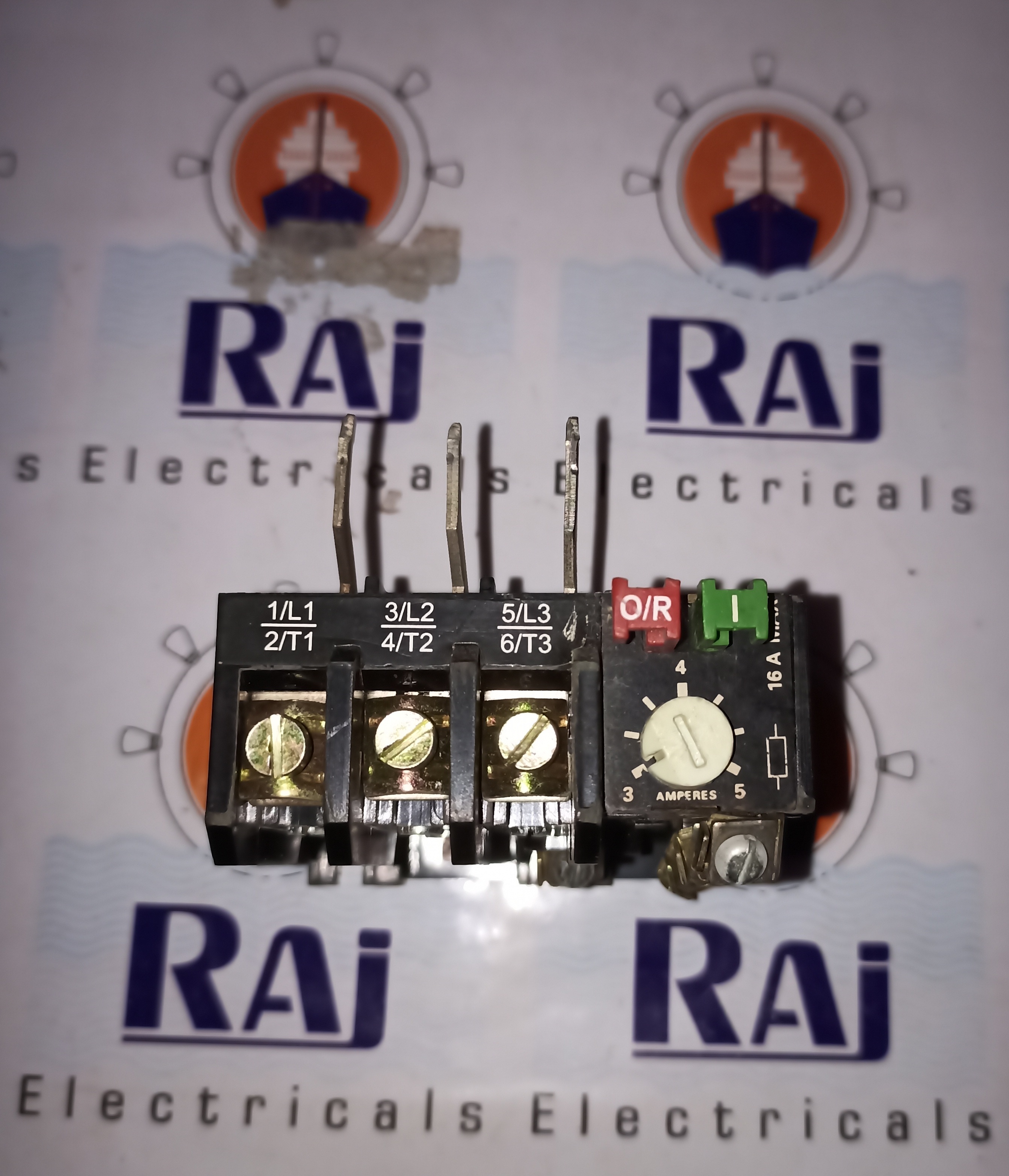

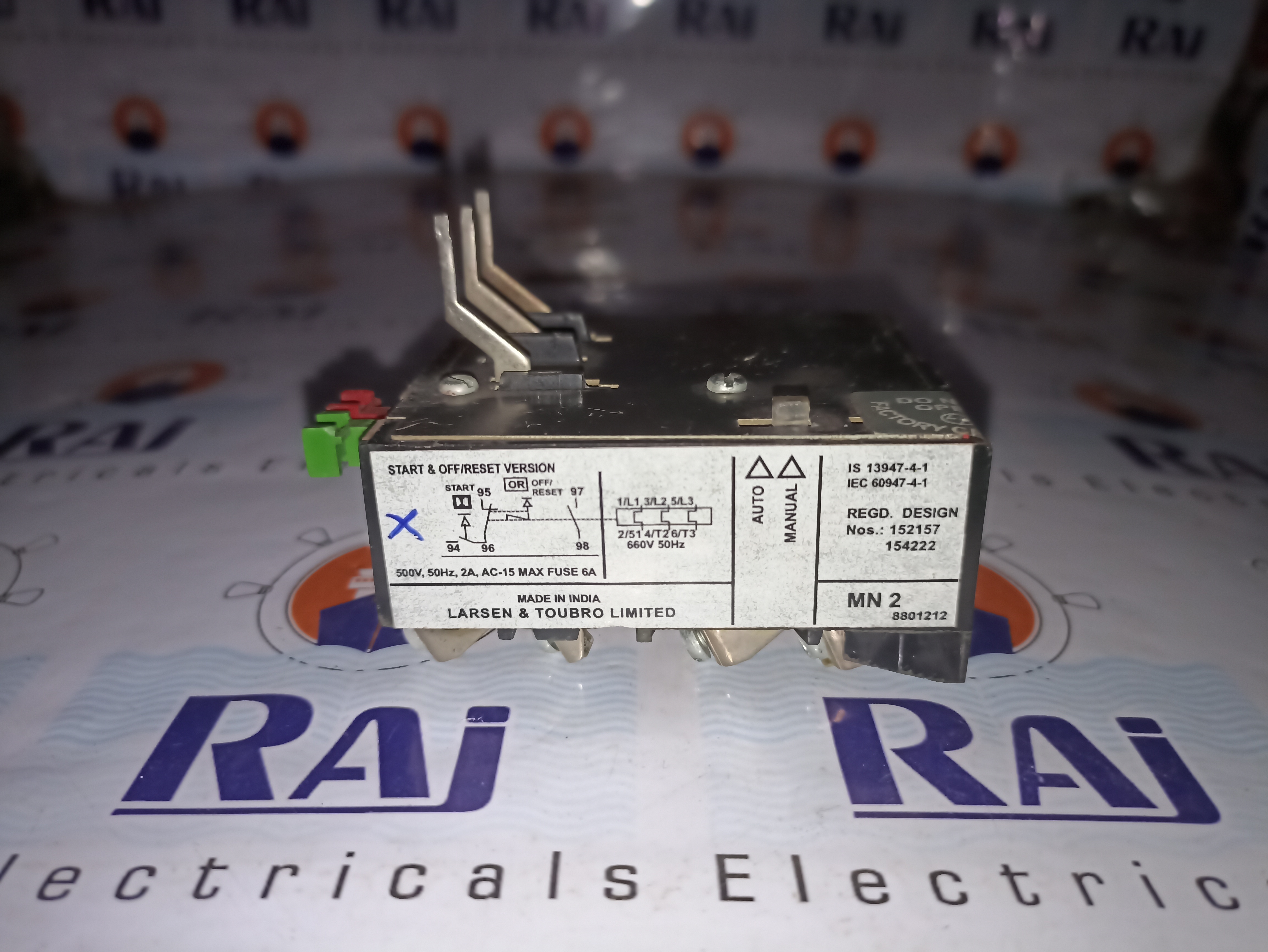

LT NEW (MN-2) 3-5 OVER LOAD RELAY

Name: LT NEW (MN-2) 3-5 OVER LOAD RELAY
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 10 Pieces

LT NEW (MN-2) 3-5 OVER LOAD RELAY Specification

Operating Temperature
-5C to +55C

Surface Finish
Matte Finish

Power Factor
0.95

Humidity %
Maximum 95% RH, Non-condensing

Efficiency
High

Feature
Manual & Auto Reset

IP Rating
IP20

Mounting Type
Direct/Panel Mounting

Shape
Rectangular

Overheating Protection
YES

Insulation Material
Thermoplastic

Connector Type
Screw Terminal

Product Type
Over Load Relay

Application
Motor Protection, Industrial Use

Protection Level
Overload, Phase Failure

Frequency (MHz)
50 Hz

Rated Voltage
690 V AC

Energy Consumption
Low

Output Type
Relay Output

Color
Black & White

Dimension (L*W*H)
80mm x 45mm x 60mm

Weight
200 g

Size
Standard

Phase
Three Phase

Input Voltage
415 V AC

Material
Plastic and Metal

Connection Type
Screw Type

No Of Poles
3 Pole

Tripping Class
Class 10A

Standards
IS/IEC 60947-4-1 compliant

Electrical Life
1 Million Operations

Mechanical Life
5 Million Operations

Auxiliary Contacts Rated Voltage
250V AC

Reset Type
Manual/Automatic

Current Range
3-5 Ampere

Contact Configuration
1NO + 1NC

Dielectric Strength
2.5 kV

LT NEW (MN-2) 3-5 OVER LOAD RELAY Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About LT NEW (MN-2) 3-5 OVER LOAD RELAY

Raj Electricals Offering NEW L&T (MN-2) 3-5 OVER LOAD RELAY At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Over Load Relay

Make :- L&T

Range :- 3 - 5

Pole :- 3P

Model :- MN2

Condition :- New (Box Pack)

Voltage :- 415 V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Versatile Protection for Motors

With an adjustable current range of 3-5A and a tripping class of 10A, the LT NEW (MN-2) Over Load Relay offers flexible protection for a variety of three-phase motors. Its low energy consumption and prompt response mitigate downtime and shield equipment from overload and phase failure scenarios.

Built for Industrial Performance

Constructed from robust plastic and metal materials, the relay features both manual and auto reset, high dielectric strength (2.5 kV), and a rugged design for direct or panel mounting. It operates reliably in temperatures from -5C to +55C and humidities up to 95% RH, meeting demanding industrial standards.

FAQ's of LT NEW (MN-2) 3-5 OVER LOAD RELAY:

Q: How does the LT NEW (MN-2) 3-5 Over Load Relay provide motor protection?

A: The relay protects motors from overload and phase failure by continuously monitoring current and automatically tripping when preset thresholds (3-5 Amps) are exceeded, ensuring safe shutdown and preventing equipment damage.

Q: What is the benefit of the manual and automatic reset feature?

A: Manual and automatic reset options give users the flexibility to quickly restore operations after a trip event or allow for automatic resumption, catering to diverse operational preferences and safety protocols.

Q: When should I use this relay for my industrial applications?

A: Deploy this relay for any three-phase motor application requiring overload and phase failure protection, especially in environments where frequent and reliable operation is critical, such as manufacturing, processing, or industrial utility spaces.

Q: Where should the relay be installed for optimal performance?

A: The relay is best installed in a control panel or directly mounted near the motor it is protecting, using its screw-type terminals for a secure electrical connection and ensuring easy accessibility for monitoring and reset actions.

Q: What is the process to set up and use the LT NEW (MN-2) relay?

A: Install the relay using the provided screw terminals and follow wiring diagrams. Adjust the current setting knob to match your motor's rated current (between 3-5A). Select your preferred reset mode, and the relay is ready to protect your equipment.

Q: What are the usage advantages of this overload relay?

A: The relay provides high efficiency, long service life (up to 5 million mechanical operations), low power consumption, and enhanced safety through quick trip response, making it ideal for demanding industrial motors.

Q: What standards and certifications does this relay comply with?

A: It conforms to IS/IEC 60947-4-1 standards, ensuring high quality, safety, and reliability in line with international regulations for industrial motor protection devices.
