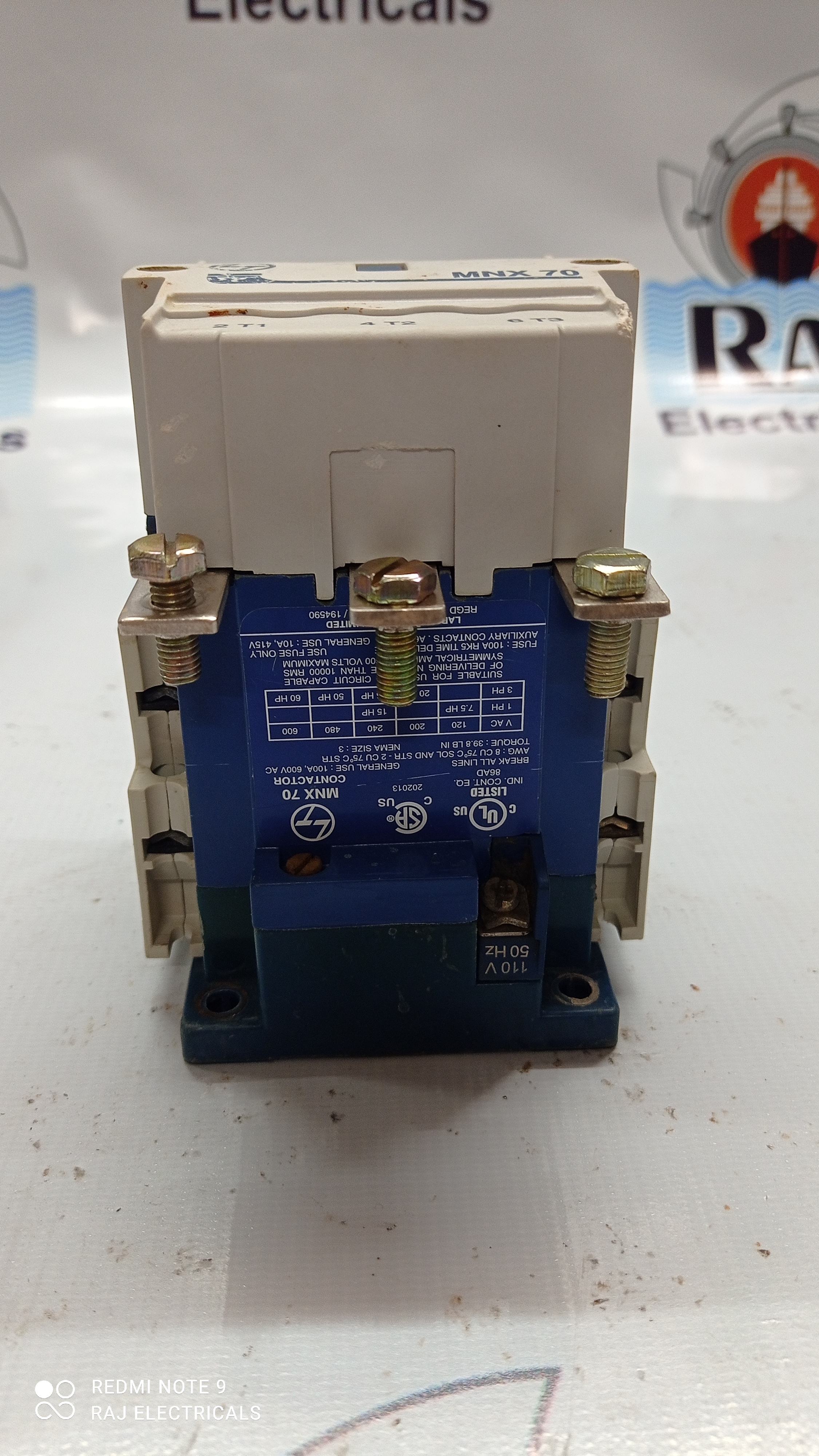

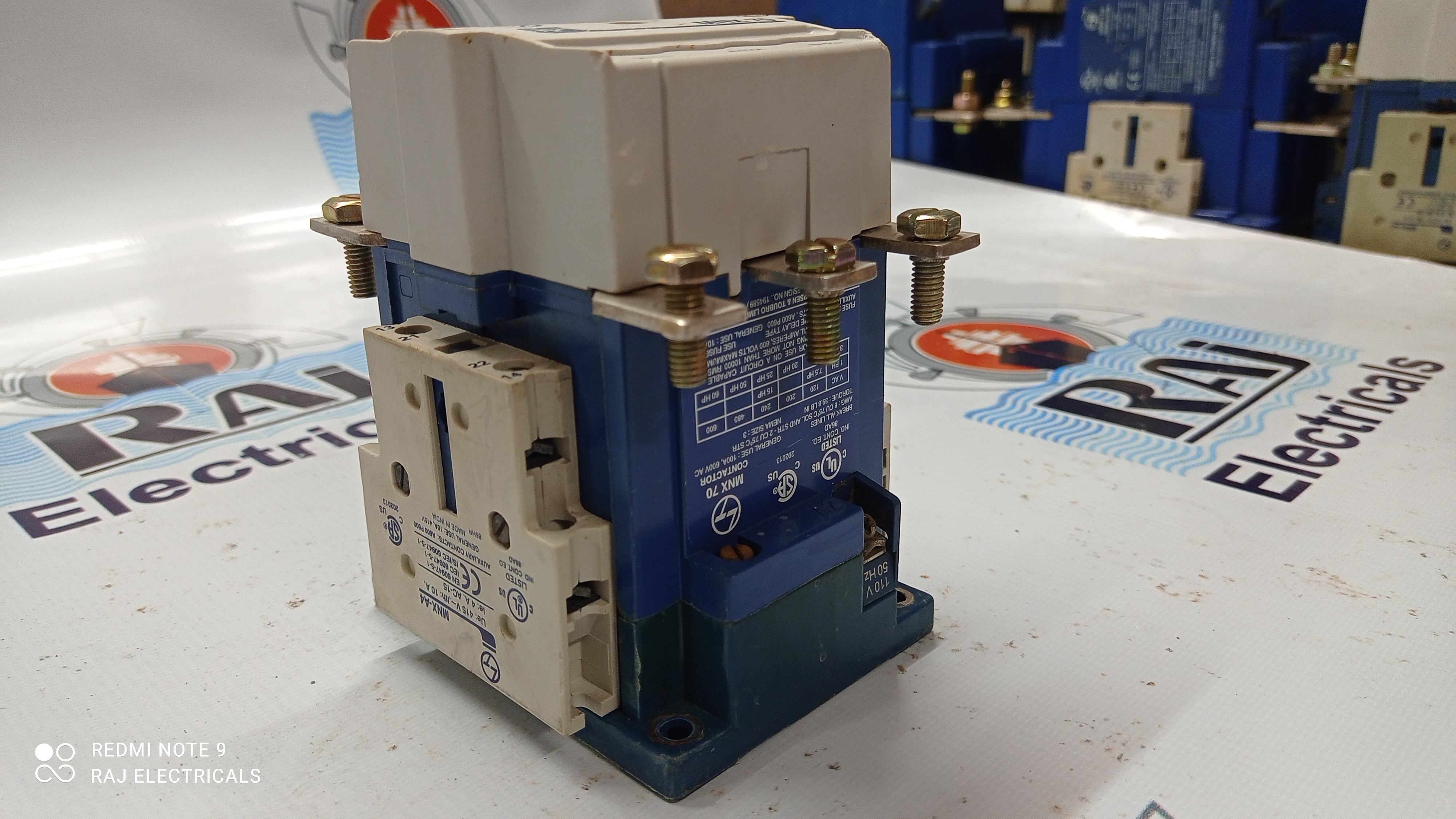

LT CONTACTOR - MNX 70

Get a Price/Quote

LT CONTACTOR - MNX 70 Specification

Efficiency
High Switching Efficiency

Surface Finish
Matte

Feature
Finger Proof Terminals, Easily Replaceable Coils

Connector Type
Screw Type

IP Rating
IP20

Power Factor
0.85

Insulation Material
Thermoset Resin

Humidity %
95% RH (Non-Condensing)

Mounting Type
DIN Rail / Panel Mount

Shape
Rectangular

Overheating Protection
Yes (With Thermal Overload Relay Accessory)

Operating Temperature
-5°C to +60°C

Product Type
LT Power Contactor

Application
Industrial Motor Control, Power Circuit Switching

Protection Level
IP20

Frequency (MHz)
0.05 - 0.06 (50-60 Hz)

Rated Voltage
690 V AC

Energy Consumption
8.5 VA (Pick-up), 1.2 VA (Hold-on)

Output Type
Switching Output

Color
Grey and Black

Dimension (L*W*H)
90mm x 102mm x 83mm

Weight
1.3 kg

Input Voltage
220V / 415V AC

Size
Compact

Phase
Three Phase

No Of Poles
3 Pole

Connection Type
Screw Terminal

Material
Engineering Plastic & Metal

Auxiliary Contacts
1 NO + 1 NC (Standard)

Coil Voltage Options
24V, 110V, 220V, 415V AC

Standards
IEC 60947-4-1 & IS/IEC 60947-4-1

Current Rating
70A AC3

Electrical Life
1 Million Operations

Mechanical Life
10 Million Operations

LT CONTACTOR - MNX 70 Trade Information

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About LT CONTACTOR - MNX 70

Shop now for the exclusive LT CONTACTOR - MNX 70, crafted for optimum performance and lofty durability in industrial settings. This high-efficiency 3-pole contactor boasts a perfect 70A AC3 current rating and is suitable for a wide voltage range, including 24V, 110V, 220V, and 415V AC coils. Get ultimate safety with finger-proof terminals, overheating protection, and IP20 rating. Features like easily replaceable coils and compact rectangular design make installation effortless. Choose this matte grey and black contactor, conforming to IEC 60947-4-1 standards, for unparalleled reliability and high switching efficiency.

Optimum Application Versatility for Industrial Control

The LT CONTACTOR - MNX 70 is the perfect fit for three-phase motor control and power circuit switching in demanding industrial environments. Its application spans across control panels, automation lines, and surface installation on both DIN rail and panel mounts. With its robust engineering plastic and metal construction, the MNX 70 is ideally suited for compact spaces, ensuring high performance even in humid conditions up to 95% RH (non-condensing).

Supply Capacity & Worldwide Distribution Valuation

Our unmatched supply ability ensures the LT CONTACTOR - MNX 70 is always available at competitive rates, supporting bulk orders for distributors and traders. Express shipping options are provided, enabling prompt delivery to main export markets like Asia and the Middle East. Samples can be requested to assist with project valuation and technical evaluation, ensuring each customer receives tailor-made solutions along with trusted support and fast logistical management.

FAQ's of LT CONTACTOR - MNX 70:

Q: How does the LT CONTACTOR - MNX 70 benefit industrial motor control systems?

A: The LT CONTACTOR - MNX 70 offers high switching efficiency and reliable protection, making it ideal for controlling and safeguarding industrial motors in various conditions, ensuring optimal system uptime.

Q: What installation surfaces are suitable for the MNX 70 contactor?

A: This contactor is designed for surface application on DIN rails or panel mounts, offering flexibility and adaptability in diverse industrial settings.

Q: When should the thermal overload relay accessory be used with this contactor?

A: The thermal overload relay accessory should be used when additional protection against overheating is required, typically in high-load or temperature-variable motor circuits.

Q: Where can the LT CONTACTOR - MNX 70 be sourced for export or wholesale?

A: It is available for purchase from authorized distributors, exporters, manufacturers, suppliers, and traders throughout India, with express shipping available to major international markets.

Q: What is the process for coil replacement in the MNX 70?

A: Coil replacement is straightforward thanks to the easily accessible and replaceable coil design, allowing minimal downtime during routine maintenance.
