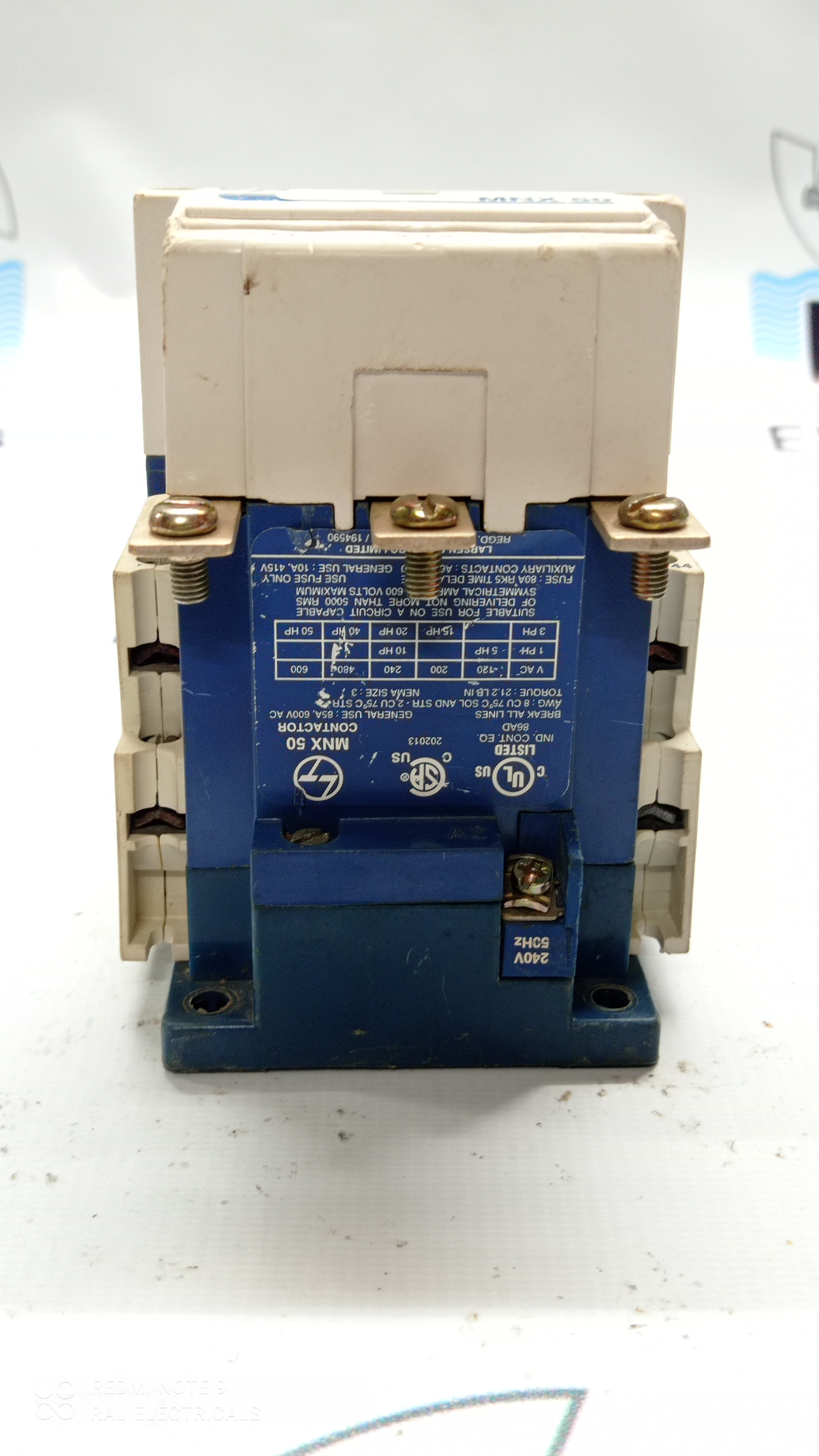

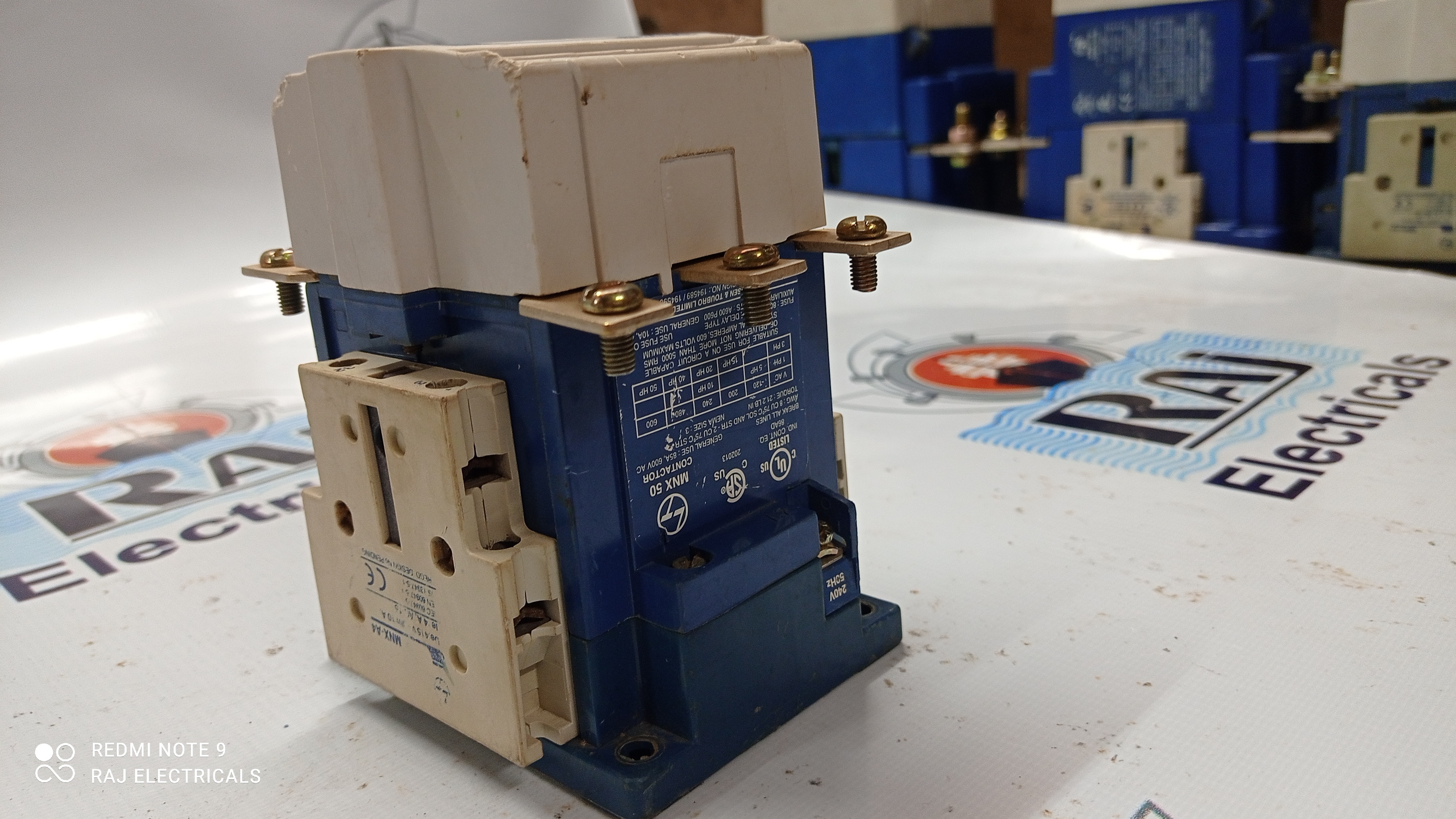

LT CONTACTOR - MNX 50

Get a Price/Quote

LT CONTACTOR - MNX 50 Specification

Insulation Material
Polyamide

Operating Temperature
-5°C to +55°C

IP Rating
IP20

Power Factor
0.7 – 0.8

Feature
High Durability, Reliable Operation

Shape
Rectangular

Efficiency
Up to 98%

Connector Type
Screw Connector

Mounting Type
DIN Rail / Panel Mount

Humidity %
Up to 95% RH

Surface Finish
Smooth Finish

Overheating Protection
Available – Thermal Overload Relay

Product Type
Electrical Contactor

Application
Switching and Control of Electrical Circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
415V AC

Energy Consumption
Low Power Consumption

Output Type
AC Switching Output

Color
Grey & Blue

Dimension (L*W*H)
105 x 86 x 107 mm

Weight
1.4 kg

Phase
Three Phase

Size
Standard MNX 50 Size

Input Voltage
230V / 240V AC Coil

Material
High-Grade Plastic & Copper

Connection Type
Screw Terminals

No Of Poles
3 Poles

Coil Voltage Options
110V/230V/415V AC

Shock Resistance
30g (IEC 60068-2-27)

Terminal Capacity
10 mm²

Contact Material
Silver Alloy

Electrical Life
Over 1 Million Operations

Mechanical Life
Over 2 Million Operations

Rated Current
50 Amps

Standards Compliance
IEC 60947-4-1

Storage Temperature
-30°C to +70°C

Vibration Resistance
10g (IEC 60068-2-6)

Auxiliary Contacts
1NO+1NC (Standard)

LT CONTACTOR - MNX 50 Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About LT CONTACTOR - MNX 50

Discover the LT CONTACTOR - MNX 50, now available at a Price Cut during our Clearance event! This lustrous, valorous contactor boasts favorable reviews for its high durability and reliable operation. Engineered for a rated current of 50 Amps and coil voltage options of 110V/230V/415V AC, it features a gorgeous grey and blue finish, silver alloy contacts, and robust polyamide insulation. With over two million mechanical operations and compliance with IEC 60947-4-1 standards, the MNX 50 is engineered for unmatched performance and energy efficiency. Ideal for demanding industrial applications, this contactor assures safe, efficient switching and protection, even under extreme conditions.

Versatile Application Areas and Specific Usage

The LT CONTACTOR - MNX 50 is perfectly suited for electrical switching and control in industries, power plants, and manufacturing units. Its rugged construction and high-rated current make it reliable for heavy machinery, HVAC systems, conveyor controls, and lighting circuits. The MNX 50's auxiliary contacts enhance usage flexibility for automation panels, process industries, and distribution boards, ensuring safe and efficient operations in diverse environments, including commercial and industrial establishments.

Certifications, Export Markets, and Payment Terms

Certified under IEC 60947-4-1, the MNX 50 contactor is widely valued in domestic and international markets, especially in Asia and Africa. We offer quick dispatch and secure transportation to ensure timely deliveries. Valuation is prompt and transparent, accommodating a range of payment terms, including T/T, advance payments, and L/C arrangements. Our streamlined process guarantees smooth export experiences for distributors, exporters, and suppliers globally.

FAQ's of LT CONTACTOR - MNX 50:

Q: How does the LT CONTACTOR - MNX 50 ensure reliable operation in industrial settings?

A: The MNX 50 is built with silver alloy contacts, high-grade plastic and copper, and offers over 2 million mechanical operations. Its robust construction and compliance with IEC standards assure consistent, reliable performance in demanding environments.

Q: What specific applications can the MNX 50 contactor be used for?

A: The MNX 50 is ideal for switching and controlling electrical circuits in industrial automation, manufacturing units, HVAC systems, machinery control panels, lighting systems, and more, making it highly versatile for various applications.

Q: Where can I install the LT CONTACTOR - MNX 50?

A: This contactor can be mounted on a DIN rail or panel, fitting seamlessly into standard industrial and commercial electrical enclosures, distribution boards, and automation panels requiring reliable three-phase switching.

Q: What certifications does the MNX 50 comply with?

A: The MNX 50 is certified in accordance with IEC 60947-4-1, ensuring it meets stringent safety and operational requirements for international export and industrial use.

Q: How is the process for ordering and export handled?

A: Ordering is straightforward with options for various payment terms. We ensure quick dispatch, secure packaging, and reliable transportation for both domestic and international shipments.

Q: What are the benefits of using the MNX 50 contactor?

A: Benefits include high mechanical and electrical life, low power consumption, efficient performance, safety features such as thermal overload protection, and favorable reviews for durability and reliability.
