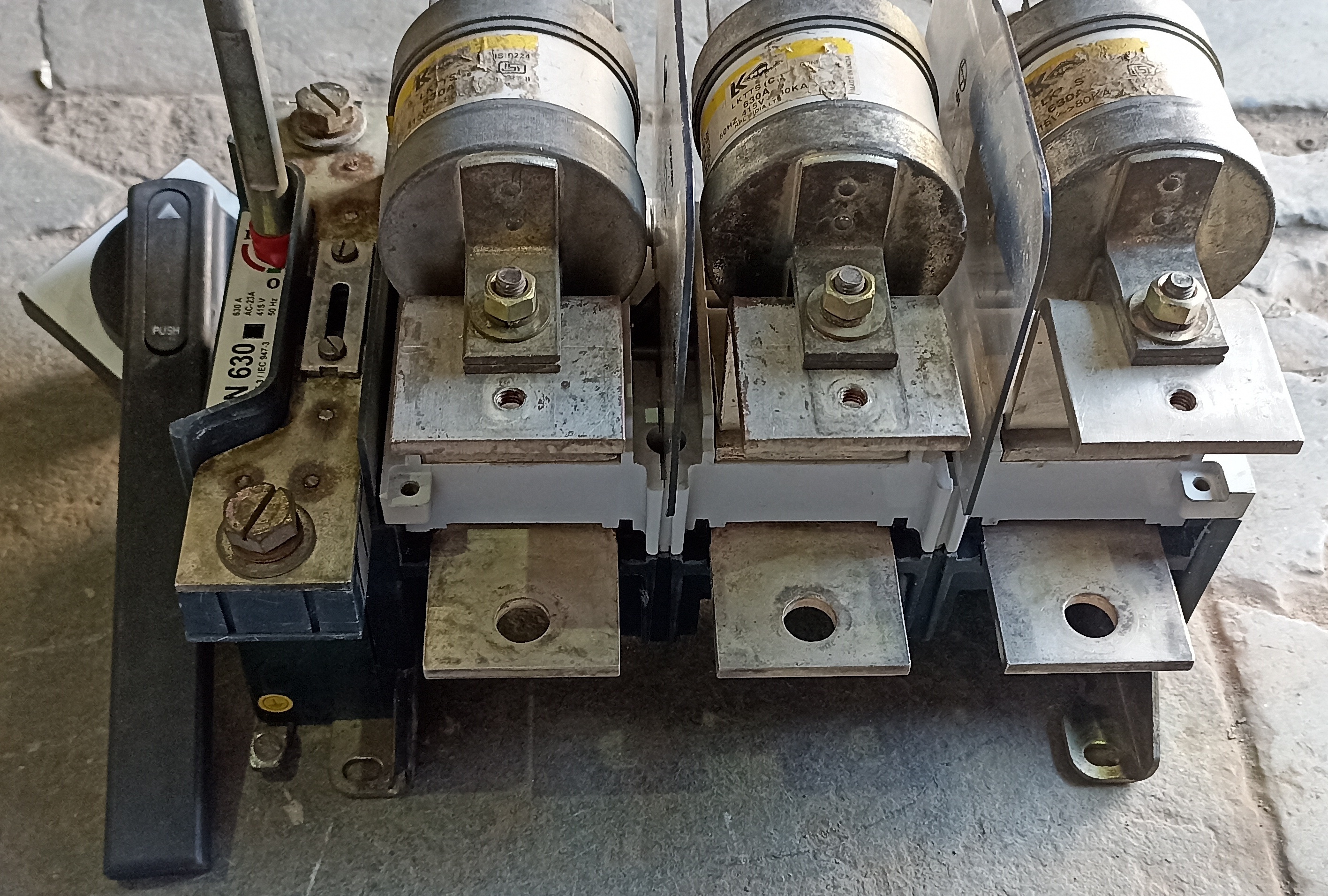

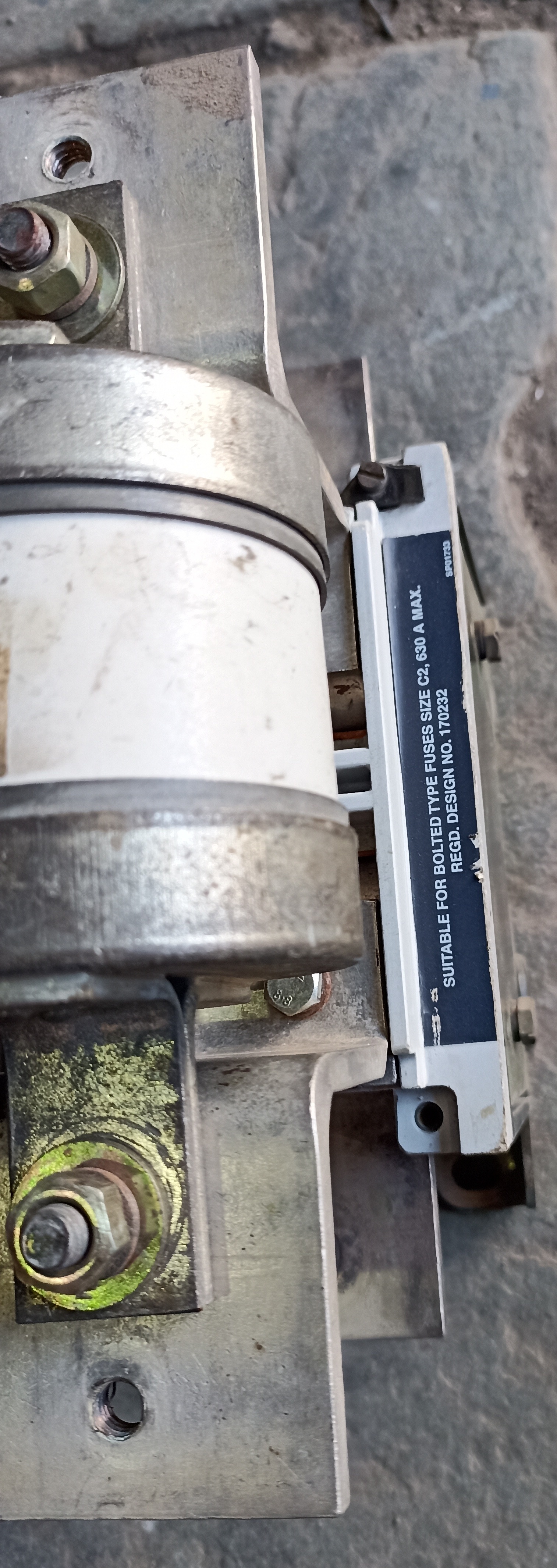

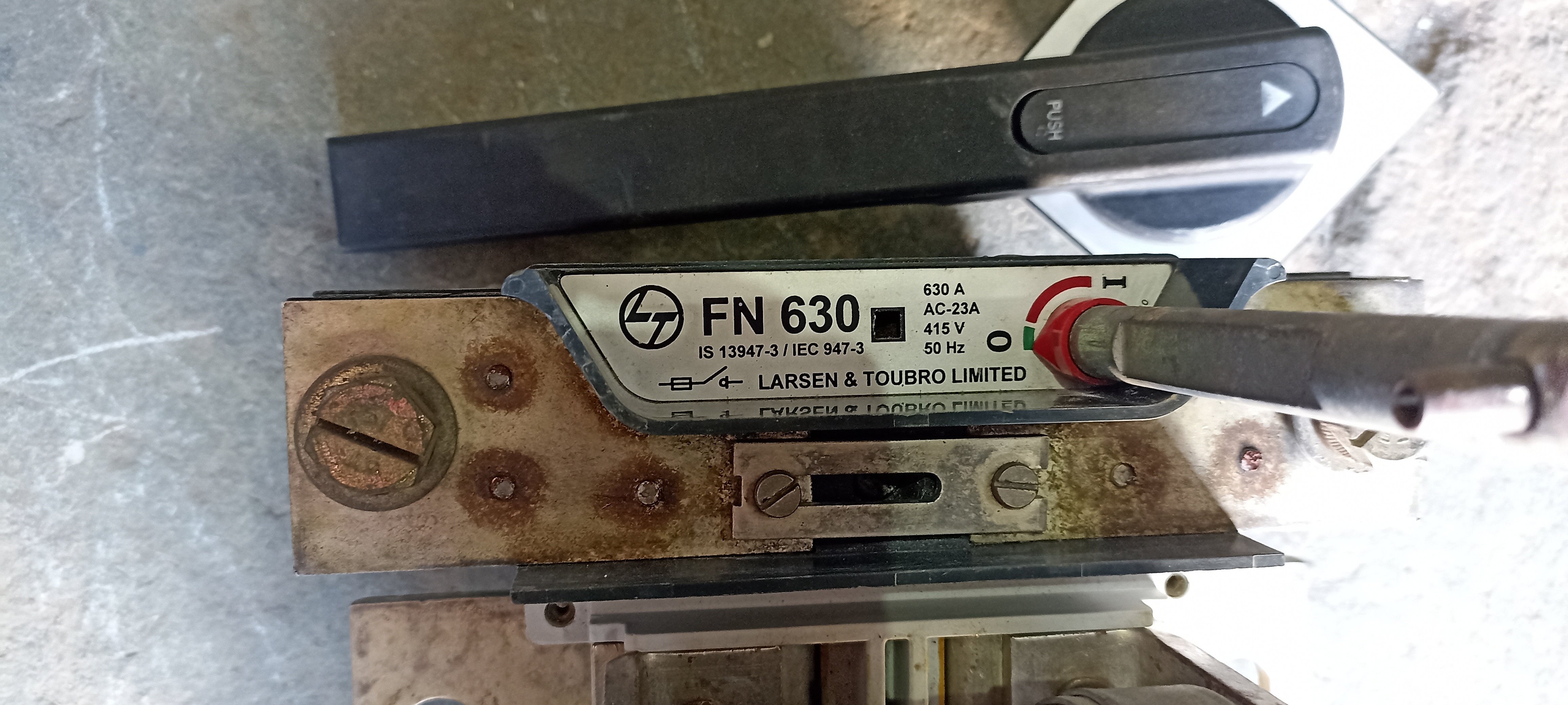

LT 630A FUSE SWITCH FN

Get a Price/Quote

LT 630A FUSE SWITCH FN Specification

Mounting Type
Panel Mounting

Overheating Protection
YES

Connector Type
Copper Terminal

Feature
Heavy Duty, Shock Proof, Long Life

Surface Finish
Paint Coated

Efficiency
>95%

Shape
Rectangular

Humidity %
Up to 90% RH

Insulation Material
Bakelite / DMC

Power Factor
High

IP Rating
IP 42

Operating Temperature
-5C to +55C

Product Type
Fuse Switch

Application
LT Electrical Distribution

Protection Level
High

Frequency (MHz)
50 Hz

Rated Voltage
500 V AC

Energy Consumption
Low

Output Type
Manual Switch Output

Color
Grey

Dimension (L*W*H)
440 mm x 250 mm x 160 mm

Weight
Approx. 7 Kg

Input Voltage
415 V AC

Size
630 Amp

Phase
Three Phase

Connection Type
Bolted/Terminal type

Material
Sheet Metal Body with Copper Contacts

No Of Poles
Three Pole

Handle Type
Front Operated Rotary Type

Minimum Order Quantity
1 Piece

Fusing Material
HRC Link Type Fuse

Contact System
Double Break Contacts

Interlocking Facility
Provided for Safety

Current Rating
630 Amps

Breaking Capacity
80 kA

LT 630A FUSE SWITCH FN Trade Information

Minimum Order Quantity
2 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Domestic Market
All India

About LT 630A FUSE SWITCH FN

L&T 630A (Fuse Switch FN Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- FN

Make :- L&T

Ampere :- 630A

Voltage :- 415V

Frequency :- 50 Hz

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

High Protection for LT Distribution

Designed for LT electrical distribution networks, the LT 630A Fuse Switch FN offers a high level of electrical protection, handling up to 630 Amps and withstanding breaking capacities up to 80 kA. Its heavy-duty build and shock-proof features make it highly reliable for industrial and commercial facilities, ensuring safe and stable operation.

Safety-Optimized Design Features

This fuse switch incorporates a front-operated rotary handle, interlocking facility, and double break contacts for enhanced safety. Overheating protection and a sheet metal enclosure with copper contacts guard against electrical faults, while its paint-coated finish and IP 42 rating make it suitable for high-humidity environments.

Ease of Installation and Usage

The panel-mountable LT 630A Fuse Switch FN is designed for ease of integration into new or existing systems. Bolted or terminal connection types allow flexibility, and the rotary handle provides manual control. With dimensions suited for most switch panels, efficient implementation is ensured.

FAQ's of LT 630A FUSE SWITCH FN:

Q: How does the LT 630A Fuse Switch FN enhance safety in electrical distribution?

A: The LT 630A Fuse Switch FN is equipped with an interlocking facility, double break contacts, and overheating protection to minimize risks during operation. Its robust sheet metal body and insulated Bakelite/DMC materials provide additional safety, as does its IP 42 rating and shock-proof construction.

Q: What applications is the LT 630A Fuse Switch FN suitable for?

A: This fuse switch is ideal for LT electrical distribution in industrial, commercial, or utility installations requiring high current and protection levels. It is commonly used in three-phase switch panels and distribution boards handling up to 630 Amps.

Q: Where can the LT 630A Fuse Switch FN be installed?

A: The switch is designed for panel mounting, fitting seamlessly into standard electrical panels. Its compact dimensions (440 mm x 250 mm x 160 mm) and flexible connection types allow installation in diverse industrial settings, including substations and distribution centers.

Q: What is the process for operating the LT 630A Fuse Switch FN?

A: Operation is manual via the front-operated rotary handle, which controls the input and output through the double break contacts. Safety features like the interlocking facility prevent accidental operation, and the fuse link type ensures quick isolation during faults.

Q: How does the product maintain efficiency and low energy consumption?

A: Thanks to its copper contacts and precision engineering, the LT 630A Fuse Switch FN maintains an efficiency above 95%. It is designed to minimize energy loss and operates efficiently even in high-humidity environments, contributing to low energy consumption overall.

Q: What are the benefits of choosing a heavy-duty, shock-proof fuse switch?

A: Opting for a heavy-duty, shock-proof switch like the LT 630A ensures long operational life, reliable protection against electrical hazards, and consistent performance under demanding conditions. Its sturdy build and advanced protective features safeguard both equipment and personnel.
