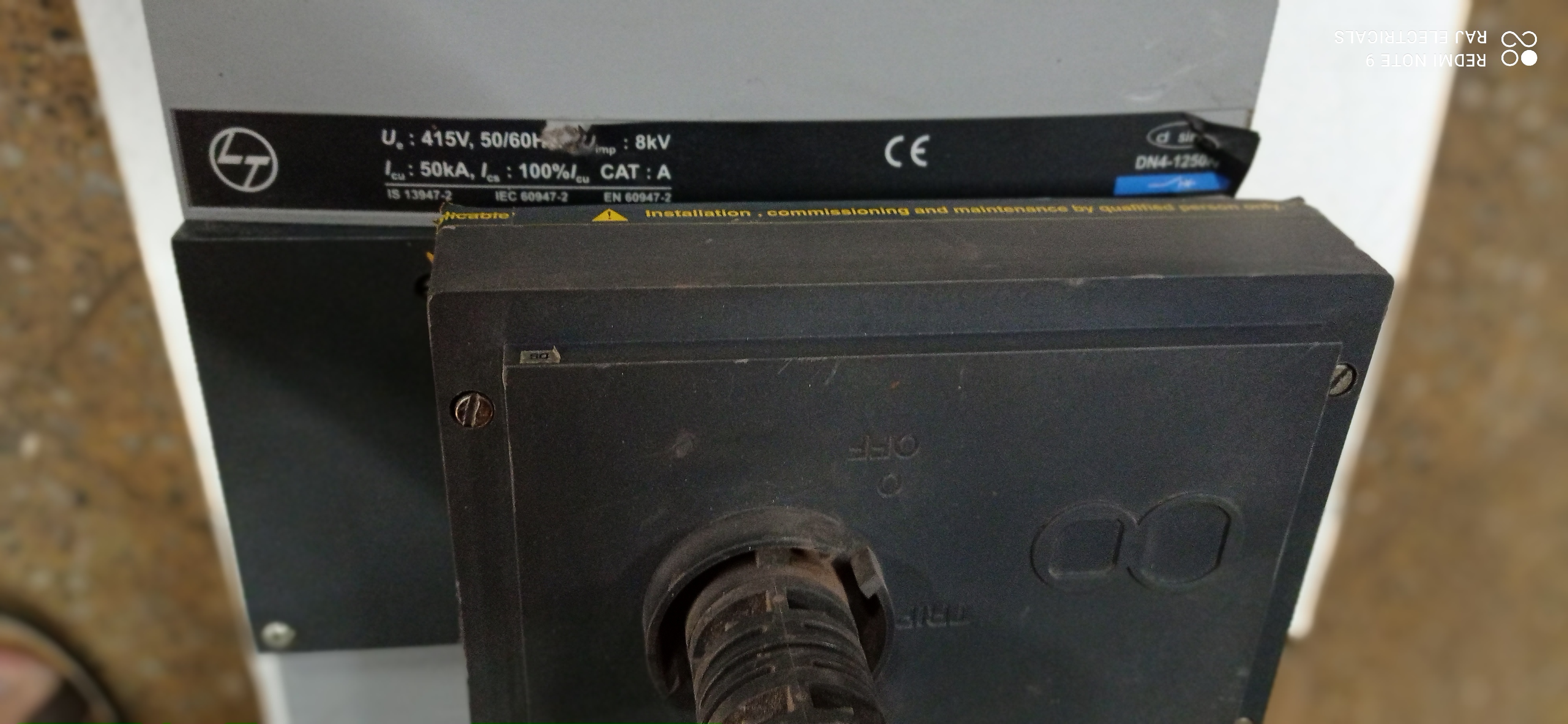

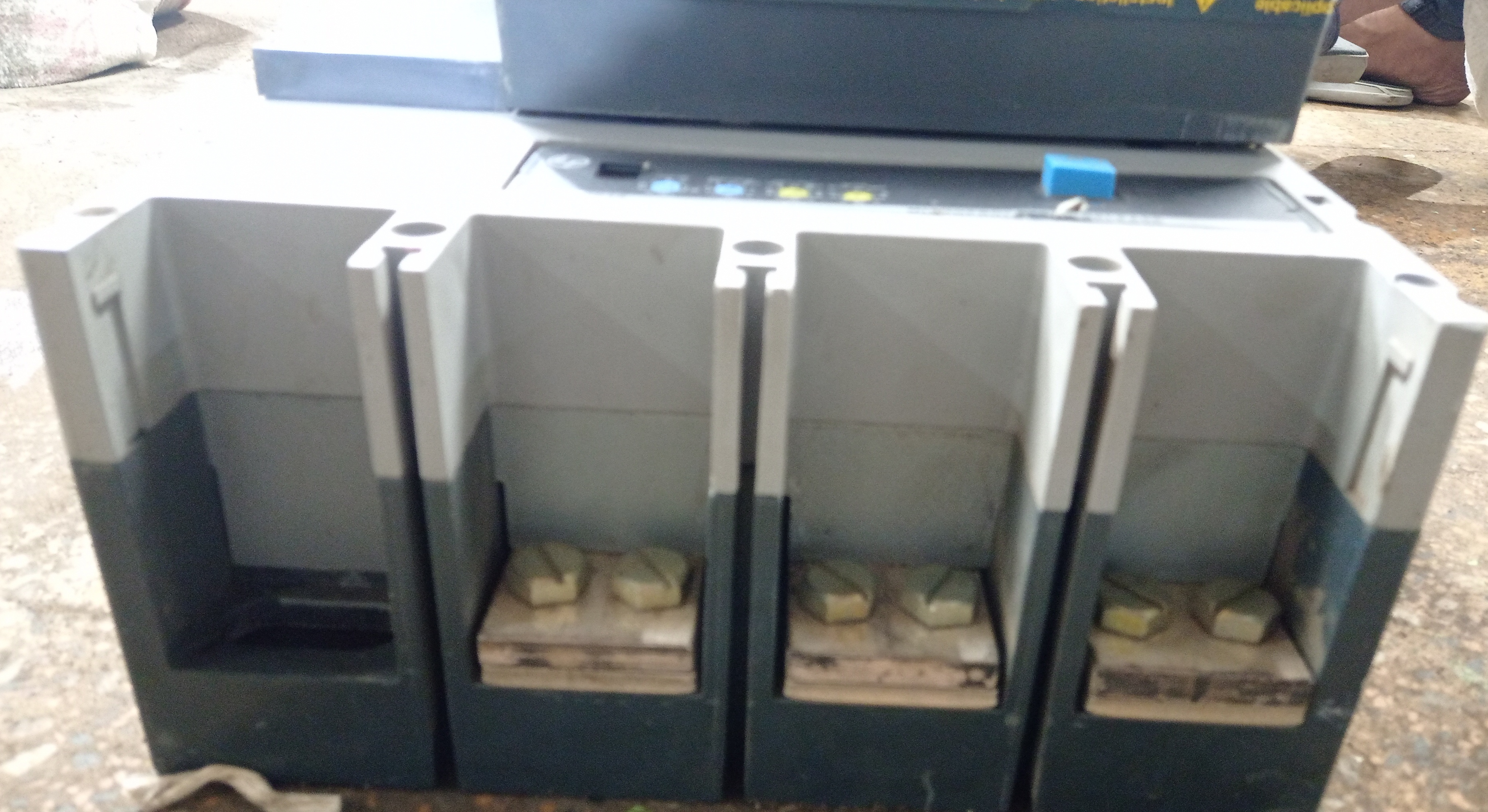

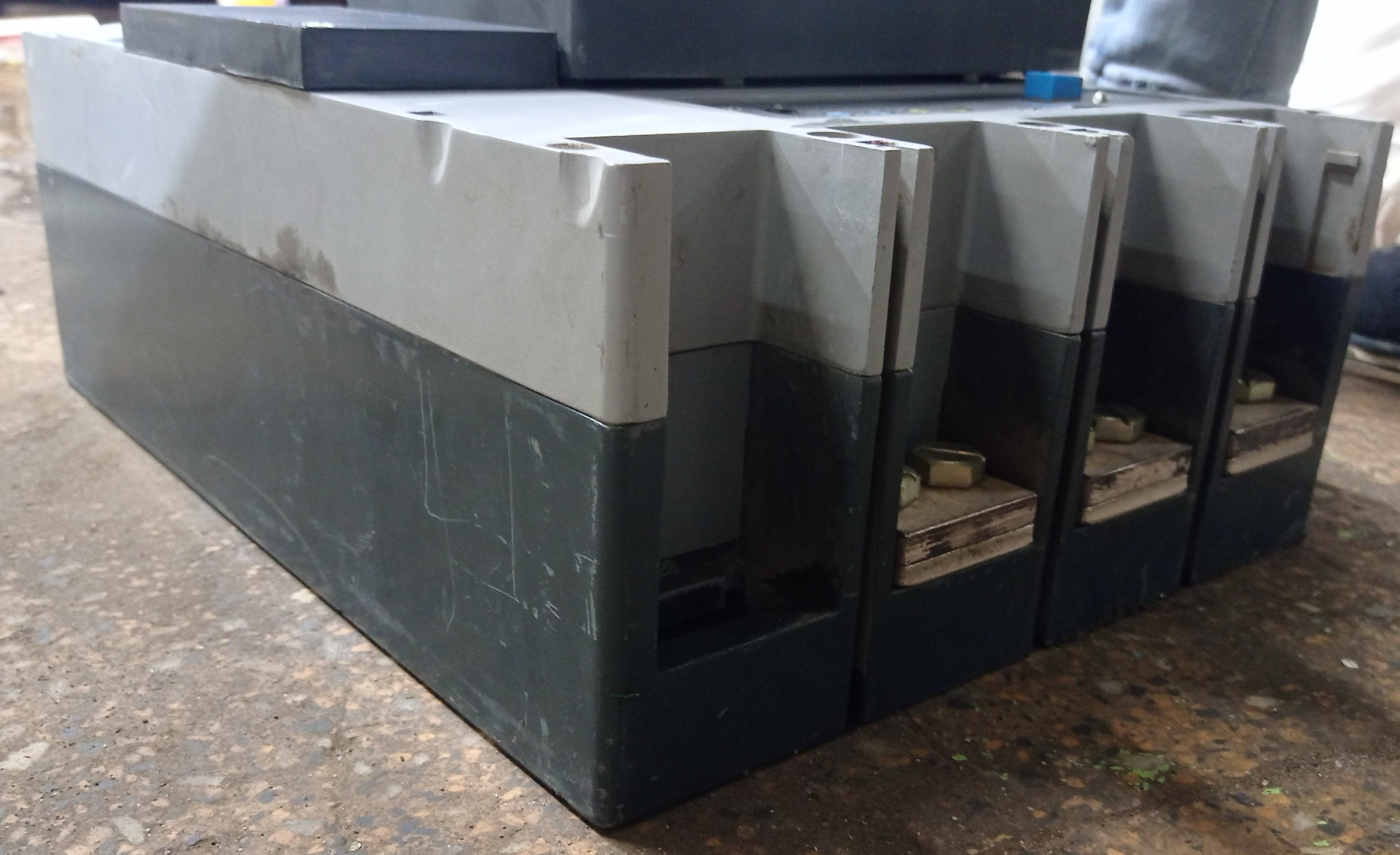

LT 1000A 3P MCCB

Get a Price/Quote

MOQ : 1 Number

LT 1000A 3P MCCB Specification

Rated Short Circuit Breaking Current
50 kA at 415V AC

Breaking Capacity
50 kA

Mechanical Life
10,000 Operations

Phase
Three Phase

Rated Short Circuit Making Current
105 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Overcurrent, Short Circuit, and Earth Fault Protection

Poles Number
3 Pole (3P)

Rated Voltage
415V AC

Rated Current
1000A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Yes

Weight
Approx. 15 kg

Color
Black & Grey

Rated Impulse Withstand Voltage (Uimp)
8 kV

Trip Type
Thermal Magnetic

Protection Class
IP20

Insulation Voltage (Ui)
1000V

Terminal Type
Rear and Front Connection

Dimensions (W x H x D)
Approx. 320 x 210 x 103 mm

Service Life (Electrical)
5,000 Cycles

Adjustable Trip Setting
Yes

Handle Type
Rotary / Direct

Ambient Temperature Range
-5°C to +55°C

Operating Altitude
Up to 2000 m above sea level

Utilization Category
AC-23A

LT 1000A 3P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About LT 1000A 3P MCCB

Raj Electricals Offering 1000A 3P Mccb At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Brand :- L&T

Model Number :- d sine - DN4-1250N

Ampere :- 1000

Number Of Poles :- 3

Breaking Capacity :- 50 kA

Current Voltage :- 415V

Frequency :- 50 Hz

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

High Safety and Durability

The LT 1000A 3P MCCB is engineered to provide superior safety with its IP20 protection class, offering effective defense against finger contact and foreign objects. Boasting a mechanical life of 10,000 operations and electrical service life of 5,000 cycles, this breaker is built for longevity and dependable operation in demanding environments.

Flexible Installation and Operation

With options for rear and front terminal connections as well as panel mounting, this MCCB adapts easily to various installation setups. Its rotary or direct handle type allows for straightforward operation, while adjustable trip settings cater to specific protection needs across different applications.

Reliable Protection and Performance

Designed for three-phase applications, the LT 1000A 3P MCCB provides comprehensive overcurrent, short-circuit, and earth fault protection. The Type C trip curve is ideal for most industrial loads. It operates efficiently across a wide ambient temperature range and at altitudes up to 2000 meters above sea level, ensuring performance in diverse settings.

FAQ's of LT 1000A 3P MCCB:

Q: How does the LT 1000A 3P MCCB provide protection against electrical faults?

A: The LT 1000A 3P MCCB utilizes a thermal magnetic trip unit to detect and interrupt overcurrent, short circuit, and earth fault conditions quickly, minimizing potential damage to equipment and enhancing electrical safety.

Q: What are the installation options for this MCCB?

A: This MCCB supports flexible installation through both rear and front terminal connections and is designed for panel mounting, making it suitable for various power distribution boards in industrial and commercial environments.

Q: When should the adjustable trip setting be used?

A: The adjustable trip setting should be used when you need to tailor the protection parameters according to specific equipment requirements or load types. This allows for better coordination with the downstream circuit and enhanced protection.

Q: Where can this MCCB be deployed in terms of environmental conditions?

A: The LT 1000A 3P MCCB operates efficiently within a temperature range of -5C to +55C and at altitudes up to 2000 meters above sea level, making it suitable for most industrial and commercial installation sites within these conditions.

Q: What are the benefits of the MCCB's service life and breaking capacity?

A: With a mechanical life of 10,000 operations and a rated breaking capacity of 50 kA at 415V AC, this MCCB ensures long-term reliability and effective interruption of high fault currents, which reduces downtime and enhances safety.

Q: How does the protection class IP20 enhance safety?

A: The IP20 rating provides effective protection against accidental contact with live parts and ingress of solid foreign objects, adding to user safety and reliability of the installation.

Q: What process should be followed for safe usage of the MCCB?

A: For safe usage, the MCCB should be installed by a qualified electrician following appropriate electrical standards, ensuring proper connection and trip settings are configured as per the application requirements before commencing operation.
