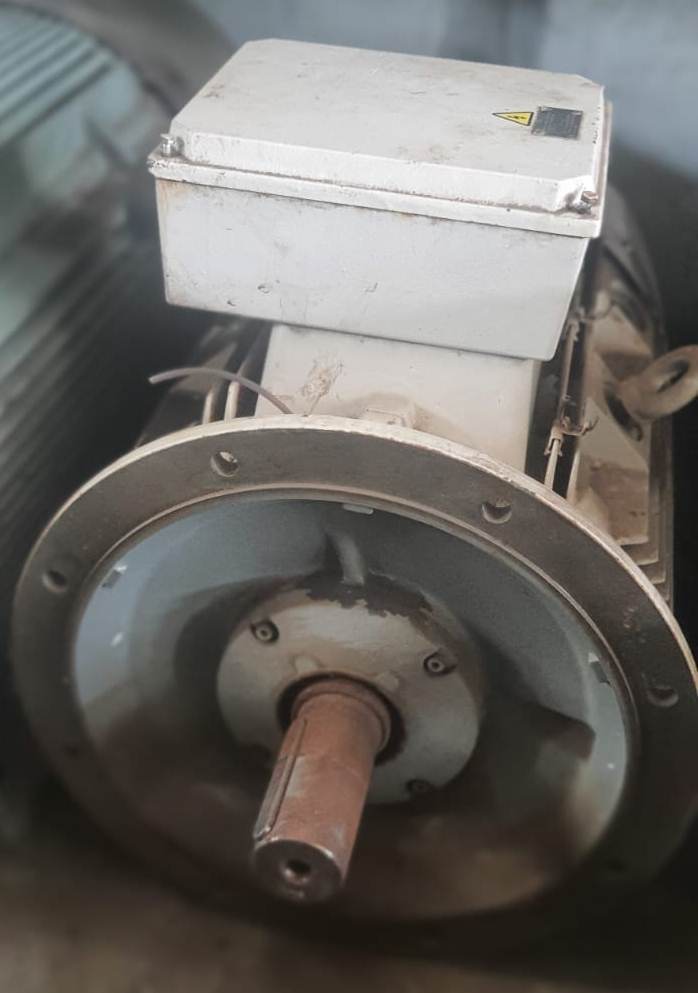

INDUCTION MOTOR 100 HP / 2900 RPM

Get a Price/Quote

MOQ : 3 Pieces

INDUCTION MOTOR 100 HP / 2900 RPM Specification

Feature
Low Noise, Vibration Free Operation

Operating Temperature
-15C to +50C

Shape
Cylindrical

Mounting Type
Foot Mounted (B3)

Connector Type
Terminal Box

Humidity %
Up to 95% RH

Power Factor
0.89

Surface Finish
Paint Coated

Efficiency
IE2 (Above 92%)

IP Rating
IP55

Overheating Protection
Thermal Protection

Insulation Material
Class F Insulation

Product Type
Induction Motor

Application
Industrial/Heavy Duty Machine Drive

Protection Level
Totally Enclosed, Fan Cooled (TEFC)

Frequency (MHz)
50 Hz

Rated Voltage
415 V

Energy Consumption
High Efficiency

Output Type
100 HP / 75 kW

Color
Blue

Dimension (L*W*H)
1180 mm x 520 mm x 710 mm

Weight
650 kg

Phase
Three Phase

Input Voltage
380-415 V

Size
Frame 315S/M

Connection Type
Star/Delta

Material
Cast Iron

No Of Poles
2

Cooling Method
External Fan Cooling

Motor Speed
2900 RPM

Starting Method
Direct-On-Line (DOL) or Star-Delta Starter

Bearings
SKF/FAG Heavy Duty Ball/Roller Bearings

Duty Type
S1 (Continuous)

Enclosure
TEFC - Totally Enclosed Fan Cooled

Ambient Temperature
40C Max

Shaft Diameter
65 mm

INDUCTION MOTOR 100 HP / 2900 RPM Trade Information

Minimum Order Quantity
3 Pieces

Main Export Market(s)
Asia, North America, Africa

Main Domestic Market
All India

About INDUCTION MOTOR 100 HP / 2900 RPM

RAJPANELS & MOTORS OFFERING NSDK JAPANINDUCTION MOTORS AT OUR STORE BHAVNAGAR GUJARAT.

BESIDES WEDEAL IN ALL TYPES OF MARINE INDUSTRIAL ELECTRICAL & INDUCTION MOTORS FROMALANG SHIP BREAKING YARD.

OUR COMPANYIS REPUTED DEALER AND DISTRIBUTOR FOR DISTINGUISHED BRANDS LIKEABB,SIEMENS,CROMPTON GREAVES,NGEF,WEG GERMANY,KIRLOSKAR,TAIYO JAPAN OR KOREAETC.

SPECIFICATION:

TYPE : ELECTRIC MOTOR

MADE BY : NSDK,JAPAN

MODEL : 100 HP / 2900 RPM

CONDITION : REFURBISHED

VOLTAGE : 440 V AC

FREQUENCY : 50 HZ

RANGE : FLANGE MOUNTED/FOOT MOUNTED

FOR MOREINFORMATION CONTACT US OR

WHATSAPP ON :

9825154052

8155838080

OR ALSO MAILON: RAJMARINEMOTORS@GMAIL.COM

ORVISIT AT OUR STORE :NEAR RAILWAYCROSSING,PANJRAPOL,KUMBHARWAD,BHAVNAGAR (GUJ.)-364001

High-Performance Industrial Drive

This motor delivers a powerful 100 HP output at 2900 RPM, ideal for demanding industrial applications. With high efficiency (IE2 rating) and continuous operation (S1 duty), it stands out in environments requiring constant, reliable motion. Its low noise and vibration-free operation contribute to stable and smooth machine performance, ensuring minimal disruption and maximum productivity for your facility.

Robust Design for Extreme Conditions

Built with a cast iron cylindrical frame, this motor resists wear and tear, while its TEFC (Totally Enclosed Fan Cooled) construction and IP55 rating provide protection against dust, water, and harsh working conditions. Heavy duty SKF/FAG bearings and external fan cooling ensure long lifespan even at ambient temperatures up to 40C and humidity up to 95% RH, making it fit for widespread industrial operations.

FAQ's of INDUCTION MOTOR 100 HP / 2900 RPM:

Q: How can the INDUCTION MOTOR 100 HP / 2900 RPM be started?

A: This induction motor supports both Direct-On-Line (DOL) and Star-Delta starter methods, allowing you to choose the most suitable starting process for your specific industrial application.

Q: What benefits does the TEFC (Totally Enclosed Fan Cooled) enclosure offer?

A: The TEFC enclosure protects the motor from dust, moisture, and external contaminants, while the external fan cooling system efficiently dissipates heat, enhancing motor reliability and longevity.

Q: Where should this motor be ideally used?

A: This motor is designed for heavy-duty industrial environments, such as manufacturing plants, processing facilities, and other settings that require continuous, high-power drive solutions.

Q: What process ensures the motor remains cool during operation?

A: An external fan cooling system is integrated, along with heavy-duty ball or roller bearings, to efficiently manage heat generation and maintain optimal performance throughout extended operations.

Q: How does the motor handle high humidity and varying temperatures?

A: With an IP55 rating, Class F insulation, and robust construction, the motor operates efficiently in environments with temperatures from -15C to +50C and humidity levels up to 95% RH.

Q: What is the benefit of low noise and vibration-free operation?

A: Operating with minimal noise and vibration enhances workplace comfort, reduces wear on connected equipment, and ensures smoother performance-key for sensitive or high-precision industrial applications.
