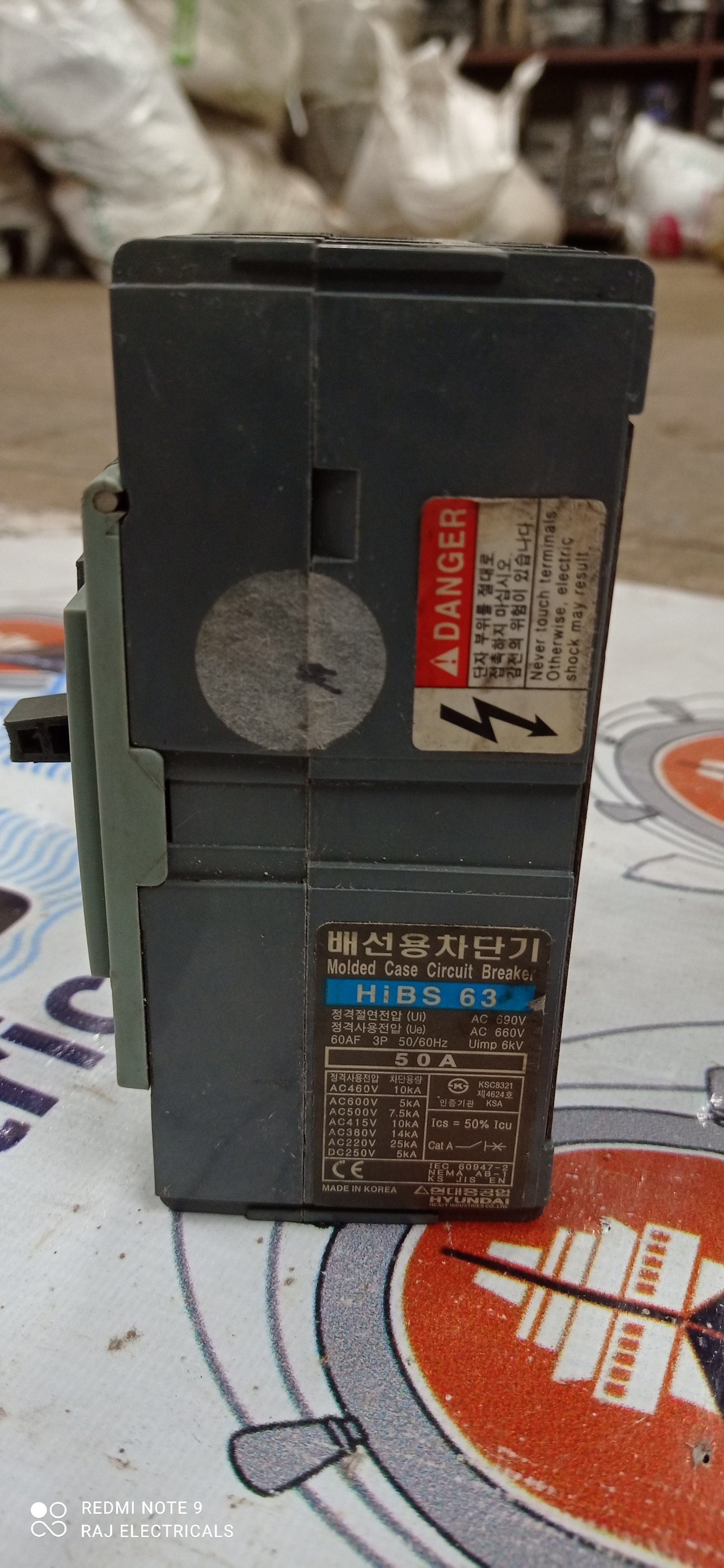

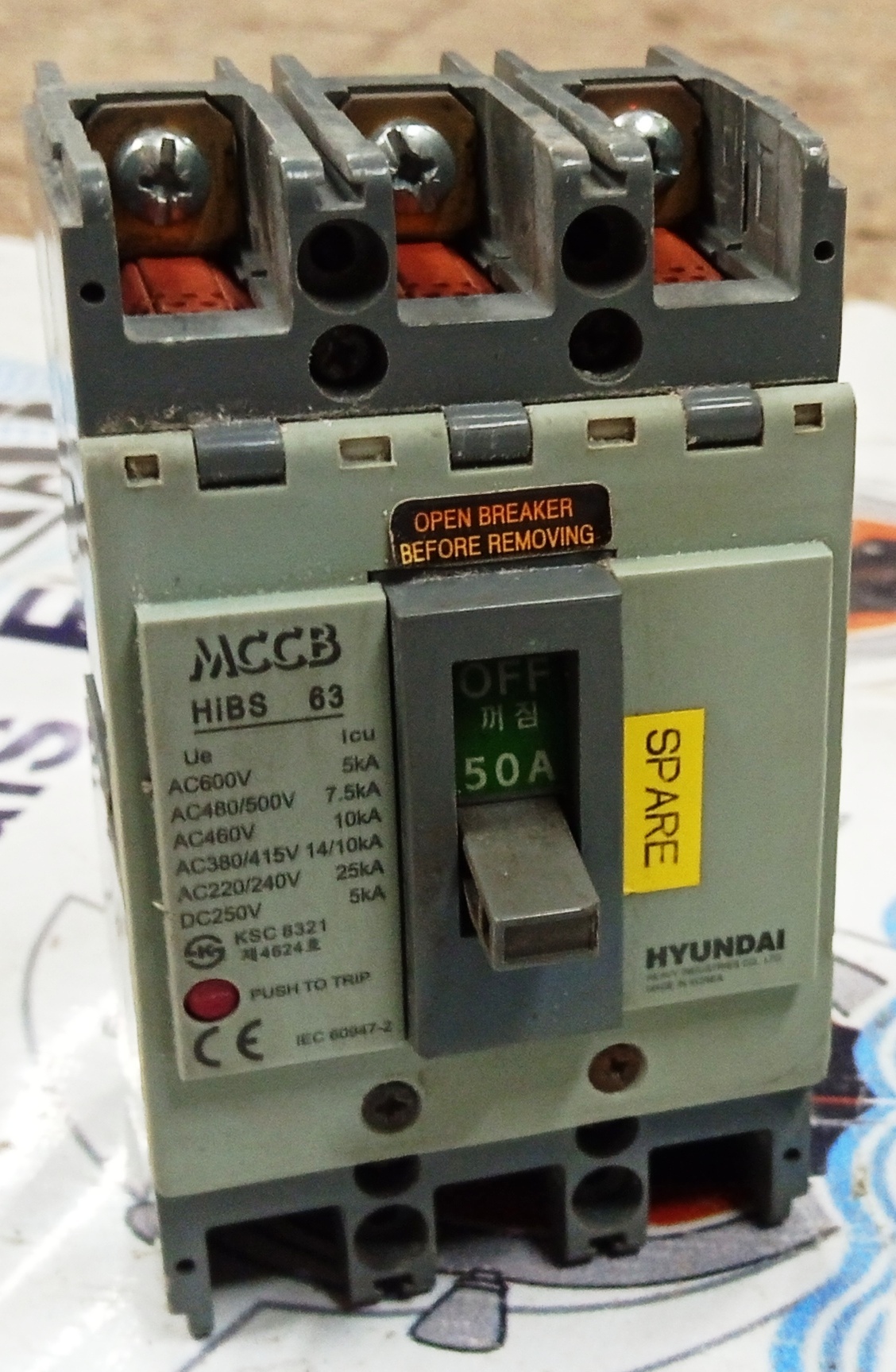

HYUNDAI 50A 3P MCCB

Get a Price/Quote

MOQ : 1 Number

HYUNDAI 50A 3P MCCB Specification

Phase
Three Phase

Rated Short Circuit Breaking Current
25 kA

Mechanical Life
10,000 operations

Breaking Capacity
25 kA at 415V AC

Rated Short Circuit Making Current
35 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mount (Flush/Surface)

Function
Overcurrent and Short Circuit Protection

Poles Number
3 Poles (3P)

Rated Voltage
AC 415/440V

Rated Current
50A

Rated Frequency
50/60 Hz

Curves
C Curve (Instantaneous Trip)

Temperature Protection
Yes, with Thermal & Magnetic Trip

Weight
Approx. 1.1 kg

Color
Black / Grey

Ambient Air Temperature
Up to 50°C (without derating)

Terminal Type
Box Type Terminal / Lug

Rated Insulation Voltage
690V AC

Operating Temperature Range
-10°C to +60°C

Enclosure Protection
IP20

Auxiliary Contacts
Optional

Trip Type
Thermal Magnetic

Standard Compliances
IEC 60947-2

Adjustment Range
Fixed

HYUNDAI 50A 3P MCCB Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About HYUNDAI 50A 3P MCCB

Hyundai 50A 3P Mccb Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Moulded Case Circuit Breaker

Brand :- Hyundai

Ampere :- 50A

Number Of Pole :- 3P

Model Number :- HiBS 63

Current Voltage :- 440V AC

Frequency :- 50 Hz.

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Uncompromised Protection and Reliability

Engineered with both thermal and magnetic trip types, the HYUNDAI 50A 3P MCCB ensures automatic response to overloads and short circuits. Compatible with a rated current of 50A and rated voltages up to 440V AC, this circuit breaker emphasizes dependable electrical safeguarding across complex systems in commercial and industrial settings.

Flexible Installation and Durable Build

Featuring both flush and surface panel mount options as well as adaptable lug or box-type terminals, the unit simplifies integration into existing panels. Its sturdy construction, compact size, and a weight of approximately 1.1 kg make it easy to handle, with a mechanical lifespan rated at 10,000 cycles to support long-term operational demands.

FAQ's of HYUNDAI 50A 3P MCCB:

Q: How does the HYUNDAI 50A 3P MCCB protect electrical systems?

A: This MCCB provides both overcurrent and short circuit protection via thermal and magnetic tripping mechanisms. When excess current, such as an overload or a short circuit, is detected, the circuit breaker interrupts the electrical flow, safeguarding connected equipment and infrastructure from potential damage.

Q: What is the process for installing the HYUNDAI 50A 3P MCCB?

A: The MCCB supports panel mounting, allowing either flush or surface installation. Connections can be made using the provided box type terminals or lugs. It is recommended that a qualified electrician conducts the installation, ensuring compliance with electrical standards and safety requirements.

Q: Where can the HYUNDAI 50A 3P MCCB be used?

A: This breaker is engineered for use in three-phase electrical distribution systems, such as those found in commercial buildings, manufacturing plants, and industrial facilities. Its IP20 enclosure ensures basic protection against solid objects, making it suitable for indoor environments.

Q: When is auxiliary contact functionality recommended for this MCCB?

A: Auxiliary contacts, available as an option, are beneficial when remote status monitoring or signaling is required. They should be added during installation when integration with control or alarm systems is needed for enhanced operational oversight.

Q: What are the usage benefits of the fixed adjustment range and C curve trip characteristic?

A: The fixed setting simplifies commissioning and maintenance, ensuring consistent circuit protection without adjustment errors, while the C curve trip feature provides a quick response to sudden surges, making it ideal for mixed load profiles common in industrial applications.

Q: How does temperature affect the MCCB's performance?

A: The HYUNDAI 50A 3P MCCB operates efficiently within an ambient temperature up to 50C without derating. If the temperature exceeds this, performance factors may need adjustment to maintain optimal protection, as outlined in the product manual.
