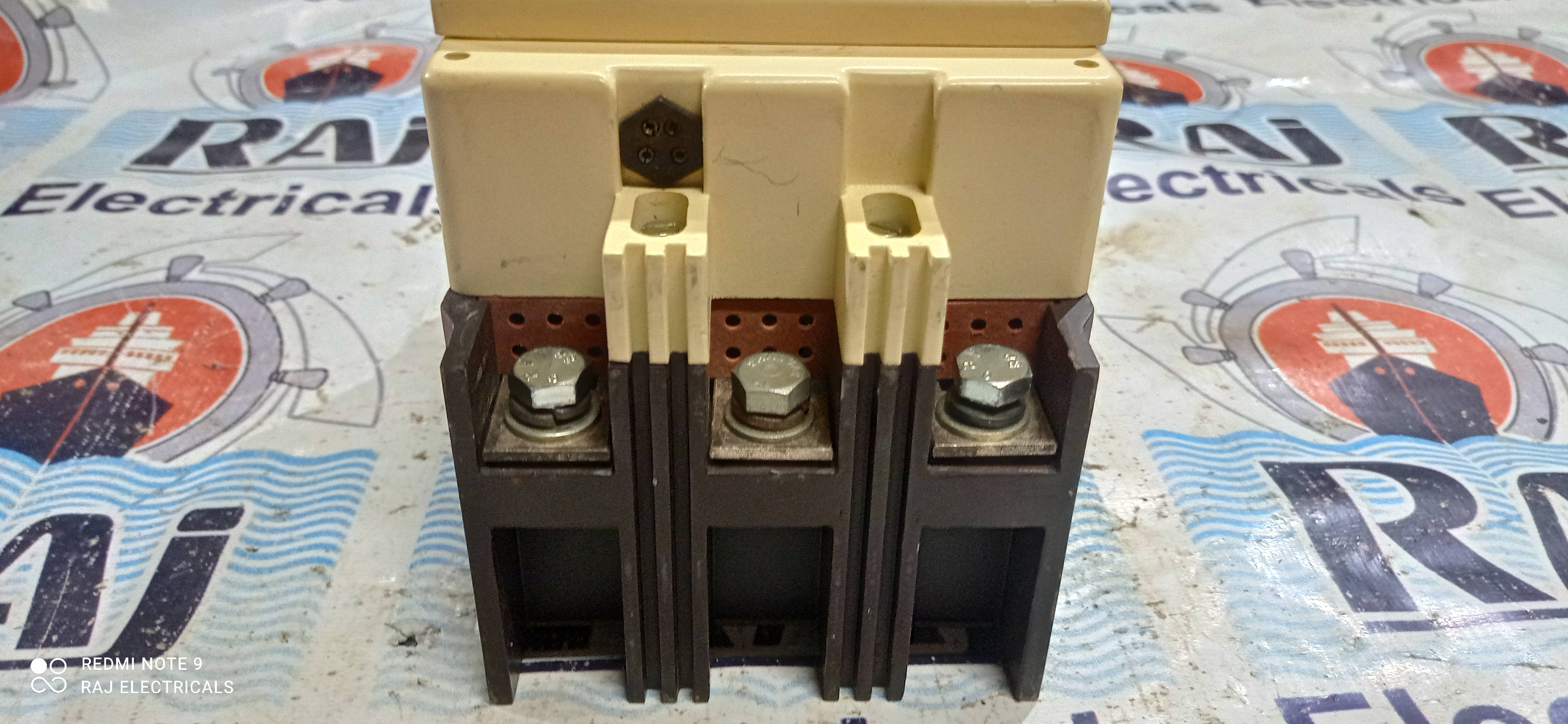

GE 125A 3P MCCB

Get a Price/Quote

GE 125A 3P MCCB Specification

Phase
Three Phase

Rated Short Circuit Making Current
Up to 36 kA

Breaking Capacity
36 kA at 415V AC

Rated Short Circuit Breaking Current
Up to 36 kA

Mechanical Life
20,000 operations

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
DIN Rail or Panel Mounted

Function
Protection of electrical circuits against overcurrent, short circuit, and earth fault

Poles Number
3

Rated Voltage
415V AC

Rated Current
125A

Rated Frequency
50/60 Hz

Curves
C, D (Depending on version)

Temperature Protection
Integrated thermal and magnetic protection

Weight
Approximately 1.8 kg

Color
Grey/Black

Standards Compliance
IEC 60947-2

Rated Insulation Voltage (Ui)
690V AC

Operating Temperature Range
-25°C to +70°C

Accessory Options
Auxiliary Contact, Shunt Trip, Under Voltage Release

Degree of Protection
IP20

Trip Unit Type
Thermal Magnetic

Terminal Type
Screw Clamp

Frame Size
125A

Mounting
Fixed

Electrical Life
10,000 operations

GE 125A 3P MCCB Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About GE 125A 3P MCCB

Raj Electricals Offering GE 125A 3P Mccb At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

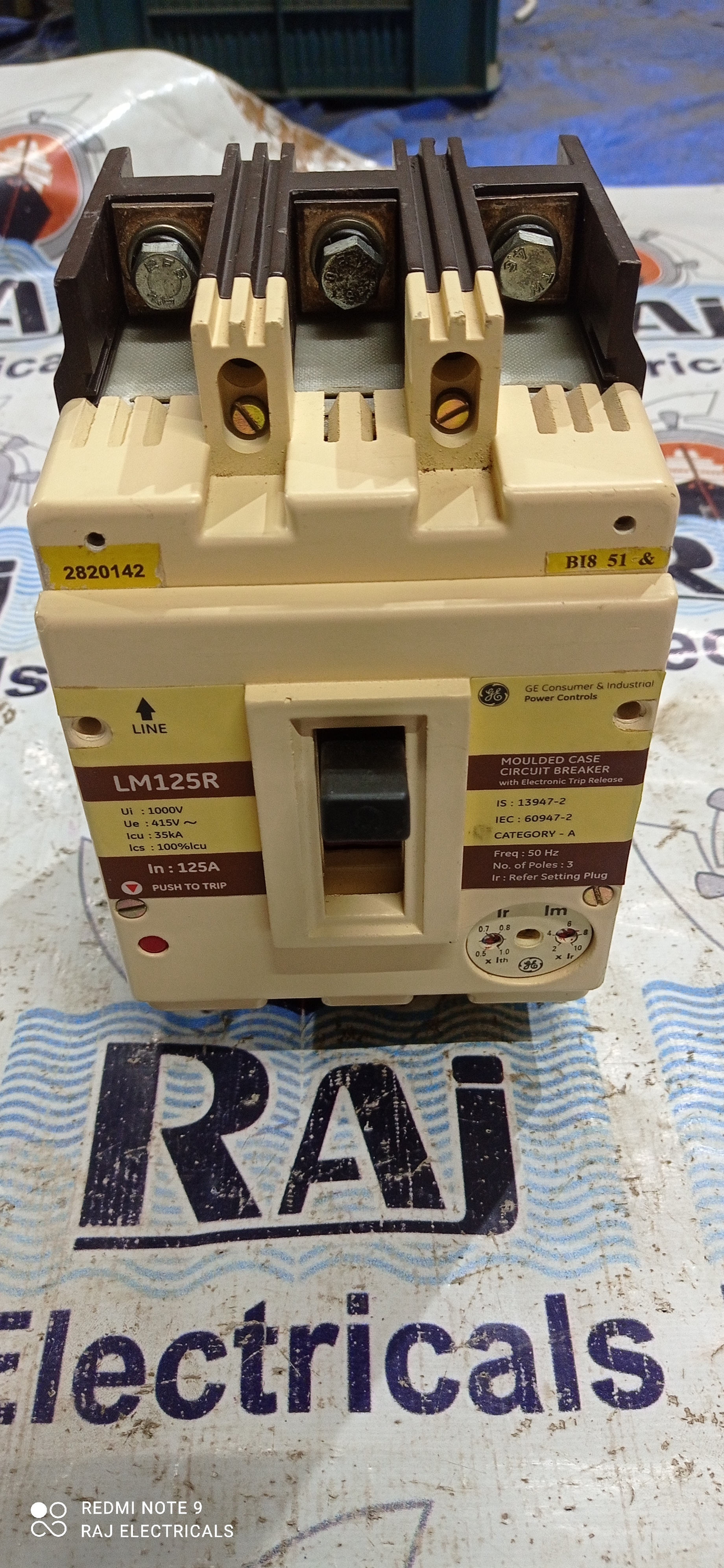

Product Specification :-

Type :- Moulded Case Circuit Breaker (MCCB)

Make :- GE

Ampere :- 125A

Number Of Pole :- 3P

Model Number :- LM125R

Network Type :- AC

Ui :- 1000V

Ue :- 415V

Icu :- 35 kA

Frequency :- 50 Hz

We Supply Industrial Product In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Superior Electrical Protection

Designed for three-phase systems, the GE 125A 3P MCCB provides meticulous overcurrent and short-circuit protection. Its integrated thermal and magnetic trip unit reacts quickly to faults, safeguarding critical infrastructure and enhancing safety in electrical installations.

Flexible Installation Options

The MCCB supports both DIN rail and panel mounting methods, offering adaptability for new setups or retrofit projects. Its compact frame and screw clamp terminals simplify wiring and installation, streamlining integration within electrical panels.

Standards and Reliability

Meeting IEC 60947-2 standards, the GE MCCB delivers consistent performance in demanding conditions. With an electrical life of up to 10,000 operations and mechanical life of 20,000 operations, users benefit from a robust and reliable circuit protection solution.

FAQ's of GE 125A 3P MCCB:

Q: How do you install the GE 125A 3P MCCB in your electrical system?

A: Installation can be carried out by mounting the device on a DIN rail or directly onto a panel, using the integrated screw clamp terminals for secure cable connections. Always follow proper safety protocols and local regulations during installation.

Q: What are the key applications of this MCCB?

A: This MCCB is primarily used to protect commercial and industrial electrical circuits against overcurrent, short-circuit, and earth fault conditions in three-phase systems operating up to 415V AC.

Q: When should you choose the auxiliary contact, shunt trip, or under voltage release accessories?

A: Select these accessories when additional control or monitoring functions are required. Auxiliary contacts provide status feedback; shunt trips allow remote tripping; under voltage release ensures disconnection if voltage drops below specific thresholds.

Q: Where can the GE 125A 3P MCCB be used effectively?

A: It is suitable for use in electrical distribution boards, motor control centers, and power panels in industrial, commercial, and institutional settings within the United States and other regions adopting IEC standards.

Q: What process does the MCCB use to protect against temperature-related faults?

A: The integrated thermal magnetic trip unit senses both overcurrent and abnormal temperature rise, activating the circuit breaker to isolate the fault and prevent damage to equipment or wiring.

Q: What benefits does IEC 60947-2 compliance provide?

A: IEC 60947-2 compliance ensures the MCCB meets international safety, reliability, and performance standards, providing users confidence in its protection capabilities and suitability for a wide range of electrical installations.

Q: How does the high breaking capacity of 36 kA improve safety?

A: A breaking capacity of 36 kA at 415V AC allows the MCCB to safely interrupt high fault currents, minimizing risks of equipment damage and enhancing personnel safety in event of severe electrical faults.
