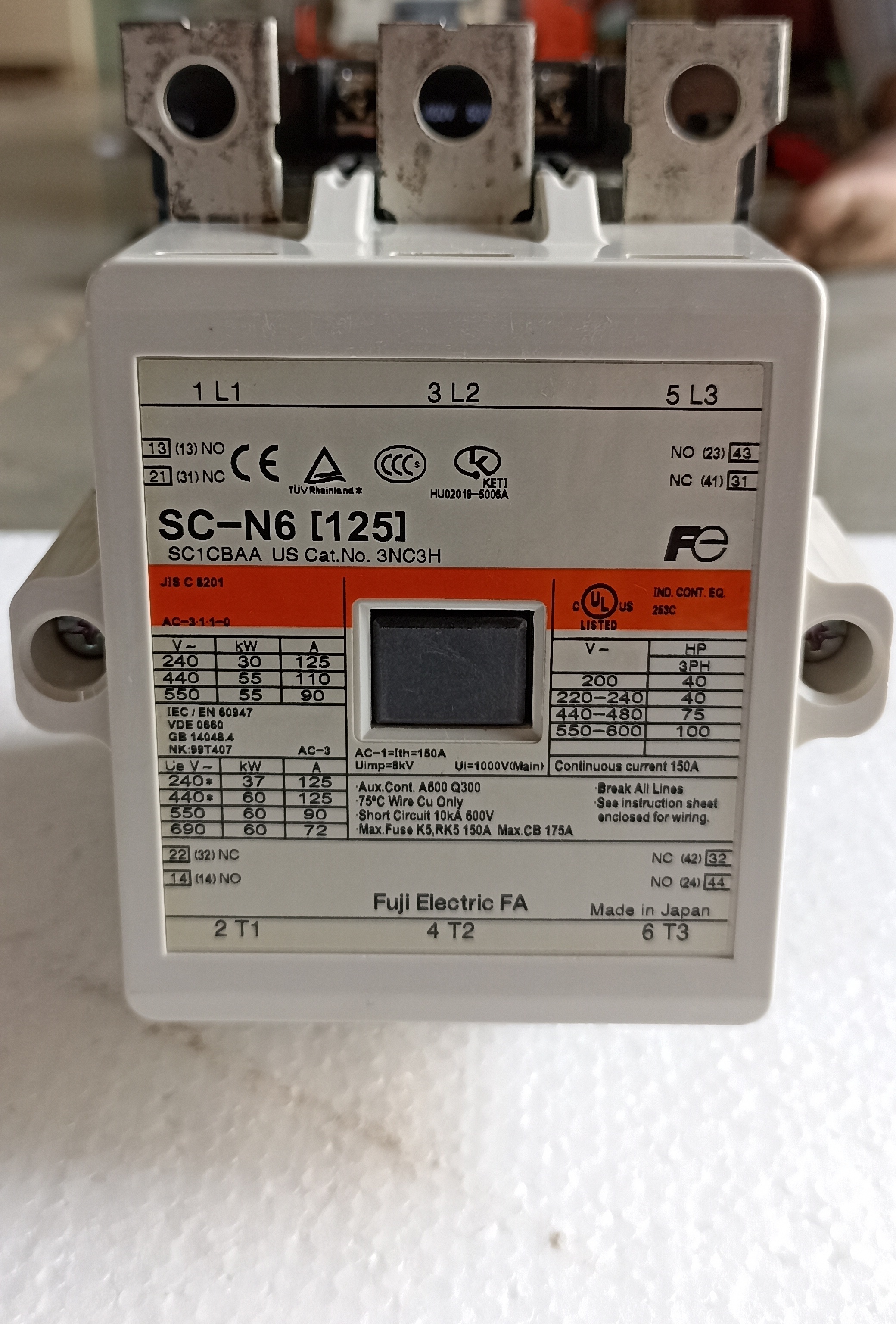

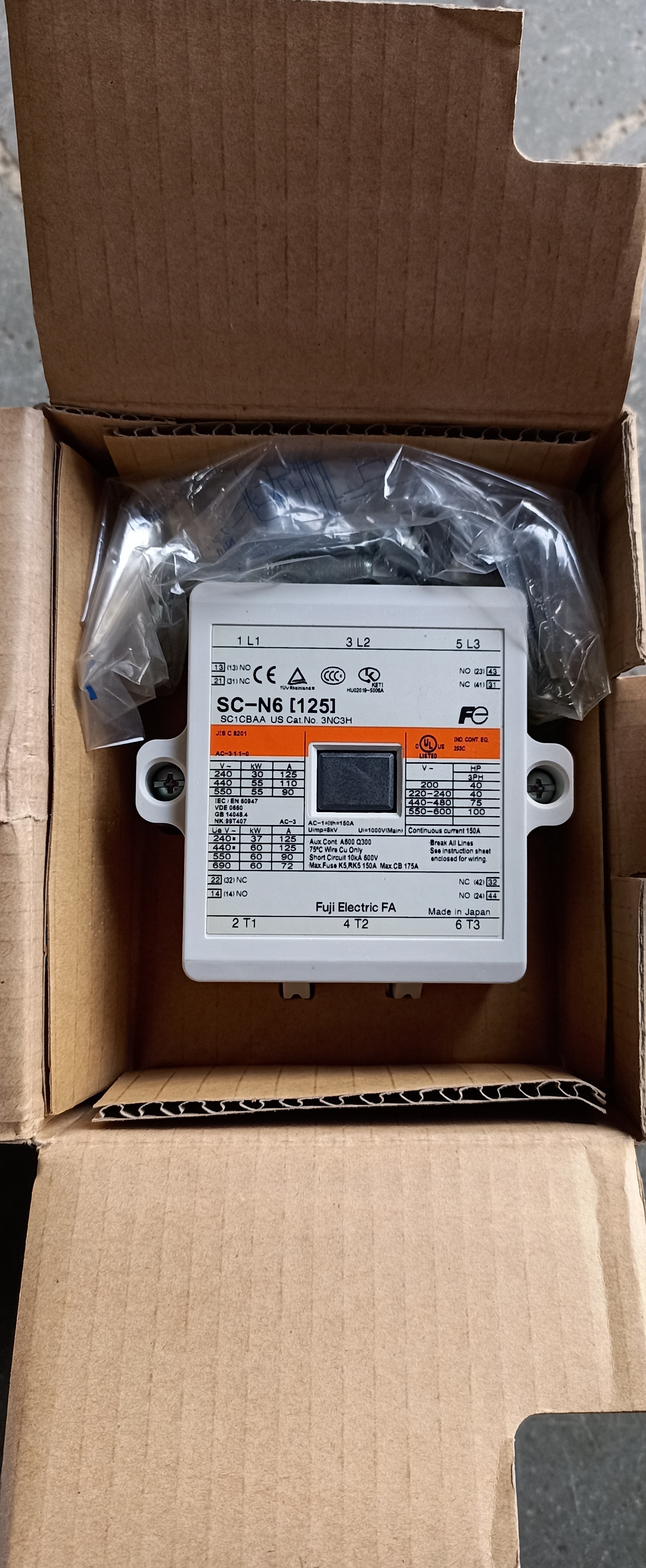

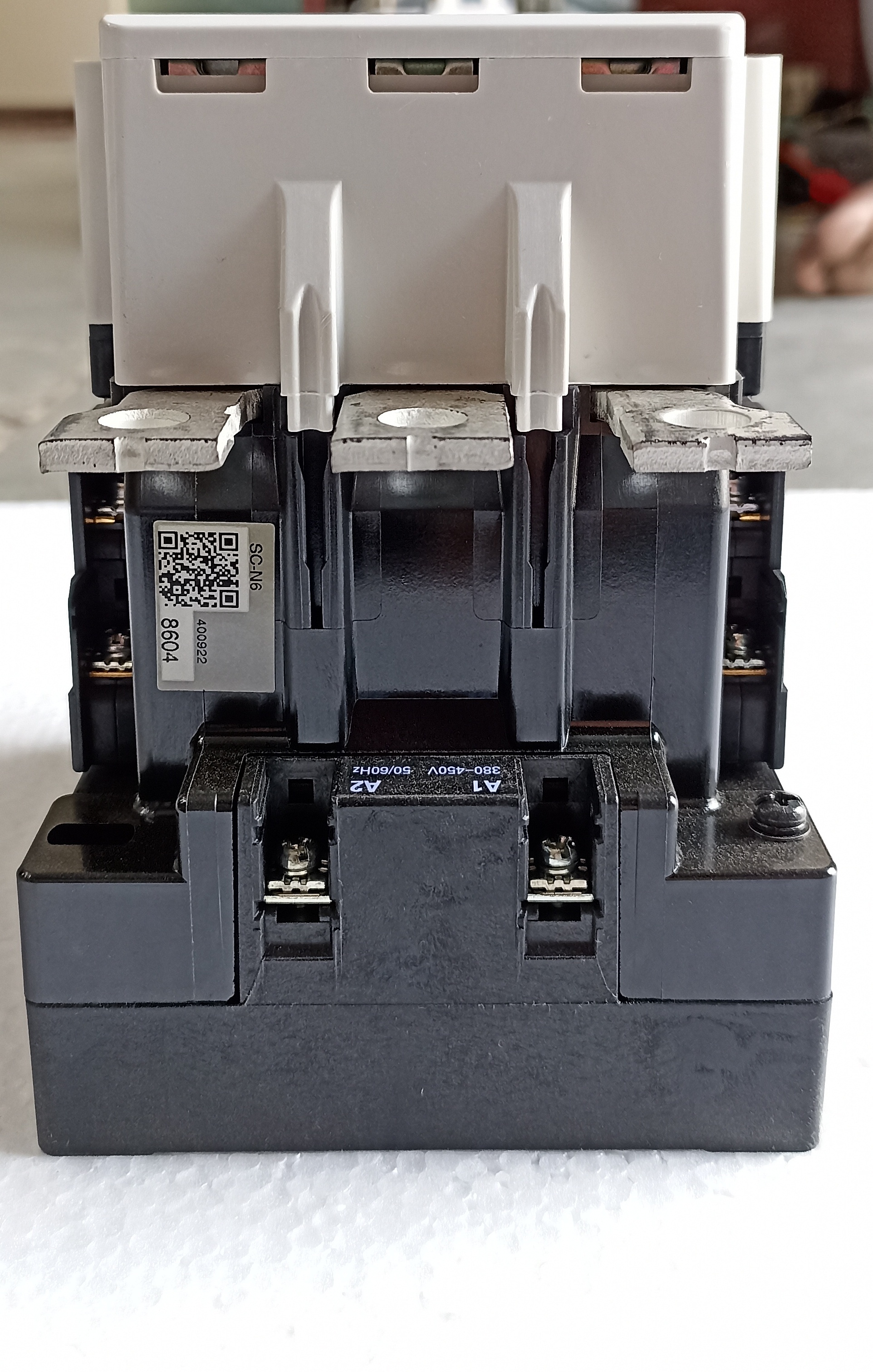

FUJI SC-N6 CONTACTOR

Get a Price/Quote

FUJI SC-N6 CONTACTOR Specification

Mounting Type
DIN Rail and Panel Mount

Surface Finish
Matte

Shape
Rectangular

Overheating Protection
Yes (With Thermal Overload Relay Auxiliary)

Humidity %
45% - 85% RH

Insulation Material
Thermoplastic Resin

Connector Type
Screw Connectors

Efficiency
High Efficiency

IP Rating
IP20

Power Factor
0.8

Operating Temperature
-5Â°C to +40Â°C

Feature
Compact Design, Long Electrical Life

Product Type
Magnetic Contactor

Application
Motor Control, Power Circuits

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
6.5 VA (Pick-up), 6 VA (Holding)

Output Type
AC Output

Color
Black & White

Dimension (L*W*H)
110 x 85 x 120 mm

Weight
1.5 kg

Phase
Three Phase

Input Voltage
230V AC (Coil Voltage)

Size
N6

No Of Poles
3 Pole

Connection Type
Screw Terminal

Material
High-grade Plastic & Copper

Standards Compliance
IEC 60947-4-1

Electrical Endurance
1 Million Operations

Rated Current
32A

Auxiliary Contact
Optional

Contact Configuration
3NO+1NC

Terminal Capacity
1.25 – 16 mm²

Mechanical Endurance
10 Million Operations

FUJI SC-N6 CONTACTOR Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Telegraphic Transfer (T/T), Cash Advance (CA), Cash in Advance (CID), Cheque

Sample Available
Yes

Main Export Market(s)
Australia, Central America, South America, Western Europe, Middle East, Eastern Europe, Asia, North America, Africa

Main Domestic Market
All India

About FUJI SC-N6 CONTACTOR

FUJI SC-N6 CONTACTOR Available In Stock At Raj Electriclas, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- Fuji

Ith :- 160A

Model :- SC-N6 [125]

Condition :- New

Voltage :- 380-450V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Outstanding Durability & Reliability

Engineered with high-quality thermoplastic resin and copper materials, the FUJI SC-N6 Contactor guarantees long operational life with up to 10 million mechanical and 1 million electrical operations. Its robust construction ensures continual performance even in demanding industrial settings.

Versatile Application & Easy Installation

Designed for three-phase motor control and power circuit roles, the SC-N6 fits seamlessly into various setups via its DIN rail and panel mounting options. The screw terminal connections and broad terminal capacity accommodate cables from 1.25 to 16 mm2, simplifying the installation process.

Advanced Protection & Compliance

Rated at IP20 and compliant with IEC 60947-4-1 standards, the SC-N6 provides reliable protection against accidental contact and dust. Optional auxiliary contacts expand its functionality, while the integrated thermal overload relay auxiliary strengthens overheating protection.

FAQ's of FUJI SC-N6 CONTACTOR:

Q: How do I install the FUJI SC-N6 Contactor in my motor control system?

A: The SC-N6 contactor supports both DIN rail and panel mounting, making installation straightforward. Simply secure the unit onto the chosen platform, connect wires to the screw terminals (accepting 1.25-16 mm2 cables), and ensure all connections are properly tightened for safety and optimal performance.

Q: What are the main benefits of using the FUJI SC-N6 Contactor?

A: The SC-N6 offers exceptional durability, long operational life, reliable switching for motors and power circuits, and advanced safety features including IP20 protection and optional thermal overload relay auxiliary. Its compact size and high efficiency make it ideal for industrial use.

Q: When should auxiliary contacts be used with the SC-N6 Contactor?

A: Auxiliary contacts are recommended when additional signaling or control functions are needed, such as feedback to control panels or interlocking with other equipment. These contacts can be easily integrated as optional add-ons to expand monitoring and automation capabilities.

Q: Where can I purchase the FUJI SC-N6 Contactor?

A: The FUJI SC-N6 Contactor is available through authorized distributors, exporters, manufacturers, suppliers, and traders. FUJI Electric, based in Japan, offers global support and distribution for this product. Consult your local or regional distributor for pricing and availability.

Q: What process should I follow to ensure safe operation of the SC-N6 Contactor?

A: Regularly check the wiring and terminal tightness, operate within the recommended temperature and humidity ranges (-5C to +40C, 45%-85% RH), and use the thermal overload relay auxiliary to prevent overheating. Ensure compliance with IEC 60947-4-1 standards and follow the manufacturer's maintenance guides.

Q: Can the FUJI SC-N6 Contactor be used in high-humidity environments?

A: Yes, the contactor is designed to operate efficiently in humidity levels ranging from 45% to 85% RH. Its IP20 rating and durable thermoplastic resin insulation provide reliable protection against moisture in industrial settings.
