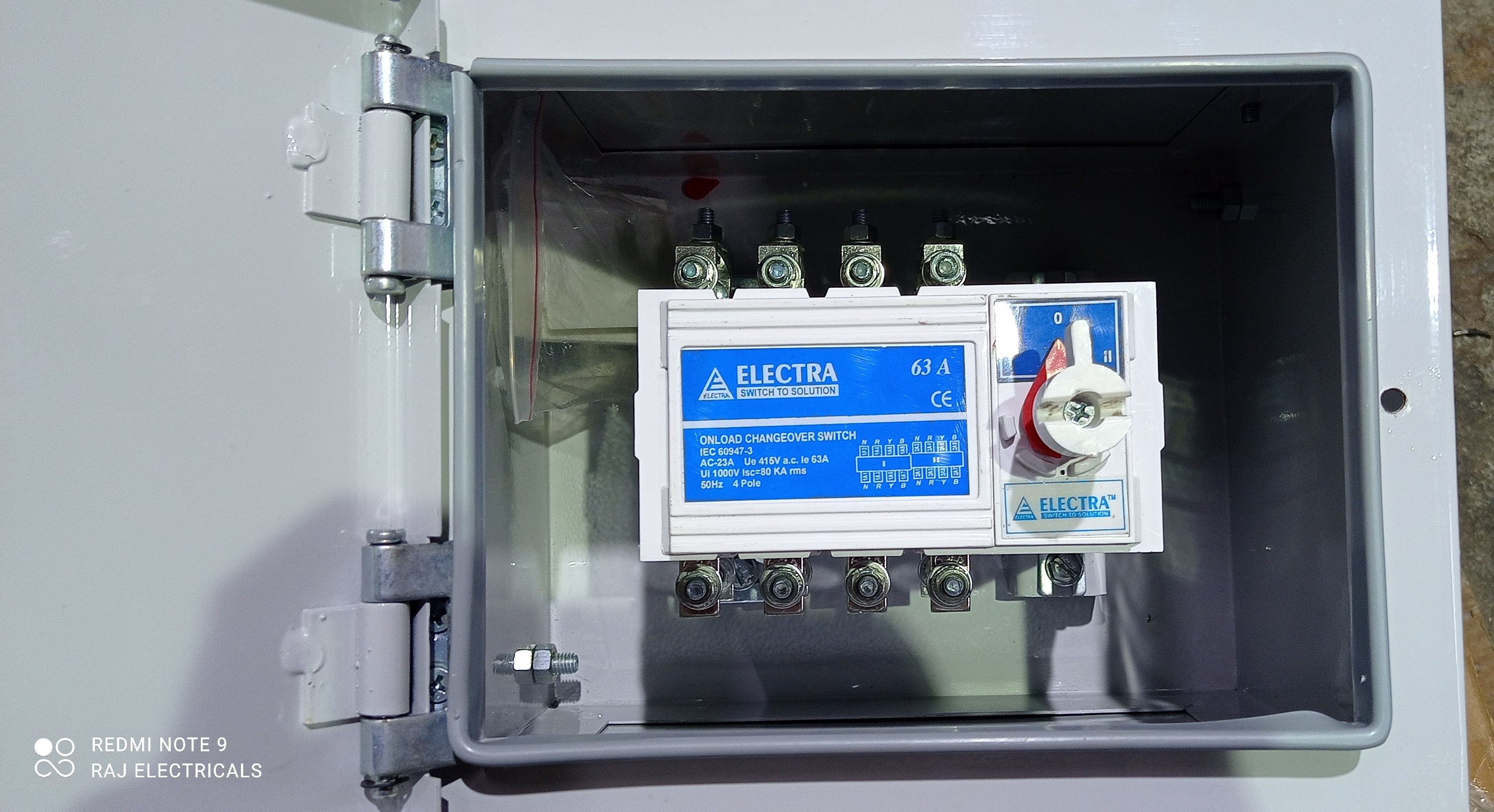

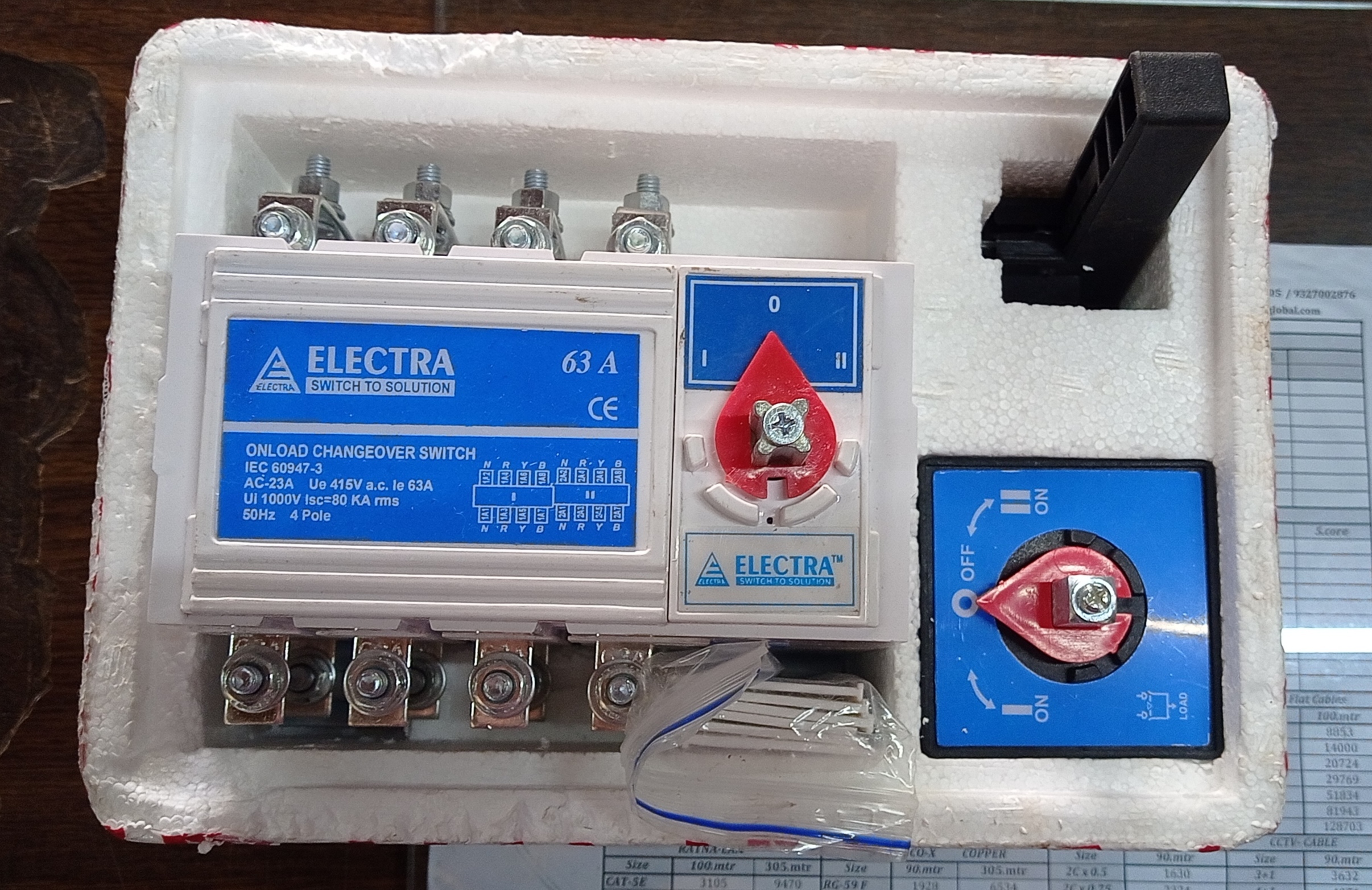

ELECTRA 63A 4P CHANGEOVER SWITCH (NEW)

Get a Price/Quote

MOQ : 1 Number

ELECTRA 63A 4P CHANGEOVER SWITCH (NEW) Specification

Mechanical Life
>10,000 Operations

Protection Level
IP20

Automation Grade
Manual

Number of Module
4 Module

Rated Voltage
415V AC / 690V AC

Response Time
Instantaneous (Manual)

Max. Current
63A

Circuit Type
AC / DC Compatible

Finish Type
Matte

Temperature Range
-5C to +55C

Product Type
Changeover Switch

Material
Flame Retardant Thermoplastic

Insulation Resistance
> 1000 M at 500V DC

Contact Resistance
20m

Max. Voltage
690V AC

Operating Temperature
-5C to +55C

Stoke
Manual Operation

Size
Standard Compact Design

Color
White / Grey

Weight
Approx. 450g

Mounting Type
DIN Rail / Panel Mounting

Current Rating
63A

No Of Poles
4 Pole

ELECTRA 63A 4P CHANGEOVER SWITCH (NEW) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ELECTRA 63A 4P CHANGEOVER SWITCH (NEW)

Raj Electricals Offering Electra Company Changeover Switch Of 63A 4P At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Onload Changeover Switch

Make :- Electra

Ampere :- 63A

Number Of Pole :- 4P

Current Voltage :- 415V AC

Frequency :- 50 Hz

We Supply Our Products In All Over India And Also In Foreign Countries.

Superior Safety & Reliability

Designed to comply with IEC 60947-3 standards, the ELECTRA 63A 4P Changeover Switch delivers enhanced safety through a rigorous dielectric strength of over 2000V AC for 1 minute. The flame-retardant thermoplastic housing (UL94 V-0 rated) ensures protection against fire hazards, while its silver alloy contacts offer low contact resistance for stable performance in critical situations.

Flexible Installation & Operation

Offering compatibility with both DIN rail and panel mounting, this switch fits seamlessly into new or existing setups. Its manual stroke operation provides users with instant control over circuit switching. The compact size, screw-type terminals, and a torque rating of 2.5 Nm facilitate secure and straightforward installation, catering to both professionals and industrial users alike.

Versatility in Application

Engineered to function across a broad frequency range (50/60 Hz) and support both AC and DC circuits, this switch is ideal for various distribution, manufacturing, automation, and safety systems. With a four-module, four-pole configuration and a standard current rating of 63A, it accommodates diverse industrial requirements while maintaining consistent and reliable switching performance.

FAQ's of ELECTRA 63A 4P CHANGEOVER SWITCH (NEW):

Q: How should I properly install the ELECTRA 63A 4P Changeover Switch?

A: The switch can be mounted either on a DIN rail or directly onto a panel, making it adaptable for different installation preferences. Ensure screw-type terminals are secured with a torque of 2.5 Nm for optimal connection and refer to the user manual for specific wiring procedures.

Q: What circuits can the ELECTRA 63A 4P Changeover Switch operate in?

A: This switch is compatible with both AC and DC electrical circuits, designed for rated voltages of 415V AC and 690V AC, and accommodates up to 63A of current, making it suitable for various industrial applications.

Q: When is using this changeover switch most beneficial?

A: It is particularly advantageous during source transfer needs, maintenance, and emergency switching scenarios, providing instant manual control to ensure uninterruptible power supply or safe circuit isolation.

Q: Where can this switch be used given its protection and temperature ratings?

A: With an IP20 protection level and an operating temperature range of -5C to +55C, the switch is suitable for indoor industrial environments and electrical distribution systems where moderate dust and environmental factors are present.

Q: What is the process for switching between power sources using this device?

A: Operation is manual via its ON-OFF-ON switching mode, enabling seamless source selection or disconnection. Users simply operate the lever to shift from the main supply to alternative sources or isolate the circuit entirely.

Q: What are the main benefits of the silver alloy contacts and flame-retardant thermoplastic material?

A: Silver alloy contacts ensure minimal contact resistance (20 m) and reliable current conduction, while the flame-retardant thermoplastic material (UL94 V-0) enhances the device's safety by reducing fire risk.

Q: How does the switch ensure long-term durability and performance?

A: The switch is built for over 10,000 mechanical operations and maintains excellent insulation resistance (>1000 M at 500V DC) alongside a strong dielectric capacity, guaranteeing reliable performance and longevity across various operating conditions.
