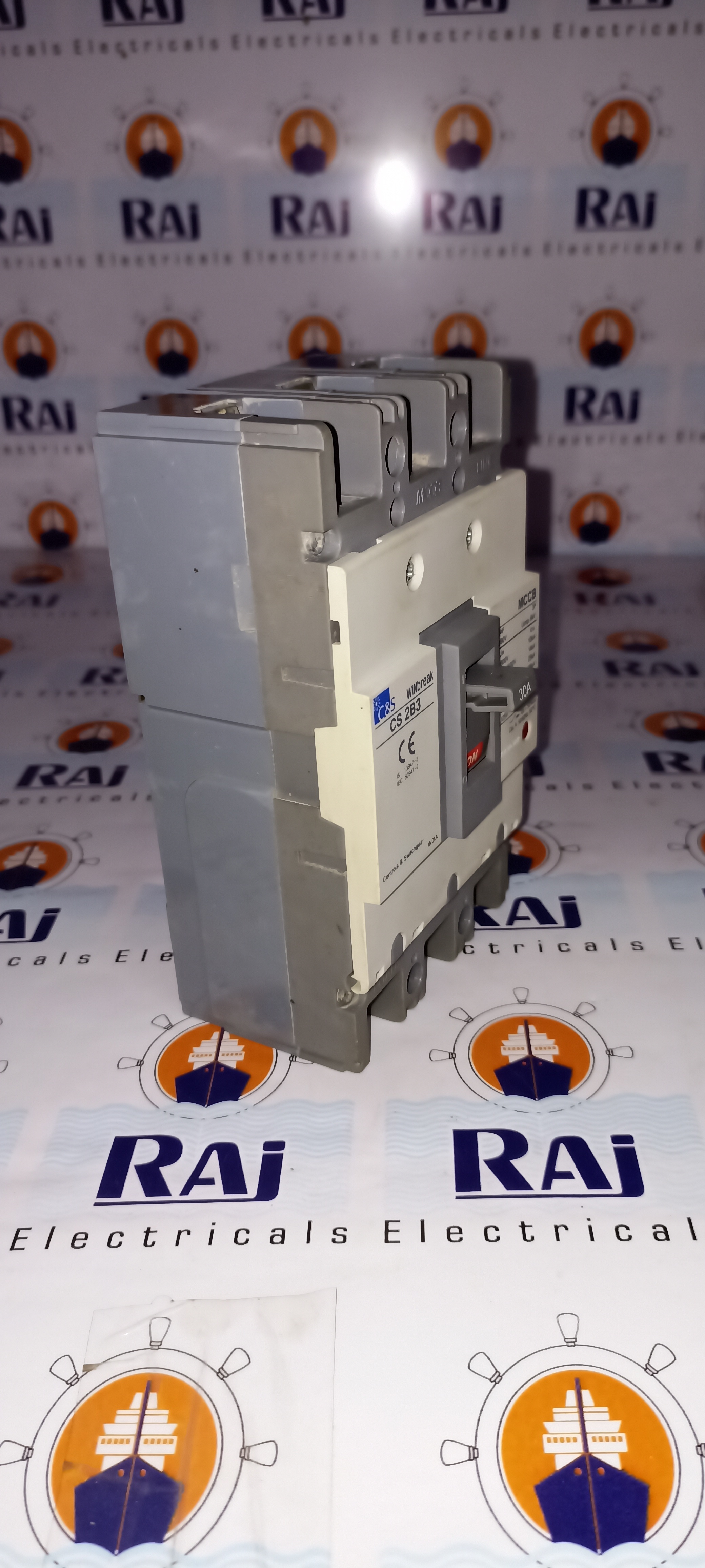

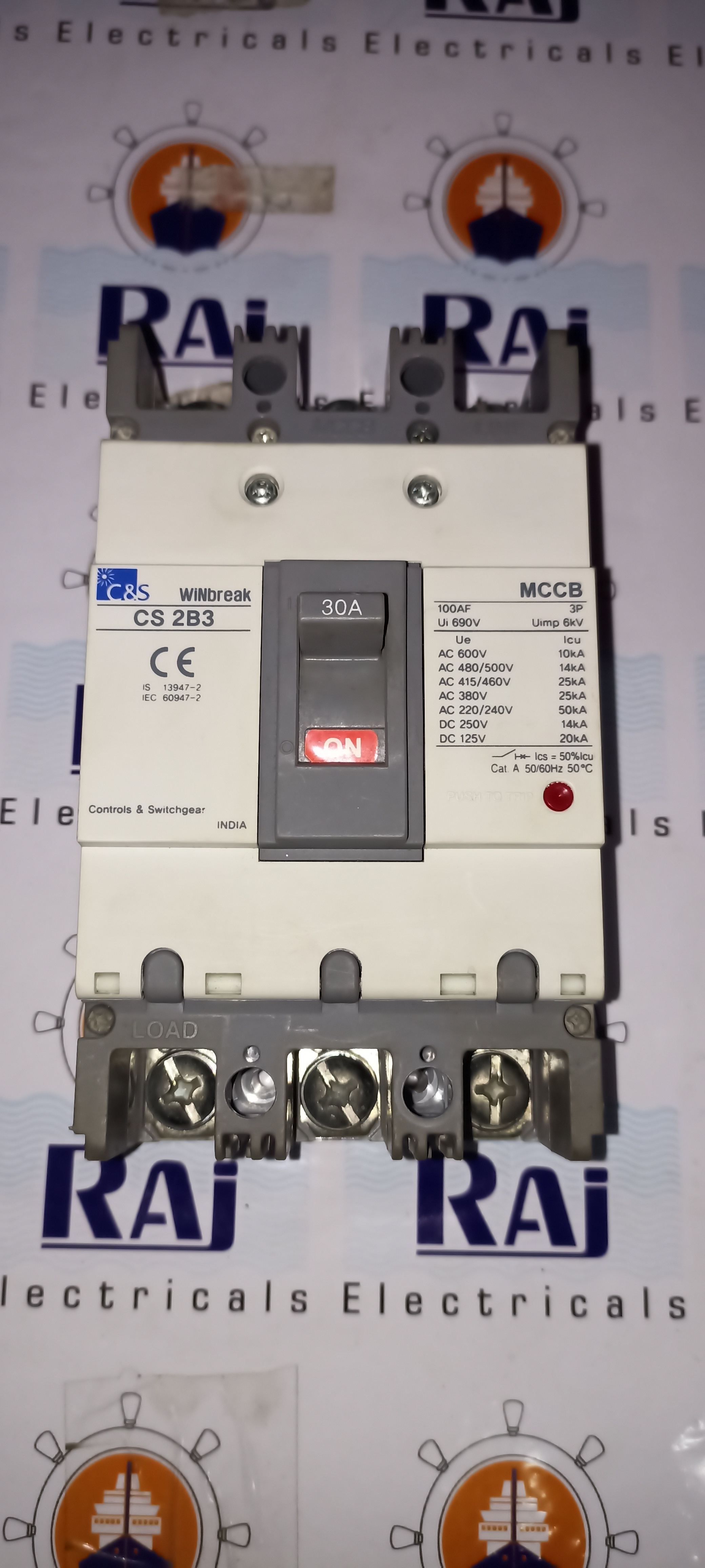

CandS 30A 3P MCCB

Get a Price/Quote

CandS 30A 3P MCCB Specification

Rated Short Circuit Making Current
25 kA

Phase
Three Phase

Mechanical Life
10,000 operations

Rated Short Circuit Breaking Current
25 kA

Breaking Capacity
25 kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Panel Mounting

Function
Overload and Short Circuit Protection

Poles Number
3

Rated Voltage
415V AC

Rated Current
30A

Rated Frequency
50/60 Hz

Curves
Type C

Temperature Protection
Yes

Weight
Approx. 800g

Color
Grey/Black

CandS 30A 3P MCCB Trade Information

Minimum Order Quantity
10 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About CandS 30A 3P MCCB

C&S 30A 3P Mccb Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Moulded Case Circuit Breaker

Make :- C&S

Ampere :- 30A

Number Of Pole :- 3P

Model Number :- CS 2B3

Breaking Capacity :- 25 kA

Voltage :- 415V AC

Frequency :- 50 Hz

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Comprehensive Protection and Reliability

Ensure the safety of your electrical installations with the CandS 30A 3P MCCB. Engineered with a thermal magnetic trip unit, it delivers consistent overload and short circuit protection, safeguarding equipment and personnel. The sturdy construction, rated for 10,000 mechanical operations, guarantees dependable service in commercial and industrial applications.

Flexible Installation and Compatibility

Adaptable to various mounting positions, the MCCB supports both vertical and horizontal panel installation. Its screw terminal design allows for secure and straightforward connections. Compatible with three-phase systems, and rated for 415V AC, this MCCB is suitable for a wide range of electrical setups.

Premium Features for Enhanced Operation

Designed with user convenience in mind, optional auxiliary contacts enable additional monitoring and control functions. The IP20 enclosure provides protection against physical ingress, while the units Type C curve offers effective tripping performance for moderate inrush currents commonly found in industrial circuits.

FAQs of CandS 30A 3P MCCB:

Q: How is the CandS 30A 3P MCCB installed in electrical panels?

A: The CandS 30A 3P MCCB can be mounted either vertically or horizontally on standard electrical panels using panel mounting methods. Its screw terminals allow for quick and secure wiring during installation.

Q: What benefits does the thermal magnetic trip unit provide?

A: The thermal magnetic trip unit offers dual protection by responding instantly to both overloads and short circuits, ensuring the safety of your electrical system and helping prevent equipment damage and operational downtime.

Q: Where can the CandS 30A 3P MCCB be used effectively?

A: This MCCB is suitable for industrial and commercial three-phase electrical systems across India, thanks to its robust construction, high breaking capacity, and wide operating temperature range.

Q: When is it recommended to use optional auxiliary contacts?

A: Optional auxiliary contacts are beneficial if remote status monitoring and control of the circuit breaker are required, such as for integration into automation, alarms, or supervisory systems.

Q: What is the process for maintaining the MCCB for optimal performance?

A: Routine inspection should include checking terminal tightness, verifying there is no dust accumulation within the IP20 enclosure, and confirming proper tripping functionality during scheduled maintenance intervals.

Q: What makes the MCCB suitable for demanding applications?

A: With a breaking capacity of 25 kA, rated short circuit making and breaking currents of 25 kA, and robust enclosure protection, the MCCB handles significant electrical loads and challenging conditions reliably.

Q: How does the temperature protection function enhance safety?

A: The integrated temperature protection ensures the MCCB operates safely within its specified range of -5C to +40C, reducing the risk of failure due to ambient thermal stresses in various installation environments.
