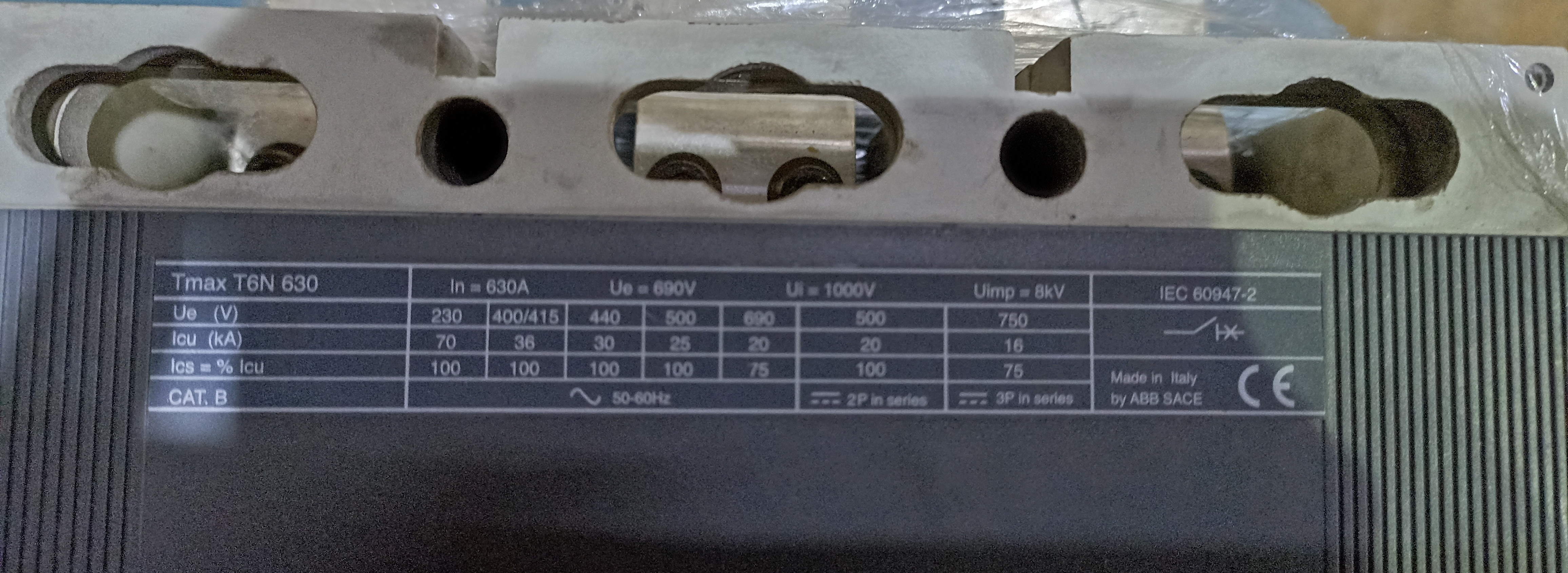

ABB (Tmax T6N 630) 800A 3P MCCB

Name: ABB (Tmax T6N 630) 800A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

ABB (Tmax T6N 630) 800A 3P MCCB Specification

Breaking Capacity
36kA at 415V AC

Phase
Three Phase

Mechanical Life
>20,000 operations

Rated Short Circuit Breaking Current
36kA

Rated Short Circuit Making Current
80kA

Product Type
Moulded Case Circuit Breaker (MCCB)

Installation Options
Fixed or Plug-in

Function
Circuit Protection (MCCB)

Poles Number
3P

Rated Voltage
690V AC

Rated Current
800A

Rated Frequency
50/60 Hz

Curves
T6N (Normal) Trip Unit

Temperature Protection
Yes (Thermal-Magnetic Release)

Weight
Approx. 6.5 kg

Color
Grey

Utilization Category
A

Dimensions
275mm x 210mm x 103mm (approx.)

Adjustable Overload Setting
320A - 800A

Auxiliary Contact Option
Available (optional)

Mounting
Panel Mount

Frame Size
Tmax T6

Protection Class
IP20 (with terminal cover)

Insulation Voltage
1000V AC

Operating Temperature
-25C to +70C

Model
T6N 630

Trip Type
Thermal-Magnetic

Ambient Temperature Range
-25C to +70C

Standards
IEC 60947-2

ABB (Tmax T6N 630) 800A 3P MCCB Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB (Tmax T6N 630) 800A 3P MCCB

ABB (Tmax T6N 630) 800A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 800A

Pole :- 3P

Model :- Tmax T6N 630

Condition :- Refurbi6sh6ed

Breaking Capacity :- 36 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Robust Circuit Protection for Demanding Applications

The ABB Tmax T6N 630 MCCB provides superior protection for electrical circuits, handling rated currents up to 800A. With its high breaking capacity and reliable thermal-magnetic trip technology, this MCCB is ideal for safeguarding distribution systems in factories, commercial buildings, and infrastructure projects.

Flexible Installation and Operation

Designed for versatility, the Tmax T6N 630 can be installed as either a fixed or plug-in unit, and is panel mountable for easy integration into new or existing systems. Optional auxiliary contacts further enhance functionality, while adjustable overload settings accommodate varied protection requirements.

Engineered for Safety and Compliance

Meeting IEC 60947-2 standards, the MCCB ensures robust protection through rigorous adherence to international safety norms. Offering IP20 protection with an optional terminal cover, it is built to perform reliably in challenging environments and across a broad temperature range.

FAQ's of ABB (Tmax T6N 630) 800A 3P MCCB:

Q: How does the ABB Tmax T6N 630 MCCB protect my electrical system?

A: The ABB Tmax T6N 630 MCCB uses a thermal-magnetic trip mechanism to safeguard electrical circuits against overloads and short circuits. Its high breaking capacity allows it to safely interrupt large fault currents, reducing damage and enhancing overall safety.

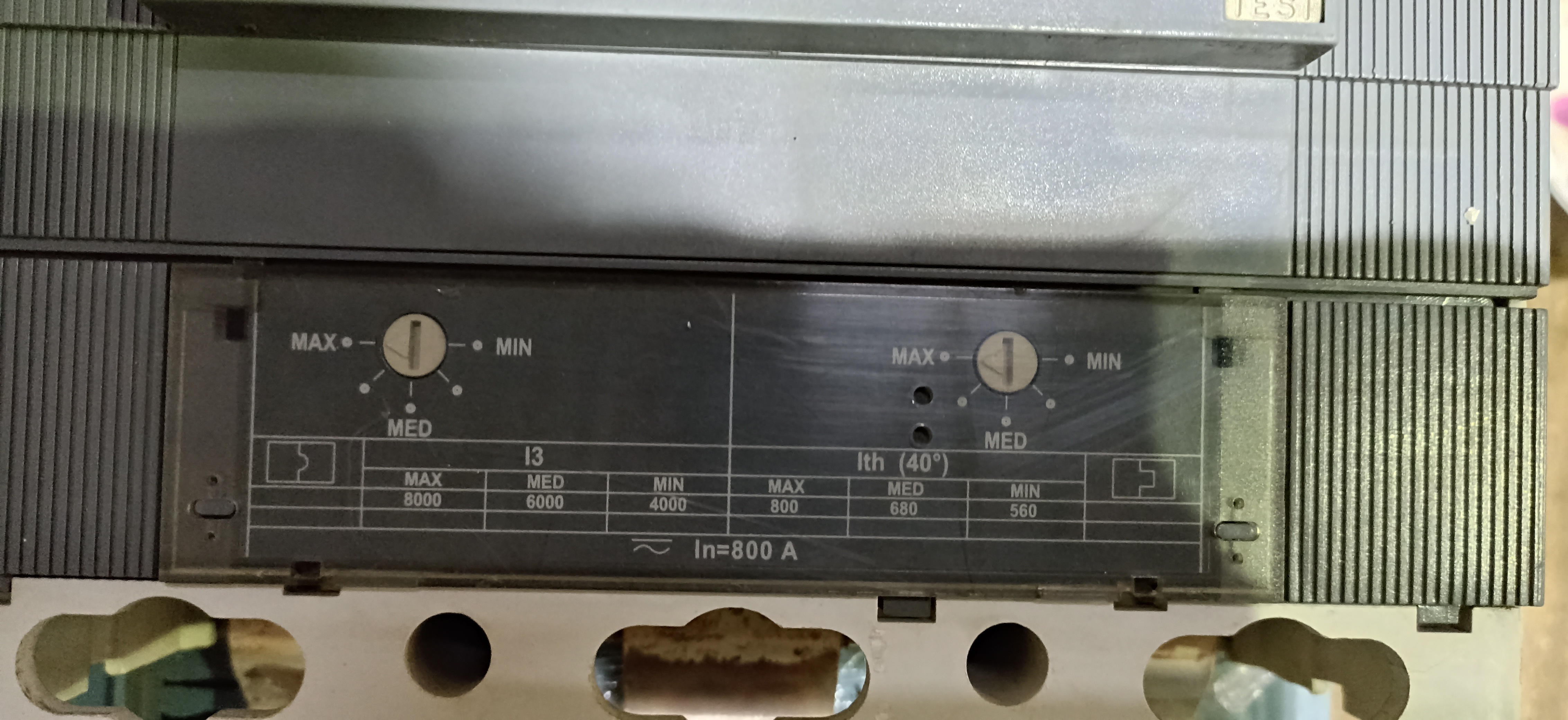

Q: What is the process for adjusting the overload protection setting?

A: You can adjust the overload setting on the Tmax T6N 630 MCCB between 320A and 800A. This is typically done via accessible adjustment dials on the device, allowing you to tailor the protection to match your system's specific load requirements.

Q: Where can the Tmax T6N 630 be installed, and what mounting options are available?

A: This MCCB is designed for panel mounting and supports both fixed and plug-in installation options. It can be integrated into various low-voltage distribution boards or control panels, making it suitable for industrial, commercial, and infrastructure applications.

Q: When should you use auxiliary contacts with this MCCB?

A: Auxiliary contacts, available as optional accessories, are recommended when you need remote signaling or control. They enable monitoring of breaker status, such as trip or open/close position, for enhanced automation and system management.

Q: What are the key benefits of using the Tmax T6N 630 MCCB?

A: This MCCB offers advanced circuit protection, flexible settings for diverse applications, high safety standards, and robust construction that endures demanding conditions. Its ease of installation and adaptability make it a reliable choice for circuit protection requirements in India and globally.

Q: How does the Tmax T6N 630 ensure safety in harsh environments?

A: With an operating temperature range of -25C to +70C and IP20 protection (with terminal cover), the Tmax T6N 630 is engineered to maintain performance and safety even in extreme environmental conditions.
