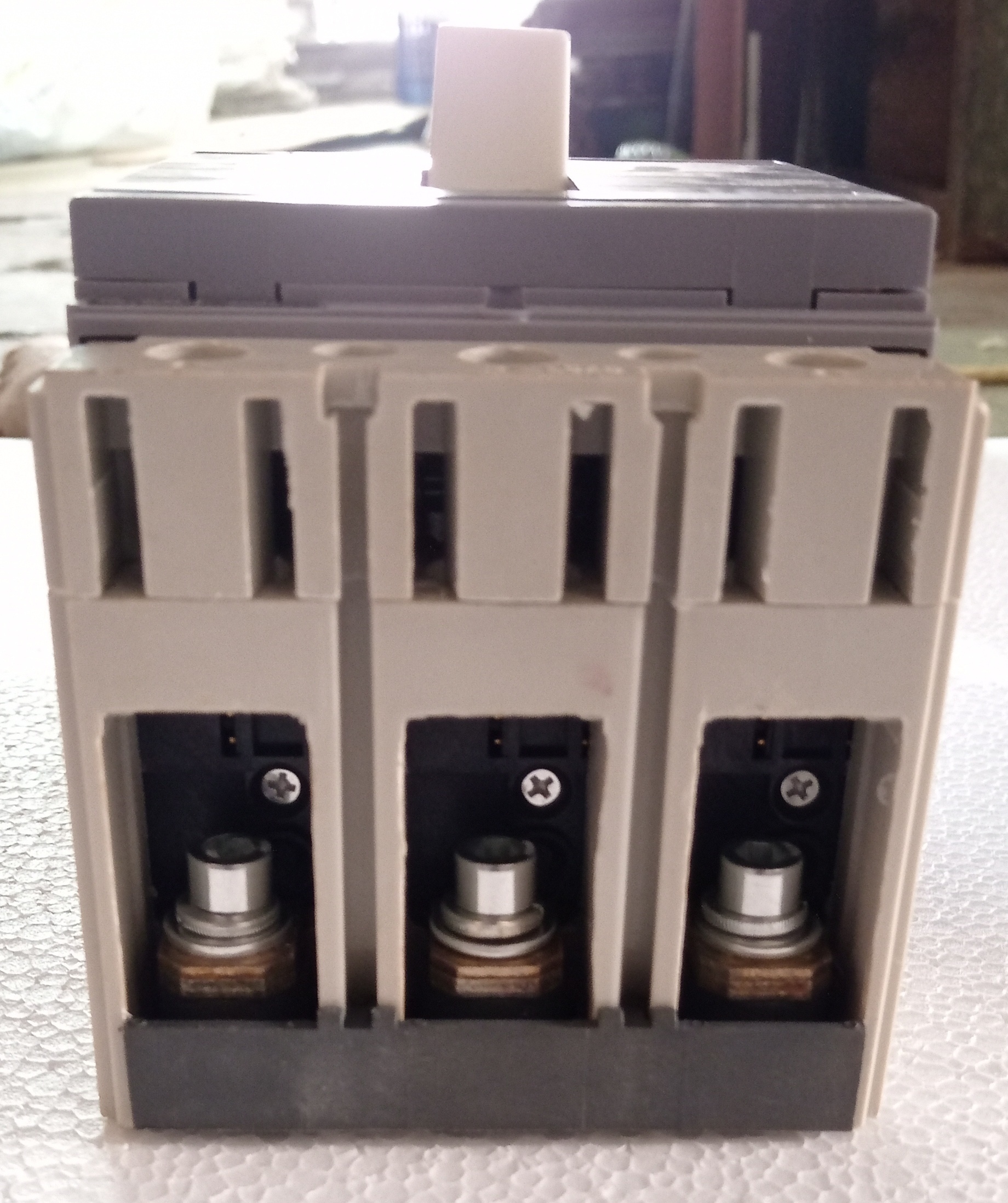

ABB NEW (SACE S3N) 250A 3P MCCB

Name: ABB NEW (SACE S3N) 250A 3P MCCB
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

ABB NEW (SACE S3N) 250A 3P MCCB Specification

Rated Short Circuit Breaking Current
36 kA

Breaking Capacity
36 kA at 415V AC

Rated Short Circuit Making Current
72 kA peak

Phase
Three Phase

Mechanical Life
20,000 operations

Product Type
Molded Case Circuit Breaker (MCCB)

Installation Options
Fixed (bolted) or Plug-in

Function
Protection of electrical systems from overload and short circuit

Poles Number
3

Rated Voltage
690V AC

Rated Current
250A

Rated Frequency
50/60 Hz

Curves
Thermal Magnetic (S) curve

Temperature Protection
Adjustable thermal protection

Weight
Approximately 3.7 kg

Color
Grey

Dimensions (W x H x D)
105 mm x 210 mm x 86 mm

Operating Temperature
-25C to +70C

Auxiliary Contacts Option
Available

IP Rating
IP20

Frame Size
S3N

Mounting Type
Panel mounting

Series
SACE S3N

Connection Type
Front terminal

Trip Unit Type
Thermal Magnetic

Electrical Life
10,000 operations

ABB NEW (SACE S3N) 250A 3P MCCB Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB NEW (SACE S3N) 250A 3P MCCB

ABB NEW (SACE S3N) 250A 3P MCCB Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ampere :- 250A

Pole :- 3P

Model :- SACE S3N

Condition :- NEW

Breaking Capacity :- 35 kA

Voltage :- 415V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Reliable Overload and Short Circuit Protection

The ABB SACE S3N MCCB is designed to protect electrical systems from potentially damaging overloads and short circuits. The thermal magnetic trip unit allows for precise response to abnormal current conditions, while its adjustable thermal protection adapts to diverse operational requirements. Its IP20 rating ensures finger-safe operation during installation and maintenance, enhancing safety.

Versatile Installation and Usage

This MCCB model offers flexibility with both fixed (bolted) and plug-in mounting options, simplifying its integration into new or existing panel setups. The front terminal connection supports straightforward wiring, reducing installation time. Its compact dimensions and panel mounting design make it suitable for space-constrained electrical enclosures.

Durable Build for Demanding Environments

With an operating temperature range from -25C to +70C, the SACE S3N MCCB can withstand challenging industrial conditions. Its robust mechanical construction ensures a long service life, backed by an electrical endurance of 10,000 operations and mechanical endurance of 20,000 operations, making it a dependable choice for high-duty applications.

FAQ's of ABB NEW (SACE S3N) 250A 3P MCCB:

Q: How is the ABB SACE S3N 250A 3P MCCB installed in electrical panels?

A: The MCCB is designed for panel mounting and can be installed using either fixed (bolted) or plug-in methods. Its front terminal connection simplifies cabling and accommodates a variety of installation configurations for new or retrofitted systems.

Q: What are the main benefits of choosing this MCCB for industrial applications?

A: The main benefits include robust protection against overloads and short circuits, high breaking capacity (36 kA at 415V AC), adaptable installation options, extended electrical and mechanical lifespans, and compatibility with auxiliary contacts for enhanced system control and monitoring.

Q: When should the adjustable thermal protection feature be used?

A: The adjustable thermal protection should be set during system commissioning or upgrades to match the unique current-carrying requirements of the electrical circuit. This ensures optimal protection against overloads tailored to your application's demands.

Q: Where can this MCCB be used effectively?

A: The ABB SACE S3N 250A 3P MCCB is suitable for diverse installations, including industrial facilities, commercial buildings, and utility panels, particularly where reliable protection, compact dimensions, and high breaking capacity are required.

Q: What is the process for integrating auxiliary contacts with this MCCB?

A: Auxiliary contacts, available as options, can be installed in the dedicated compartments of the MCCB. These contacts enable remote monitoring and signaling of the MCCB's operational status, providing additional control within your system.

Q: How does the thermal magnetic (S) curve trip unit contribute to system safety?

A: The thermal magnetic (S) curve trip unit provides dual protection: the thermal element responds to long-term overloads, while the magnetic part instantly reacts to short-circuit conditions, ensuring rapid and appropriate system isolation in fault events.
