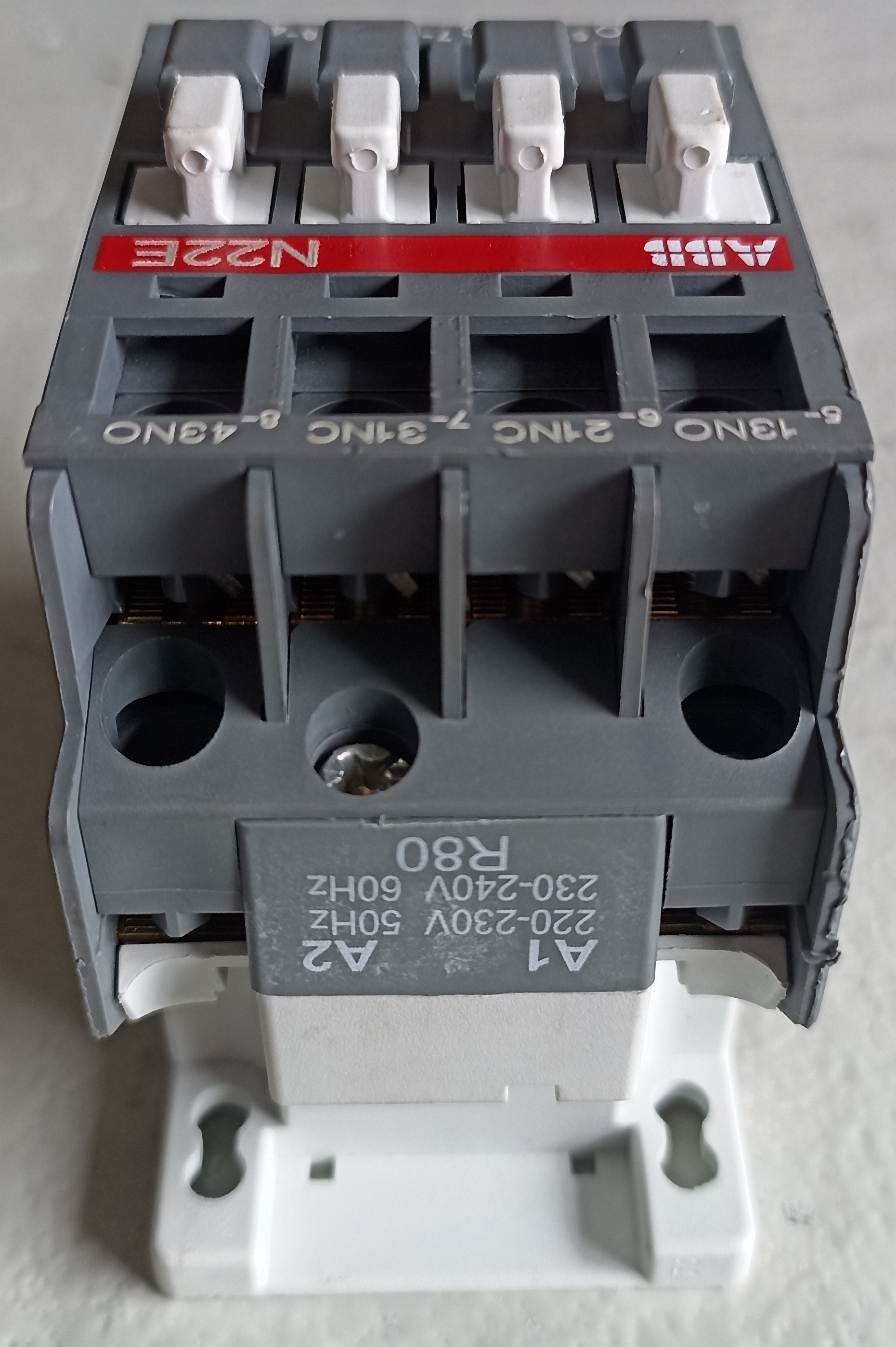

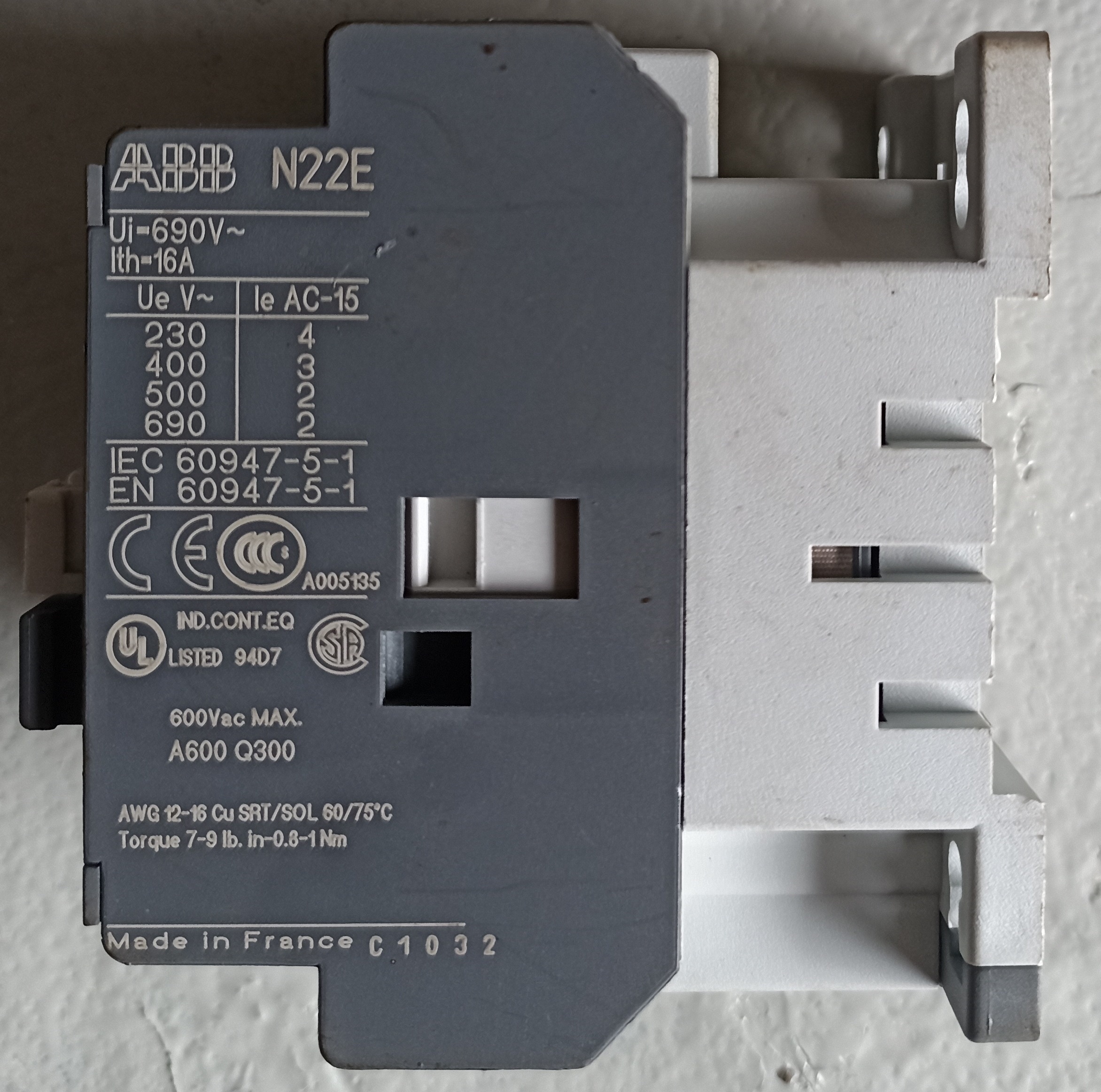

ABB N22E CONTACTOR

Name: ABB N22E CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 5 Pieces

ABB N22E CONTACTOR Specification

Feature
High mechanical endurance, Low power consumption

Connector Type
Screw type terminal

Efficiency
Highly efficient for switching applications

Shape
Rectangular

Humidity %
5% to 95% (non-condensing)

Overheating Protection
Yes (with proper overload relay)

IP Rating
IP20

Operating Temperature
-25C to +55C

Mounting Type
DIN Rail or Panel Mount

Surface Finish
Matte

Insulation Material
High-grade thermoplastic

Power Factor
0.95 (coil circuit)

Product Type
Contactor

Application
Industrial Motor Control, Automation Systems

Protection Level
AC-3, AC-1 (IEC 60947-4-1)

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
Electric coil consumption: 7.5 VA (50 Hz), 7.5 VA (60 Hz)

Output Type
NO+NC Contacts

Color
Grey

Dimension (L*W*H)
73 x 45 x 83 mm

Weight
0.36 kg

Size
Compact

Phase
Three Phase

Input Voltage
220/230 V AC coil

Material
Thermoplastic, Metal

Connection Type
Screw Terminals

No Of Poles
3

Auxiliary Contacts
1 NO + 1 NC

Coil Voltage Range
110-240 V AC

Type Code
N22E

Ambient Storage Temperature
-40C to +70C

Conformity
EN 60947-1/4-1

Max. Wire Size
2 x 4.0 mm2 solid, 2 x 2.5 mm2 flexible

Min. Wire Size
2 x 1.0 mm2

Mechanical Life
10 million operations

Short Circuit Protection
Required external device

Torque for Terminal Screws
1.2 Nm

Standards
IEC 60947-4-1

Pollution Degree
3

Rated Current
AC3: 22A at 400V

Electrical Life
1.6 million operations (AC3)

ABB N22E CONTACTOR Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB N22E CONTACTOR

Raj Electricals Offering ABB N22E CONTACTOR At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- MCCB (Moulded Case Circuit Breaker)

Make :- ABB

Ith :- 16A

Pole :- 3P

Model :- N22E

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Superior Endurance and Reliability

Engineered with a mechanical lifespan of 10 million operations and electrical durability spanning 1.6 million AC3 cycles, the ABB N22E Contactor offers unmatched reliability for continuous industrial operations. Its robust thermoplastic and metal construction ensures longevity even in demanding environments, while the compact design makes it suitable for space-constrained installations.

Flexible Installation and Application

The N22E is designed for maximum versatility, featuring both DIN rail and panel mounting options. Its wide coil voltage range (110-240 V AC) and compatibility with solid and flexible wiring enable easy adaptation into a broad spectrum of automation and industrial motor control applications while meeting IEC 60947-4-1 standards.

Efficient and Safe Operation

Safety and efficiency are paramount in the N22E's design. The contactor boasts an IP20 protection rating, operates efficiently at a power factor of 0.95, and maintains low power consumption. Overheating protection is available when used with a proper overload relay, making it a secure and energy-smart solution for industrial switching tasks.

FAQ's of ABB N22E CONTACTOR:

Q: How can the ABB N22E Contactor be installed?

A: The ABB N22E Contactor can be easily installed using either DIN rail mounting or panel mounting, allowing for flexible integration into various control panels or automation systems.

Q: What are the recommended wire sizes for connecting to the N22E Contactor?

A: For solid wires, use 2 x 1.0 mm2 up to 2 x 4.0 mm2, and for flexible wires, 2 x 1.0 mm2 up to 2 x 2.5 mm2. Ensure terminal screws are tightened to 1.2 Nm for secure connections.

Q: When should external short circuit protection be used with the N22E Contactor?

A: External short circuit protection is required for the N22E to safeguard the contactor and connected systems, as it does not come with built-in short circuit protection. Use appropriate circuit breakers or fuses as per installation guidelines.

Q: Where is the ABB N22E Contactor most commonly applied?

A: The N22E Contactor is ideally suited for industrial motor control, automation systems, and switching tasks requiring reliable three-phase operation, particularly where a compact and efficient solution is needed.

Q: What is the process for ensuring safe operation of the N22E Contactor?

A: To ensure safe operation, connect the contactor according to IEC 60947-4-1 standards, use recommended wiring sizes, install external short circuit and overheat protection, and maintain ambient operating temperatures within -25C to +55C.

Q: How does the N22E Contactor benefit industrial applications?

A: It provides high efficiency, low power consumption, and extended mechanical and electrical life, reducing maintenance needs and downtime. Its compact size and versatile mounting contribute to ease of integration and installation.
