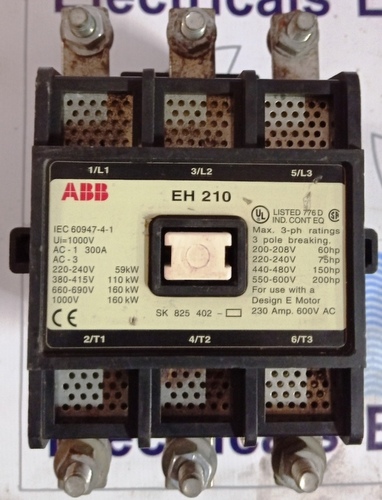

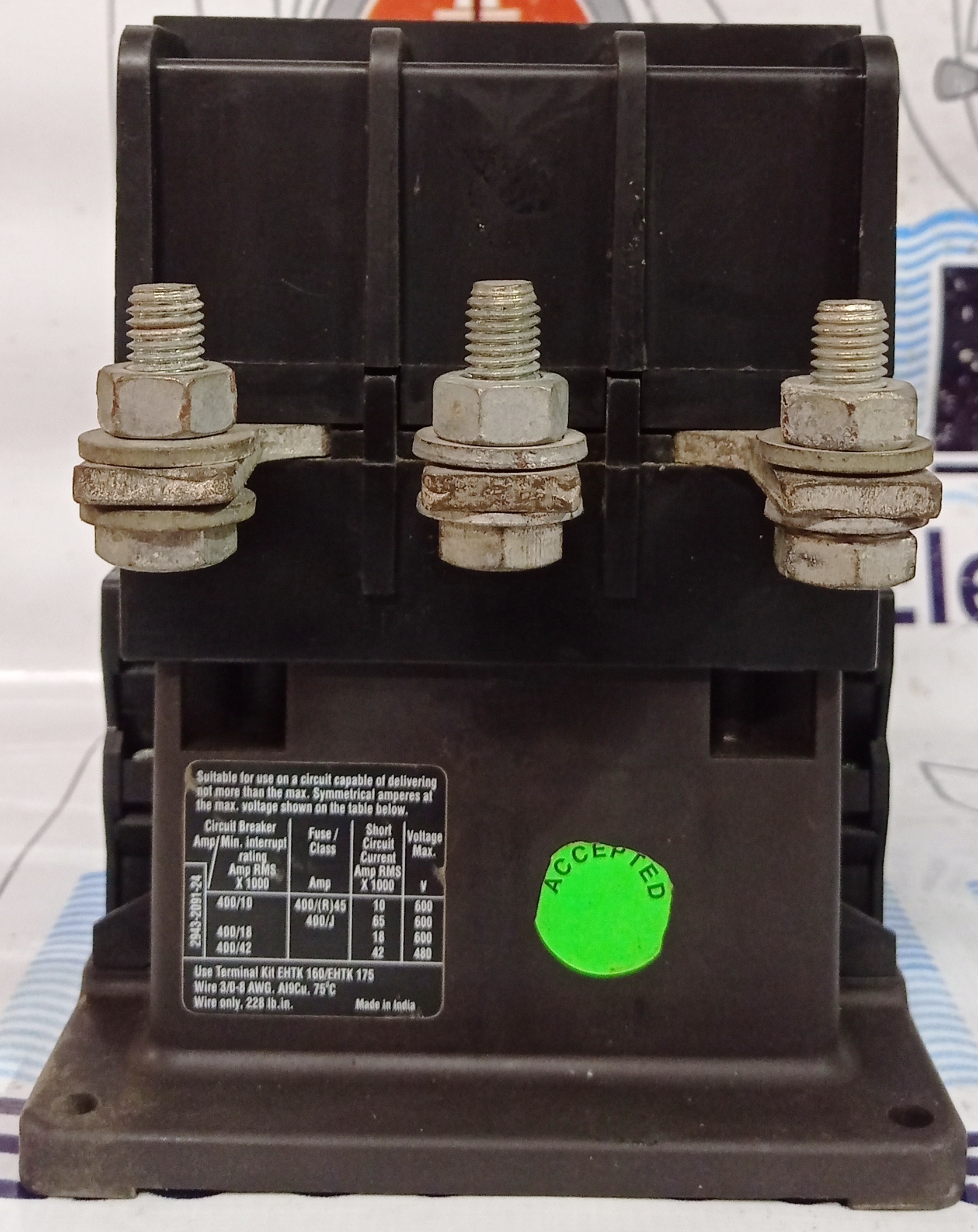

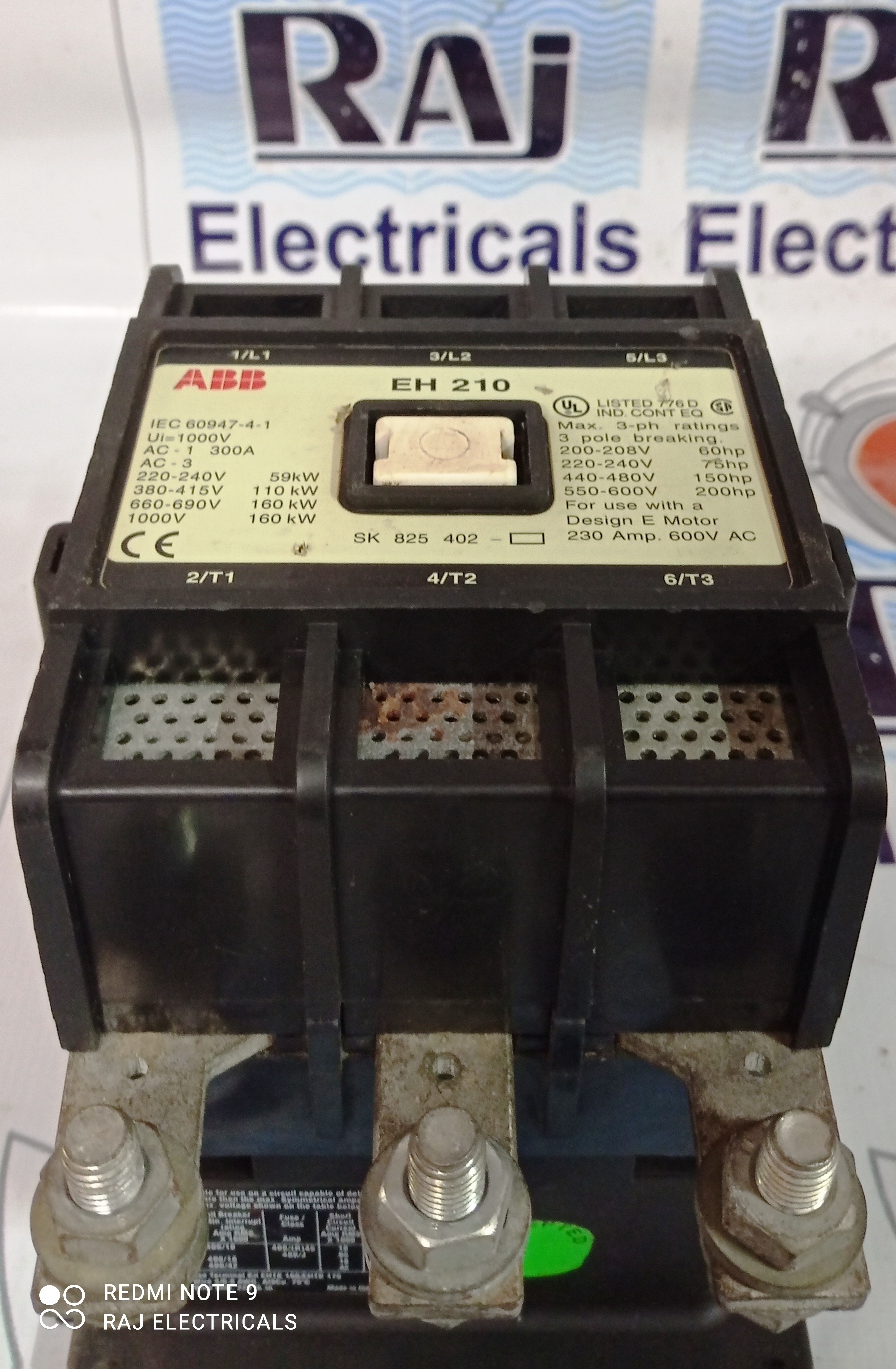

ABB EH-210 CONTACTOR

Name: ABB EH-210 CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 3 Pieces

ABB EH-210 CONTACTOR Specification

Operating Temperature
-25C to +55C

IP Rating
IP20

Overheating Protection
Available with Accessories

Shape
Rectangular

Feature
High Mechanical Durability, Shock Resistant

Connector Type
Screw Connection

Efficiency
High

Humidity %
Up to 95% RH

Surface Finish
Matte

Power Factor
0.85

Insulation Material
Polyamide

Mounting Type
Panel Mount

Product Type
Heavy Duty Power Contactor

Application
Industrial and Commercial Switching Applications

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
1000 V AC

Energy Consumption
120 VA (Pick-up), 15 VA (Holding)

Output Type
Mechanical Output

Color
Grey with Black Front

Dimension (L*W*H)
297 x 175 x 202 mm

Weight
11 kg

Input Voltage
220-240 V AC (Control Circuit)

Size
Standard EH-210 Size

Phase
Three Phase

Connection Type
Screw Terminal

No Of Poles
3

Material
Thermoset Plastic

Ambient Air Temperature Range
-25C to +55C

Auxiliary Contacts
2 NO + 2 NC

Maximum Switching Voltage
1000 V

Contactor Series
EH Series

Electrical Endurance (AC-3)
1,500,000 operations

Coil Voltage Options
24/48/110/220/240/415 V AC & DC

Rated Operational Current (AC-3)
210 A

Mechanical Endurance
10,000,000 operations

Short Circuit Protection
Requires external fuse

Storage Temperature
-40C to +70C

ABB EH-210 CONTACTOR Trade Information

Minimum Order Quantity
3 Pieces

Payment Terms
Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB EH-210 CONTACTOR

Raj Electricals Offering ABB EH-210 CONTACTOR At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electric Contactor

Make :- ABB

AC1 :- 300A

Model :- EH-210

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

Whats App or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

Unmatched Mechanical Endurance

The ABB EH-210 Contactor stands out with mechanical endurance of up to 10 million operations, ensuring extended service life even in continuous industrial use. This remarkable durability significantly minimizes downtime and maintenance requirements, offering long-term reliability for critical switching processes in demanding environments.

Versatile Coil Voltage Options

Supporting a broad range of control voltages (24/48/110/220/240/415 V AC & DC), the EH-210 provides excellent flexibility for integration into various control systems. Whether you're retrofitting equipment or designing a new installation, the multiple coil voltage options facilitate compatibility across diverse setups.

Engineered for Harsh Conditions

With an operating temperature range from -25C to +55C and storage capability down to -40C, this contactor is suited to challenging environments. The robust polyamide insulation and thermoset plastic housing, in combination with IP20-rated protection, ensure continued performance even in high-humidity or shock-prone settings.

FAQ's of ABB EH-210 CONTACTOR:

Q: How can the ABB EH-210 Contactor be integrated into existing industrial automation panels?

A: The EH-210 Contactor is designed for simple panel mounting and uses screw terminals, making integration into existing control systems straightforward. Its standard dimensions and multiple coil voltage options allow for easy retrofitting or replacement in standard EH Series applications.

Q: What benefits does the high mechanical and electrical endurance offer for industrial users?

A: With up to 10 million mechanical operations and 1.5 million electrical operations (AC-3), the EH-210 minimizes downtime and reduces the need for frequent replacements, ensuring continuous and reliable operation in high-demand applications such as motors, HVAC systems, and heavy machinery.

Q: When should an external fuse be installed with the EH-210 contactor?

A: An external fuse is required to provide short-circuit protection for the EH-210 Contactor since it does not have internal short-circuit protection. Install the appropriate fuse as specified in your system's protection scheme to safeguard both the contactor and connected equipment.

Q: Where is the optimal environment to operate the ABB EH-210 Contactor?

A: The EH-210 performs best in environments with ambient air temperatures between -25C and +55C and relative humidity up to 95% RH. It is suitable for indoor industrial and commercial applications where there is protection from excessive dust and water ingress (IP20 rating).

Q: What process should be followed to connect control circuits to the EH-210 Contactor?

A: Use the screw terminal connectors to attach control circuit wires, ensuring the input voltage matches one of the supported coil voltages (24/48/110/220/240/415 V AC/DC). Double-check all connections for tightness and verify that auxiliary contacts are correctly wired as required for your control logic.

Q: How does the insulation material of the EH-210 Contactor contribute to its reliability?

A: Manufactured from polyamide and thermoset plastic, the EH-210 offers excellent insulation, mechanical strength, and resistance to heat or impact, which increases safety and ensures reliable performance in harsh industrial settings.

Q: What are the advantages of using the ABB EH-210 Contactor in industrial switching applications?

A: The EH-210 offers high current-carrying capacity, resistance to shock, flexible auxiliary contact configuration, high efficiency, and extended operational life. Its compatibility with various coil voltages and robust safety features make it ideal for complex industrial and commercial switching tasks.
