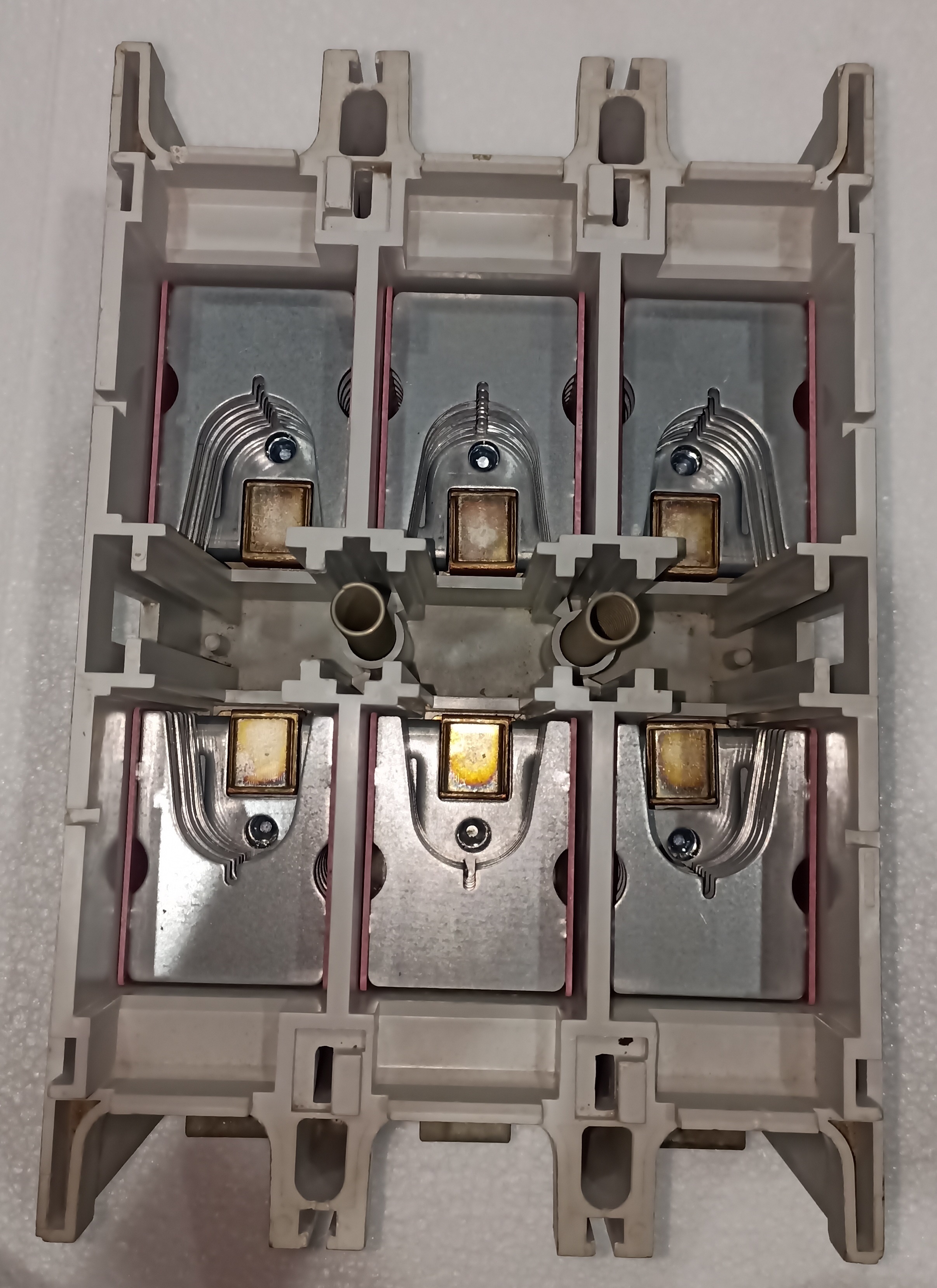

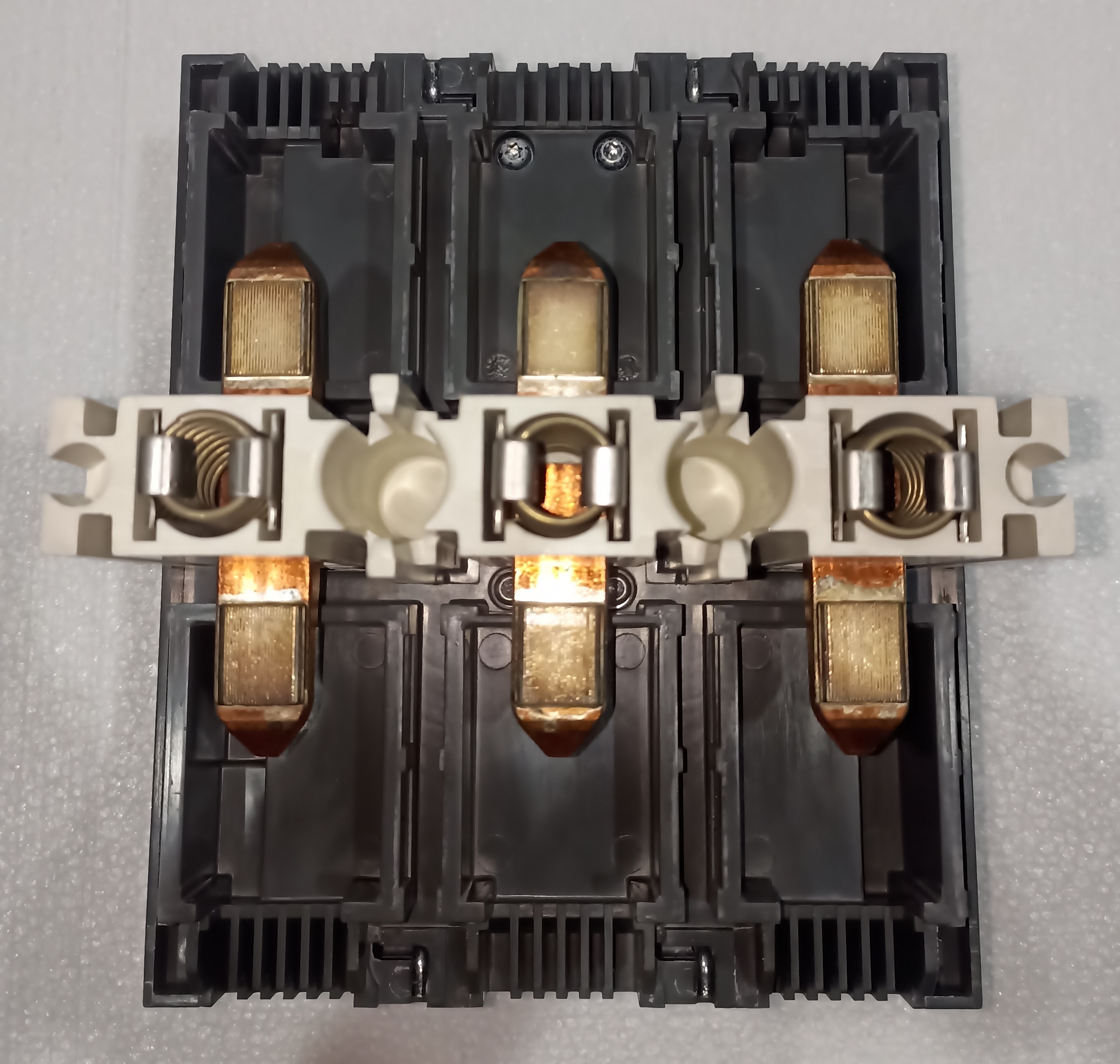

ABB AF400-30 CONTACTOR

Name: ABB AF400-30 CONTACTOR
Brand: RAJ ELECTRICALS

Get a Price/Quote

MOQ : 1 Piece

ABB AF400-30 CONTACTOR Specification

Humidity %
5% to 95% (non-condensing)

Surface Finish
Molded Finish

Operating Temperature
-25C to +60C

Feature
Electronic Coil Interface, Wide Control Voltage Range, Low Power Consumption

Connector Type
Screw Clamp, Terminal

Efficiency
High electrical and mechanical endurance

Shape
Rectangular

IP Rating
IP20

Overheating Protection
No (add-on auxilary block required)

Power Factor
0.8

Insulation Material
High-grade Thermoplastic

Mounting Type
Panel/DIN Rail Mounting

Product Type
Contactor

Application
Motor Control, Power Switching, Industrial Automation

Protection Level
AC-3 utilization category

Frequency (MHz)
50/60 Hz

Rated Voltage
690 V AC

Energy Consumption
13.5 W (Holding at 220-240V 50Hz)

Output Type
3NO (Normally Open) Contacts

Color
Grey/Black

Dimension (L*W*H)
205 x 198 x 140 mm

Weight
15.3 kg

Size
400 A Frame Size

Input Voltage
100...250 V AC/DC (Coil)

Phase
Three Phase

Material
Thermoplastic and Metal

No Of Poles
3

Connection Type
Screw Terminal

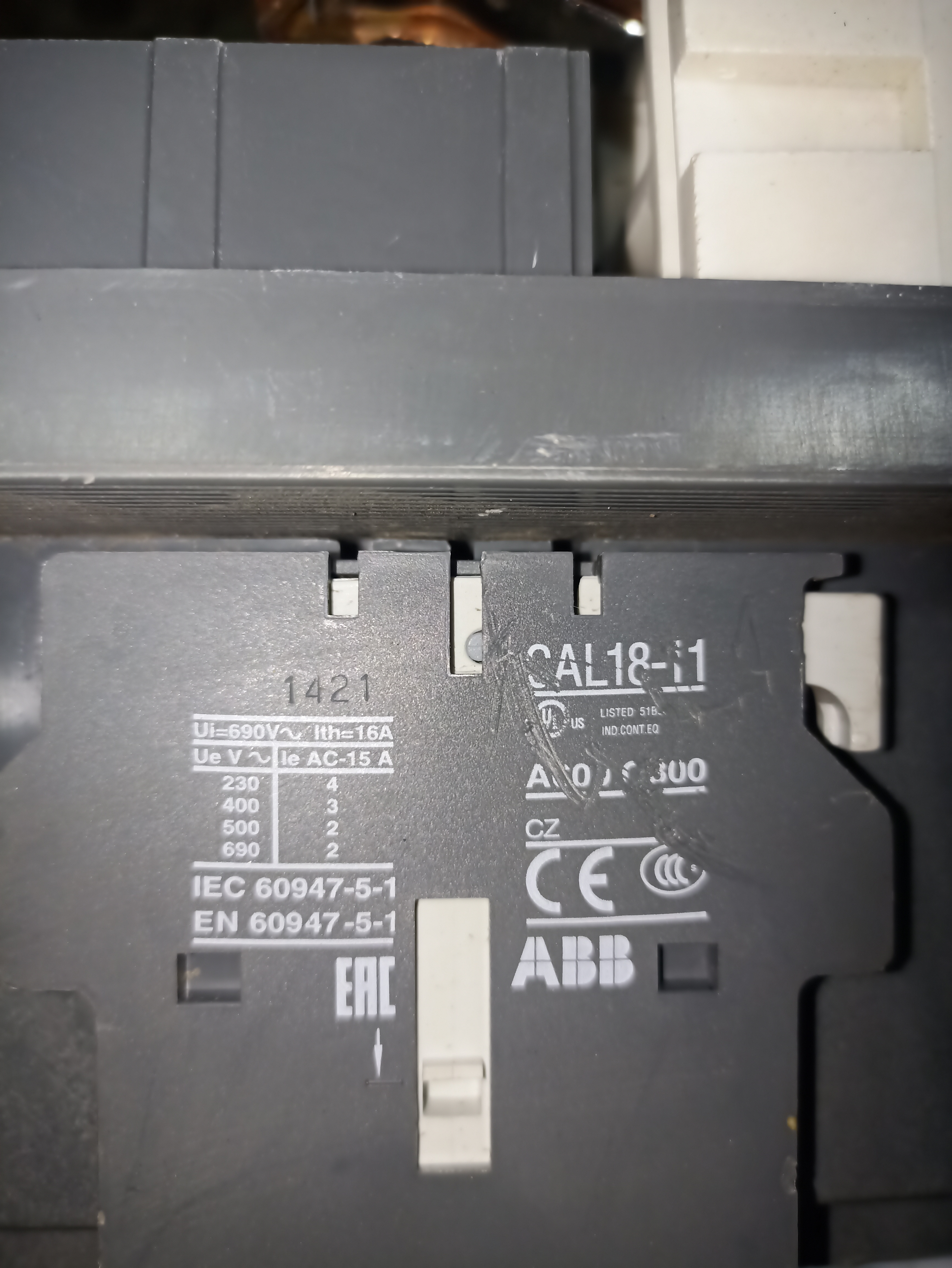

Auxiliary Contacts
1NO+1NC (can be extended)

Mechanical Life
10 million operations

Electrical Life
1 million operations

RoHS Compliance
Yes

Conventional Thermal Current Ith
500 A

Rated Operational Current (AC-3)
400A at 400V

Shock Resistance
15 g, 11 ms in operation

Vibration Resistance
4 g, 2-200 Hz

Control Circuit Voltage Range
100-250V AC/DC

ABB AF400-30 CONTACTOR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Letter of Credit (L/C)

Sample Available
Yes

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About ABB AF400-30 CONTACTOR

ABB AF400-30 CONTACTOR Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Electrical Contactor

Make :- ABB

Ac1 :- 600A

Pole :- 3P

Model :- AF400 - 30

Condition :- Refurbished

Voltage :- 220V AC

Frequency :- 50-60 Hz

For More Details

WhatsApp or call on :- +919426838080, +919904838080.

YouTube : https://www.youtube.com/@rajelectricals5253

Google : https://g.co/kgs/WCmt5a

Instagram : https://www.instagram.com/rajelectric52/

Facebook : https://www.facebook.com/RajElectricals52/

Website : https://www.rajelectrics.com/

High-Performance and Durable Construction

The AF400-30 contactor is built for robust industrial tasks, supporting up to 400A at 400V with 500A thermal current capacity. Its mechanical and electrical endurance ensure reliable operation over millions of cycles, while the high-grade thermoplastic insulation adds to its longevity and safety in challenging conditions.

Flexible Control and Easy Integration

Featuring a wide control voltage range (100-250V AC/DC) and modular auxiliary contacts (1NO+1NC, expandable), this contactor fits diverse system requirements. It's quick to install on panels or DIN rails, with screw clamp terminals for secure connections, offering straightforward integration into existing setups.

Efficient and Energy-Conscious

With a holding energy consumption of only 13.5 W at 220-240V (50Hz), the AF400-30 combines power and efficiency. Its electronic coil interface minimizes power usage while maintaining optimal performance, helping industries achieve energy savings without sacrificing operational reliability.

FAQ's of ABB AF400-30 CONTACTOR:

Q: How do I install the ABB AF400-30 contactor in an industrial panel?

A: The ABB AF400-30 contactor is designed for panel or DIN rail mounting. Use the screw terminals for secure connections and ensure the control voltage (100-250V AC/DC) matches your power supply. Follow the provided wiring diagram and safety instructions for proper installation.

Q: What applications are best suited for the AF400-30 contactor?

A: This contactor is ideal for heavy-duty motor control, power switching, and automation processes in industrial environments. It handles current-intensive loads with efficiency, making it suitable for manufacturers, exporters, and traders.

Q: When should auxiliary contacts be added to the unit?

A: Auxiliary contacts (supplied as 1NO+1NC, extendable) are beneficial when you need extra signaling or interlocking capabilities beyond the standard contacts. Add them as your application requires additional feedback or control circuits.

Q: Where can the AF400-30 contactor be used safely regarding environmental conditions?

A: The AF400-30 is IP20 rated for protection against solid particles and operates effectively within -25C to +60C and 5% to 95% non-condensing humidity environments. It is suitable for most industrial indoor settings.

Q: What are the benefits of the electronic coil interface featured on this contactor?

A: The electronic coil interface enables a wide control voltage range and ensures lower power consumption, enhancing reliability, efficiency, and flexibility across different control circuit designs.

Q: How should overheating protection be handled with the AF400-30?

A: While the AF400-30 does not have built-in overheating protection, you can add an auxiliary block to provide this function. This add-on helps safeguard against thermal overload, meeting safety requirements for critical applications.
