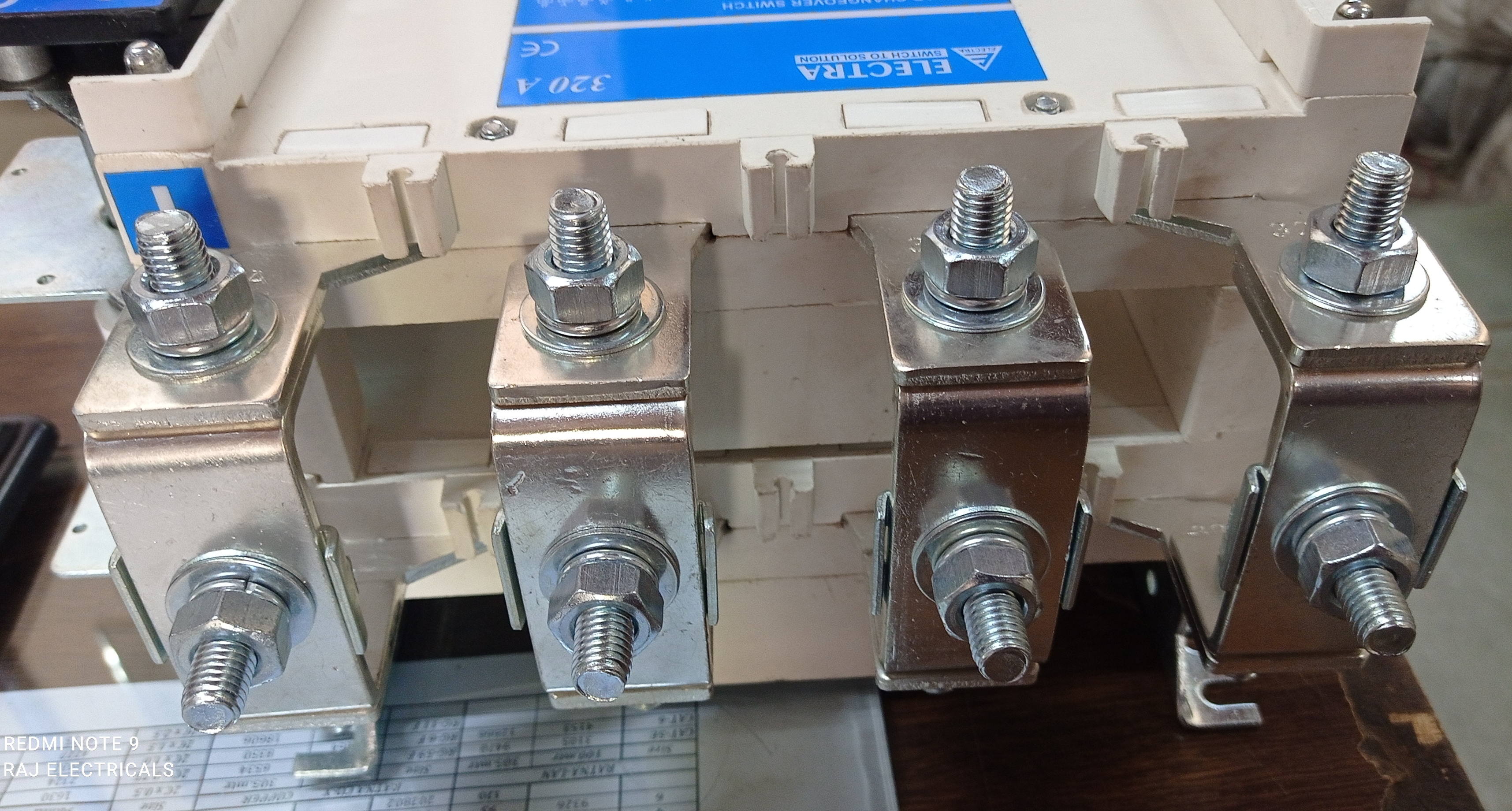

320A 4P ELECTRA CHANGEOVER SWITCH (NEW)

Get a Price/Quote

MOQ : 1 Number

320A 4P ELECTRA CHANGEOVER SWITCH (NEW) Specification

Temperature Range
-5C to +40C

Automation Grade
Manual

Circuit Type
Double Break per Pole

Number of Module
1 Unit

Mechanical Life
> 10,000 Operations

Response Time
Instantaneous Switching

Max. Current
320A

Rated Voltage
415V AC

Finish Type
Powder Coated

Protection Level
IP52

Product Type
Changeover Switch

Material
Heavy-Duty Flame Retardant Plastic and Copper/Brass Contacts

Insulation Resistance
>= 100M at 500V DC

Contact Resistance
< 2 m

Max. Voltage
690V AC

Operating Temperature
-5C to +40C

Stoke
2 Position (I-O-II)

Size
Approx. 520mm x 255mm x 140mm

Color
Grey and Black

Weight
Approx. 10.5Kg

Mounting Type
Surface/Panel Mounting

Current Rating
320A

No Of Poles
4 Pole

Operation Mode
Front operated with 3-position handle

Enclosure Material
Metal with dust protection

Terminal Type
Screw type terminals for heavy-duty cables

Switching Duty
AC-23A

Rated Impulse Withstand Voltage
8kV

Torque for Terminal Tightening
Max 2.5 Nm

Dielectric Strength
2500V for 1 minute

Frequency
50/60 Hz

320A 4P ELECTRA CHANGEOVER SWITCH (NEW) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 320A 4P ELECTRA CHANGEOVER SWITCH (NEW)

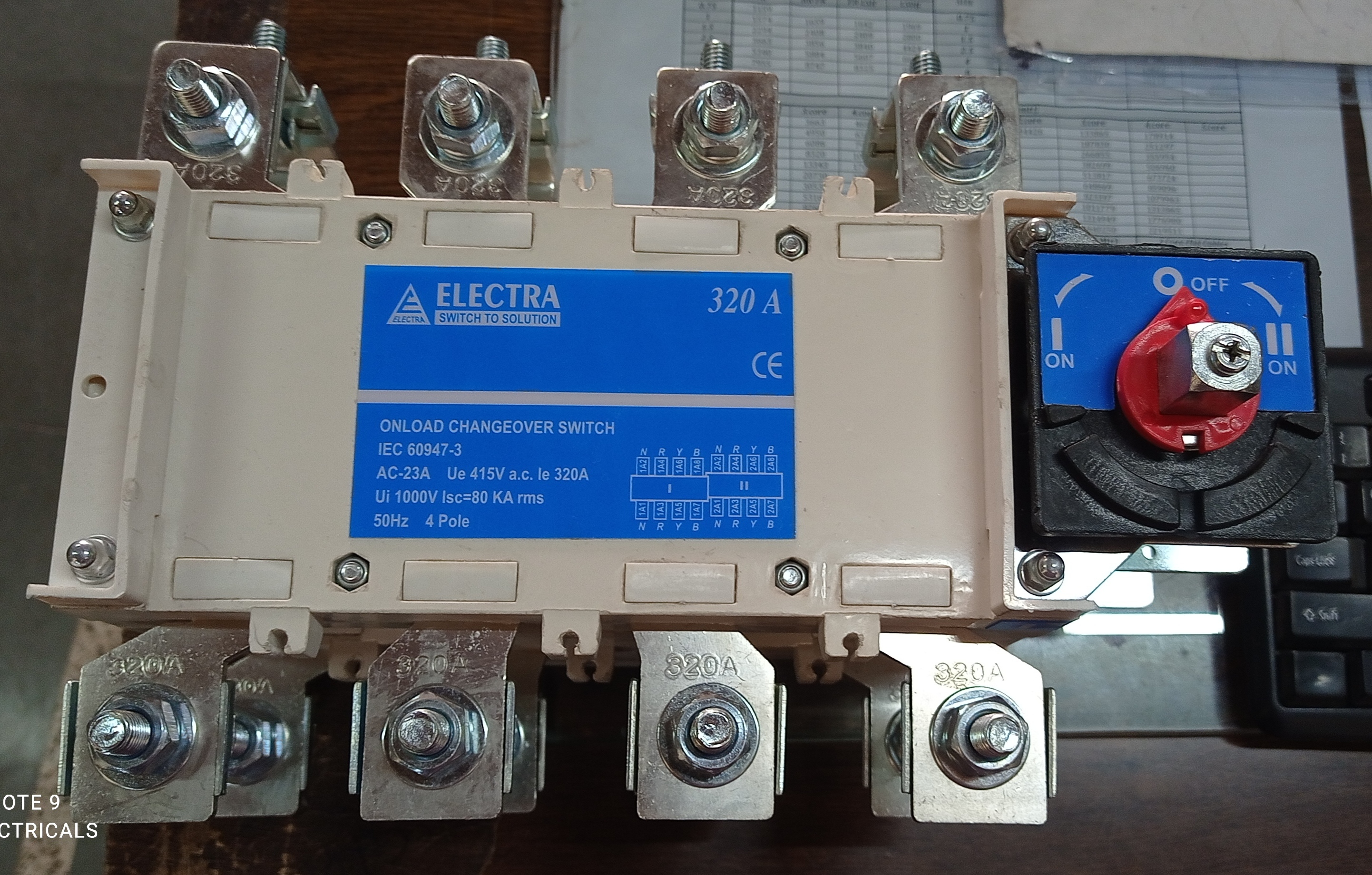

320A 4P Electra Company Onload Changeover Switch Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

Type :- Onload Changeover Switch

Make :- Electra

Ampere :- 320A

Number Of Pole :- 4P

Current Volage :- 415V AC

Frequency :- 50 Hz

Isc = 80 KA rms

We Supply Our Products In All Over India And Also In Foreign Countries.

Reliable Power Transfer with Heavy-Duty Protection

Engineered for industrial resilience, the 320A 4P Electra Changeover Switch offers seamless and secure manual switching between power sources, handling currents up to 320A. Its powder-coated metal enclosure with dust protection ensures internal components are shielded from harsh environmental factors. Front operation and a 3-position handle enable quick, effortless switching, making it ideal for demanding commercial and industrial setups.

Superior Safety and Endurance Features

The Electra Changeover Switch boasts impressive safety credentials, including a dielectric strength of 2500V and insulation resistance of 100M at 500V DC. Sturdy screw terminals accept heavy-duty cables, and flame-retardant materials, along with an IP52 protection level, offer added peace of mind. Mechanical life exceeds 10,000 operations, ensuring dependable long-term performance.

FAQs of 320A 4P ELECTRA CHANGEOVER SWITCH (NEW):

Q: How do I properly install the 320A 4P Electra Changeover Switch?

A: The switch should be mounted on a surface or panel using the appropriate hardware. Ensure all connections utilize the screw-type terminals with cables rated for heavy-duty currents, and tighten terminals to a maximum torque of 2.5 Nm. Follow standard safety procedures and always disconnect power before installation.

Q: What are the key benefits of using this changeover switch?

A: The 320A 4P Electra Changeover Switch provides reliable, manual power transfer between sources, high durability with flame-retardant construction, and robust safety features such as high insulation resistance, dust protection, and a sturdy enclosure, delivering consistent performance in demanding environments.

Q: When should I use a 320A 4-pole changeover switch?

A: This switch is best used in settings where a secure and rapid change from utility to generator or alternate power supply is required, such as industrial facilities, commercial complexes, or any location with significant electrical loads up to 320A.

Q: Where can this switch be installed?

A: The switch is designed for surface or panel mounting indoors, thanks to its metal enclosure with dust protection (IP52 rating). It should be placed in accessible locations for front-operated switching, while avoiding direct exposure to water or extreme environments.

Q: What is the operation process for the changeover switch?

A: To operate, use the front-mounted 3-position handle to switch between two power sources (I-II) or isolate the circuit (O). The switch provides double-break per pole for added safety, and instantaneous switching ensures minimal downtime during power transfer.

Q: What maintenance is required for optimal use?

A: Routine maintenance involves periodic inspection of connections for tightness, checking for dust accumulation or signs of wear, and ensuring the enclosure and handle function smoothly. With over 10,000 mechanical operations guaranteed, regular upkeep will enhance its lifespan.

Q: What makes this switch suitable for heavy-duty usage?

A: Its robust construction with heavy-duty flame-retardant plastic and copper/brass contacts, high dielectric strength, and compatibility with large cables make it suitable for industrial applications. The instant response, low contact resistance, and double-break circuit enhance safety and reliability under high loads.
