16 A PIN PLUG

Get a Price/Quote

16 A PIN PLUG Specification

Feature
Shockproof, Flame resistant

Surface Finish
Glossy

Power Factor
1.0

Shape
Round

IP Rating
IP44

Operating Temperature
-10C to +55C

Insulation Material
High Grade Plastic

Humidity %
95% RH (non-condensing)

Mounting Type
Cable Mount

Efficiency
>=95%

Overheating Protection
YES

Connector Type
3 Pin Plug

Product Type
Electrical Pin Plug

Application
Domestic, Industrial

Protection Level
High insulation and durability

Frequency (MHz)
50 Hz

Rated Voltage
220-240 V AC

Energy Consumption
Low

Output Type
3 Pin

Color
White/Red

Dimension (L*W*H)
Approx. 110 x 55 x 55 mm

Weight
250 g

Phase
Single Phase

Input Voltage
220-240V

Size
Standard 16A size

No Of Poles
3

Connection Type
Screw Terminal

Material
Polycarbonate/Brass contacts

Compliance
RoHS Compliant

UV Resistance
Yes

Wire Size Supported
Upto 4 sq.mm

Mechanical Life
Over 5000 mating cycles

Current Rating
16 Ampere

Flame Retardancy
V0 grade (UL94)

Contact Resistance
Less than 5 m

Pin Material
Brass

16 A PIN PLUG Trade Information

Minimum Order Quantity
5 Number

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About 16 A PIN PLUG

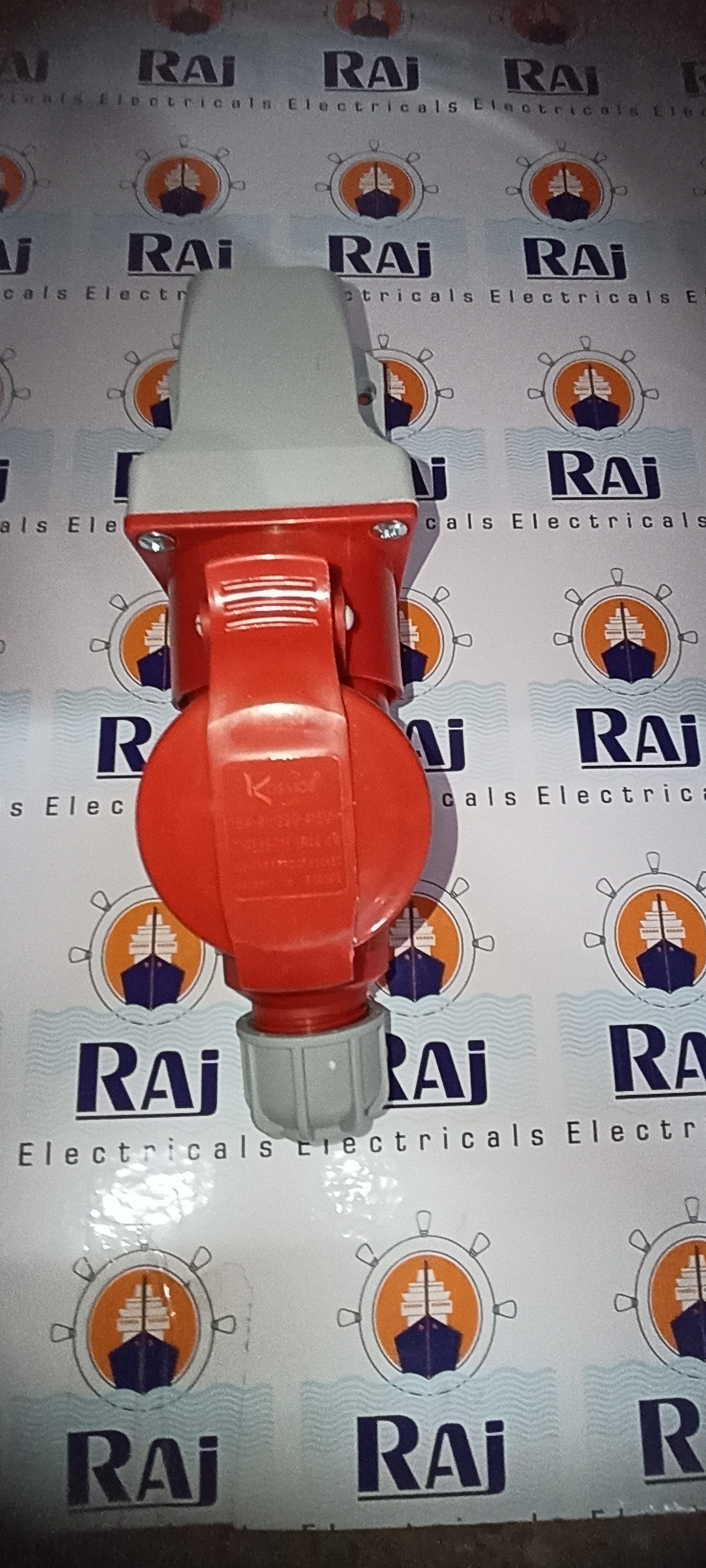

Raj Electricals Offering 16A Kosmos Company Pin Plug At Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Description :-

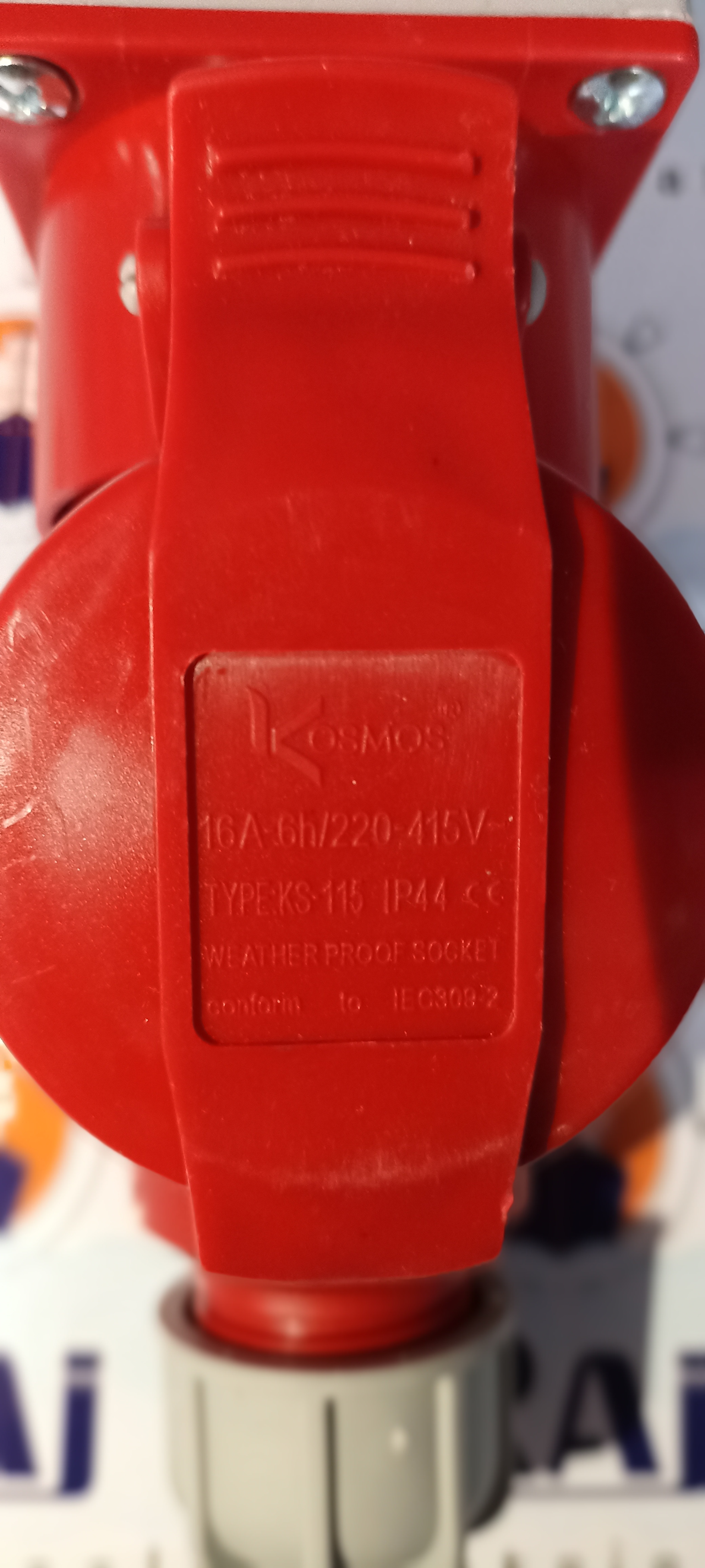

Type :- ks - 115

Make :- Kosmos

Ampere :- 16A

We Supply Our Products In All Over India And Also In Foreign Countries.

For More Details Contact : 9426838080.

Website: www.rajelectrics.com.

Email: raj_electricals@hotmail.com.

Engineered for Secure Connections

With sturdy brass contacts and a screw-terminal connection, this 16A pin plug ensures low contact resistance (less than 5 m) and a secure, high-conductivity connection, reducing the risk of loose contacts or overheating. The shockproof and insulated design enhances safety during installation and use.

Durability Meets Safety Standards

Our plug is rigorously built to achieve over 5000 mating cycles, using high-grade polycarbonate and brass materials. The V0 flame retardancy rating (UL94) and IP44 protection offer outstanding resistance against fire and water splashes, making it dependable for harsh environments.

Versatile Application and Easy Installation

Supporting single-phase power in both domestic and industrial environments, this plug fits standard 16A size sockets and supports up to 4 sq.mm wire size via cable mounting. Its glossy finish and color options (white/red) ensure it complements various setups.

FAQ's of 16 A PIN PLUG:

Q: How do I install the 16A PIN PLUG using the screw terminal connection?

A: To install, strip the insulation off the wire (up to 4 sq.mm), insert the exposed wire ends into the appropriate screw terminals inside the plug, and securely tighten the screws. Ensure all power is off during installation and follow standard safety procedures.

Q: What benefits does the V0 grade flame retardant and IP44 rating provide?

A: The V0 flame retardancy ensures the plug will not easily catch fire, while the IP44 rating protects against dust and water splashes. These features enhance safety and durability, allowing for reliable use both indoors and outdoors.

Q: Where can this 16A pin plug be used effectively?

A: This plug is ideal for domestic and industrial applications in India that require a high-current, shockproof, and durable connector. Its robust design is suitable for environments where insulation, flame resistance, and weather protection are priorities.

Q: What is the maximum wire size supported, and why is this important?

A: The plug supports wire sizes up to 4 sq.mm, allowing it to handle high current loads safely and efficiently. Using the proper wire size helps in avoiding overheating and ensures optimal performance.

Q: How does the plug maintain energy efficiency and safety?

A: With a power factor of 1.0 and efficiency of 95% or higher, the plug minimizes energy loss. Features like overheating protection, low contact resistance, and high-grade insulation contribute to safe and efficient operation.

Q: What is the expected lifespan or mechanical life of this pin plug?

A: The 16A PIN PLUG is rated for over 5000 mating cycles, ensuring a long operational life even in demanding environments, and reducing the frequency of replacements or maintenance.
