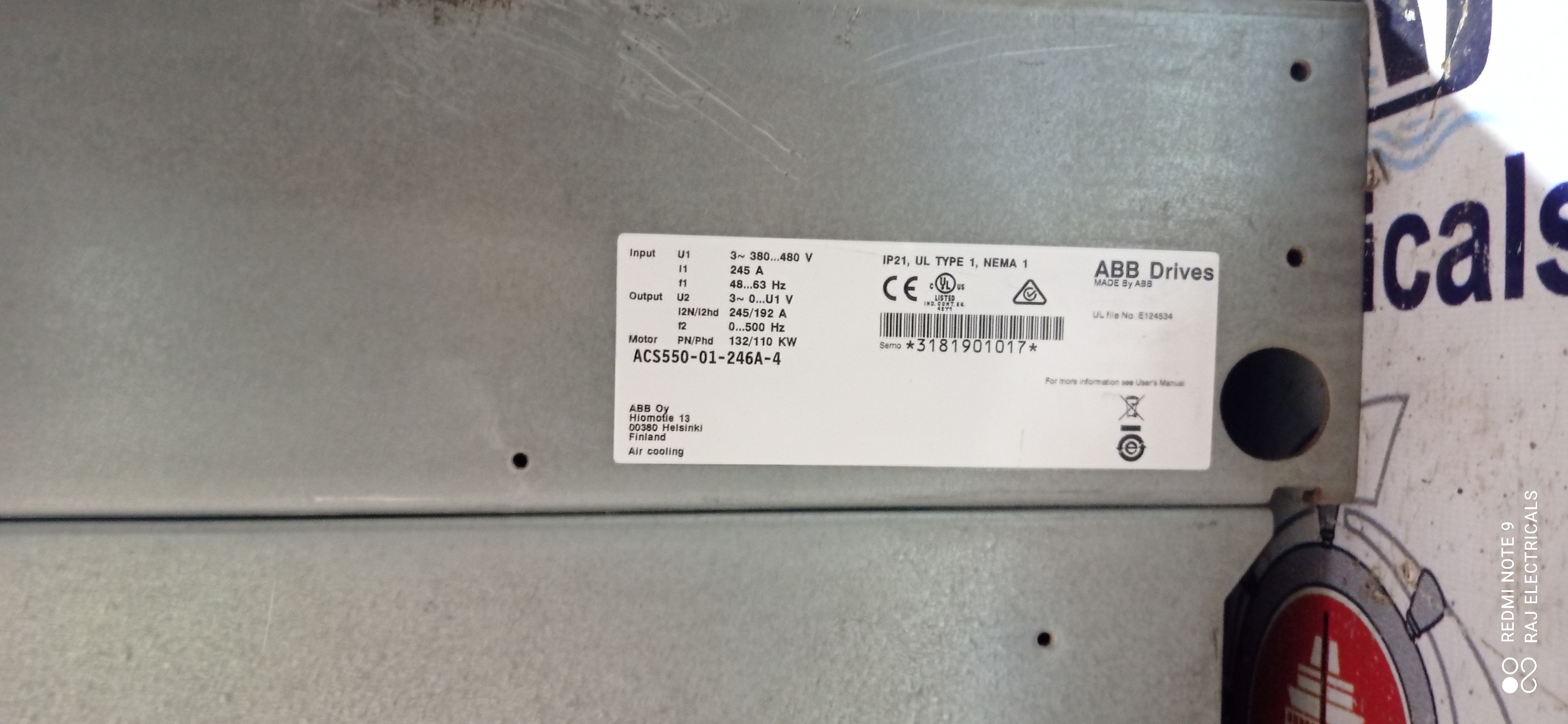

ABB ACS 550 150 HP AC DRIVE

Get a Price/Quote

ABB ACS 550 150 HP AC DRIVE Specification

Efficiency
Up to 98%

Humidity %
5 to 95% (non-condensing)

Insulation Material
High Grade Polymer

Mounting Type
Wall or Cabinet Mounting

IP Rating
IP21

Overheating Protection
Integrated Thermal Protection

Power Factor
0.98

Feature
Built-in EMC Filter, Intuitive Control Panel, Compact Design, User-Friendly Interface

Surface Finish
Powder Coated

Connector Type
Screw Terminal

Shape
Rectangular

Operating Temperature
-10C to +40C (no derating)

Product Type
AC Drive

Application
Industrial Motor Control, Pump, Fan, Conveyor, HVAC

Protection Level
Overvoltage, Undervoltage, Overcurrent, Short Circuit, Ground Fault

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
Optimized for Energy Saving Operation

Output Type
Three Phase Output

Color
Off White

Dimension (L*W*H)
300 x 237 x 780 mm

Weight
82 kg

Input Voltage
380-480 V AC, 3 Phase

Phase
Three Phase

Size
Standard ABB Enclosure

Connection Type
Terminal

Material
Metal Body with Plastic Components

Standards Compliance
CE, UL, cUL, RoHS

Communication Interface
Modbus RTU, Optional Fieldbus Modules

Digital Inputs
6 Programmable

Braking Unit
Integrated

Control Method
Scalar (V/f), Vector Control

Altitude Rating
Up to 1000 m without derating

Relay Outputs
2 (NO/NC)

Display Type
LCD Digital Display

Noise Level
<65 dB(A)

Cooling Method
Forced Air Cooling (Fan)

Output Power
150 HP (110 kW)

Analog Inputs
2 (0/4-20mA, 0-10V)

ABB ACS 550 150 HP AC DRIVE Trade Information

Payment Terms
Cash in Advance (CID)

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ABB ACS 550 150 HP AC DRIVE

An AC drive is a device used to control the speed of an electrical motor in order to: enhance process control. reduce energy usage and generate energy efficiently. decrease mechanical stress on motor control applications.

Exceptional Motor Control and Efficiency

The ACS 550 delivers precision motor control through both scalar and vector techniques, making it ideal for a wide array of industrial applications. Its energy-optimized operation enhances overall performance while reducing operational costs, supported by a high efficiency of up to 98%.

Integrated Features for Reliable Operation

With built-in EMC filtering, intuitive control panels, and comprehensive protection measures, this drive provides peace of mind and user-friendly handling. Its robust metal construction, plus forced air cooling, guarantee long-term reliability even in challenging environments.

Flexible Installation and Communication

Designed for effortless wall or cabinet mounting, the ACS 550 offers versatile connectivity via screw terminals and seamless integration options like Modbus RTU and optional fieldbus modules. This ensures broad compatibility and simple setup for modern industrial facilities.

FAQ's of ABB ACS 550 150 HP AC DRIVE:

Q: How does the ACS 550 AC drive optimize energy consumption during operation?

A: The ACS 550 is engineered with energy-saving strategies that adapt motor performance to demand, reducing power usage. Its up to 98% efficiency and advanced control methods ensure operations remain cost-effective and environmentally friendly.

Q: What control methods are supported by the ABB ACS 550?

A: The ACS 550 supports both scalar (V/f) and vector control methods. This dual capability offers precise speed and torque regulation for a diverse range of industrial motors, enhancing adaptability in various applications like pumps, fans, and conveyors.

Q: When should the integrated braking unit be used?

A: The built-in braking unit is ideal for applications with rapid speed changes or sudden stops, such as conveyors or elevators. It improves safety and extends drive life by efficiently dissipating excess energy generated during deceleration.

Q: Where can the ACS 550 drive be mounted?

A: The drive supports both wall and cabinet mounting, thanks to its compact, rectangular enclosure and IP21 protection. This versatility makes it suitable for installation in industrial facilities and equipment rooms with demanding operational requirements.

Q: What process is followed for setting up communication interfaces on the ACS 550?

A: Users can connect via the integrated Modbus RTU interface for straightforward communication. Additional fieldbus modules are optional, enabling flexible integration with existing automation networks and expanding the drive's connectivity.

Q: How does the ACS 550 protect against electrical faults and overheating?

A: Safety is ensured through integrated protection features such as overvoltage, undervoltage, overcurrent, short circuit, and ground fault safeguards. The drive also features built-in thermal protection to prevent overheating, enhancing operational reliability.

Q: What are the benefits of the user-friendly LCD digital display and control panel?

A: The intuitive LCD panel simplifies monitoring and control by displaying critical parameters and status information. This ensures fast setup, easy troubleshooting, and efficient adjustments for operators managing industrial processes.
